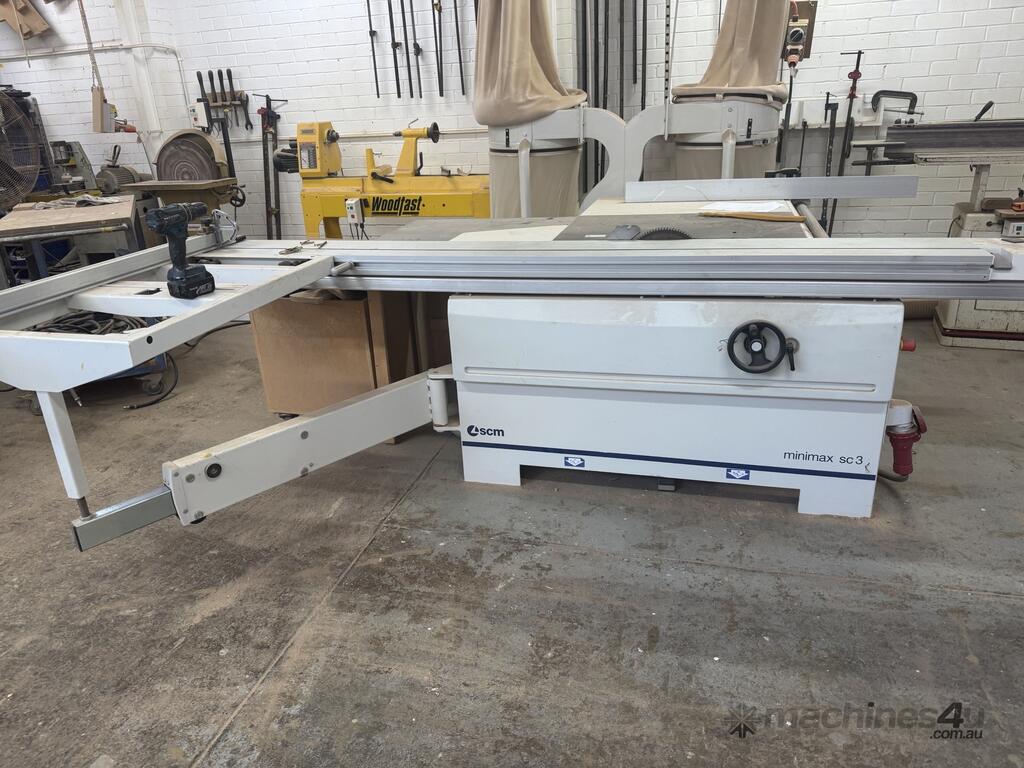

SCM scribing saw
Only 3 years old - in top condition
Dust extractor included
cuts 2400 x 1200 panel
located inner city Brisbane
Technical features sc 3c
Circular saw:
- cast iron saw-spindle moulder worktable dimensions [mm]840 x 560
- blades tilting 90° ÷ 45°
- max. saw blade diam. with scoring blade installed [mm]315
- max. saw blade projection from table at 90°/45° [mm]100/78
- max. squaring stroke [mm] 2600 (opt 2250)
- cutting width on parallel fence [mm]Current Stocks
Single Phase 1270mm
Three Phase 900mm
Other technical features:
- Single phase motors 2,2kW (3hp) 50Hz
- Three phase motors 5kW (6.6hp) 50Hz
- exhaust outlets diameter [mm] 120
