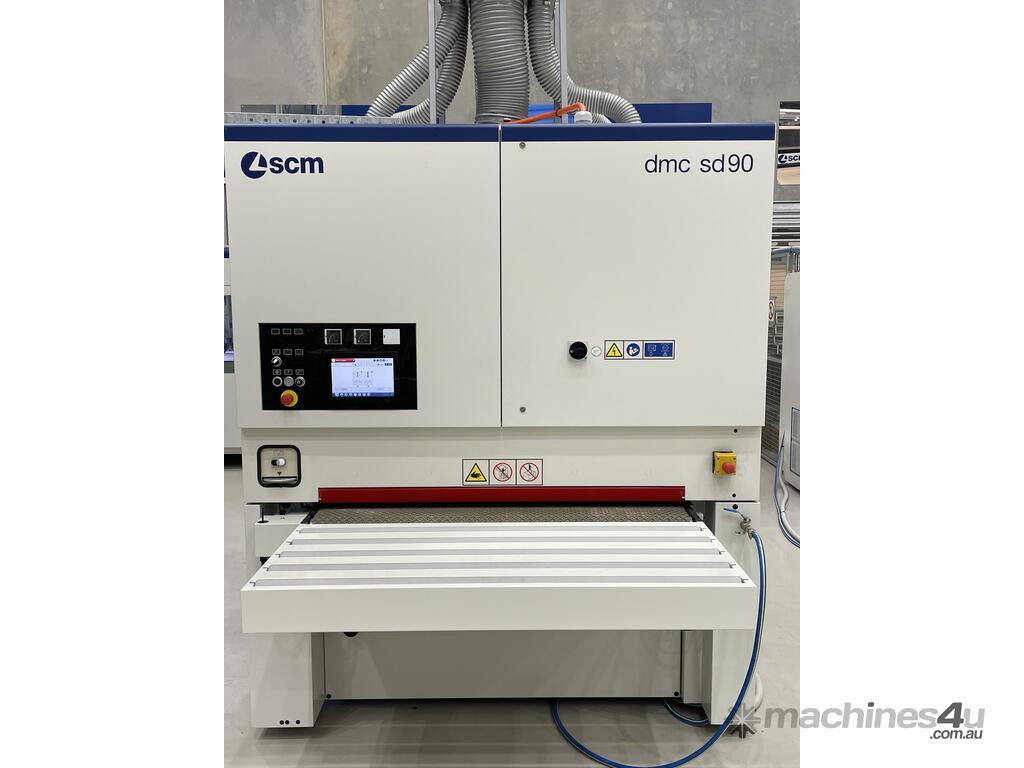

SCM DMC SD90 Wide Belt Sander for paint finishing - NSW Showroom Demo

#### SCM Sydney Showroom DMC SD90RT Demo Sale ####

The SCM Group DMC SD90RT Wide Sander is Proudly Made in Italy.

DMC is renown Worldwide as being a leader in Wide Belt Sanding Machines and Lines.

Maximum performance for companies increasing production

This model designed for the medium to high industrial companies that require high quality finish sanding requirements, by offering a wide range of technological solutions allowing the possibility of customising the machines compositions.

Advantages:

“MESAR 24” ELECTRONIC SECTIONAL PAD - THE BEST FINISH WITH ANY MATERIAL
Higher quality results due to the special shape of the sectors that allow the operator to intervene “softly” but also in an “aggressive” way, simply by varying the working pressure. The setting of the pad position and the possibility of using foils of
different thicknesses increases its versatility. A line of sensors detecting the work piece profile, automatically controls the
electronic pad intervention thus avoiding any possible damage when machining.

SUPERFINISHING UNIT: for sanding at the highest level
Uniform finish with the Chevron belt which improves the cooling of the abrasive action on the work piece, the wide contact surface and the copying capacity of the “MESAR” electronic pad. The unit is particularly suitable for the superfinishing of solid wood components, MDF panels that have been laminated, veneered or painted (opaque and polished).


10" Eye-S control: programming work becomes simple and effective
With LCD display and touch-screen function, it allows the complete and safe control of the machine, easily and intuitively.
The possibility to store up to 120 work programs to retrieve the machine settings most commonly used makes it perfect even for unskilled operators.

VACUUM TABLE with 4 kW motor - no slipping of the work peace (important for small and painted panels)

Composition:
– R320/30 - 30Sh big diameter soft rubber-coated sanding roller + oscillating blower
– “MESAR 24” electronic sectional pad with SUPERFINISH execution + oscillating blower

TECHNICAL SPECIFICATIONS
Working width mm 1350
Min/Max thickness to be machined ) mm 4 - 170
Sanding belt width/length mm 1370/2620
Motor power - 1st group kW 11 ( 2 speed)
Motor power - 2nd group kW 11 (with inverter)
Feed belt motor power kW 1.5 (with inverter)

Terms and Conditions
*Offer valid whilst stock lasts. Price does not include delivery and/or installation. All photos used are indicative only
