DEMO MODEL SCM Electronic Space Saving Programmable Tilting Panel Saw

SCM Group NSW TECHNOLOGY CENTRE DEMO FLOOR STOCK CLEARANCE
SAVE YOUR FLOOR SPACE Vs A STD PANEL SAW
COMPLETE WITH TILT AND A 3800mm Cut

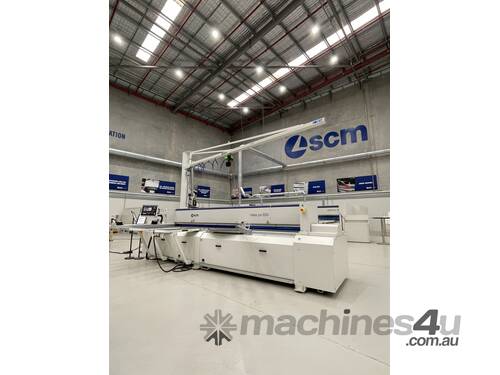

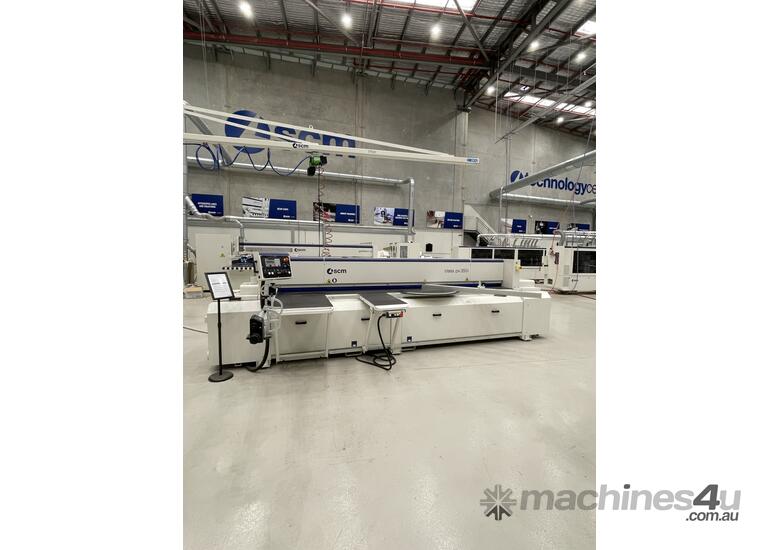

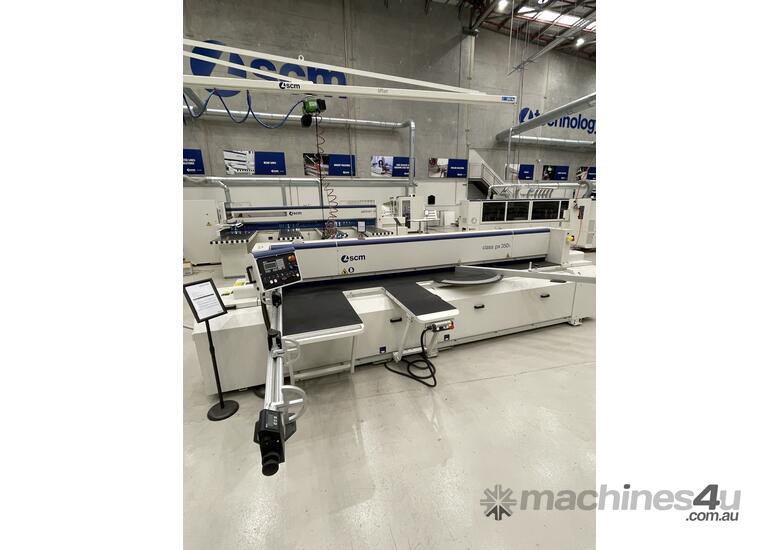

The SCM Class PX350i is an Electronic Tilting Panel Saw / Beam Saw for those who want a 3800mm cut using minimal Floor Space.

The Circular saw has a mobile carriage and the ability to tilt the blade up to 46°.
It's ability to operate with safety in mind is second to none.
Working space is reduced up to 50% compared to a traditional circular saw.

Optimal finish with the new saw unit with rigid structure which allows, with maximum ease, a perfect cut of veneered or solid wood panels, both at 90° and tilted up to 46°.

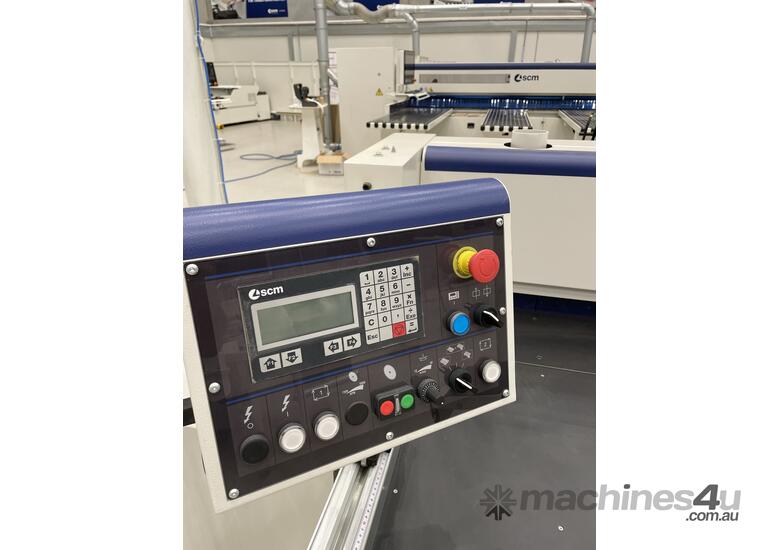

Simple and rapid programmed movement with the "Ready" mobile control panel.

Immediate positioning thanks to the double powered and programmed rear stop that ensures a quick and precise work piece positioning.
The Low Profile Rear Stop gives the ability to simply lift longer or wider panels over the stop reducing limitations.

Sturdy and reliable telescopic squaring fence with the tilted metric scale towards the operator and the 2 reversible stop: panels squaring up to 2500x3000 mm (3200x3200 mm as an option).
The fixed table of large dimensions guarantees a stable panel support when machining.

Technical data
class px 350i
maximum squaring stroke mm
blade tilting mm 0÷46°
maximum saw blade diameter (cutting) mm 350
maximum saw blade diameter (engraving + cutting) mm 300
max. saw blade projection (D350) from table at 90°/45° mm 105/72
max. saw blade projection (D300) from table at 90°/45° mm 80/50
blade rotation speed rpm 4000
cutting width on rear fence mm 1300
Other technical features
three-phase motor 5,5 kW 50 Hz
(5,5 kW 60 Hz)
exhaust hoods diameter mm 120 (1) - 100 (2)

Note: Photos for Illustrative purposes only
