SCM Formula Clean Air Dust Extraction Units

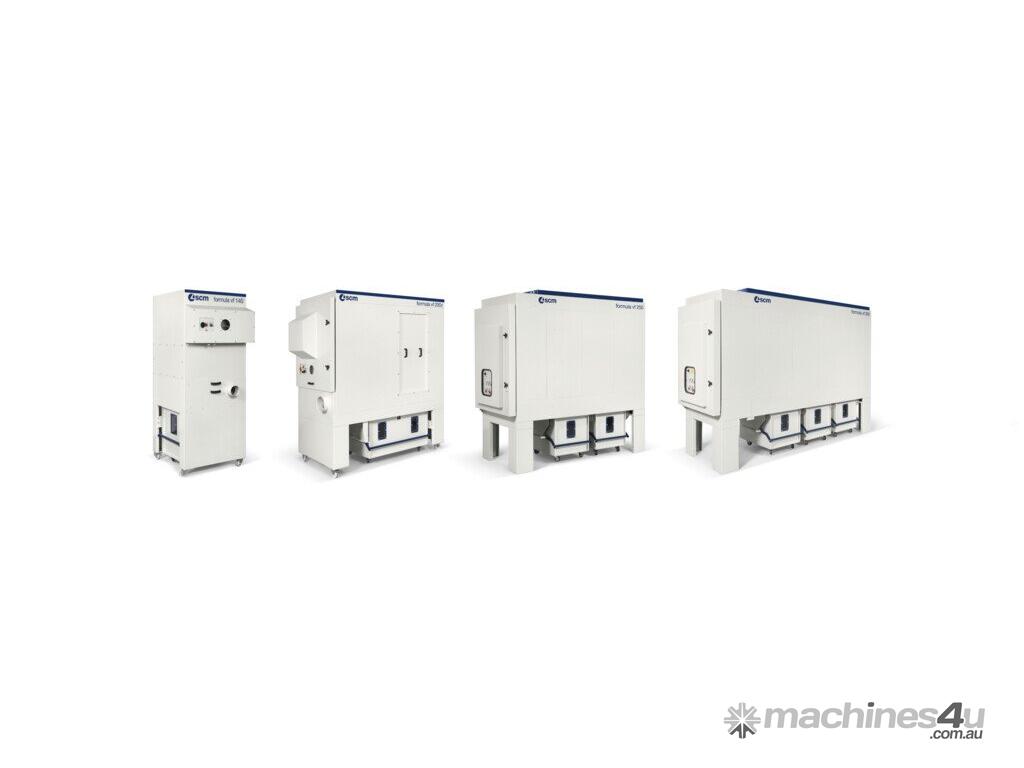

The SCM Groups VF Series clean air dust extractors are specially designed to work in the woodworking shops, guaranteeing a level of dust emissions lower than 0.1 mg / m3.
Thanks to their compact design and the possibility to be connected to more machines, they can fully substitute the standard centralized exhaust system.

Advantages

Risks prevention

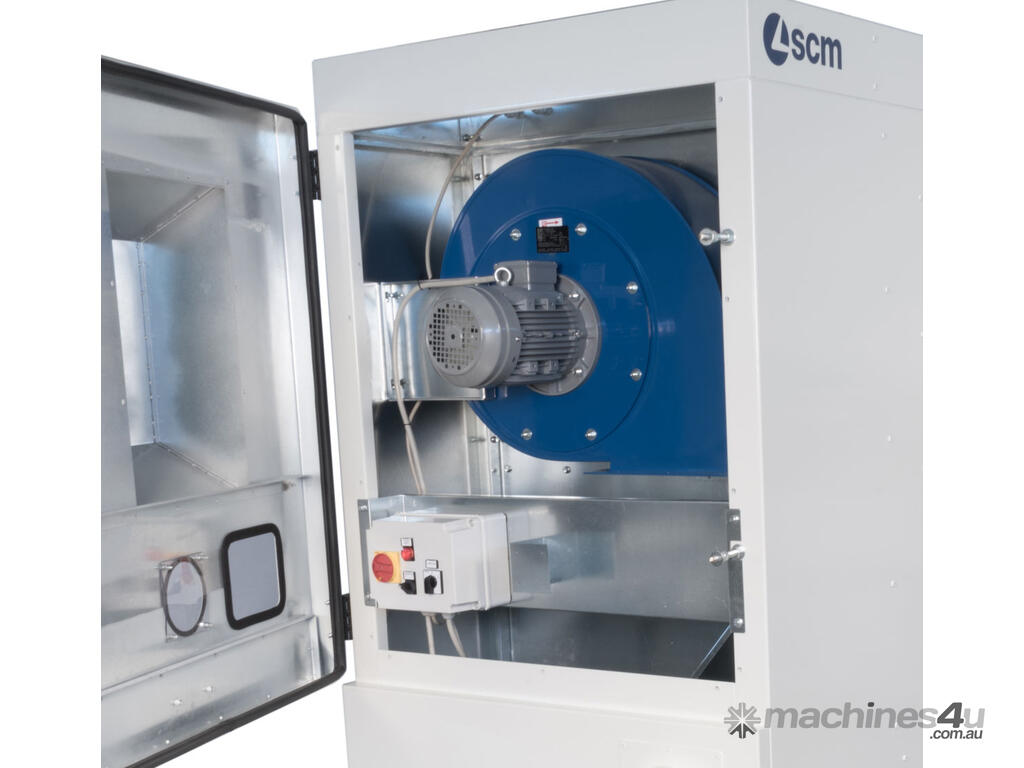

The fan is positioned at the end of the machine, in a specific protect area, far away from the high risk of explosion zone.

The vf 250 and vf 300 dust extractors are also equipped with an integrated powder fire-protection system.

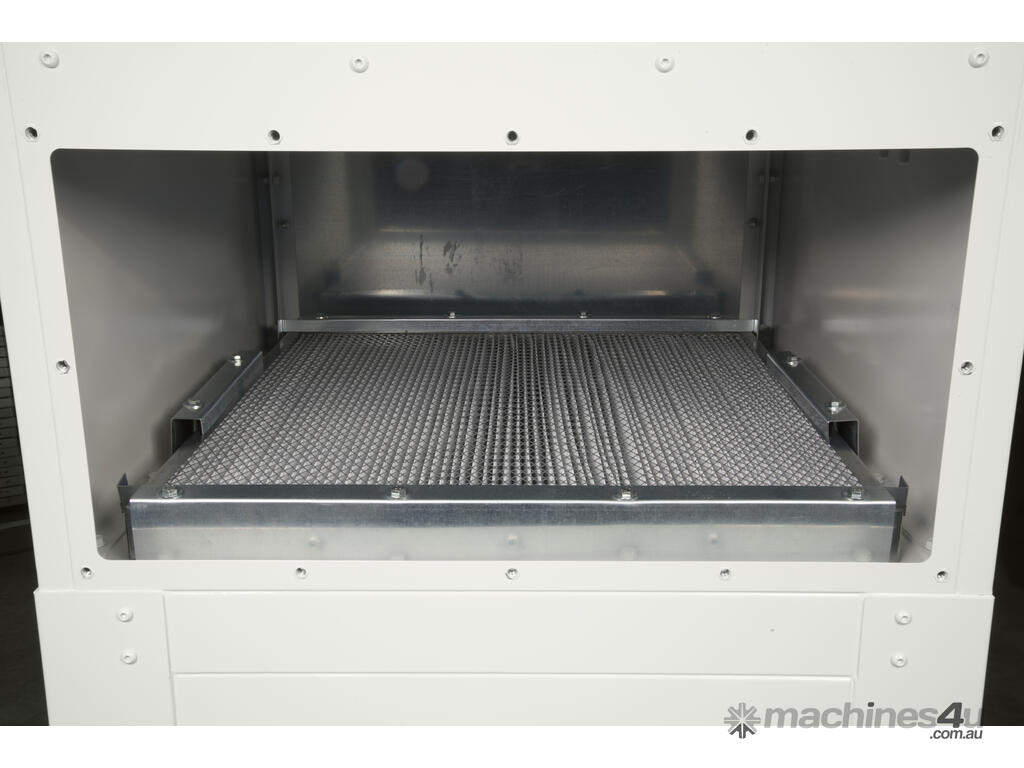

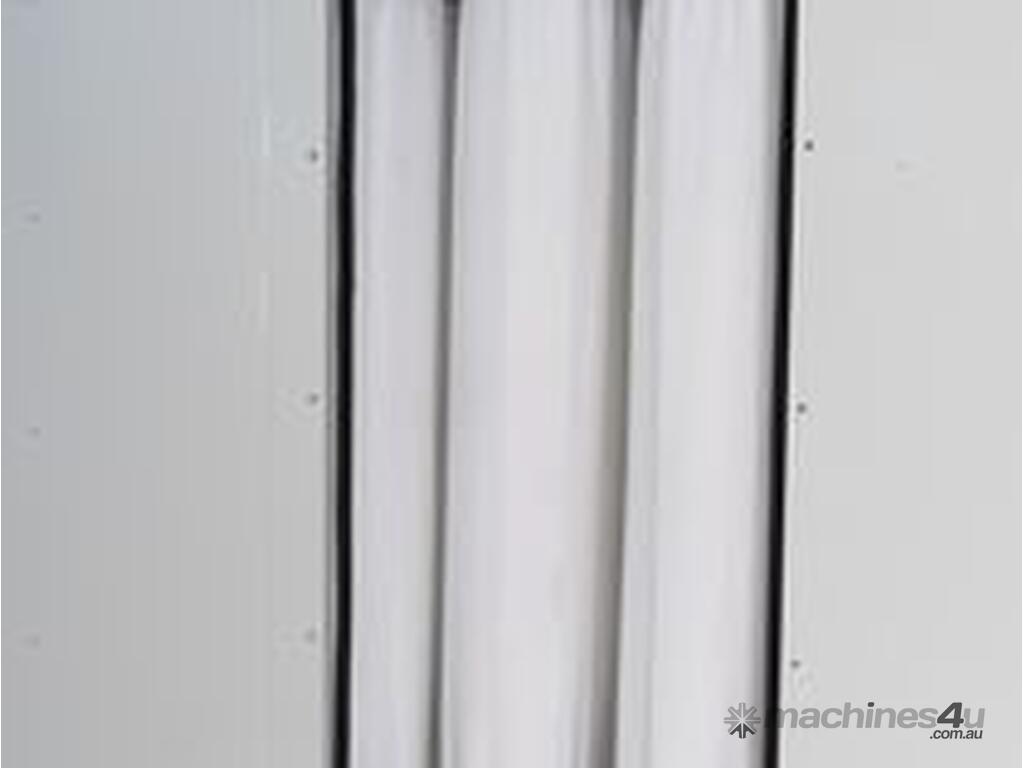

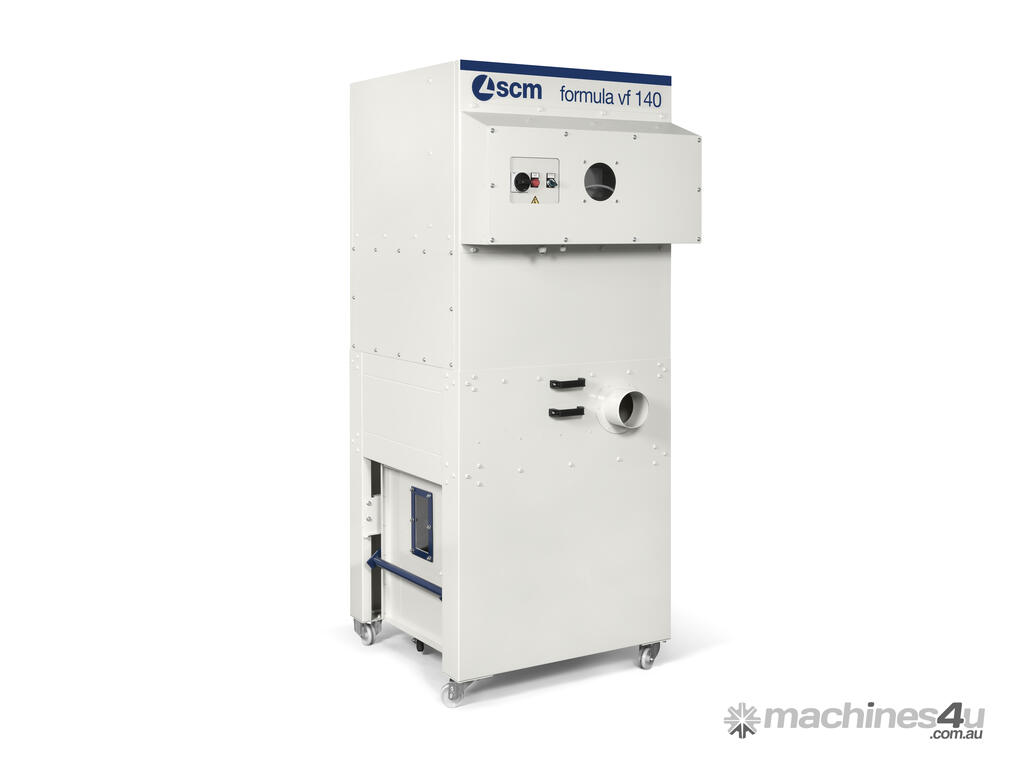

The vf 140 and vf 200c dust extractors are equipped with cylindric cartridge filters to reduce the machine overall dimensions, the vf 250 and vf 300 dust extractors use sleeve filters for the best filtering and cleaning efficiency.

Practicality first of all

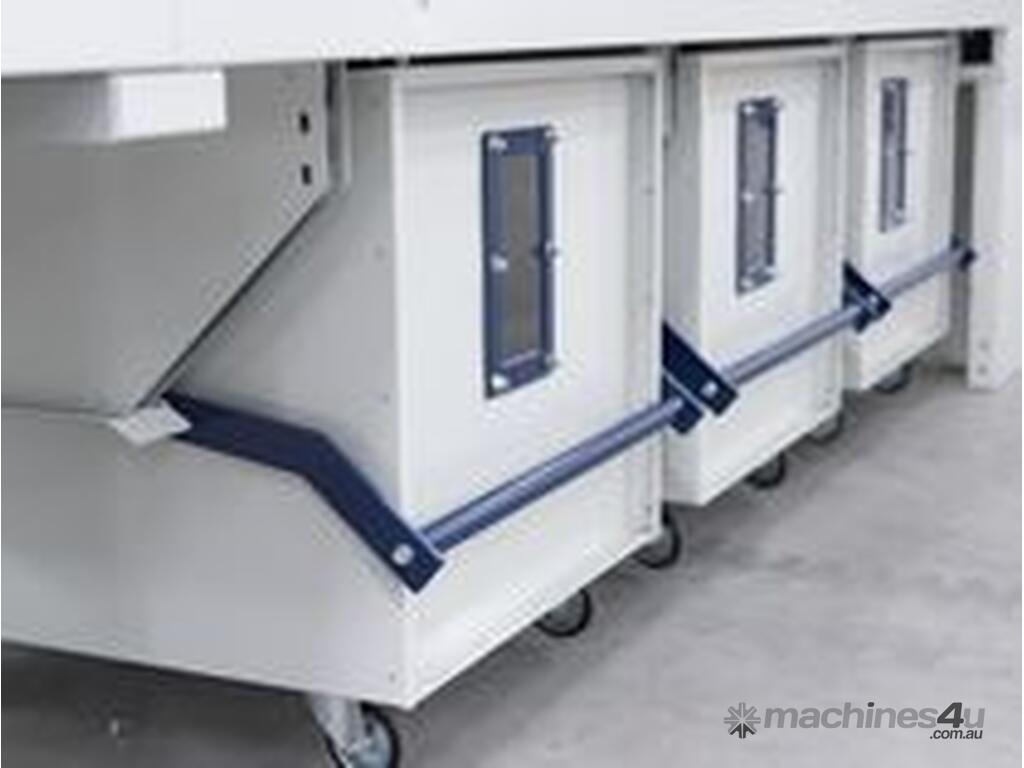

Easy to move thanks to the wheels below and equipped with devices to prevent the suction of the nylon bag by the fan.


Technical data VF 140 VF 200C VF 250 VF 300
Nominal air flow 20 m/s m³/h 1100 3000 4000 6000
Static pressure Pa 2200 2500 2800 3300
Max. air flow 20 m/s m³/h 3200 4600 6600 8000
Pressure max. air flow Pa 1570 1850 1600 1800
Exhaust outlet diameter mm 140 200 250 300
Filter surface area m^2 10 20 20 30
Antistatic filter ? ? ? ?
Chip volume litre 115 2x100 2 x 175 3 x 175

Three phase
