Massive, high-precision, professional band saws for the D.I.Y. woodworkers and the carpenters.

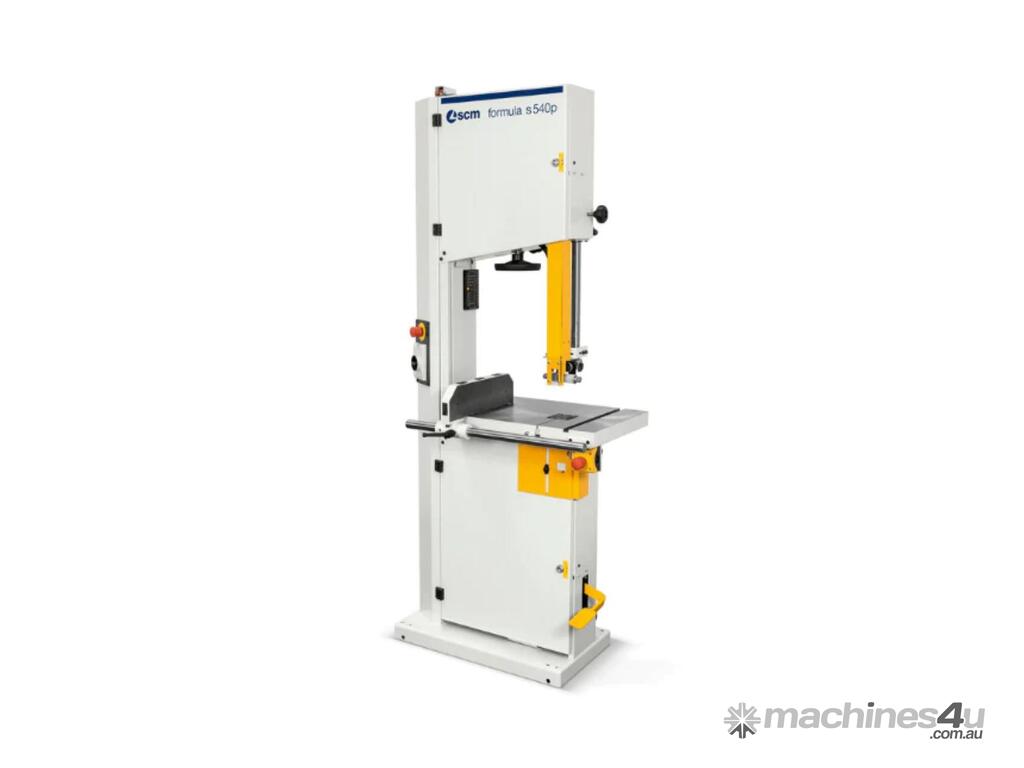

The S 540P is the big brother of the S 440p.
For those looking for single-phase power, but with a larger throat for increased resaw capacity, this is the machine for you.
With all of the features of its smaller brother, this bandsaw is for when you need to resaw up to 508mm of material. With the right blade, you can easily make your veneers from those big resaw project pieces!
Technical features
Worktable dimensions
520 x 720mm
Cast iron saw wheels diameter
540mm
Saw wheels width
38mm
Max. cutting height (inches)
500mm (20')
Max. cutting width
520mm
Worktable tilting (CE)
0° ÷ 45° (20°)
Min./max. blade dimensions
6/35mm
Standard three-phase motor
2,2kW 3hp 50Hz
Exhaust outlet diameter
No. 2 x 120mm
Additional information
Weight: 368 kg
Dimensions: 215 × 77 × 100 cm
