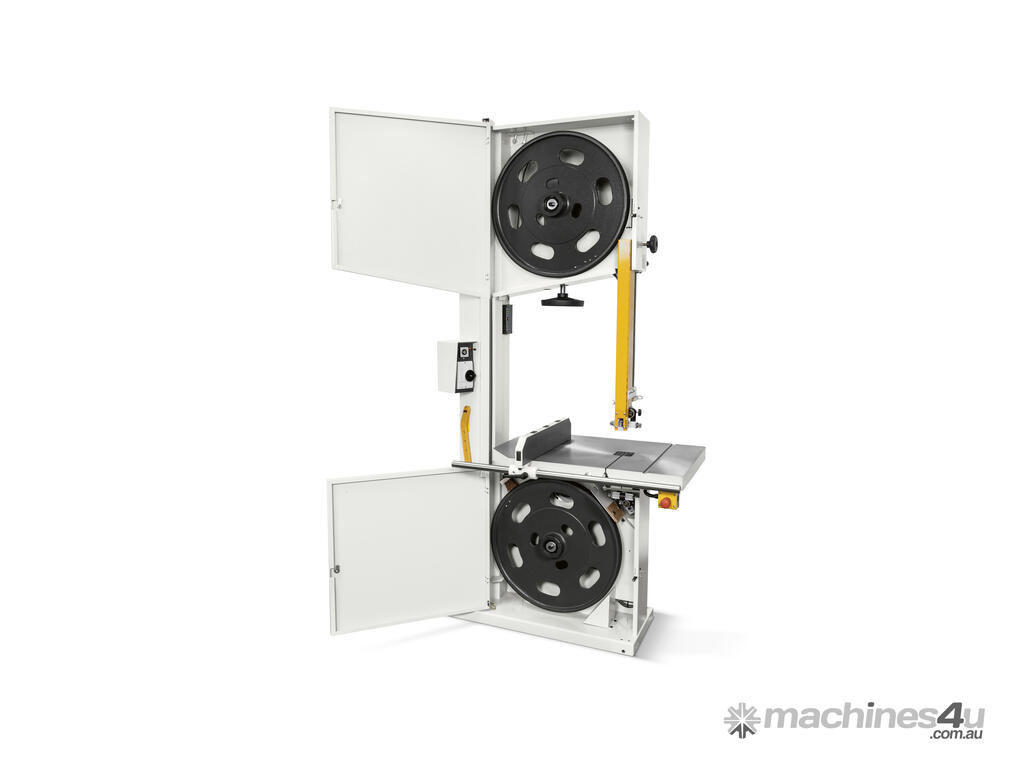

SCM Formula S740P Bandsaw

SCM Groups S740P bandsaws are made in Italy with Full CE Safety Certification.
Stocked in Australia

Massive, high-precision, professional band saws for the D.I.Y. woodworkers and the carpentries.

Advantages

Solidity and sturdiness
The large dimensioned cast iron saw wheels, as well as the worktable, running on sealed for life ball bearings.

Safety first
Total safety machining with telescopic protections with rack-work to the blade.

Finish quality

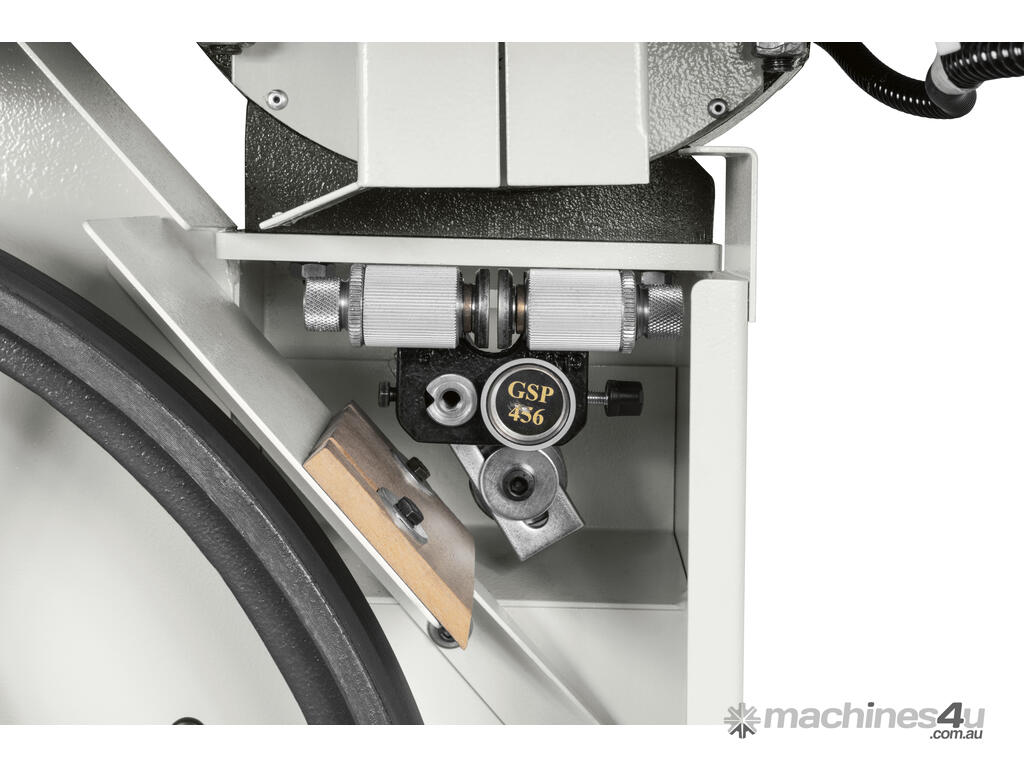

A perfect cut result is assured by the top and bottom high precision blade guides.
Practical machines suitable also to perform straight and tilted cuts on wood, plastic and aluminum.

Technical data
formula s 440p s 540p s 640p s 740p s 840p s 940p
Worktable dimensions mm 420 x 578 520 x 720 600 x 885 710 x 1000 800 x 1160 800 x 1250
Cast iron saw wheels diameter mm 440 540 640 740 840 940
Saw wheels width mm 33 38 38 40 45 54
Max. cutting height (inches) mm 440 (18") 500 (20") 600 (24”) 450 (18”) 540 (21”) 560 (22”)
Max. cutting width mm 425 520 620 720 820 910
Worktable tilting (CE) 0° ÷ 45° (20°)
Max. blade length mm 3950 4560 5220 5420 6110 6710

Exhaust outlets diameter mm N.2 x 120 N.2 x 120 N.2 x 120 N.2 x 120 N.2 x 140 N.2 x 140
