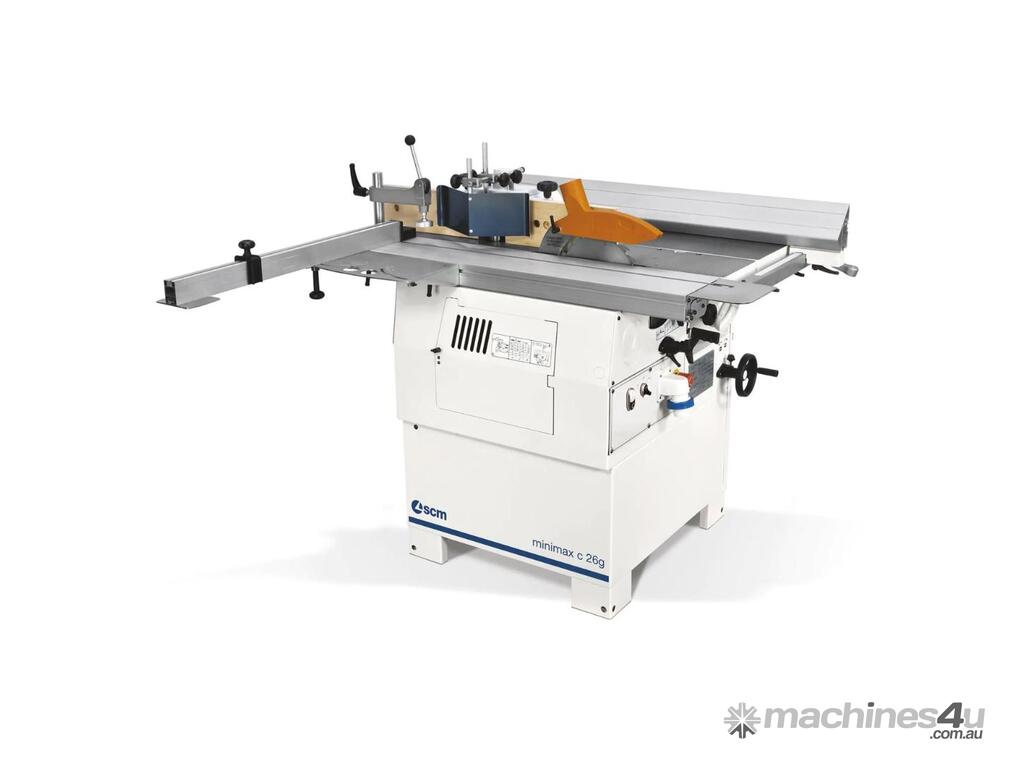

Universal combined machine with all minimax quality, at the most affordable price, ideal for demanding hobbyists and crafts woodworking workshops.
Planer
Useful working width: 260mm
Cutter block diameter (mm)/n. standard knives: 62mm
Max. stock removal: 3mm
Surfacing tables total length: 1040mm
Thicknessing table dimensions: 450 x 260mm
Feed speeds on thicknesser: 6 m/min
Min. ÷ max. working height on thicknesser:
3 ÷ 230 mm
Circular saw
Cast iron saw-spindle moulder worktable dimensions: 1024 x 224mm
Blades tilting: 90° ÷ 45°
Max. saw blade Ø with scoring blade installed: 250mm
Max. saw blade projection from table at 90°/45°: 80/64 mm
Max. squaring stroke: 1200mm
Cutting width on parallel fence: 500mm
Spindle moulder
Max. useful spindle length: 75mm
Spindle moulder speeds (at 50 Hz):
5000/7500 rpm
Max. tool diameter when profiling: 160mm
Max. Ø of tool lowered under the table at 90°: 145mm
Additional information
Single-phase motors: 1.8kW (2,5hp) 50Hz (15amp)
Exhaust outlet diameter: 120mm
Spindle moulder available dimensions:
30mm (11/4')
Weight: 267kg
Dimensions: 130 x 93 x 112 cm
