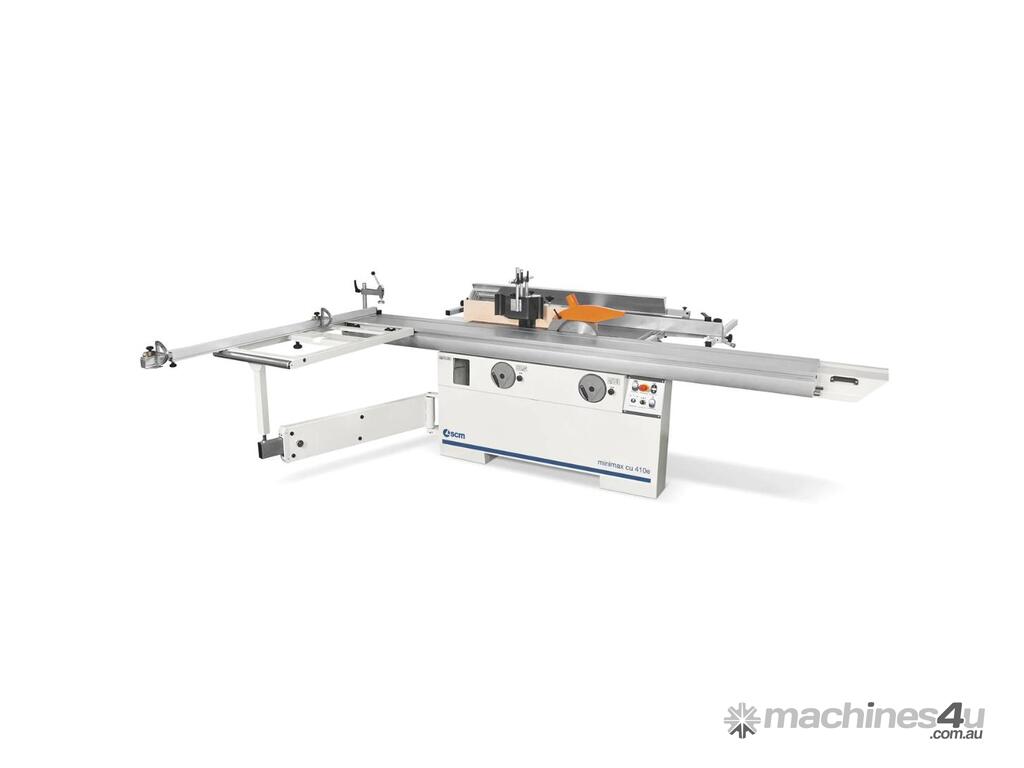

Universal combined machine with all minimax quality, at the most affordable price, ideal for demanding hobbyists and crafts woodworking workshops.
Planer
Useful working width: 410mm
Cutter block diameter (mm)/n. standard knives: 87/3
Standard knives dimensions: 410 x 30 x 3mm
Max. stock removal: 5mm
Surfacing tables total length: 2000mm
Thicknessing table dimensions: 423 x 775mm
Feed speeds on thicknesser: 6/12 m/min
Min. ÷ max. working height on thicknesser:
3 ÷ 230 mm
Min. working length on thicknesser: 160mm
Circular saw
Cast iron saw-spindle moulder worktable dimensions: 1250 x 430mm
Blades tilting: 90° ÷ 45°
Max. saw blade Ø with scoring blade installed: 315mm
Max. saw blade projection from table at 90°/45°: 100/71 mm
Max. squaring stroke: 2600mm (opt 3200)
Cutting width on parallel fence: 900mm (round bar option)
Spindle moulder
Max. useful spindle length: 125mm* (90mm with interchange opt)
Spindle moulder speeds (at 50 Hz):
3500/6000 rpm
8000/10,000 rpm
Max. tool diameter when profiling: 210mm
Max. Ø of tool lowered under the table at 90°: 240mm
Additional information
Thee-phase motors: 4kW (6.6hp) 50Hz
Exhaust outlet diameter: 120mm
Spindle moulder available dimensions:
30, 32, 35, 40 and 50mm
3/4' – 1' – 1 1/4'
Weight: 1017kg
Dimensions: 293 x 162 x 111 cm
