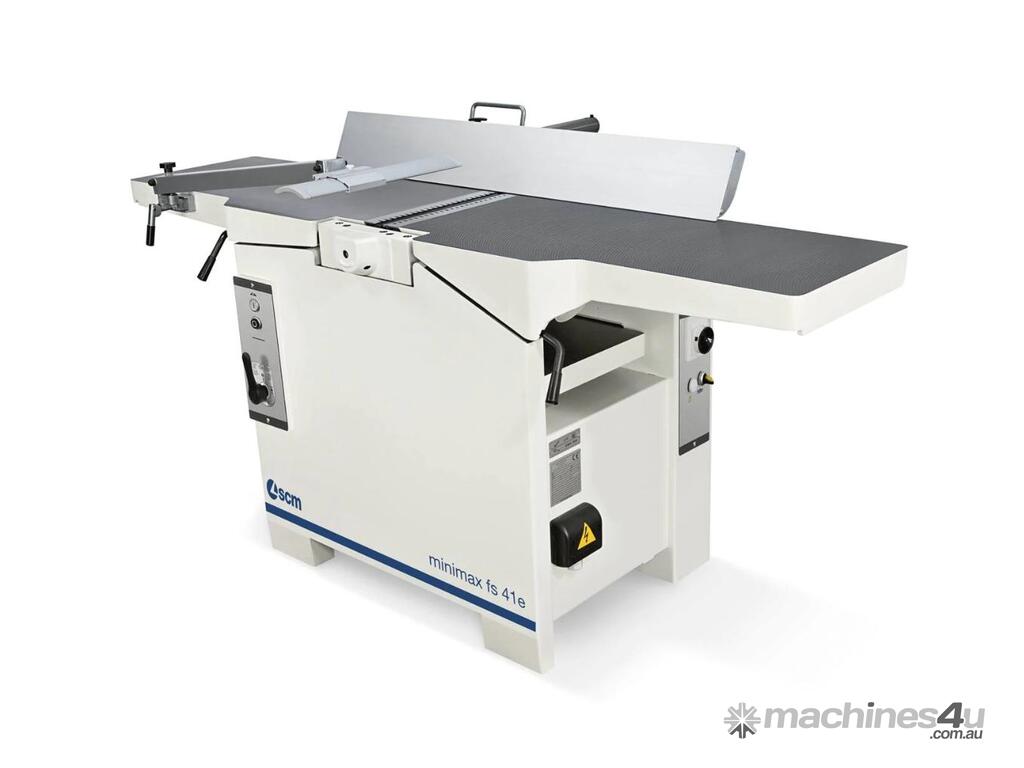

Surfacing-thicknessing machine for the demanding craftsmen and carpentries, for a high-flexible production with an “elite” finishing.
Technical features
Planer
Useful working width:
410mm
Cutter block diameter:
87mm
Max. stock removal:
5mm
Surfacing table total length:
2000mm
Thicknessing table dimensions:
423 x 775mm
Feed speeds on thicknesser:
6/12 m/min
Min. ÷ max. working height on thicknesser:
3 ÷ 230
Min. working length on thicknesser:
160mm
Three Phase Version:
5kW (6,6hp) 50Hz
Single Phase Version:
3kW (4hp) 50Hz
Exhaust outlets diameter:
120mm
Additional informtion
Weight: 466 kg
Dimensions: 210 x 88 x 110cm
