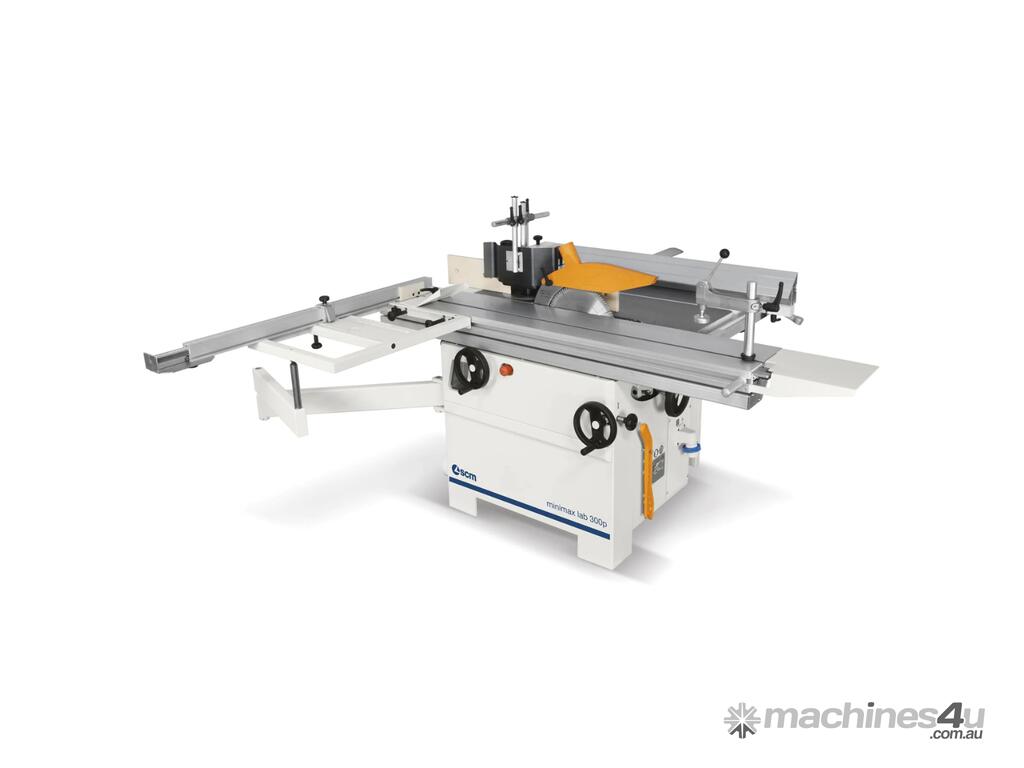

Universal combined machine with all minimax quality, at the most affordable price, ideal for demanding hobbyists and crafts woodworking workshops.
Planer
Useful working width: 300mm
Cutter block diameter (mm)/n. standard knives: 72mm/3
Standard knives dimensions: 300 x 30 x3mm
Max. stock removal: 3mm
Surfacing tables total length: 1300mm
Thicknessing table dimensions: 450 x 300mm
Feed speeds on thicknesser: 7 m/min
Min. ÷ max. working height on thicknesser:
3 ÷ 230 mm
Circular saw
Cast iron saw-spindle moulder worktable dimensions: 1020 x 325mm
Blades tilting: 90° ÷ 45°
Max. saw blade Ø with scoring blade installed: 315mm
Max. saw blade projection from table at 90°/45°: 100/78 mm
Max. squaring stroke: 1600mm
Cutting width on parallel fence: 800mm
Spindle moulder
Max. useful spindle length: 100mm* (70mm with 3/4 spindle)
Spindle moulder speeds (at 50 Hz):
3500/7000/10.000 rpm
Max. tool diameter when profiling: 210mm
Max. Ø of tool lowered under the table at 90°: 180mm
Additional information
Thee-phase motors: 4kW (5.5hp) 50Hz
Single-phase motors: 2.2kW (3hp) 50Hz
Exhaust outlet diameter:
120mm
Spindle moulder available dimensions:
30, 32, 35, 40 and 50mm
Weight: 485kg
Dimensions: 195 x 115 x 118 cm
