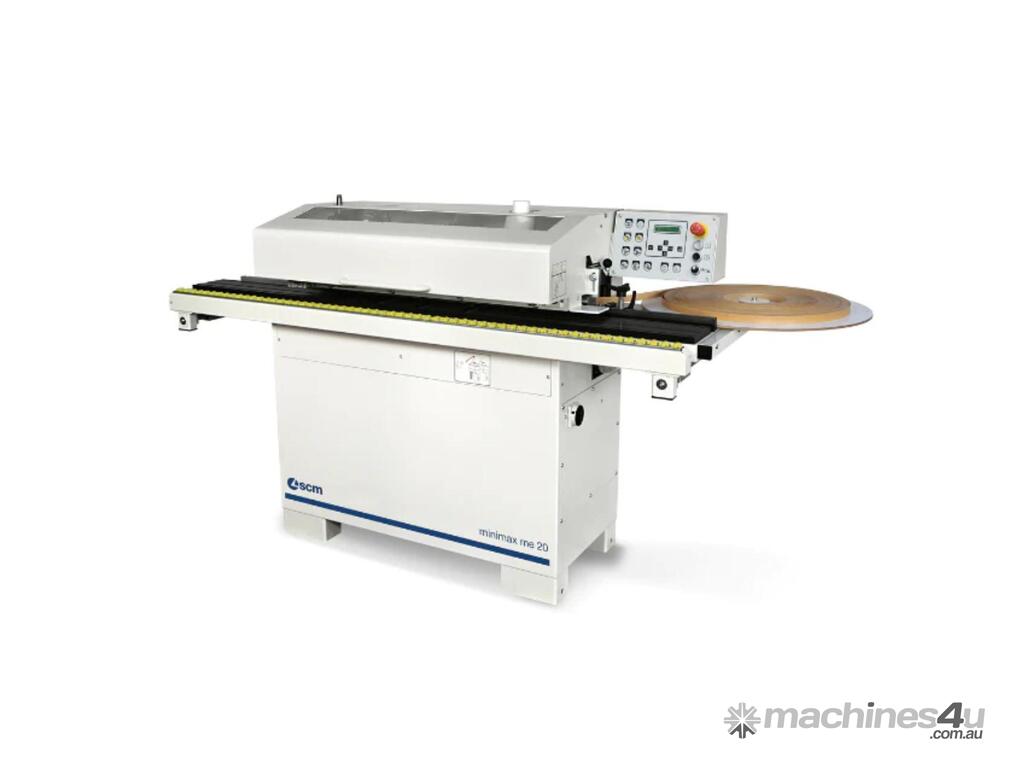

SCM Minimax ME20 Hot Melt Edgebander

Technological solution, for professional craftsmen and joineries, to edge band with an amazing easiness.

Technical features


Worktable dimensions
1950 x 180mm

Worktable height
904mm

Thickness of rolled edges
0,4 ÷ 2 mm

Max. thickness of edges in strips
5mm

Min. ÷ max. working height
12 ÷ 50 mm

Min. panel length/width with rolled edge
180/65mm

Min. panel length (frontal end cutting only)
120mm

Feed motor power S1
0,25kW

Feed speed
6 m/min

Pneumatic operating pressure
6,5 bar

Operating temperature
190°C

Exhaust outlet diameter (base)
120mm

Exhaust outlet diameter (glue pot)
50mm

Glue pot unit

Motor power S1
0,18kW

Glue capacity
0,5kg

Trimming unit

Motor power S1
0,55kW

Widia cutters
Ø 75 mm Z4

Cutters rotation speed
12.000 rpm

Additional information

Weight: 360kg
Dimensions: 210 x 76 142 cm
