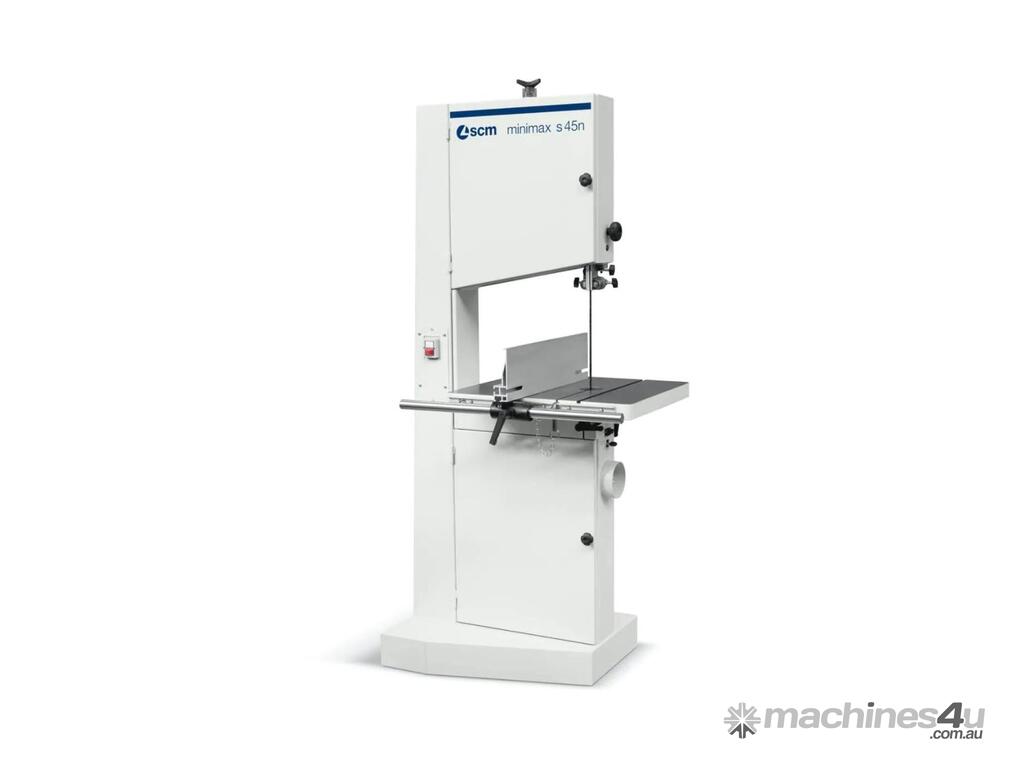

SCM Minimax S45N Bandsaw

The integral parts of this bandsaw are what sets it apart.

Fitted with a large, oversized worktable, the precise movements and modern design have made the S45N the reference point

Key features
450mm diameter wheels
3hp, 2.2kW 240V motor
440mm cutting width
300mm cutting width

The integral parts of this bandsaw are what sets it apart. The cast iron wheels and worktable guarantee a solid working platform. Combine this with the high precision top and bottom blade guides (fully adjustable) and you have a machine that gives a beautiful, true cut. A large anodised aluminium fence gives a solid reference point when sawing.

Technical features

Worktable dimensions
600 x 520mm

Worktable height from floor
900mm

Cast iron saw wheels diameter
450mm

Saw wheels
700 rpm

Max. cutting height
300mm

Max. cutting width
440mm

Worktable tilting (CE)
0° ÷ 20°

Min./max. saw blade length
3690/3742 mm

Min./max. blade dimensions
6 x 0,5/25 x 0,5mm

Motor power Single Phase (Model S45N1)
2.2kW (3hp) 50Hz (15 Amp Plug)

Motor power Three Phase (Model S45N)
3kW (4hp) 50Hz

Exhaust outlet diameter
120mm

Additional information
Weight: 196 kg
Dimensions: 191 × 70 × 100 cm
