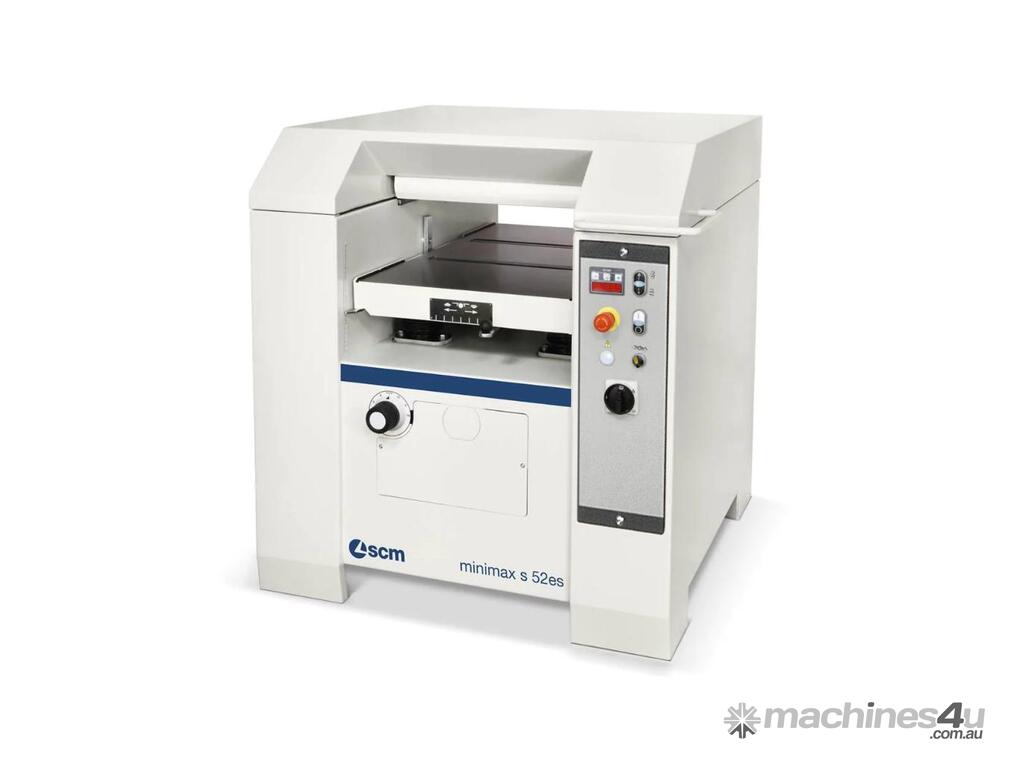

The new Minimax S52 Elite S thicknessing planer with 520 mm working width, professional, massive and compact, for a high-flexible production; ideal for the demanding craftsman and carpentries.
Technical features
Useful working width:
520mm
Cutter block diameter (with standard knives):
120/4 (mm)/n
Standard knives dimensions:
520 x 30 x 3mm
Max. stock removal:
5mm
Thicknessing table dimensions:
520 x 850mm
Feed speed on thicknesser:
5/8/12/18 m/min
Min. ÷ max. working height on thicknesser:
3 ÷ 240
Min. working length on thicknesser:
220mm
Three-phase motors:
7kW (9,5hp) 50Hz
Exhaust outlets diameter:
120mm
Additional information
Weight: 558kg
Dimensions: 123 x 123 x 112cm
