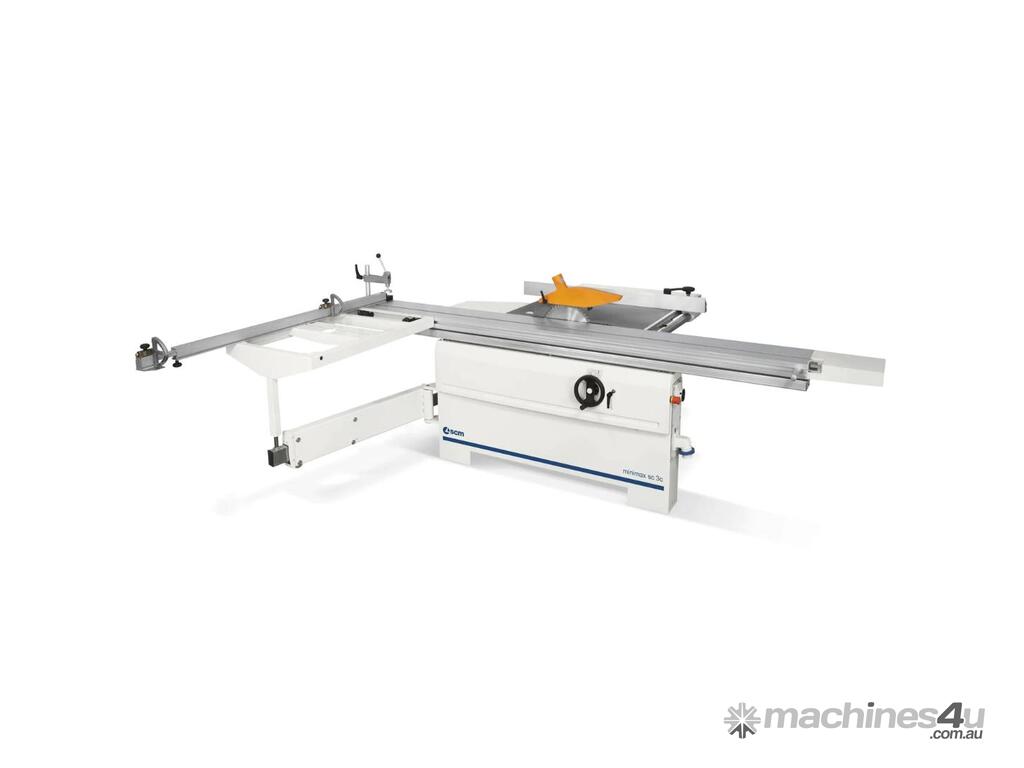

The most compact sliding table saw that can handle a full-sized sheet.
Most board manufacturers make their standard sheet size 2400x1200mm (8'x4'). This means you need an effective way of ripping down a 2400mm length to ensure you get the best return on your panel. With its 2660mm sliding table stroke, the SC3 Classic does this easily. You'll get the best return from any faced boards, like melamine, veneers and high gloss finishes.
The large crosscut fence with 2 flip over stops and oversized outrigger support table make using this machine even easier.
Features
Aluminium sliding table 2660mm stroke
300mm blade capacity
Scoring saw to minimise chipping and breakout.
900mm ripping capacity to the right of the blade
240V, 3hp Single phase motor
The MiniMax sliding table saw system gives a smooth slider, that is accurate every time. The table runs right next to the main blade to ensure your panel does not get scratched.
Technical features
Circular saw
Cast iron saw-spindle moulder worktable dimensions:
840 x 560mm
Blades tilting:
90° ÷ 45°
Max. saw blade diam. with scoring blade installed
315mm
Max. saw blade projection from table at 90°/45°
100/78mm
Max. squaring stroke
2600mm (opt 2250)
Cutting width on parallel fence
1270mm
Single phase motors
2,2kW (3hp) 50Hz
Three phase motors
5kW (6.6hp) 50Hz
Exhaust outlets diameter
120mm
Additional information
Weight: 515 kg
Dimensions: 280 × 108 × 116 cm
