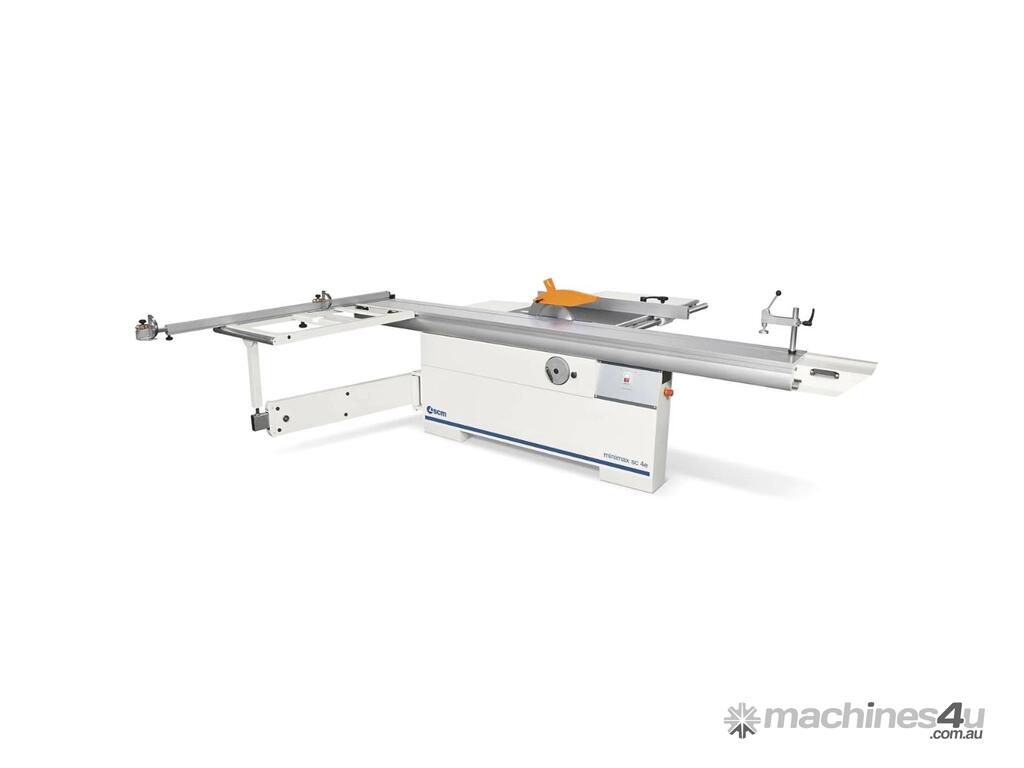

Solid cast iron saw unit with double trunnions and independently adjustable scoring unit. Same 1270 mm rip capacity and micro-adjustable rip fence as all other Minimax sliders. With 3200mm sliding table. SCM’s #1 selling sliding table saw.
A perfect cut result is guaranteed by the saw unit constituted by a mighty, cast-iron structure. Great workpiece stability during machining with the large squaring frame, dimensions 1100 x 650 mm. Customisation for every use with an anodised aluminium sliding table 3200 mm stroke.
The elite series has proven itself in Australian cabinet shops for many years. With features normally found on much more expensive machines, the MiniMax SC4E can be yours for a fraction of the cost. See for yourself why the SC4 Elite 3200mm machine stands in a class of its own.
Technical features
Cast iron worktable dimensions:
840mm x 560mm
Blades tilting: 90° ÷ 45°
Max. saw blade Ø with scoring blade installed:
315mm
Max. saw blade projection from table at 90°/45°:
100/71mm
Squaring stroke (standard): 3200mm
Cutting width on parallel fence (standard):
1270mm
Three-phase motor (seperate scoring saw motor):
4kW (5.5hp) 50Hz Brake Motor + Scoring Saw
Exhaust outlet diameter on base: 120mm
Exhaust outlet overhead gaurd: 80mm
Dust consumption [Ø 120 + Ø 80]: 1647 m³/h
Additional information
Weight: 651kg
Dimensions: 280 × 108 × 116 cm
