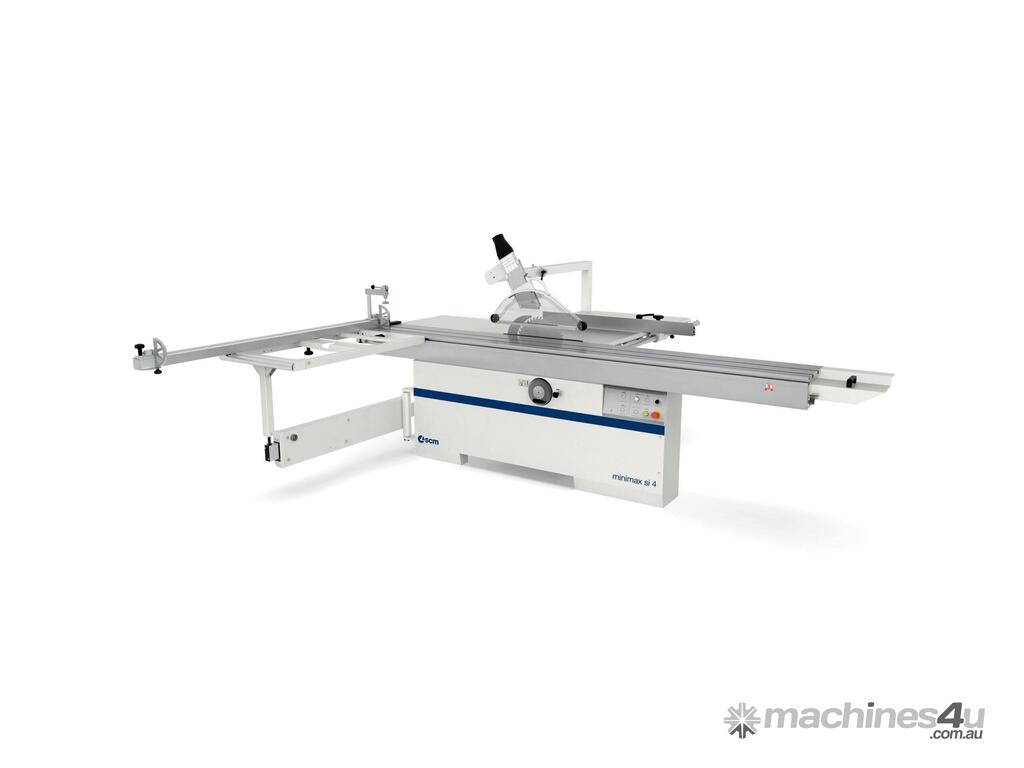

The Minimax SI 4 is the latest generation circular saw from SCM, replacing earlier models including the SC 4E, SI 315es and SI 400es. Built around a heavy-duty cast-iron saw unit with dovetail lift system, the SI 4 ensures unmatched stability and accuracy even under continuous use.
Technical features
Circular saw
Cast iron saw-spindle moulder worktable dimensions:
840 x 560mm
Blades tilting:
90° ÷ 45°
Max. saw blade diam. with scoring blade installed
315mm
Max. saw blade projection from table at 90°/45°
100/78mm
Max. squaring stroke
2600mm (opt 2250)
Cutting width on parallel fence
1270mm
Single phase motors
2,2kW (3hp) 50Hz
Three phase motors
5kW (6.6hp) 50Hz
Exhaust outlets diameter
120mm
Additional information
Weight: 515 kg
Dimensions: 280 × 108 × 116 cm
