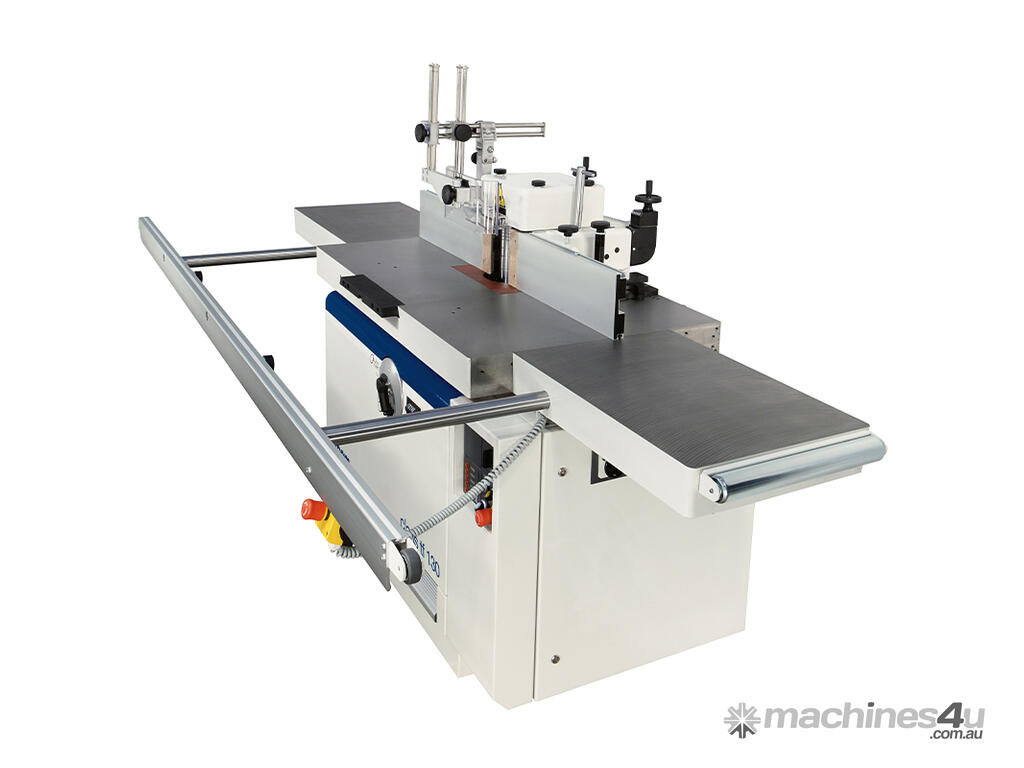

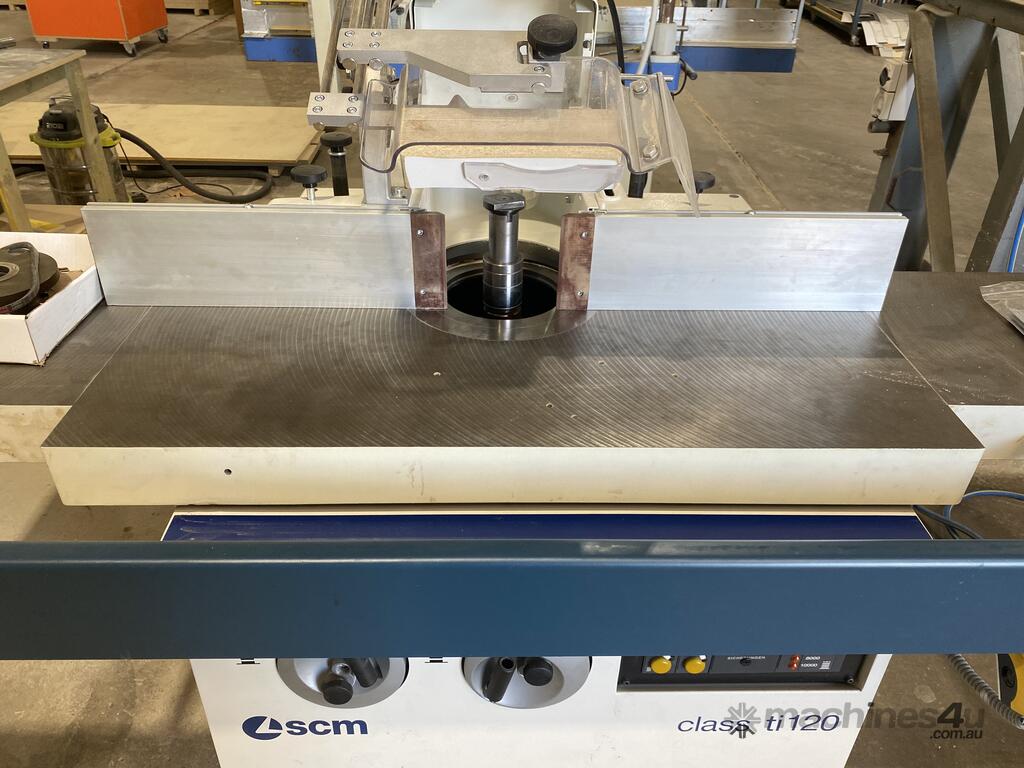

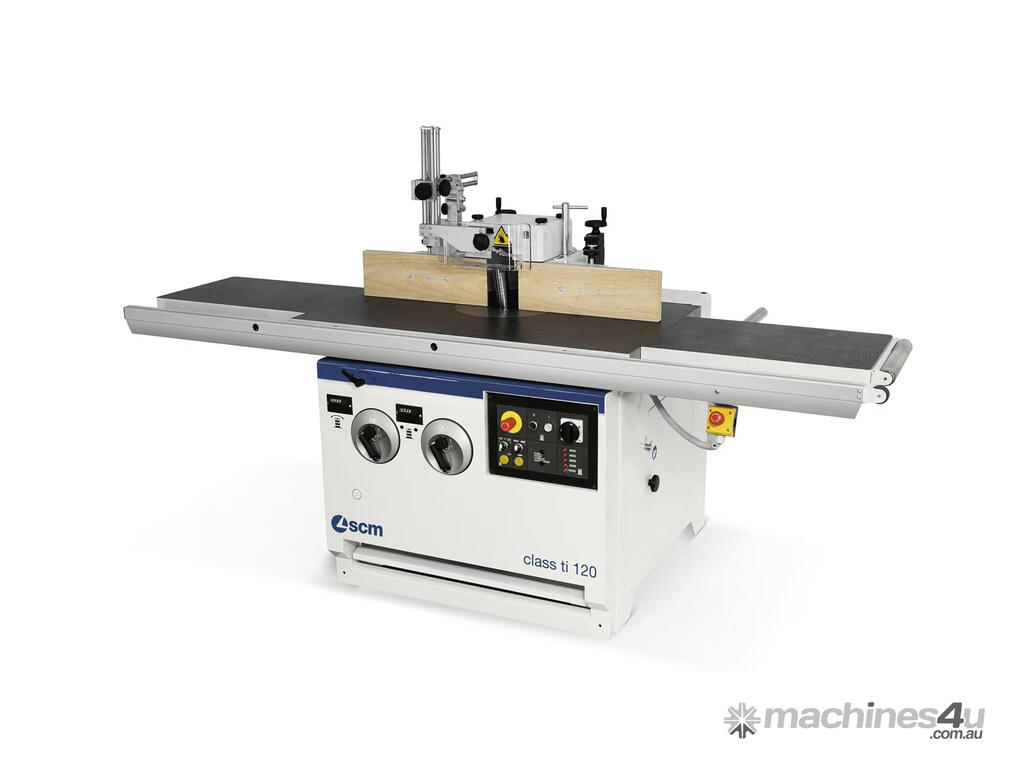

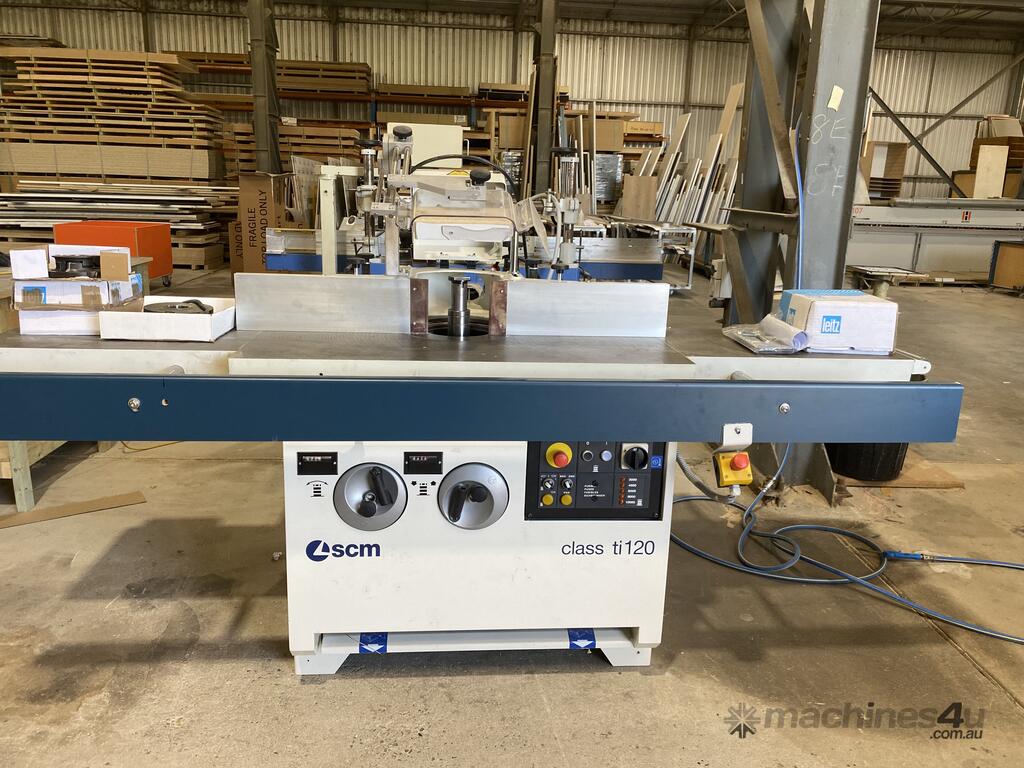

SCM Spindle Moulder Class ti120

• The SCM Groups Class Spindle Moulder Model Ti120 is engineered and built in Italy.

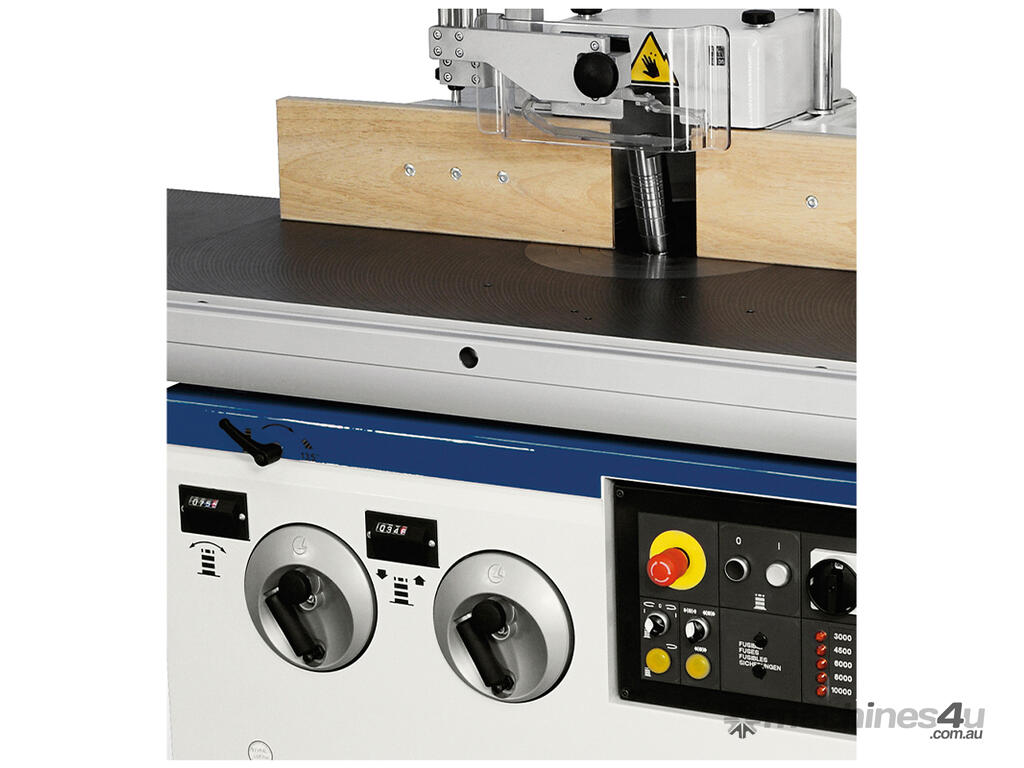

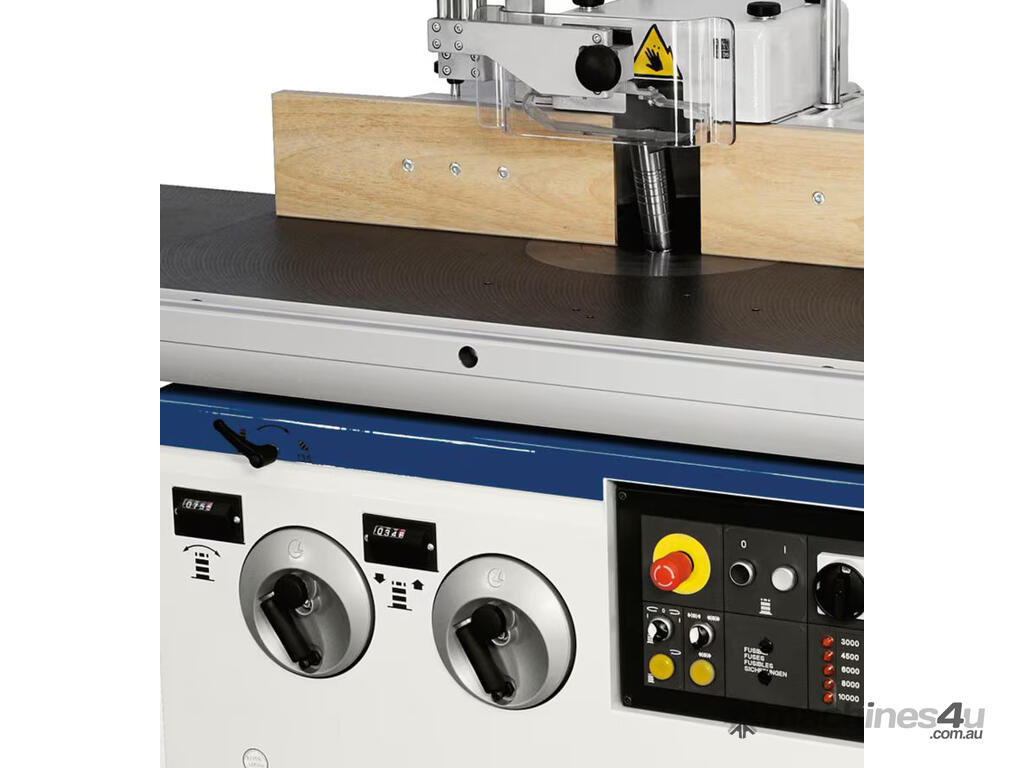

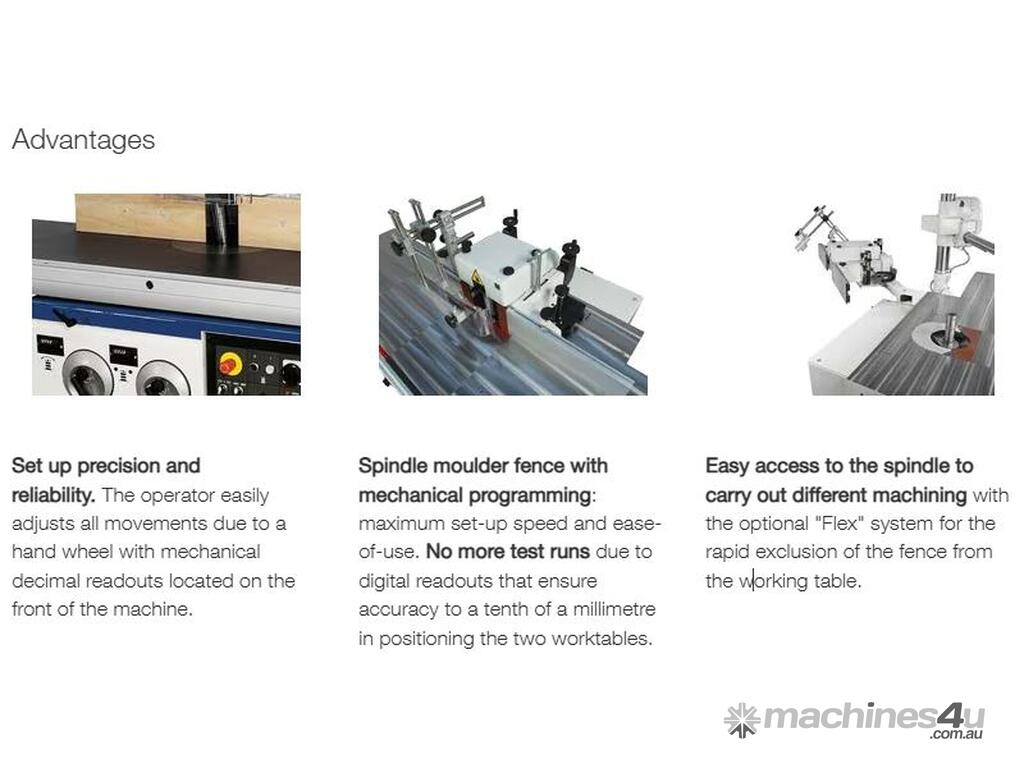

• Set up precision and reliability. The operator easily adjusts all movements due to a hand wheel with mechanical decimal readouts located on the front of the machine.

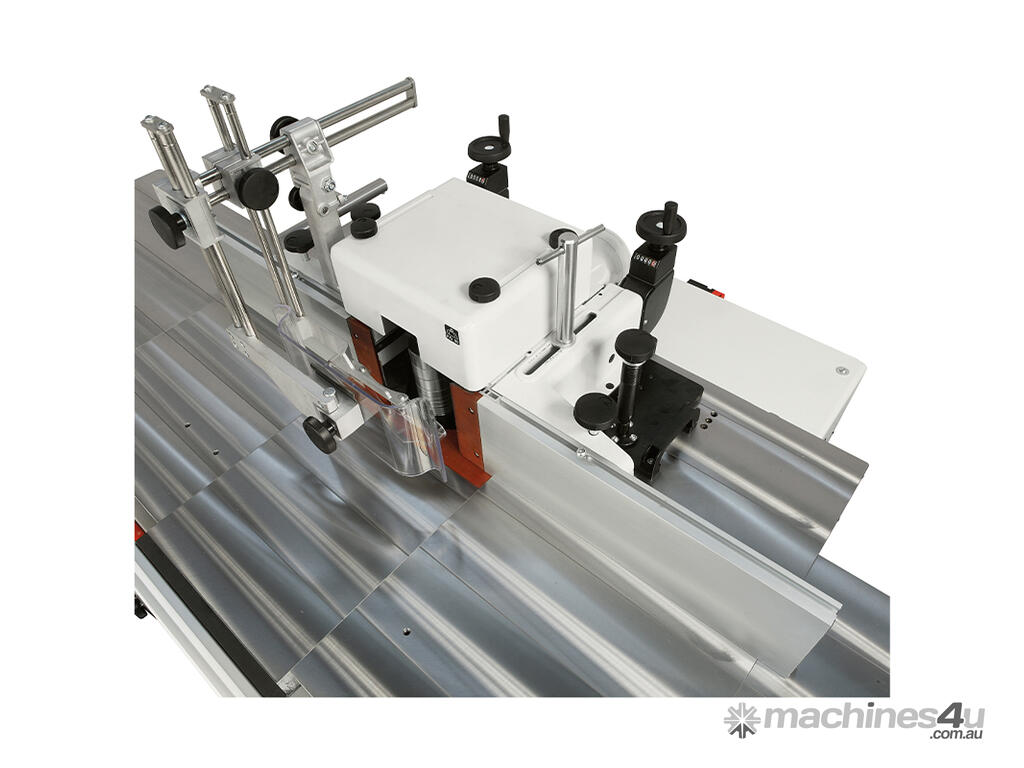

• Spindle moulder fence with mechanical programming: maximum set-up speed and ease-of-use. No more test runs due to digital readouts that ensure accuracy to a tenth of a millimetre in positioning the two worktables.

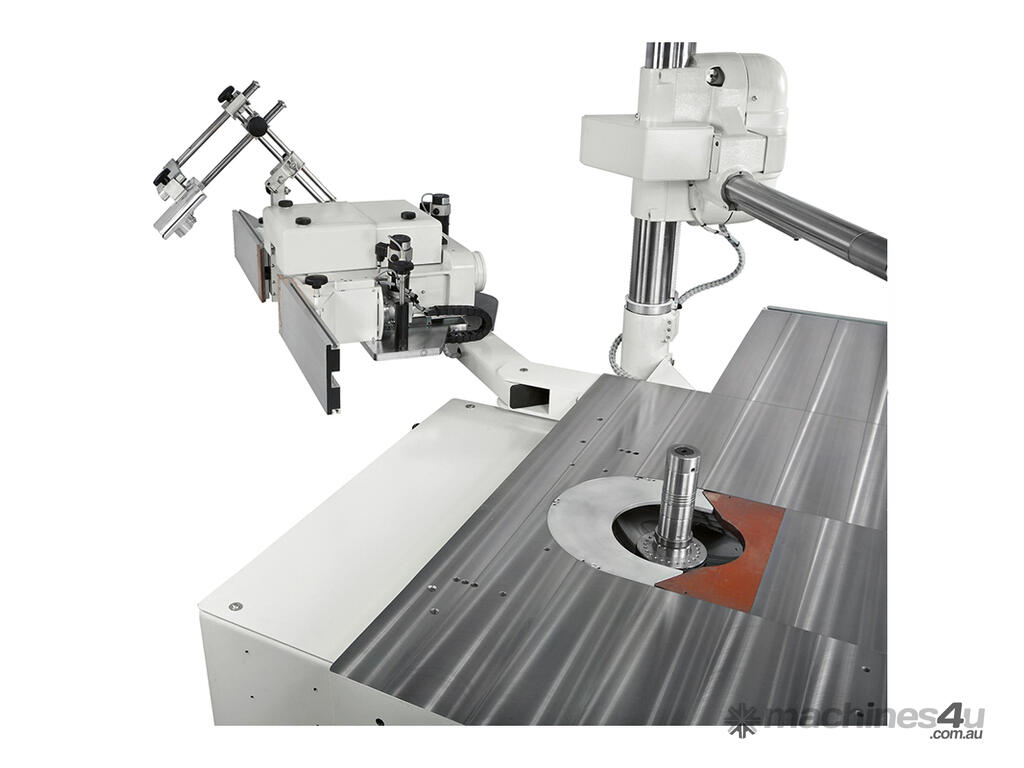

• Easy access to the spindle to carry out different machining with the optional "Flex" system for the rapid exclusion of the fence from the working table.

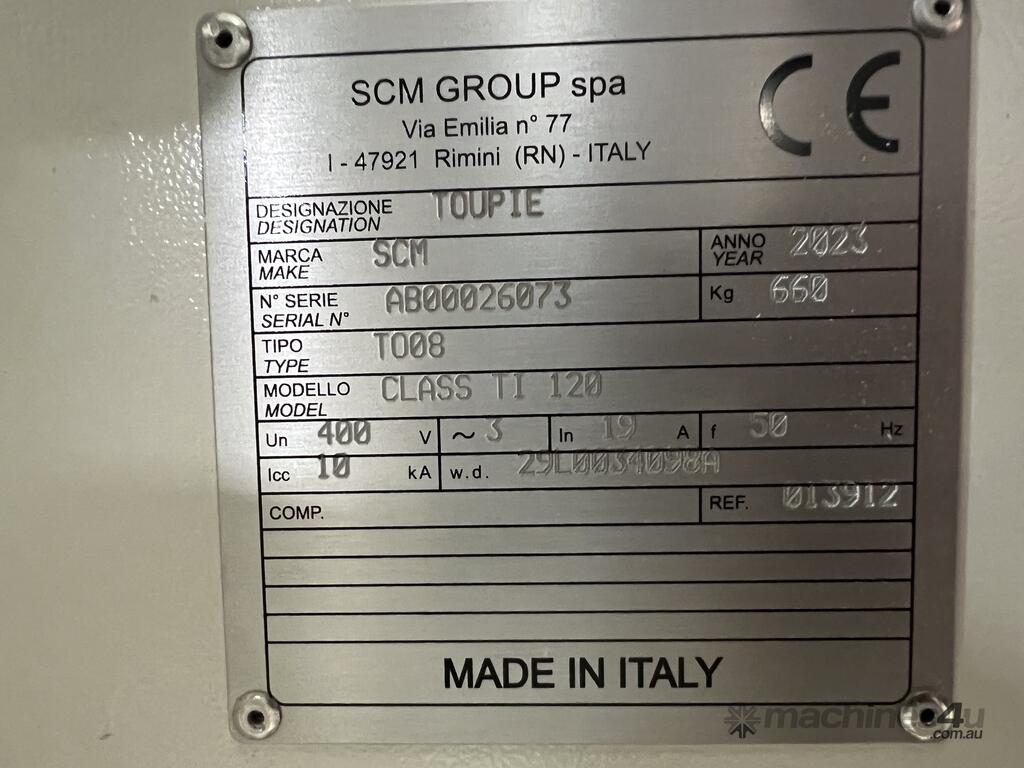

• CE certification ensures the highest possible level of safety.

Features:
• Tilting spindle
• Manual rise, fall and tilt adjustment
• Mechanical digital readout for shaft height and tilt angle
• Reverse spindle rotation
• Five spindle speeds
• Spindle speed readout by LEDs
• Cast iron table and fence assembly with continuous linear adjustment
• Automatic star-delta start


Technical data:
Max. useful spindle length: mm / inches 140 / 5.5
Spindle speed: rpm 3000/4500/6000/7000/10000
Max. diameter of the profiling tool: mm / inches 250 / 9.8
Max. tool diameter retractable under the table at 90°: mm / inches 300 / 11.8
Max. diameter of the tenoning tool: mm / inches 300 /11.8
Three-phase motor: Hp 11
