SCM Startech CN K Woodworking CNC

The Startech CNC Router is made in Italy, by the SCM Group, a company with decades of experience making large industrial CNC Routers.
Not only is its small footprint impressive its comes with its own "Safety Enclosure" already built as part of the machine rather than an added on after thought.
It's purpose built "Dust Extraction Connection" ensures the waste is extracted as efficiently as possible.
The machine is supplied to you with the highest level of safety and with its own CE Compliant certificate.
On top of this it is backed by the factories own Subsidiary's located in each state of Australia giving you peace of mind for Back up and Spare Parts if required.

With the ability to carry out all types of milling, decorations, engraving, signboard creation and 3D model prototyping.
In addition to artisan carpentry, it is the ideal solution for training schools and for the prototyping departments of industrial realities thanks to its ease of set up and use; in fact, it can also be installed independently.

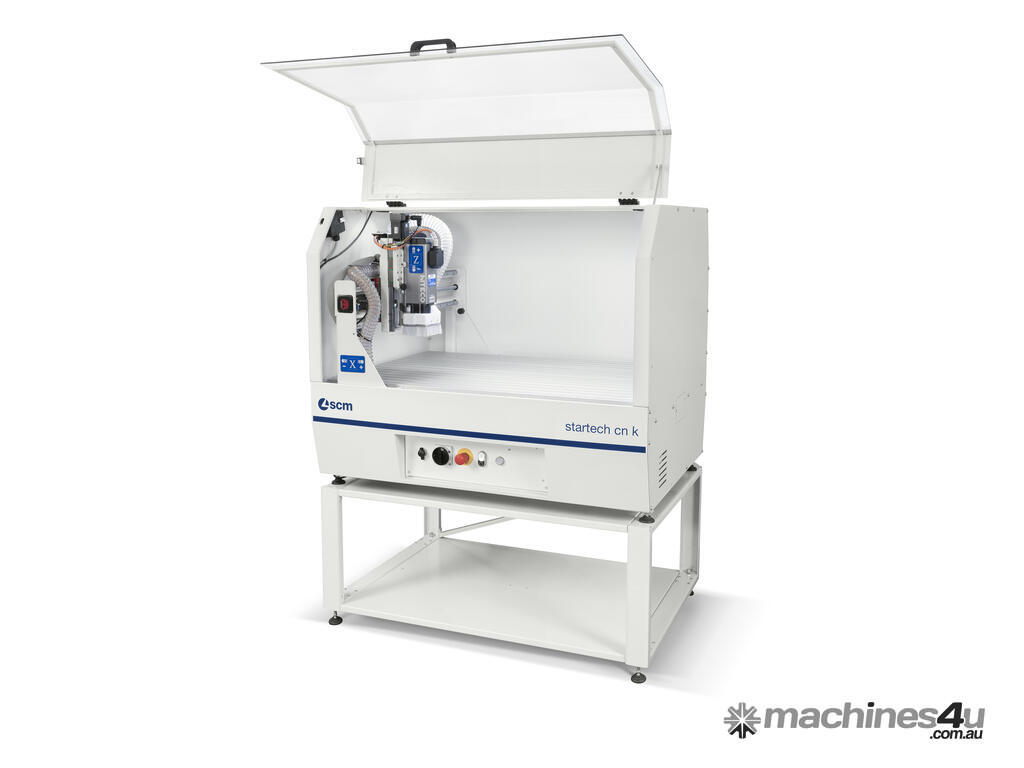

Designed with the highest safety standards in mind, Startech cn k is the only one in its category equipped with an integral cabin
with internal LED lighting, which ensures absolute protection for the operator and keeps the surrounding environment clean.
The extremely rigid and robust structure
guarantees professional precision and repeatability.
Maximum safety
The integral cabin with internal LED lighting ensures protection for the operator and keeps the surrounding environment clean.

Easy programming

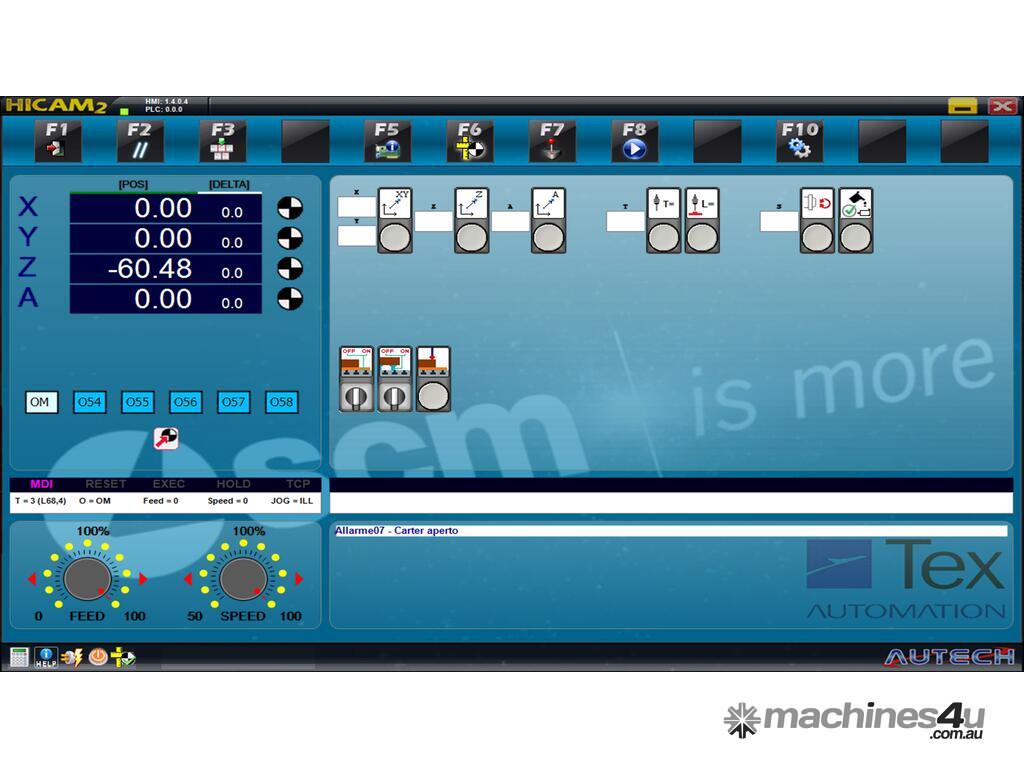

“open” virtual human-machine interface capable of importing G-code from any type of CAD/CAM software (it is advisable to verify with the software supplier that the CAD/CAM provides a G-code that can be read from the interface).

Unique in its category

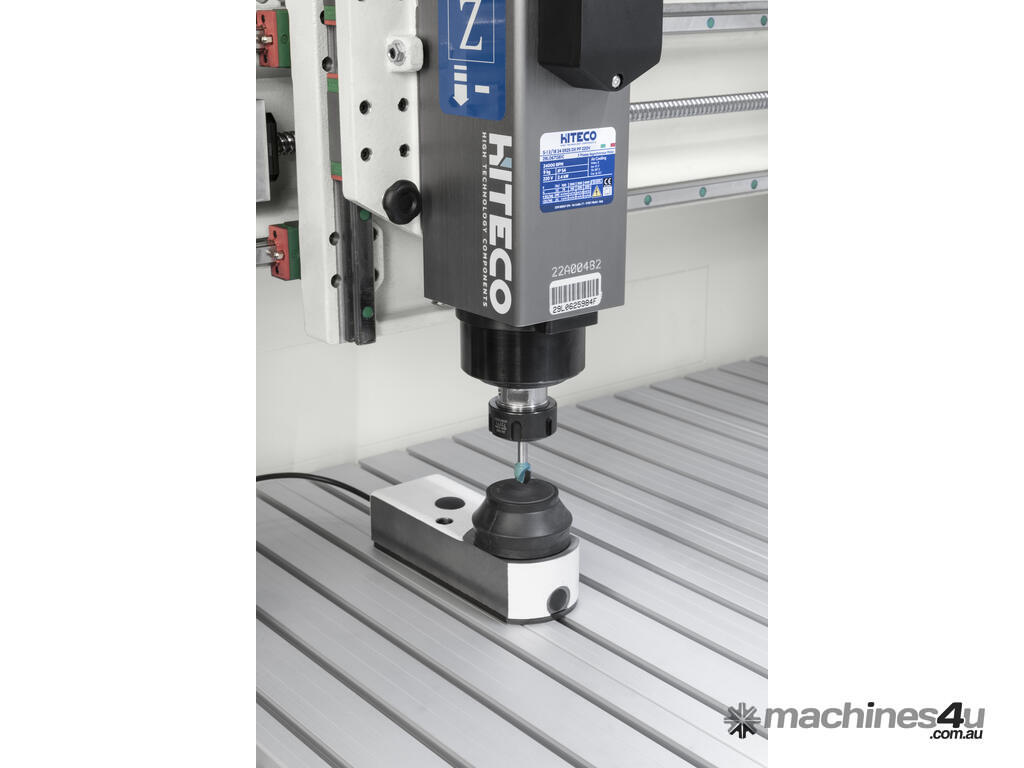

The machine has a powerful 2,4 kW electro spindle with R25 tool-chuck generally used on higher-segment machines!

No limit to creativity
4th interpolating axis (lathe processing) that can be positioned on the worktable.

Technical data

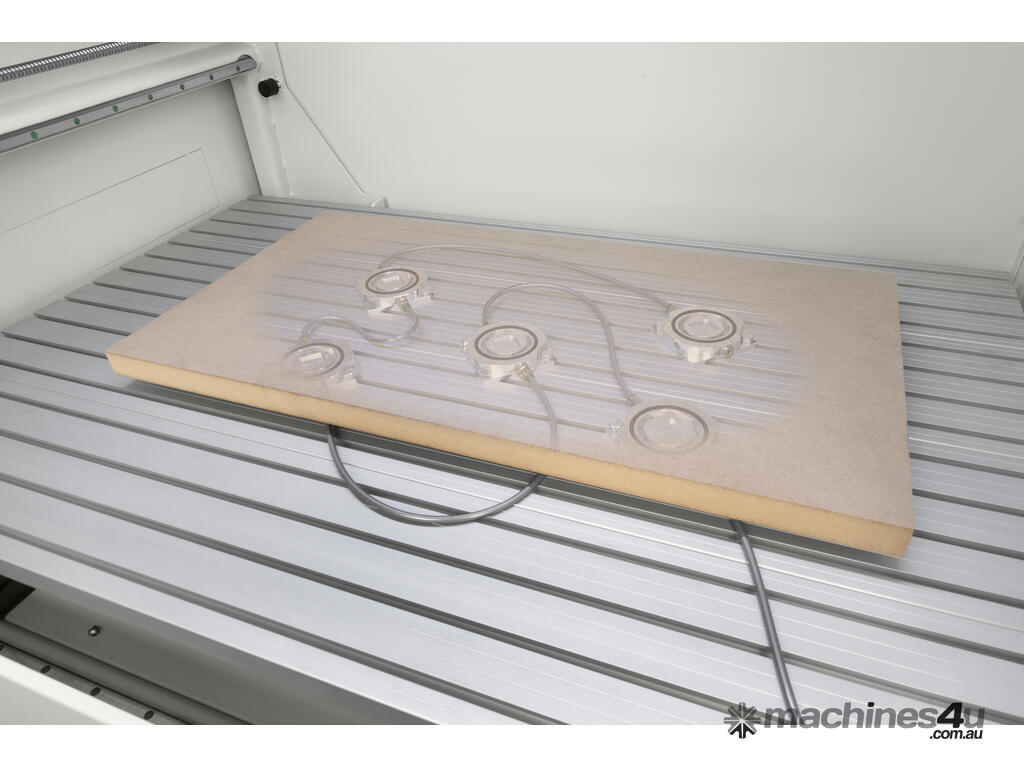

Worktable dimensions mm 1170x760
X-Y-Z stokes mm
Z-axis work-piece clearance mm 160
X-Y-Z axes max. speed m/min ,5
Max. tool diameter mm 60
Max. tool-holder diameter mm 16
Electro spindle max speed rpm 24.000
Electro spindle motor power kw 2,4 kW (S6)

*****NOTE Machine Stand Sold Separately*******
