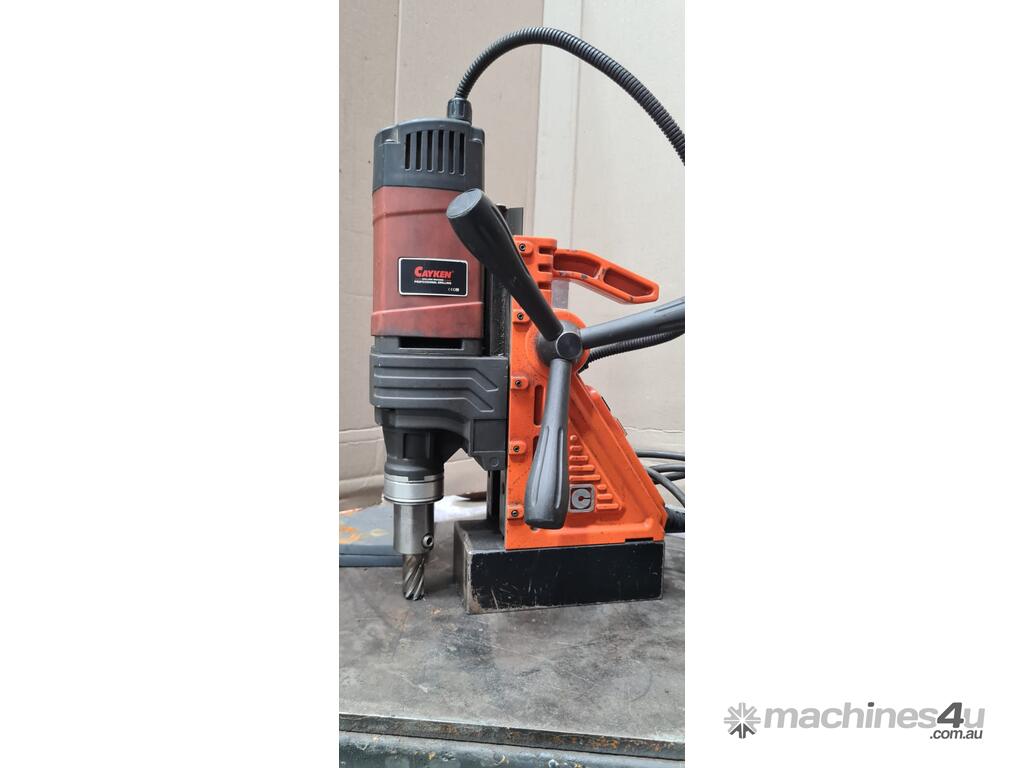

SCY-35WO Magnetic Base Drill Machine

SCY-35WO Magnetic Base Drill Machine

Core drill dia(mm)
?35

Twist Drill Dia(mm)
?13

Rated voltage(v)
110/220~

Rated frequency(Hz)
50-60

Rated input power(w)
1600

No-load speed(rpm)
830

Cutting Depth(mm)
35

Stroke(mm)
?210

Cable Length(m)
2.5

Net/Gross weight(kgs)
?11/15

Packing size(cm)
52*16*43

Packing Material
Plastic

Shank
Weldon

The magnetic base drill machine is a portable drilling machine with an electromagnet or permanent magnet base. After energization, the electromagnet on the magnetic field base generates a magnetic field, which is adsorbed on the steel. Then the motor runs at high speed to drive the drill bit to drill the steel plate or metal.
The magnetic drill relies on the adsorption force of the magnetic base to perform drilling operations from different angles. Because of its small size and high power, it is extremely efficient.
The magnetic drill solves the problem of removing waste and slag from pipelines and drilling holes in steel plates. Therefore, magnetic drills are widely used in some large-scale subway construction, large-scale equipment maintenance, power plant maintenance, and pipeline engineering.
