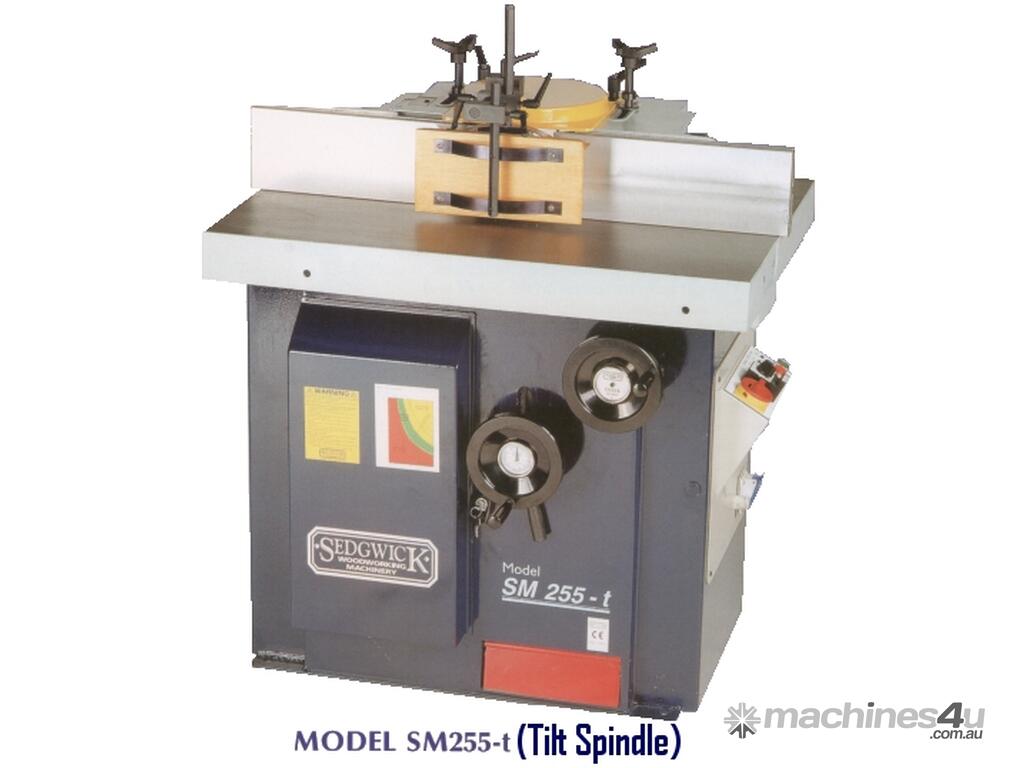

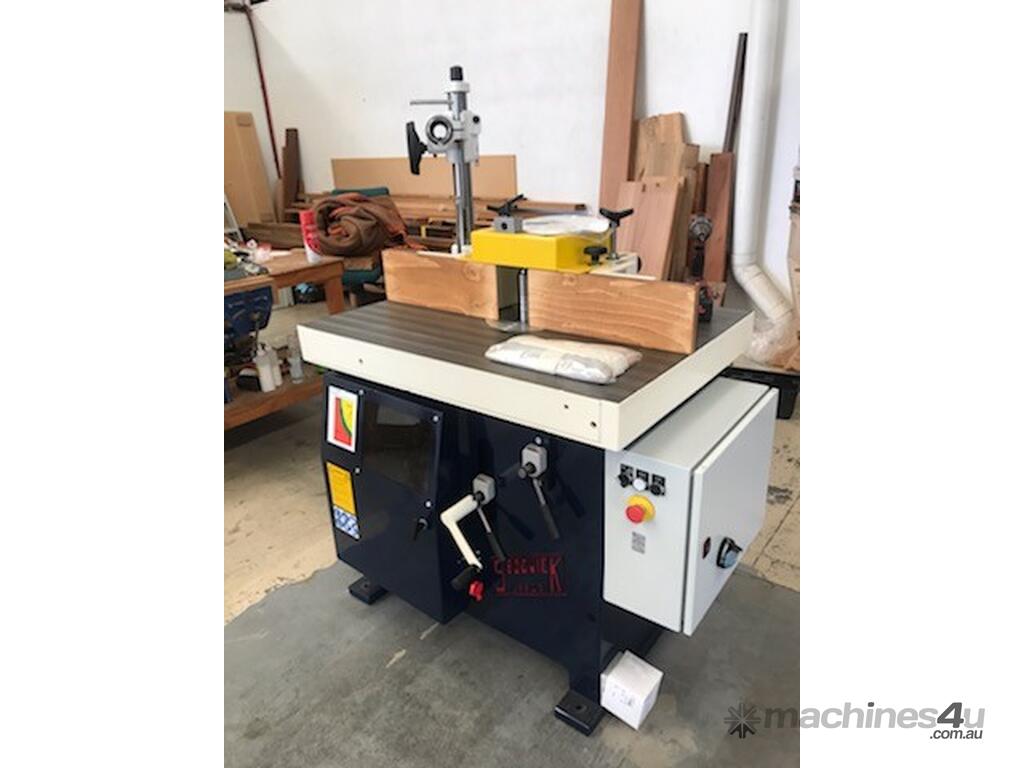

SEDGWICK Tilt arbour spindle moulder "NEW"

MADE IN ENGLAND BY SEDGWICK
Reverse Tilt (overall adjustment plus 5 degrees to minus 45 degrees)

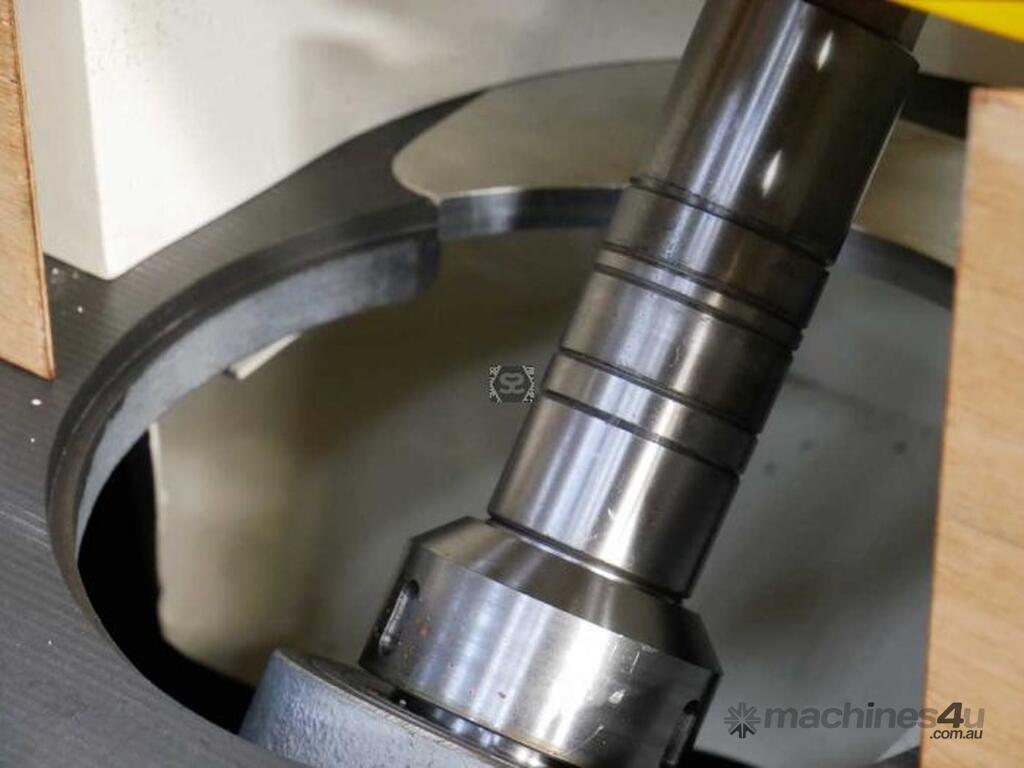

Unlike the majority of manufacturers, the Sedgwick SM255t is designed with a backward tilting spindle. Working from underneath the stock makes for safer working, without restriction on the size of stock being machined, and without obstruction to the pressure guards or power feed. Wood chips are directed into the exhaust outlet in the machine base.

‘True Vertical’ Rise and Fall
The SM255t’s unique ‘true vertical’ rise and fall system allows for vertical adjustment of the spindle independent of the tilting mechanism. The angled tool when adjusted up or down thereby retains its position relative to the fence assembly.

Construction
A cast iron table mounted on a heavy duty steel cabinet provides maximum timber support and a stable and accurate base for anchoring the spindle, motor housing, and rise & fall mechanism. All tables feature an anti-friction planed finish. The bearing housing, rise & fall assembly and motor mountings are also in machined cast iron. The spindle is belt driven by an industrial motor and runs in “sealed for life” bearings, which require only minimal maintenance.

Ease of Operation

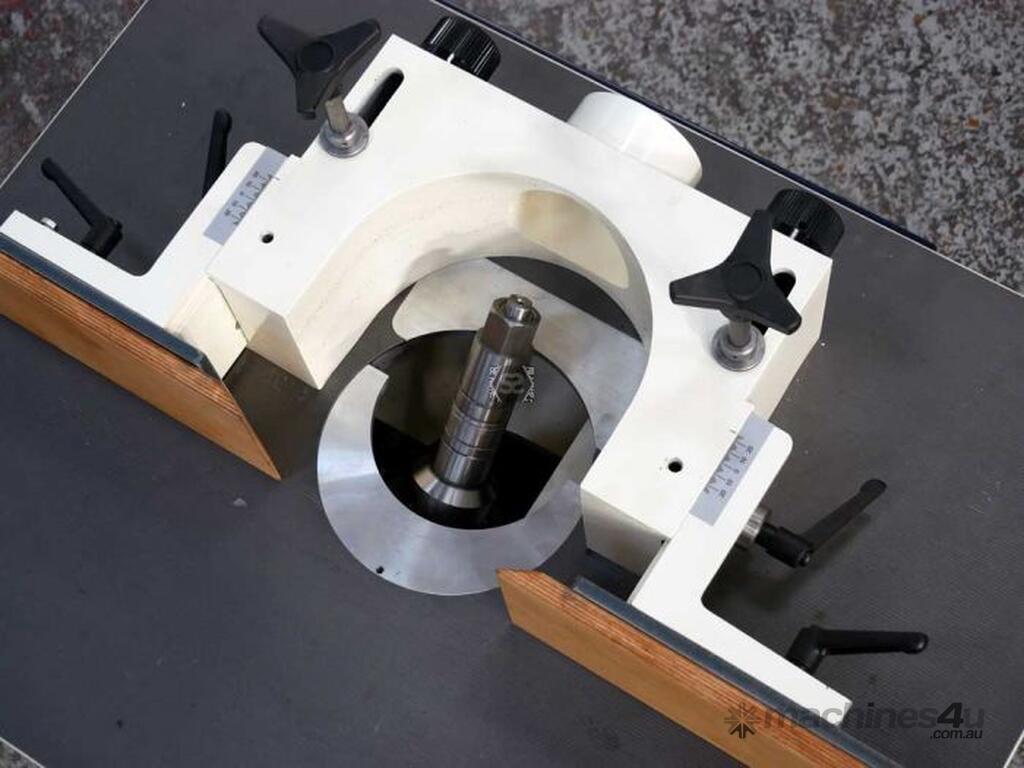

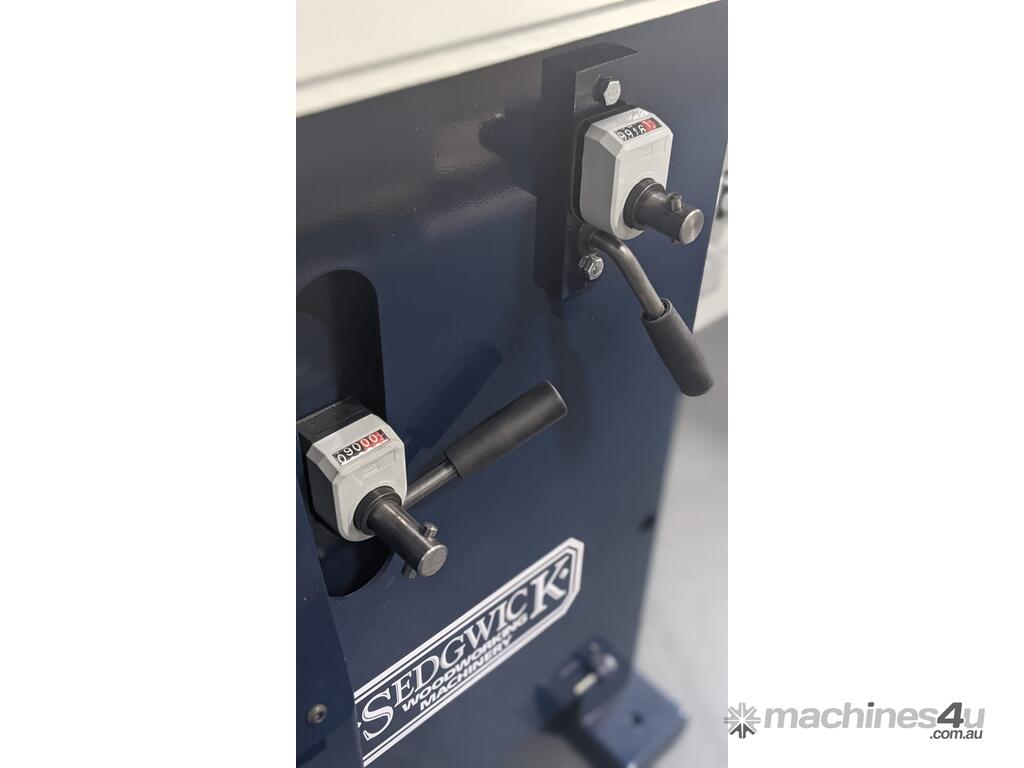

The spindle rise and fall and tilt mechanisms are operated by a crank handle at the front of the machine. Both positions are read from a digital indicator. The SM255t features a cast iron ‘horseshoe’ type assembly with independently adjustable precision-ground fence plates and movement indicators.

Changeover between the four spindle speeds is effected by quick and easy belt re-positioning. A viewing panel showing pulley speed is incorporated.

Versatility
The machine’s removable spindle allows the operator to select between 30mm and 11/4” dia. spindles, as well as offering the flexibility of optional router or tenoning spindles.

Safety Features

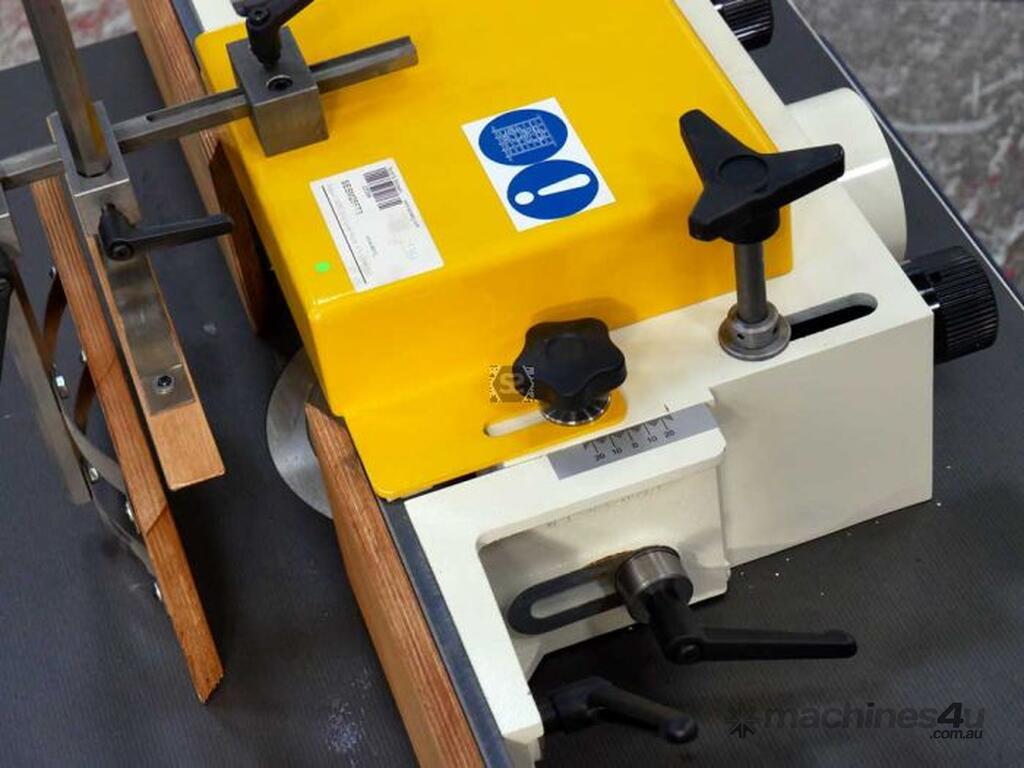

The machine is equipped with a cast aluminium cutter guard and a robust shaw guard set with hexagonal mountings and steel ratchet handles. Twin outlets facilitate dust extraction from both the cutter well and fence locations. Additional safety features include: automatic braking; starter with thermal overload no volt release protection and lock-off emergency stop; lockable isolator; electronically interlocked door; a footstop and a socket for a power feed unit.

Optional Accessories
Table Extensions

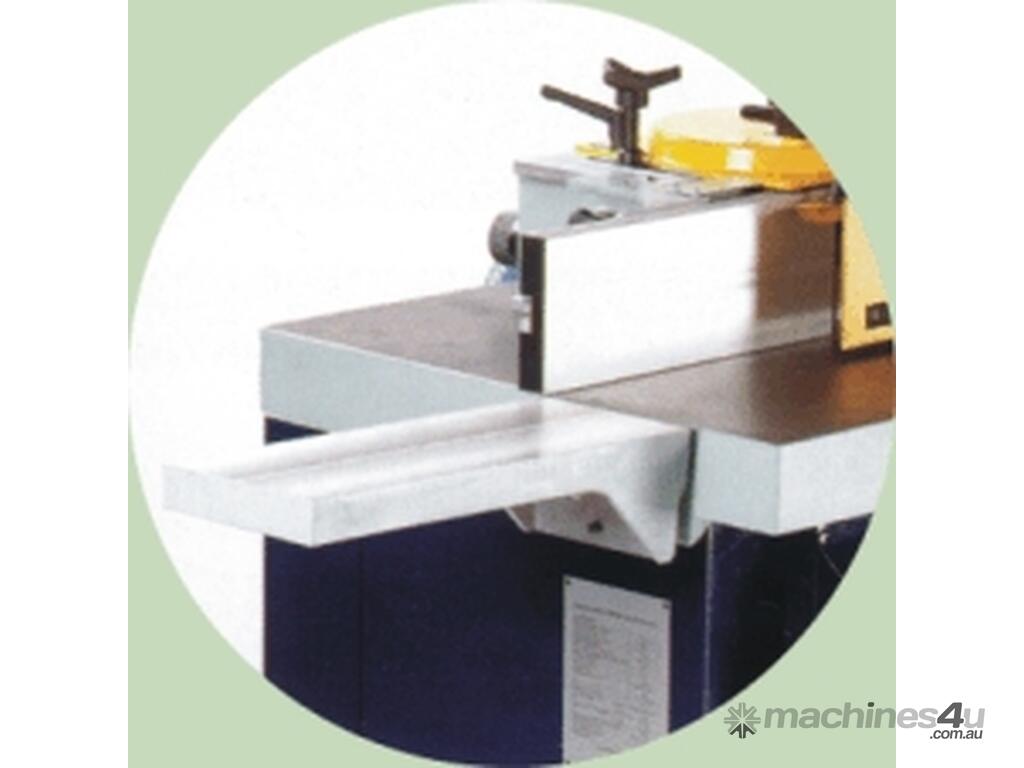

To provide increased support for long work-pieces. Manufactured in strong sheet steel, a set of two extends the table length by 1000mm

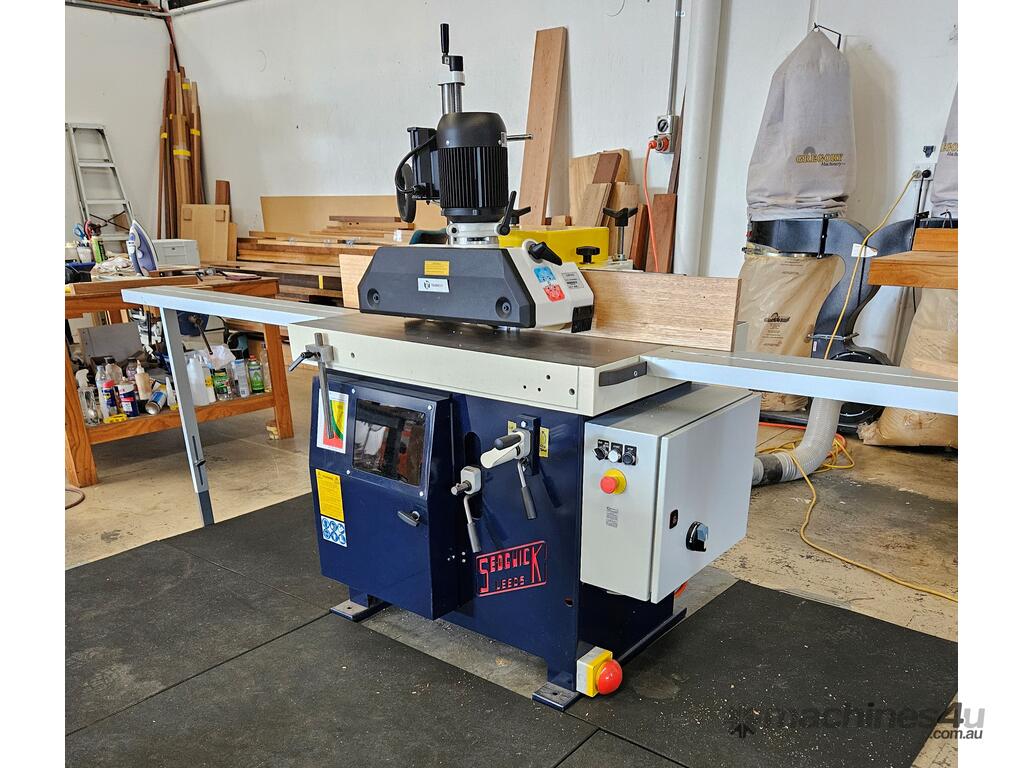

Sliding Table
To provide a stable moving platform for tenoning etc. The table is manufactured in steel tube, and runs on precision-ground case-hardened rollers and bearings. A mitre fence with 90-45o adjustment, timber stop and cam action timber clamp are all incorporated.

Table Size: 740 x30mm
Stoke: 900mm
Tenoning Hood

To provide protective covering and a point of extraction (100mm) for cutters up to 350mm dia. The lid and visor are both adjustable, and feature a carrying handle.

Stub Spindle
For use with counterbored cutterheads.

Router Spindle
The router spindle is quickly interchanged, without disturbing the main spindle or bearings. Particularly valuable when machining small pieces, the unit comes with a 1/2” collet, nut and spanner.



Machine Specification:

TABLE SIZE (LxW) 1000x750mm

TABLE HEIGHT 880mm

MAX. CUTTERBLOCK DIA. 150mm

MAX. PROFILING CUTTER DIA. 255mm

MAX. CUTTER WEIGHT. 7Kg

MAX. TENNONING CUTTER DIA 310mm

MAX. RETRACTABLE TOOL SIZE 180x65mm

SPINDLE DIA. 30mm (Optional 11/4”)

SPINDLE LENGTH 140mm

SPINDLE SPEEDS (rpm) 3000, 4500, 6000, 8000

MAX. SPINDLE PROJECTION ABOVE TABLE 165mm

SPINDLE STROKE 90mm

TILT +5 to –45 degrees

FENCE PLATES 150x425mm

EXTRACTION OUTLETS 125 + 100mm

AIR VOLUME REQUIRED 1870cmh

MOTOR RATING
3 PHASE 5.5Kw (S1)

MOTOR FULL LOAD CURRENT IN AMPS
3 PHASE 11.5A

STARTING CURRENT IN AMPS
3 PHASE 69A

REQUIRED FUSE SIZE IN AMPS
3 PHASE 25A/ph

REQUIRED CABLE SIZE
3 PHASE 4.0mm

1 PHASE 4.0mm

NETT WEIGHT
425Kg

DIMENSIONS
1120x760x1440mm

OPTIONAL ON REQUEST
- Power feed units
- Extension table
