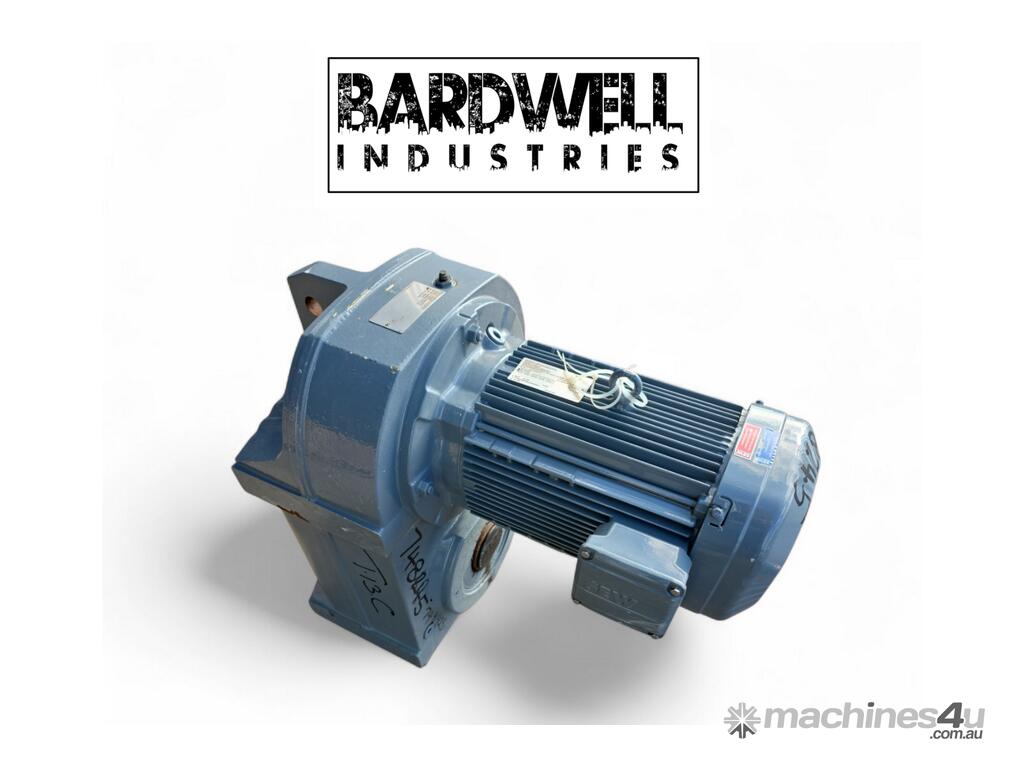

SEW-EURODRIVE Gearmotor - FA97/G DRN132S4/DH - 5.5kW - 1460/73 RPM - 2007 Nm

Brand: SEW-EURODRIVE
Condition: Opened - never used
Weight: 284.00 kg
SEW-EURODRIVE Gearmotor - FA97/G DRN132S4/DH - 5.5kW - 1460/73 RPM - 2007 Nm
Heavy-duty parallel shaft helical gearmotor designed for continuous industrial use in demanding environments

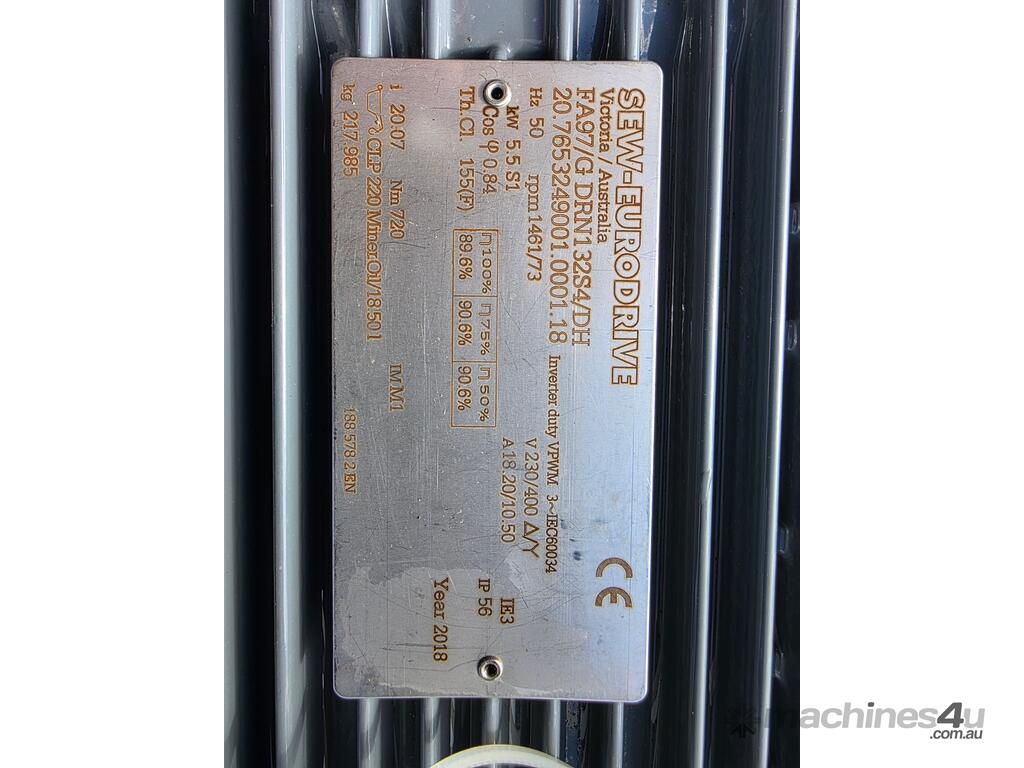

Motor & Gear Unit Specifications:
• Brand: SEW-Eurodrive
• Model: FA97/G DRN132S4/DH
• Serial Number: 01.0001.18
• Year of Manufacture: 2018
• Power: 5.5 kW
• Input Speed: 1460 RPM
• Output Speed: 73 RPM
• Voltage: 230/400V ?/Y
• Current: 18.20 / 10.50 A
• Frequency: 50 Hz
• Nominal Torque: 2007 Nm
• Maximum Torque: 4300 Nm
• Mounting Type: IM M1
• Protection Rating: IP56
• Thermal Class: 155(F)
• Efficiency (IE3):
?- ?100%: 89.0%
?- ?75%: 90.6%
?- ?50%: 90.6%
• Gear Oil: CLP 220 - 18.5 L
• Weight: 217.985 kg

Applications:
• Conveyor systems
• Industrial mixers and agitators
• Bulk material handling
• Low-speed, high-torque machinery

This motor and gearbox assembly is built for robust, high-efficiency operation in industrial settings. Inverter-ready and suited to continuous duty under load.

Location: Morwell, VIC
Shipping: Available Australia-wide
