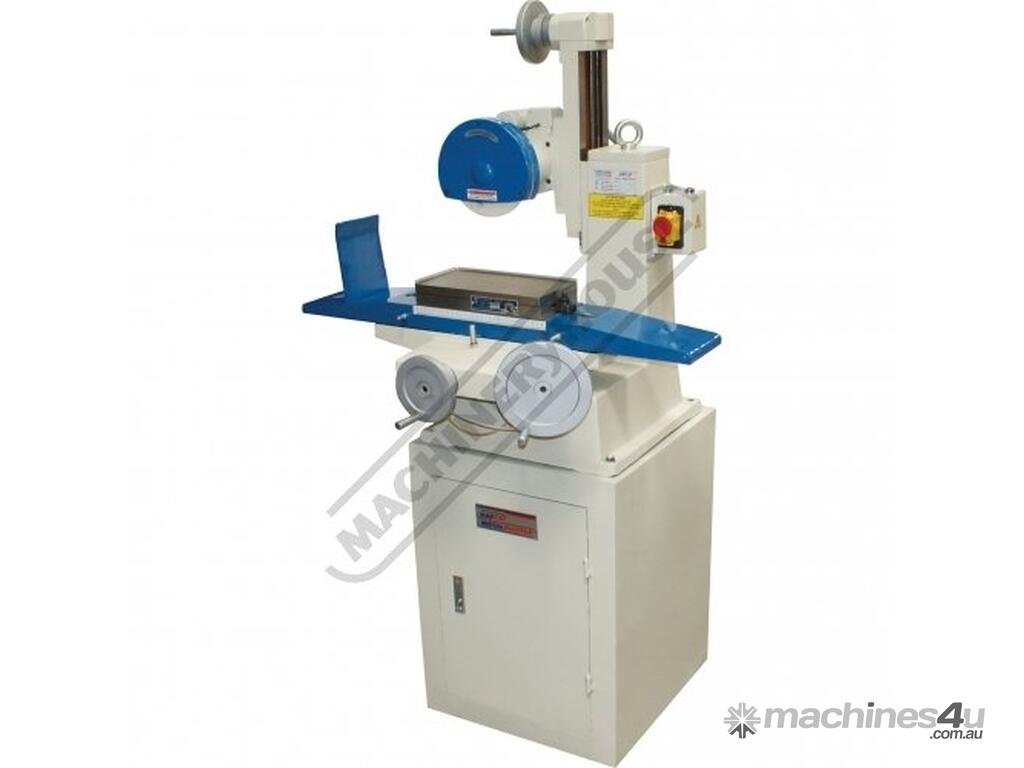

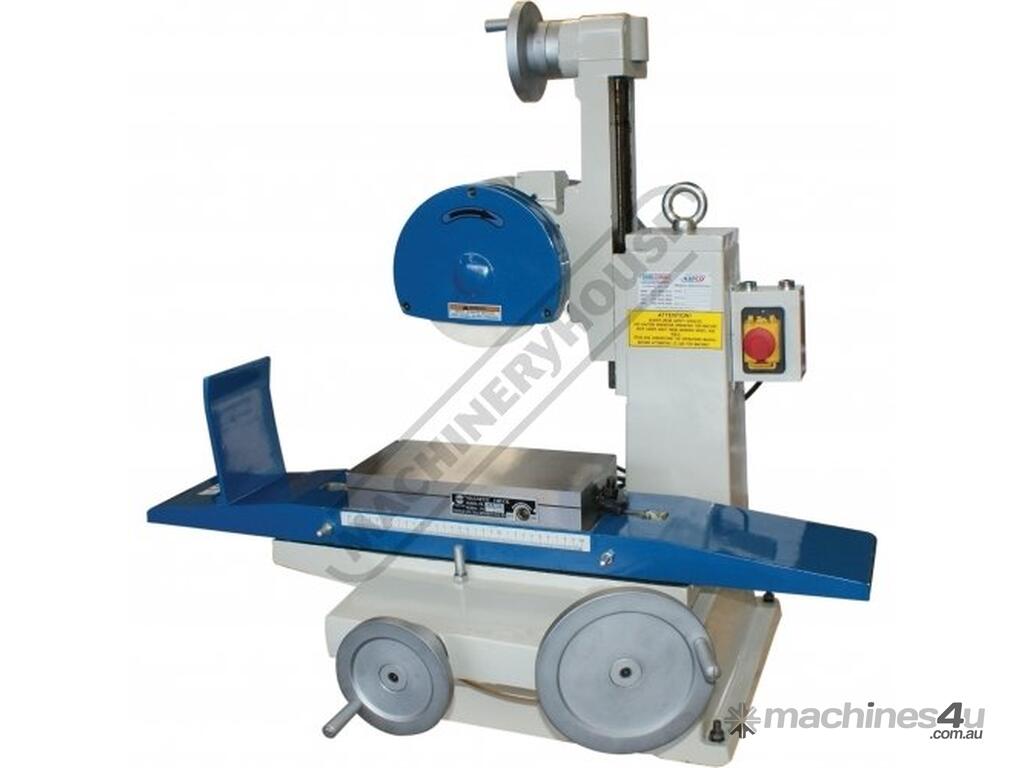

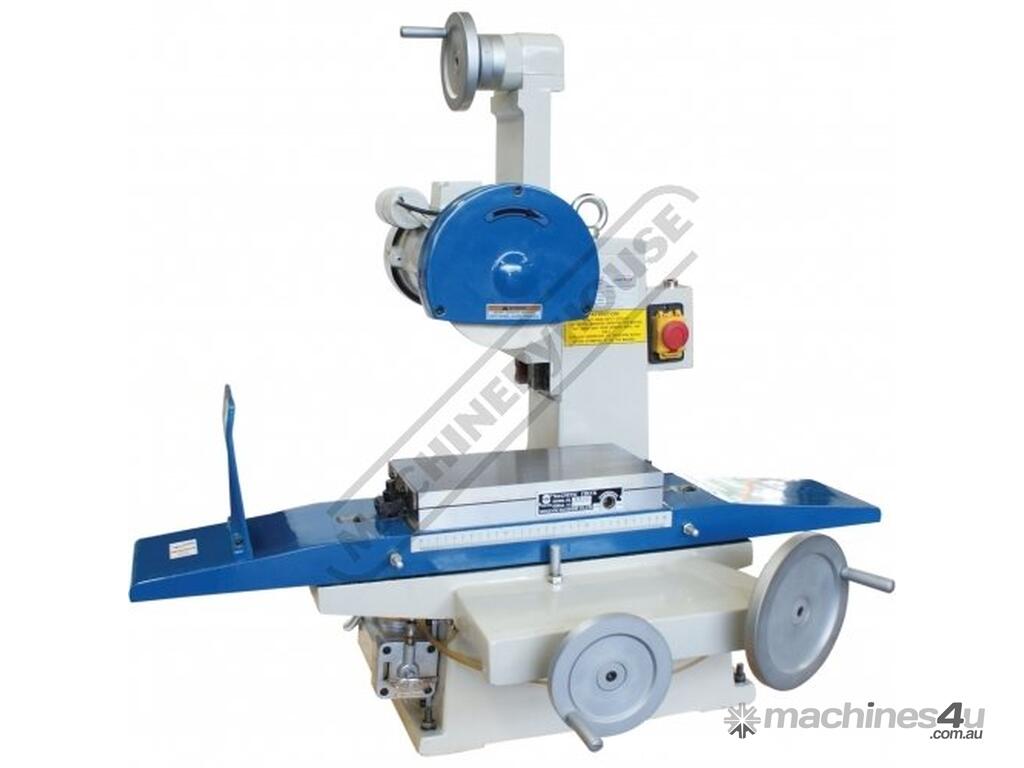

HAFCO METALMASTER SG-340 Manual Surface Grinder 340 x 170mm Table Travel Includes Stand
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: G203
The SG-340 manual bench mounted surface grinder is designed to enable operator to quickly change work piece and easy set-up alternate applications. Manual Feed Table (340mm) x (170mm).
When absolute surface grinding precision is needed in tough to machine materials, this is the machine to own. Large dials and fine thread screws yield maximum precision. Bring mirror-like finishes to your metal Working projects with this professional machine.
Features:
Precision grinding machine with minimal workshop space required
Ball bearing table slides providing smooth action
Angular contact spindle bearings that eliminates vibration enabling precision grinding

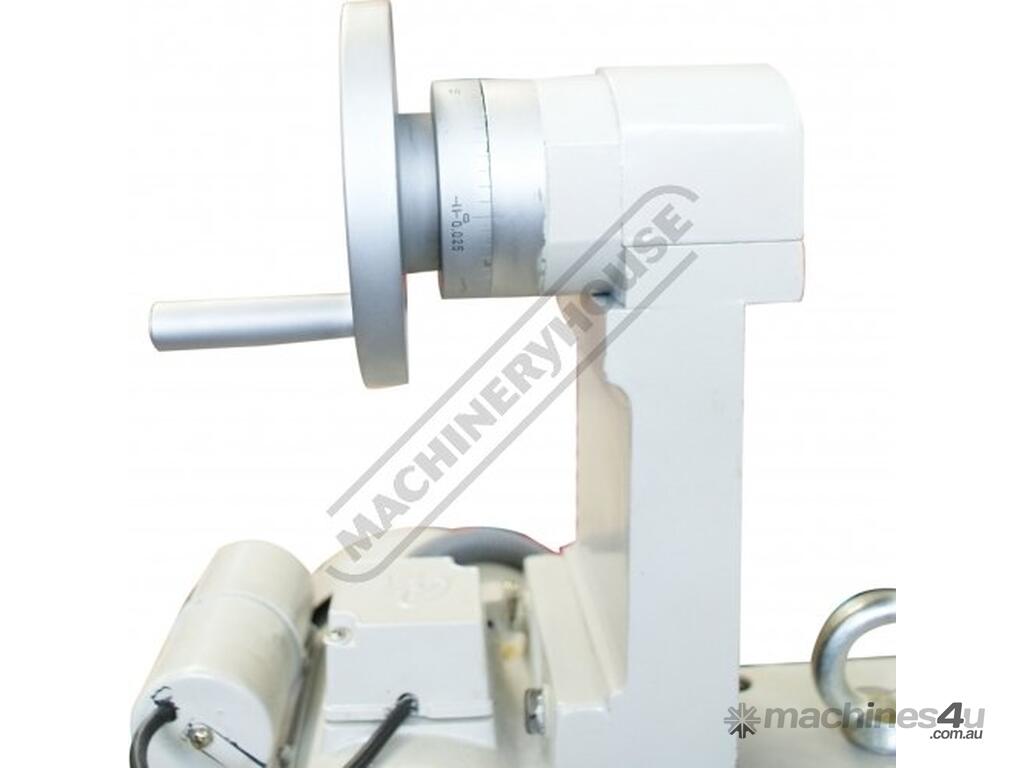

Vertical dial graduations 0.025mm

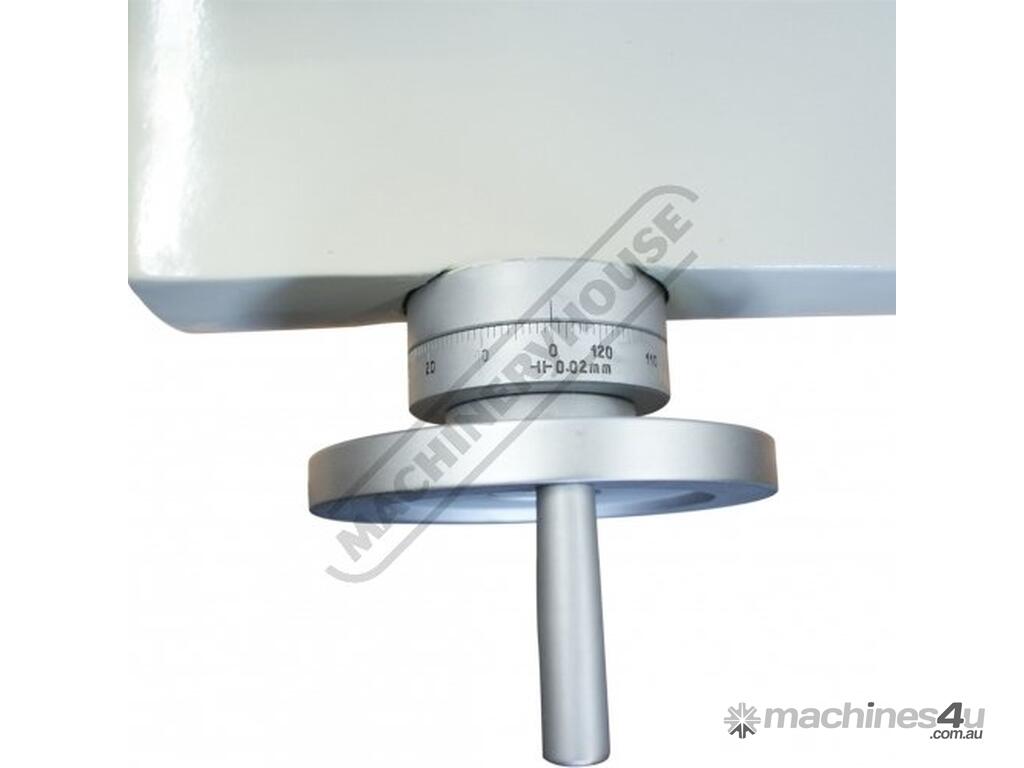

Cross travel graduations 0.02mm

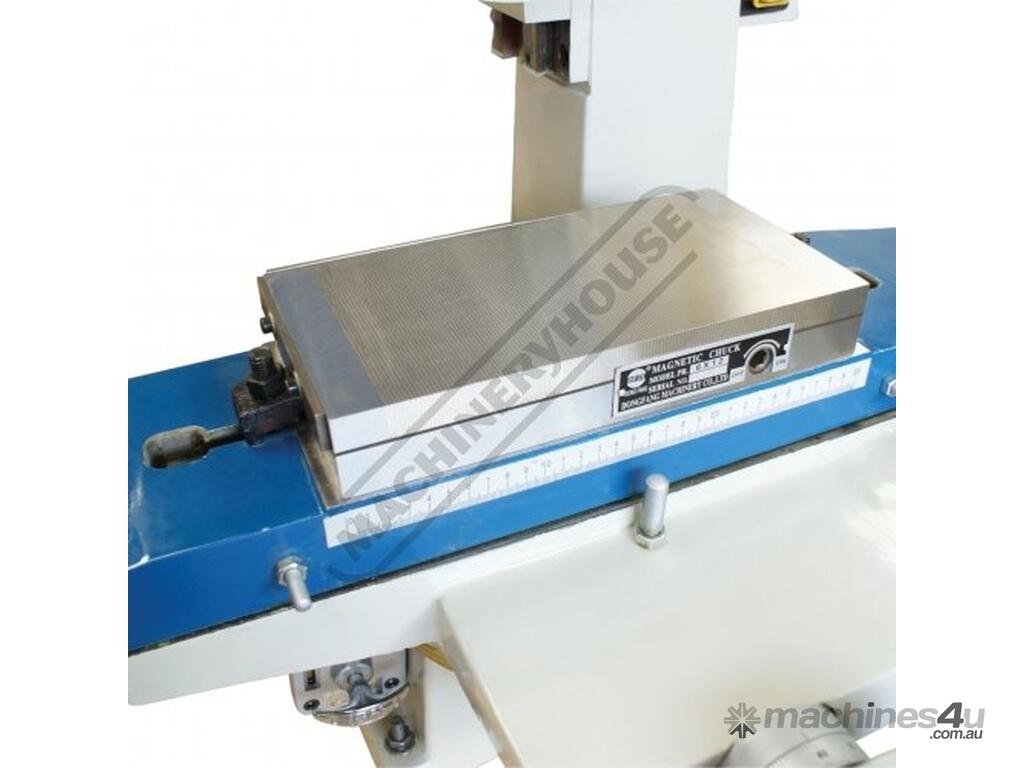

Magnetic chuck (300 x 150mm)
Includes:

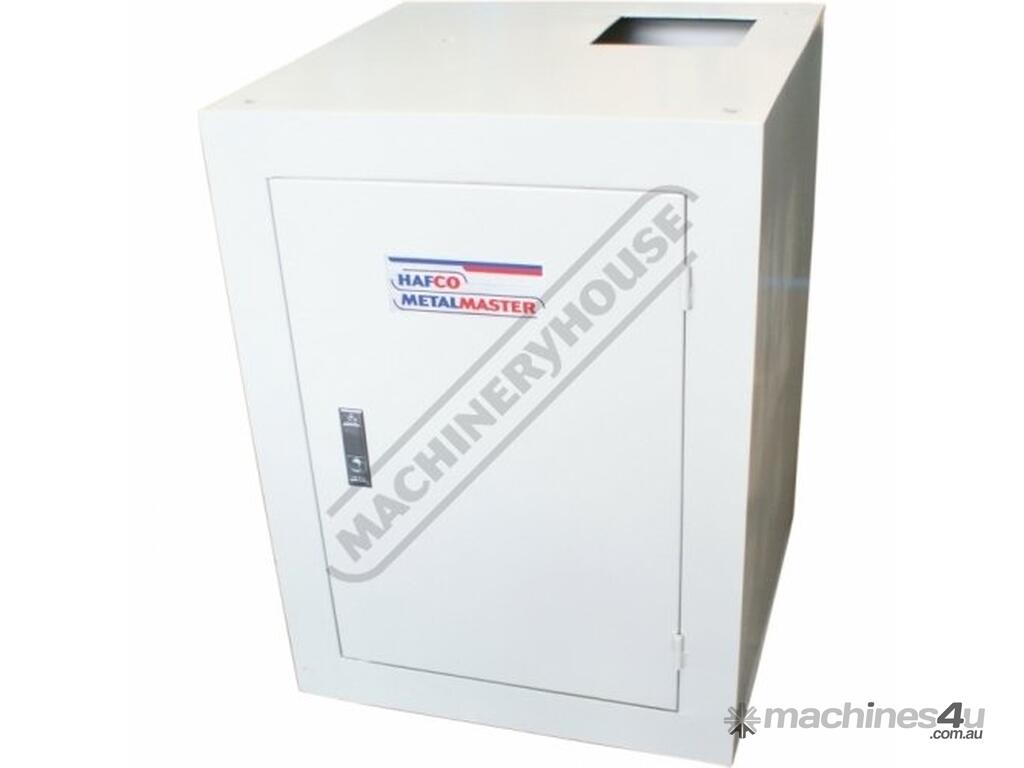

- Stand
Specifications:
ORDER CODE: G203
MODEL: SG-340
AD5 Controller: ~
Magnetic Chuck Size (mm): 300 x 150
Longitudinal Table Traverse - Maximum (mm): 340
Cross Table Traverse - Maximum (mm): 170
Table Bed Size (mm): ~
Spindle To Table - Maximum (mm): 275
Wheel Diameter (mm): 180
Vertical Increment Graduations (mm): 0.025
Vertical Graduations Per Revolution (mm/rev): 1.25
Cross Increment Graduations (mm): ~
Cross Graduations Per Revolution (mm/rev): ~
Spindle Motor (kW / hp): 0.55 / 0.75
Voltage / Amperage (V / amp): 240 / 10
Shipping Dimensions (L x W x H) (cm): 110 x 76 x 86
Nett Weight (kg): 260
