HAFCO METALMASTER SG-820H Hydraulic Surface Grinder 530 x 220mm Table Travel
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: G220

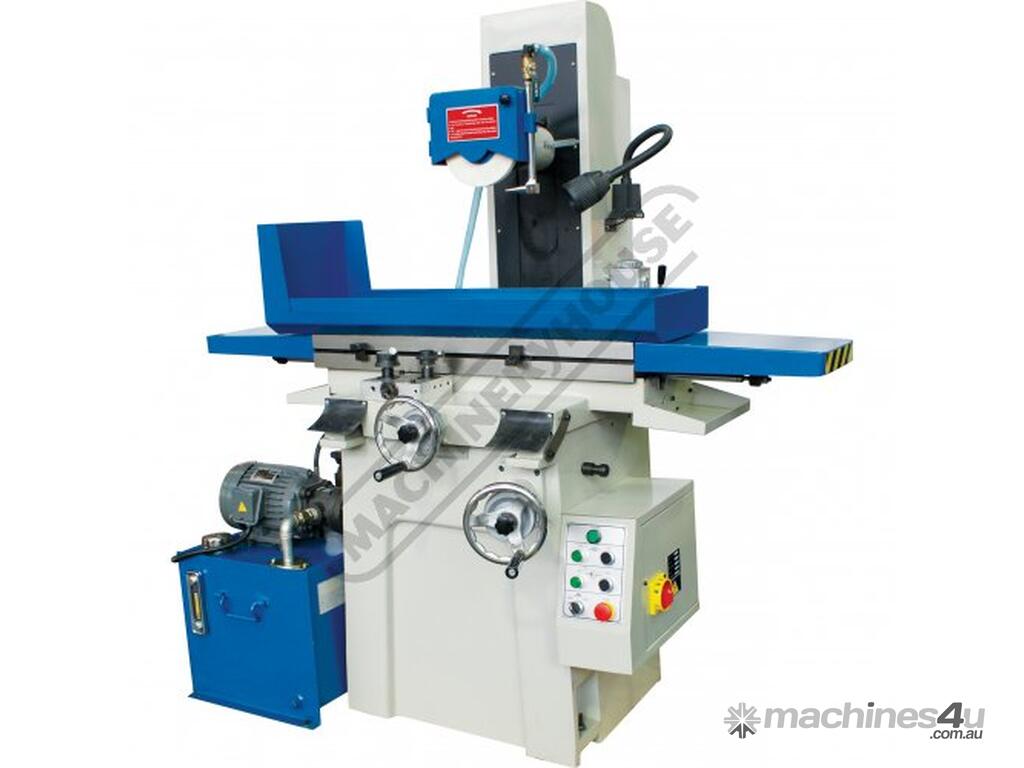

The SG-820H is an excellent surface grinder for grinding precision parts in hardened or annealed ferrous metals. It features heavy duty cast iron construction, quiet running precision spindle, ball bearing longitudinal slide, coolant system and more.
Features:

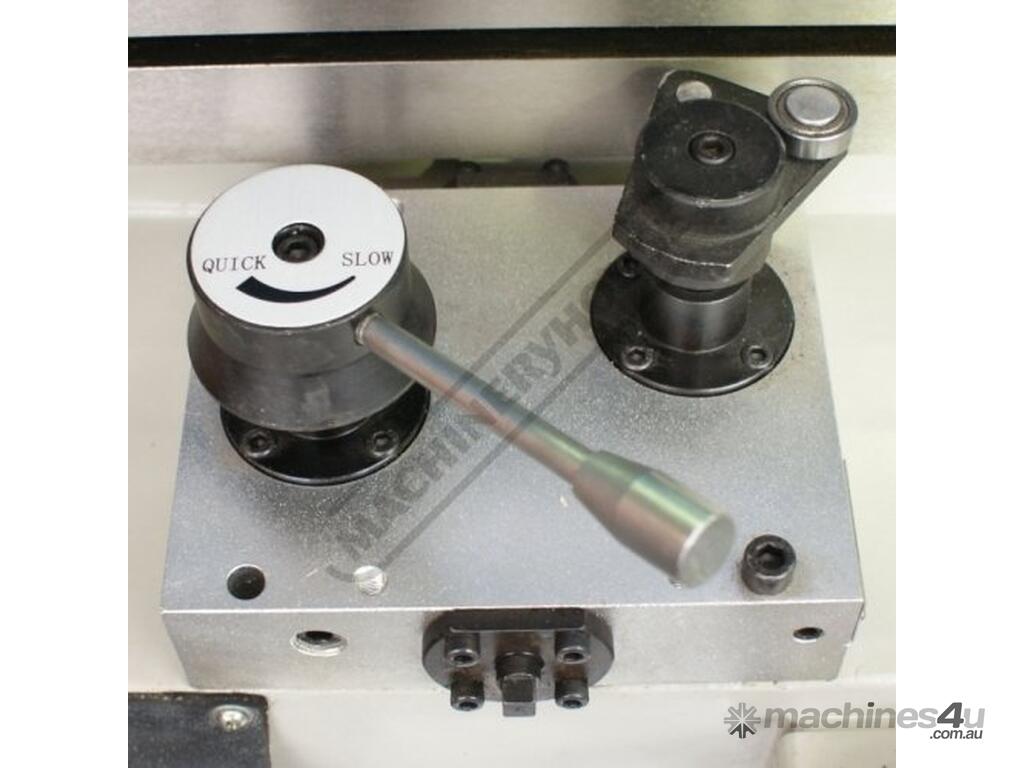

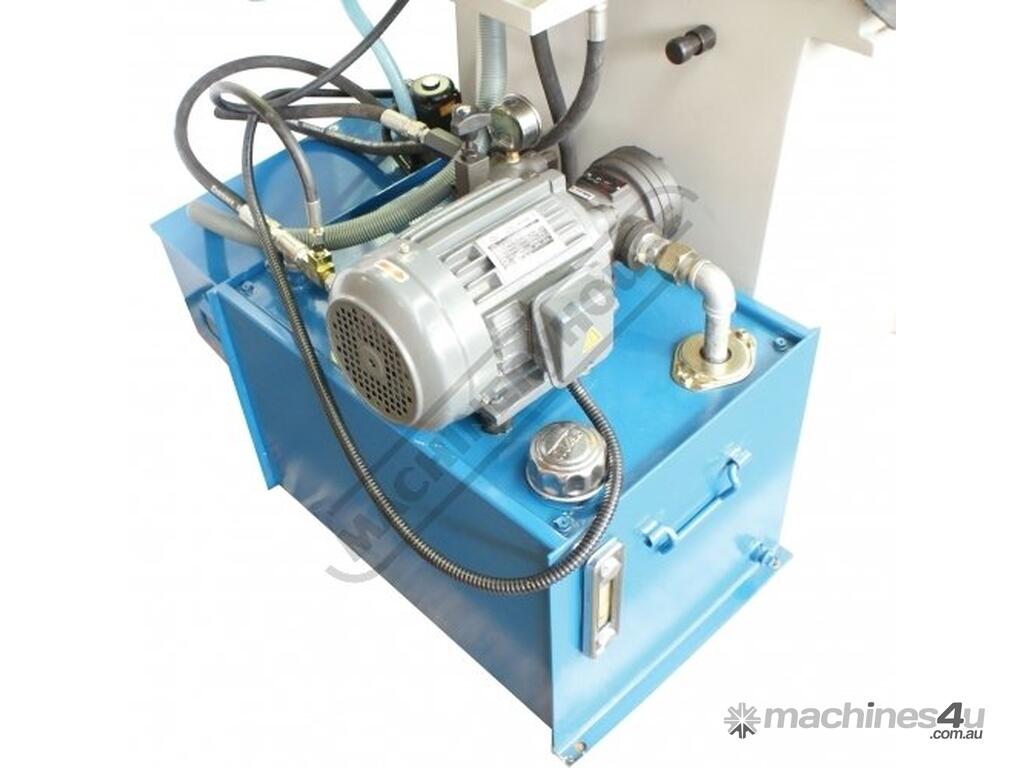

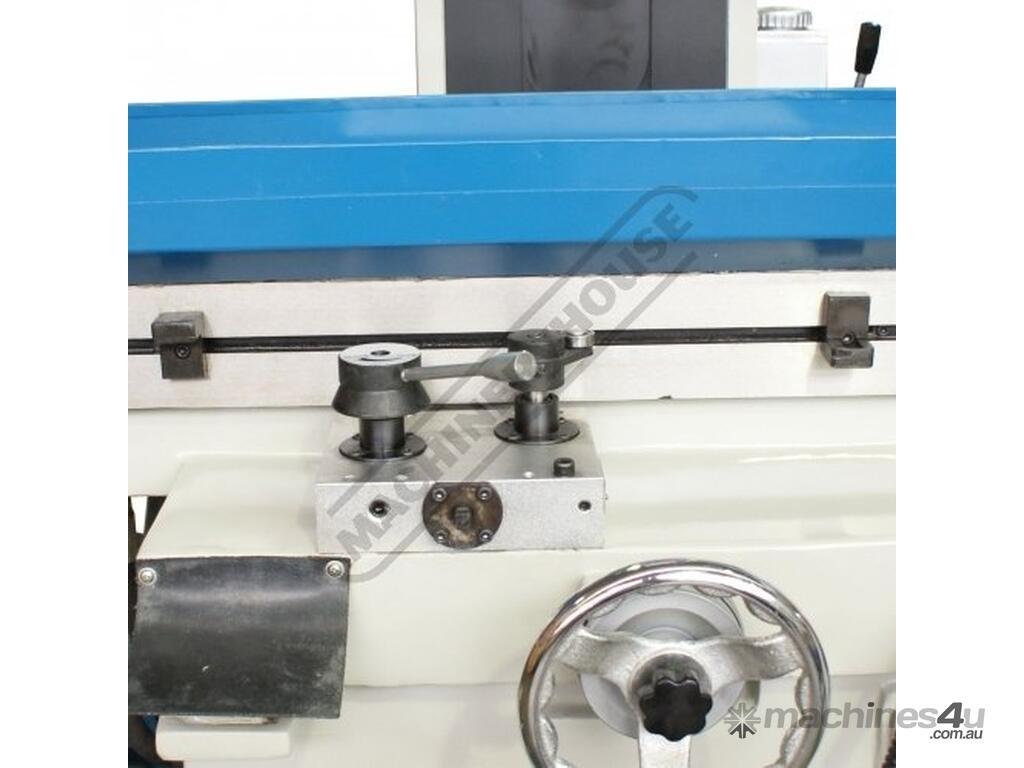

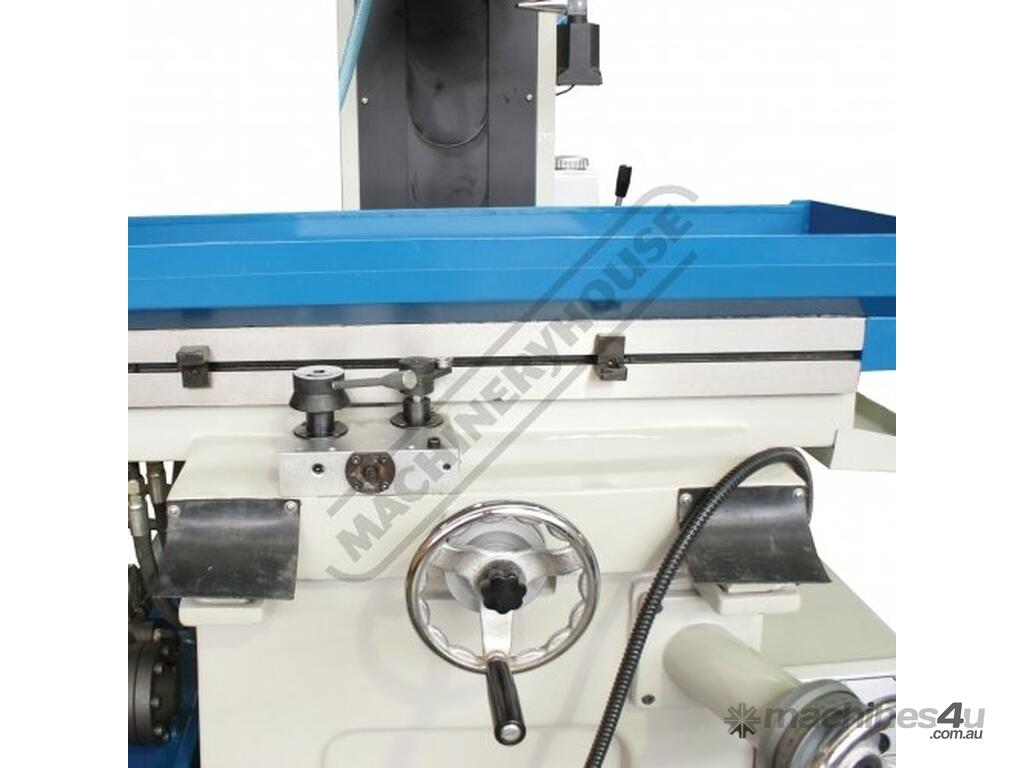

Hydraulic longitudinal table travel
Quality castings and Precision Japanese P4 ball bearing supporting the spindle

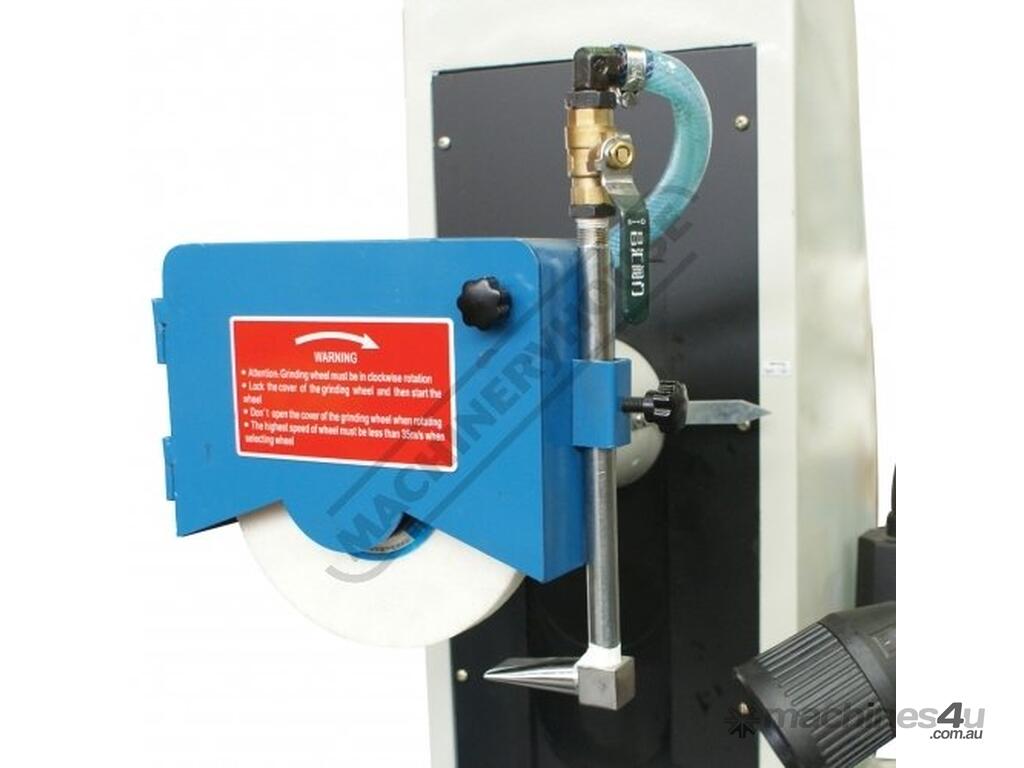

Coolant system with nozzle and flow control valve
Cast iron machine body and stand for maximum rigidity and smooth operation

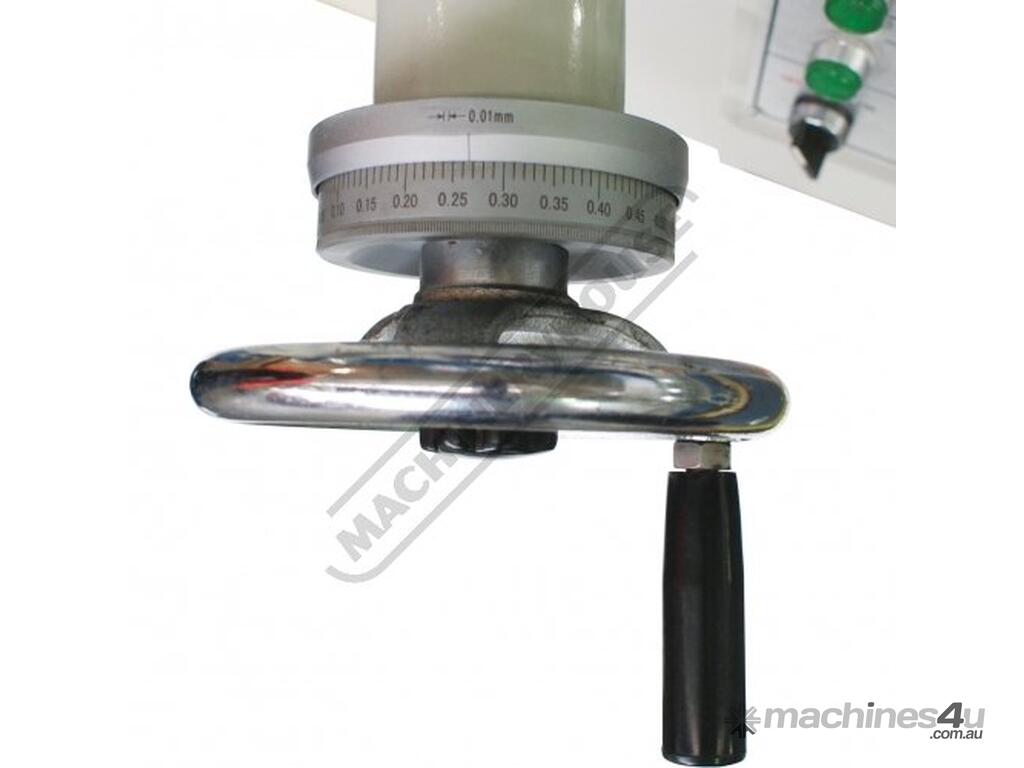

Vertical dial graduations 0.01mm

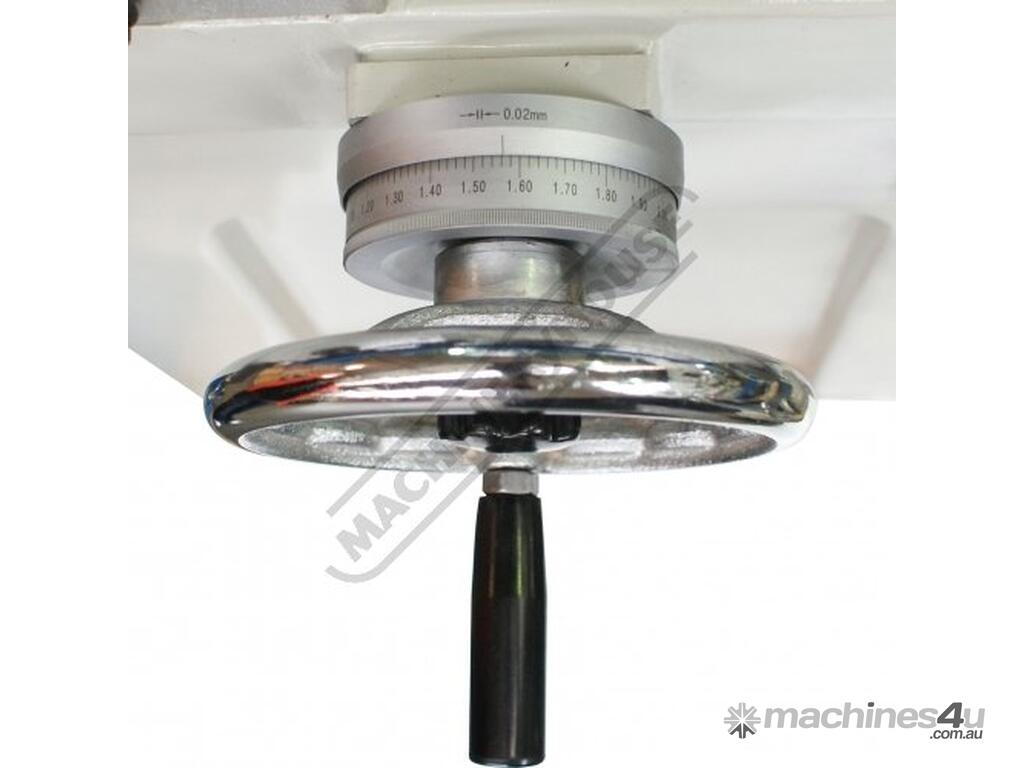

Cross travel graduations 0.02mm

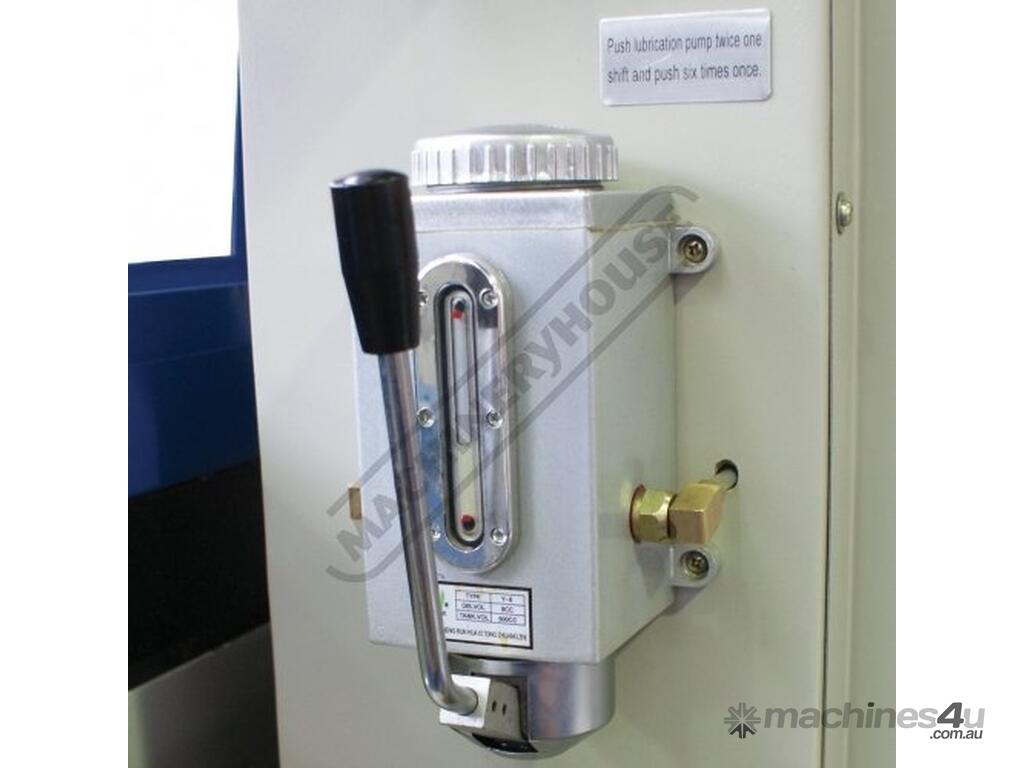

Manual one shot lubrication pump
Wheel balancing stand and arbor

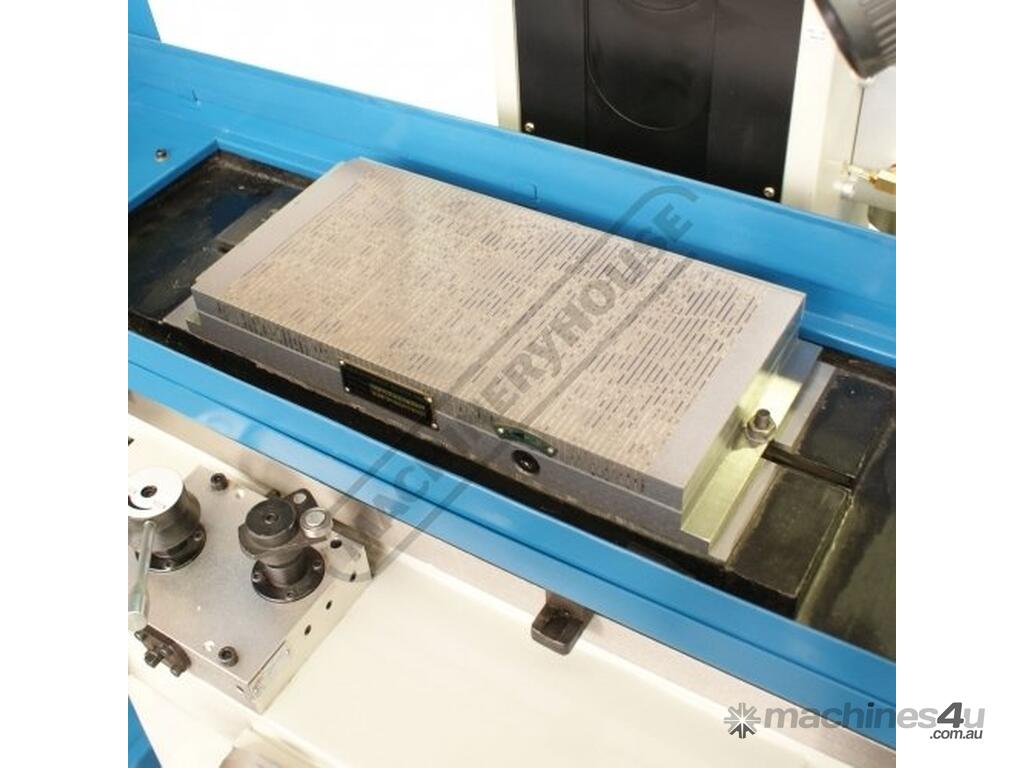

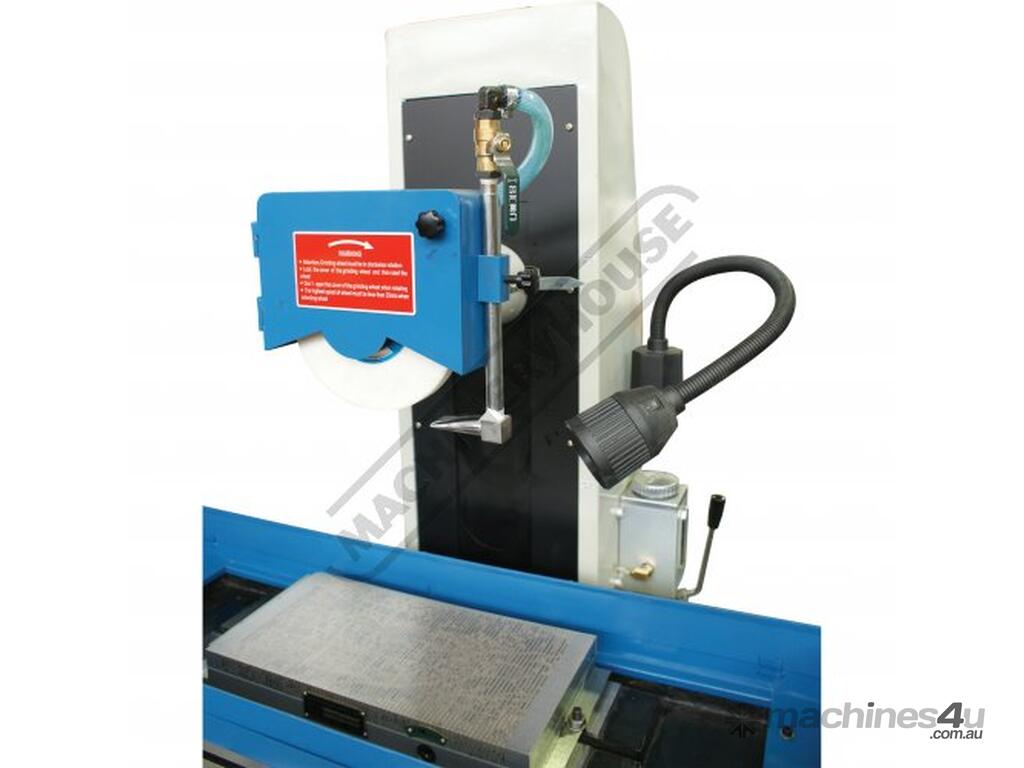

400 x 200mm magnetic chuck
Diamond wheel dresser

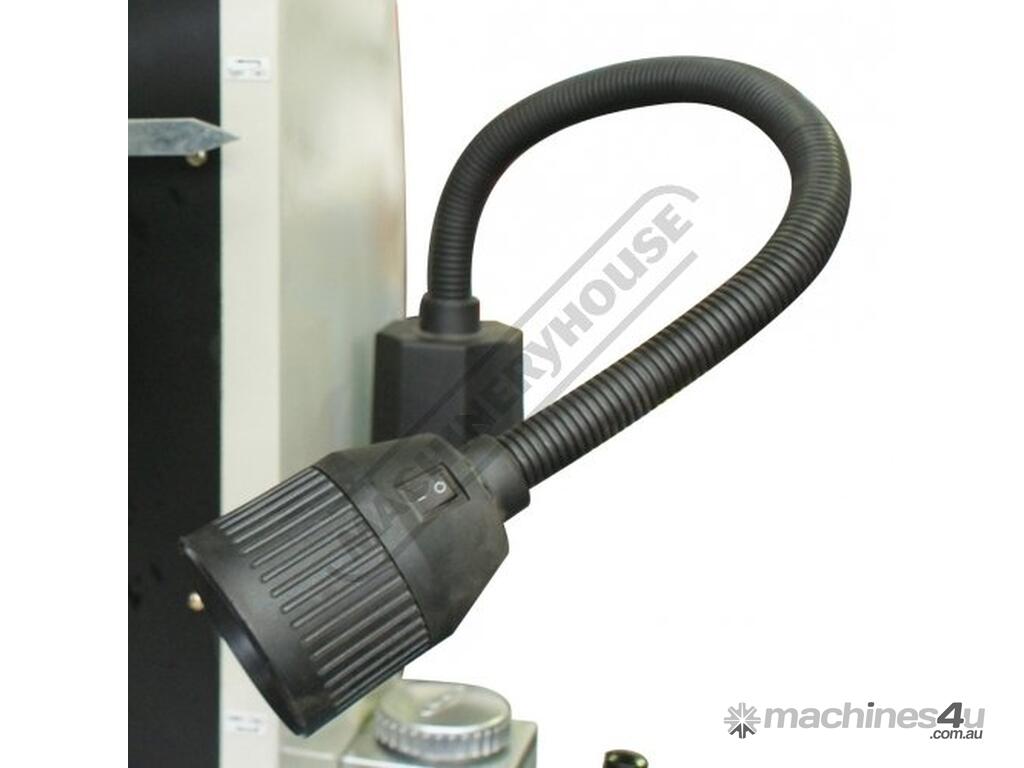

Halogen work light
Specifications:
ORDER CODE: G220
MODEL: SG-820H
AD5 Controller: ~
Magnetic Chuck Size (mm): 400 x 200
Longitudinal Table Traverse - Maximum (mm): 530
Cross Table Traverse - Maximum (mm): 220
Table Bed Size (mm): 480 x 200
Spindle To Table - Maximum (mm): 450
Wheel Diameter (mm): 200
Vertical Increment Graduations (mm): 0.01
Vertical Graduations Per Revolution (mm/rev): 1.25
Cross Increment Graduations (mm): 0.02
Cross Graduations Per Revolution (mm/rev): 2.5
Spindle Motor (kW / hp): 1.1 / 1.5
Voltage / Amperage (V / amp): 415
Shipping Dimensions (L x W x H) (cm): 163 x 114 x 194
Nett Weight (kg): 750
To Purchase Online Please Visit The Machineryhouse Website & Search For 'G220'
