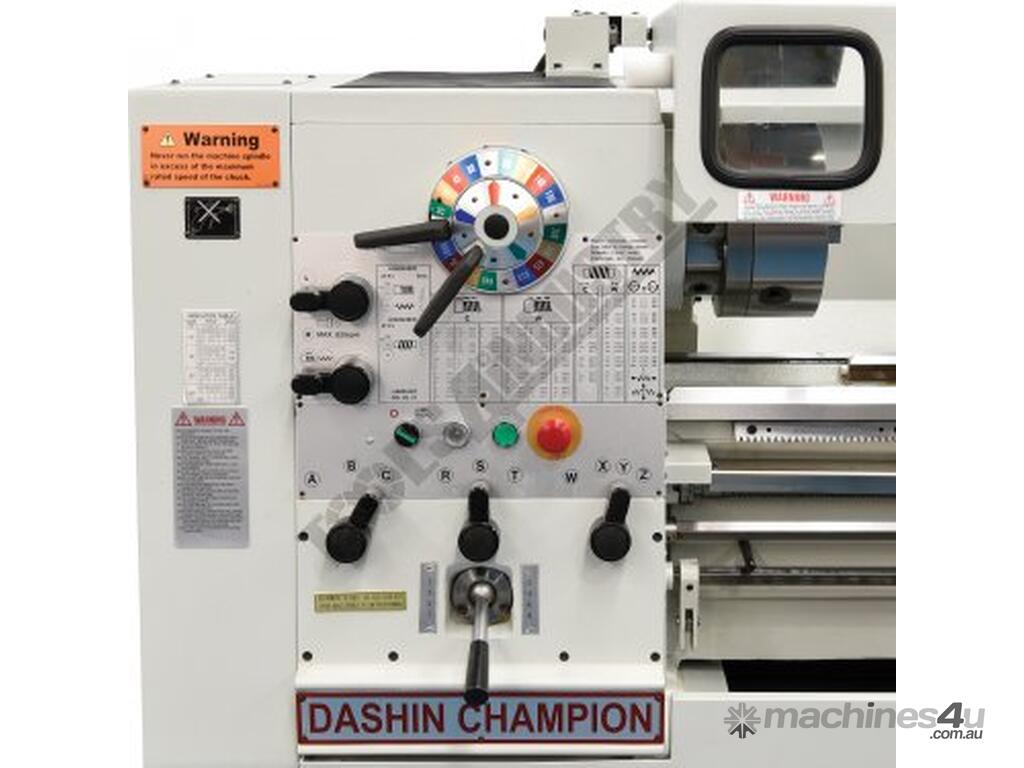

SHAW - Dashin Champion 1550 Centre Lathe Taiwanese

The Dashin Champion 1550 Industrial quality centre lathe is manufactured in Taiwan to a precision engineering high tolerance & superior excellence to cope with the everyday turning job or task and is widely found in many engineering workshops around Australia. This versatile model has a very popular & distinctive user-friendly geometric progression gear speed selector that has been bases of the well-known machine made in the UK.

Swing Over Bed 390 mm
Distance Between Centres 1250 mm
Spindle Bore 55 mm
Swing Over Cross-slide 240mm
Swing In Gap 610 mm
Digital Readout System Yes
Quick Change Tool post Optional
Leadscrew Covers Fitted Yes
Coolant System Yes
Tool Height To Suit 20mm
Centre Height 176 mm
Spindle Nose Size or Type D1-6 Camlock
Bed Width 270 mm
Headstock Spindle Taper 6MT
Tailstock Taper 4MT
Cross Slide Travel 230mm
Compound Slide Travel 120mm
Leadscrew Type - Metric
Metric Cross Feed (X-Axis) 0.02 - 0.50 mm/rev
Metric Longitudinal Feed (Z-Axis) 0.040 - 1.00 mm/rev
Metric Thread Steps & Pitch 39(0.2 - 14) No. / mm
Imperial Thread Steps & TPI ) 40(2 - 72) No. / TPI

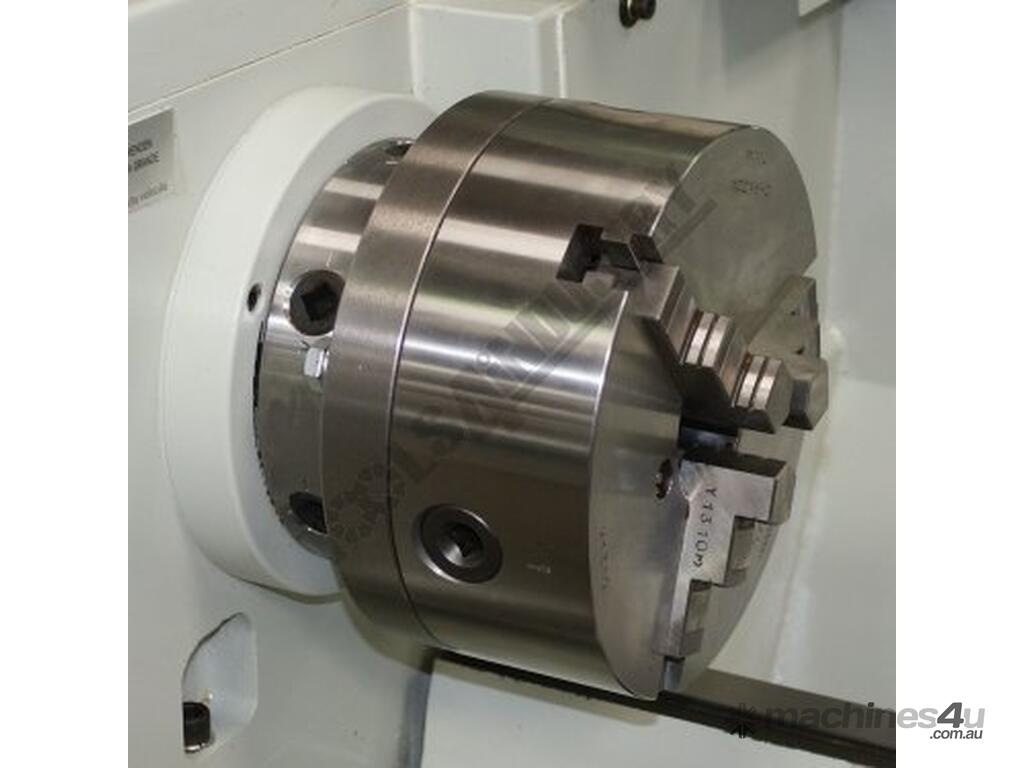

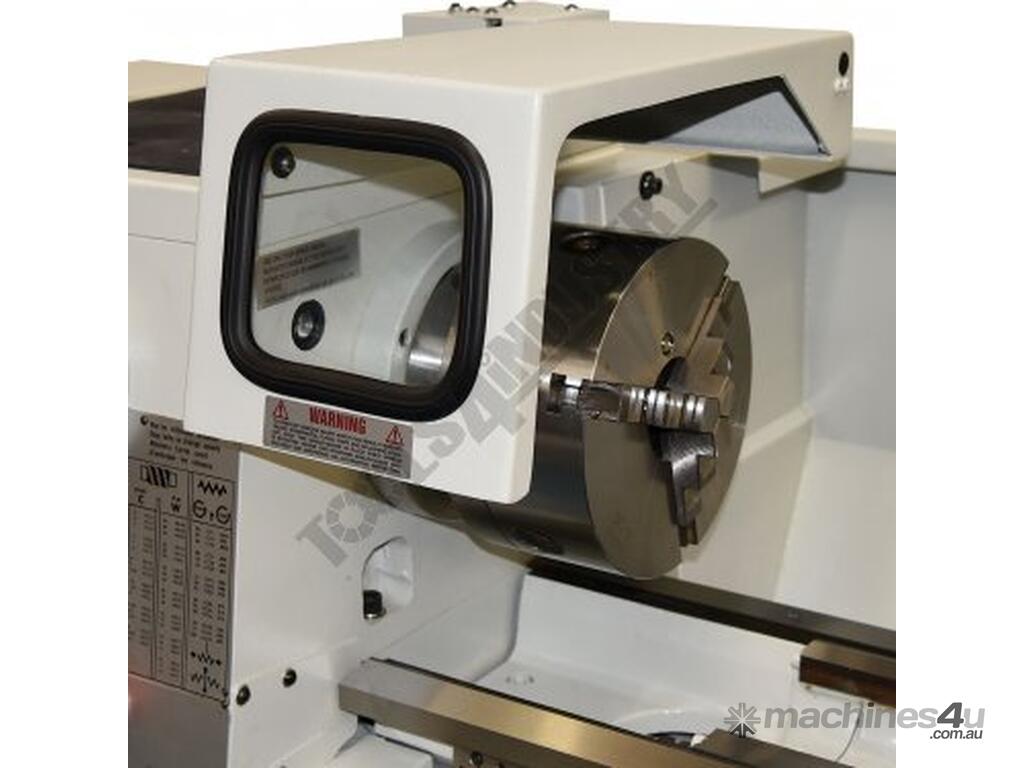

3 Jaw Chuck Diameter 232mm
4 Jaw Chuck Diameter 250mm
Spindle Steps / Speeds 16 (25 - 2000) No. / rpm
Motor Power kW / hp 5.5 / 7.5
Voltage / Amperage 415 volt
Nett Weight 1500 kg

Features

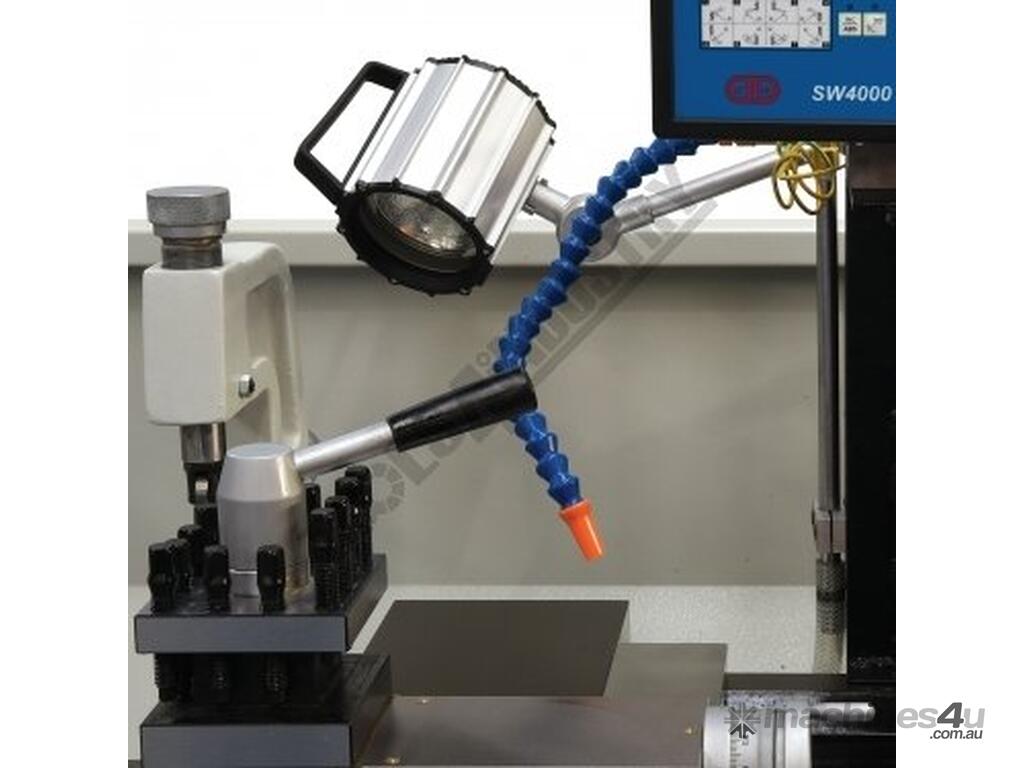

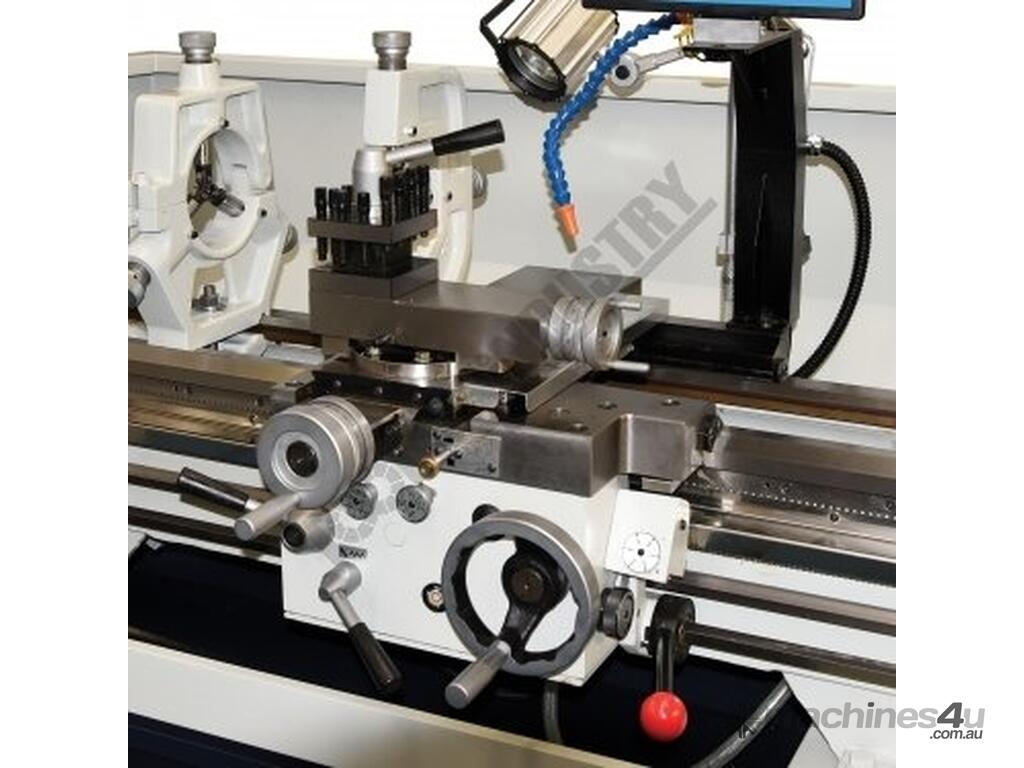

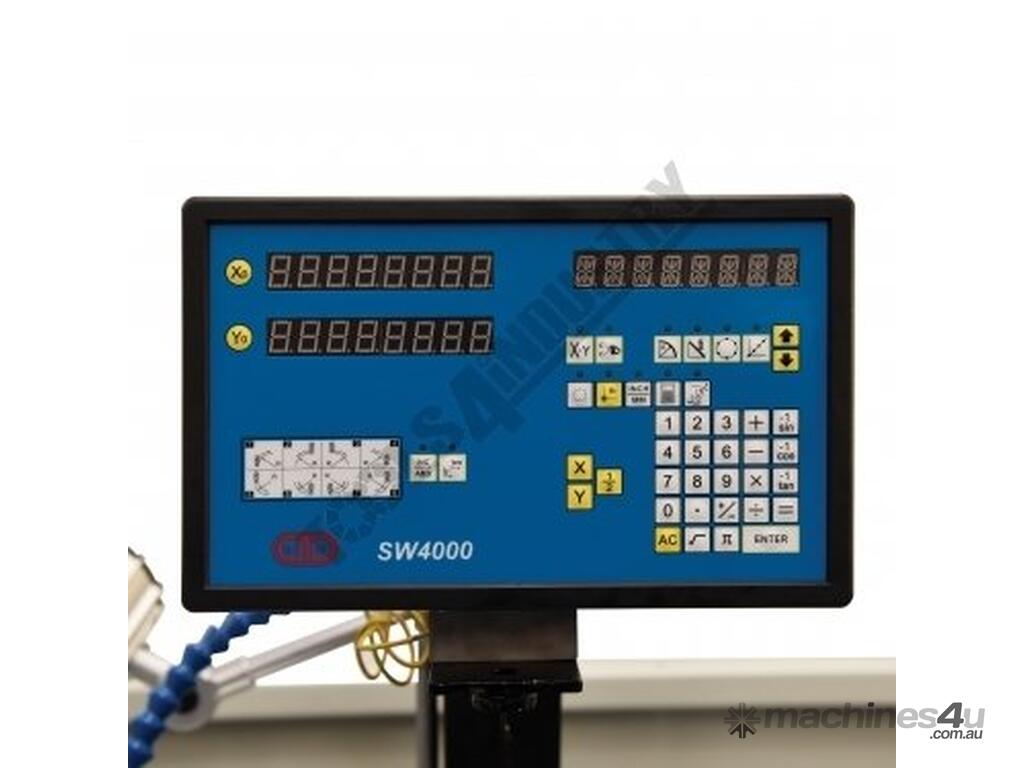

2 Axis digital readout system
Precision Taiwanese machine, sold for over 45 years
Adjustable taper roller bearings providing spindle accuracy
Precision 'V'-beds & headstock gears are all hardened & ground
Overload protection on drive motor and coolant system

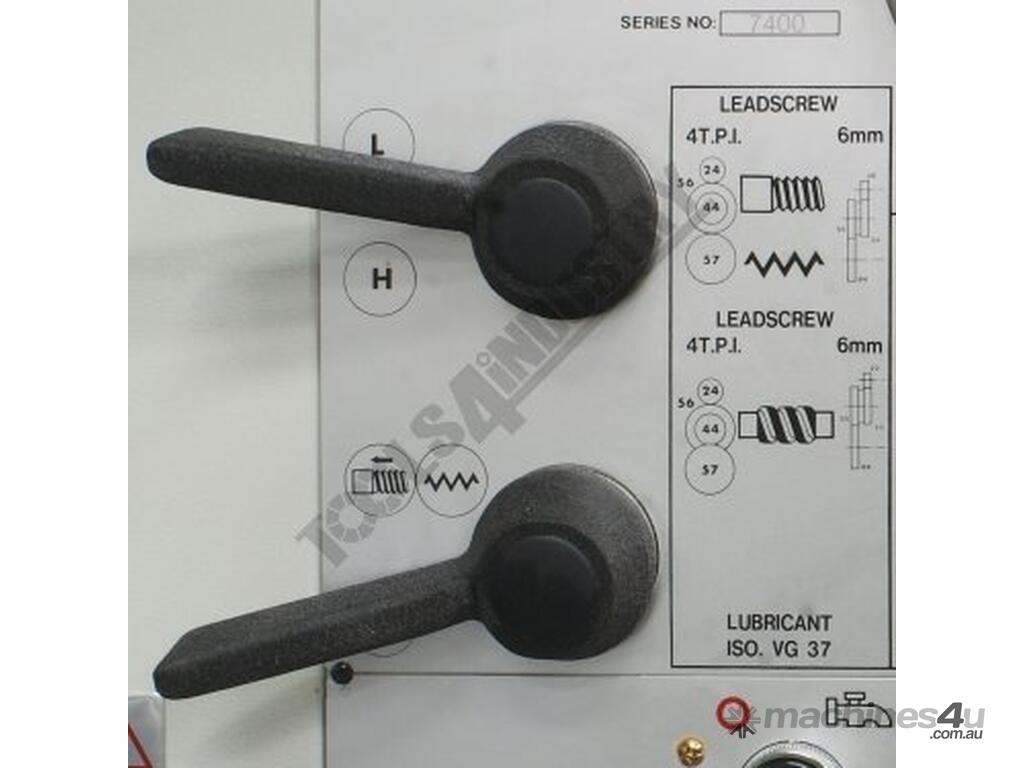

Universal enclosed gearbox incorporating metric & imperial thread capabilities

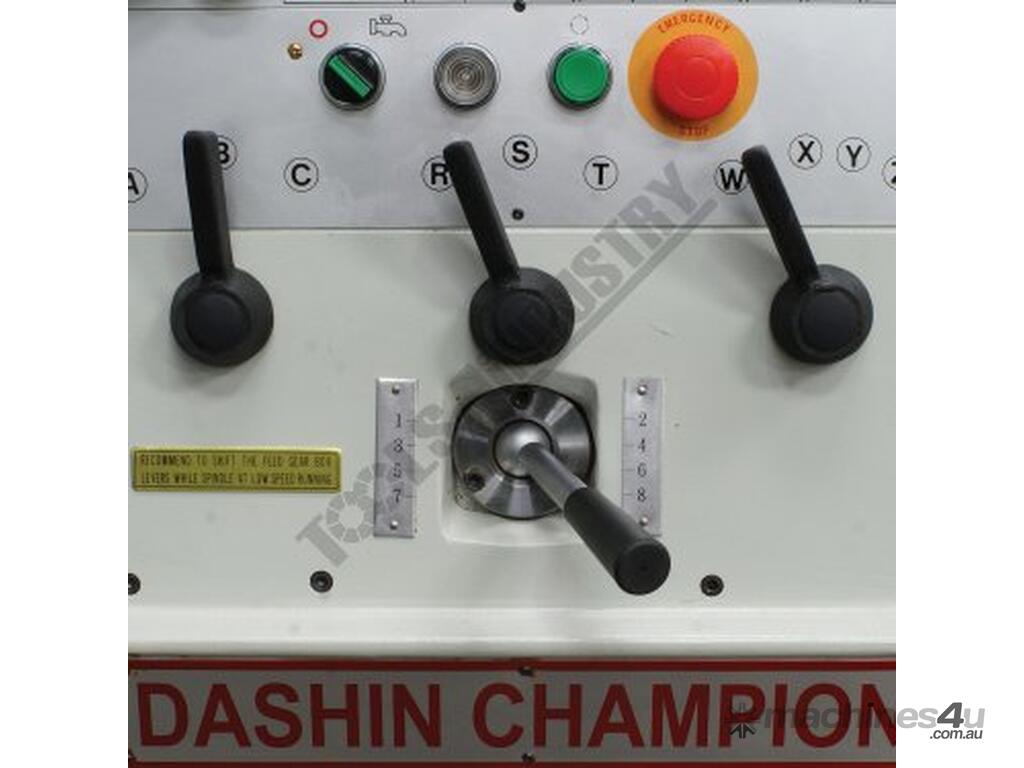

Inching button incorporated on the control panel for convenient spindle speed selection

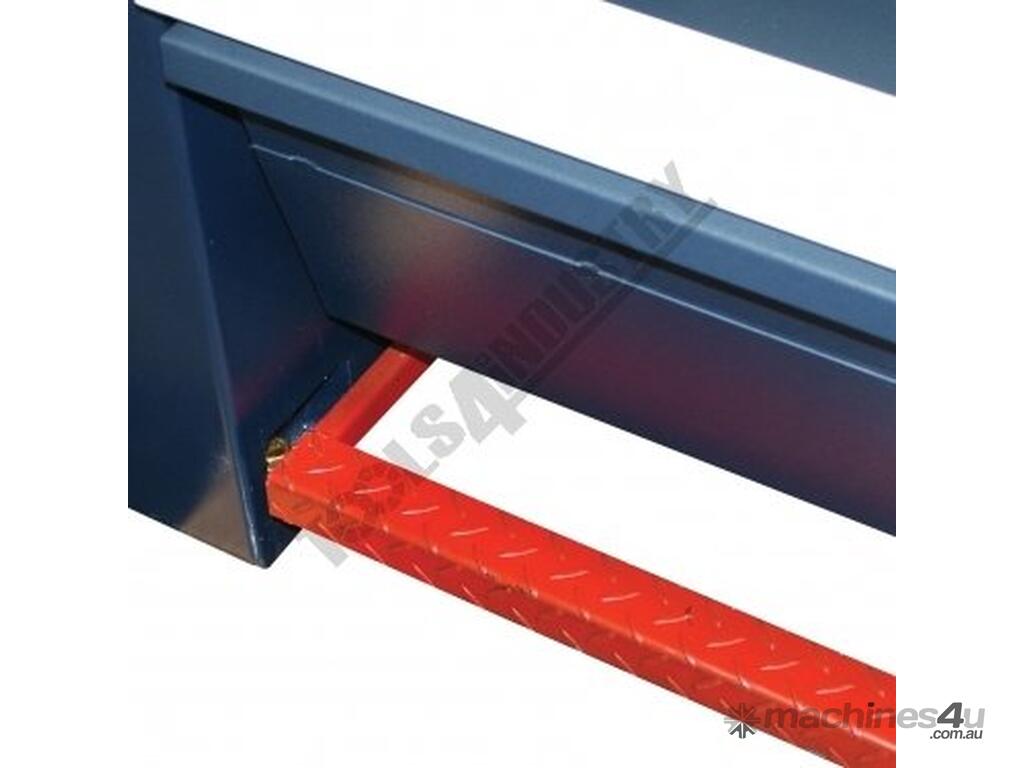

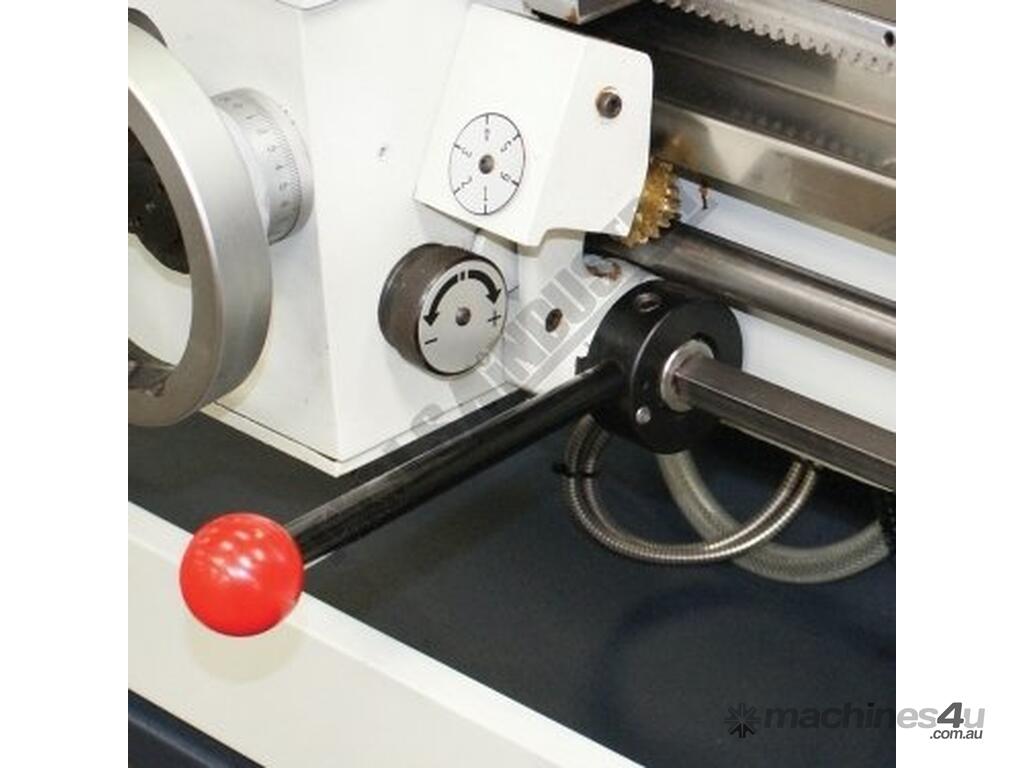

Foot operated spindle brake with safety cut out switch
270mm wide induction hardened heavy duty cast iron bed
Removable gap bed allowing work piece to swing up to 610mm

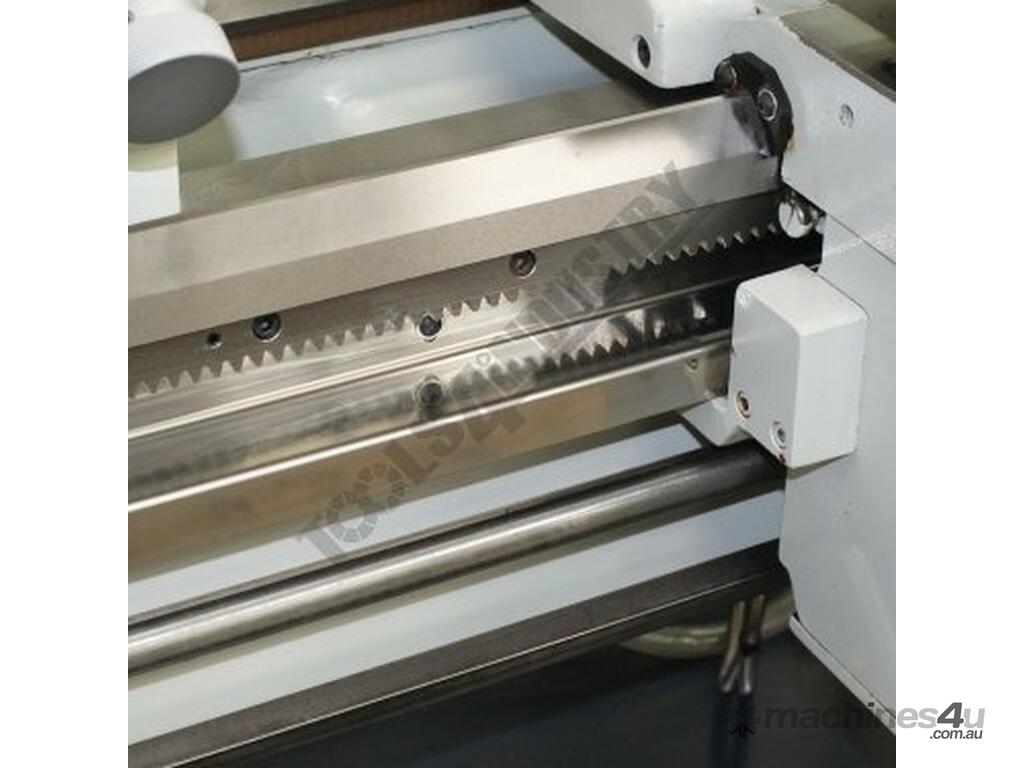

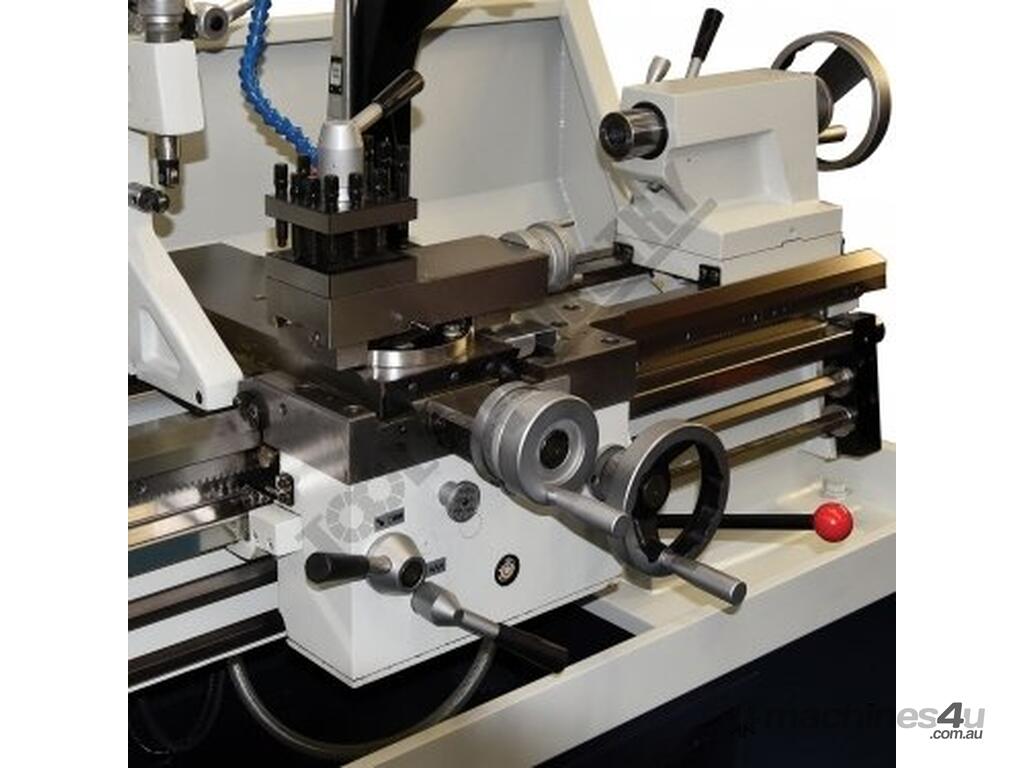

Powered longitudinal and cross feeds

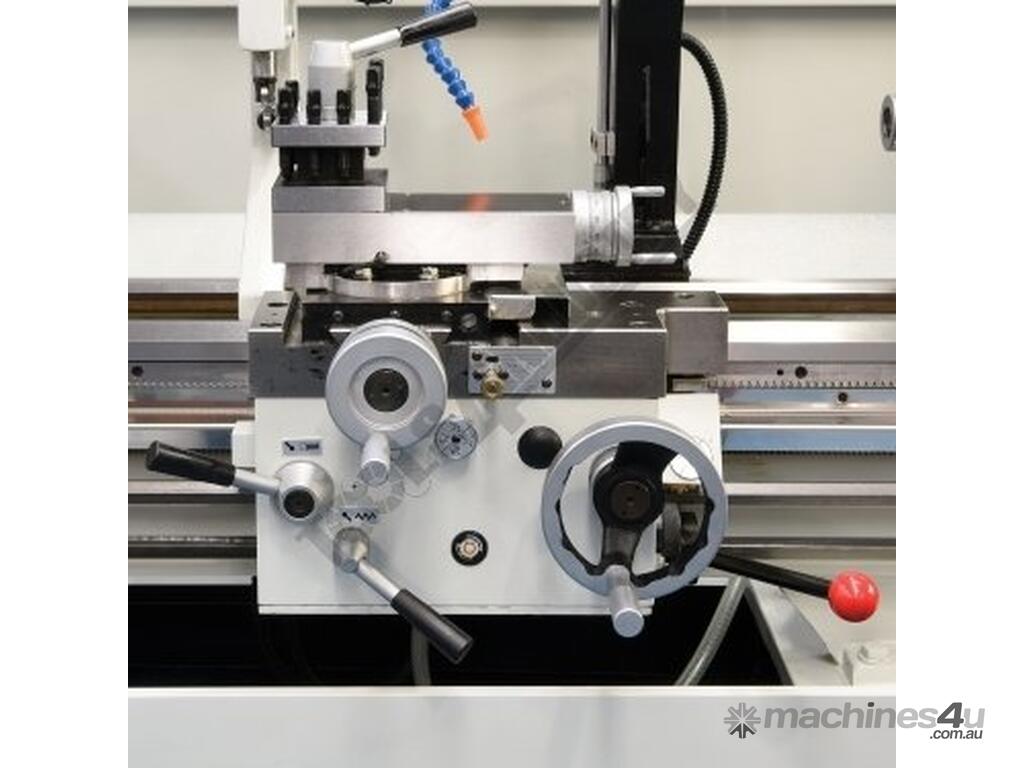

Clutch in apron enabling pressure adjustment for feeding in both axis
Dual calibrated dials incorporating metric & imperial graduations on Cross and Compound Dials
Coolant system with flexible hose enabling operator to manipulate flow direction
Oil sight glass for head stock and gearbox
Lubrication pump on saddle oiling slides

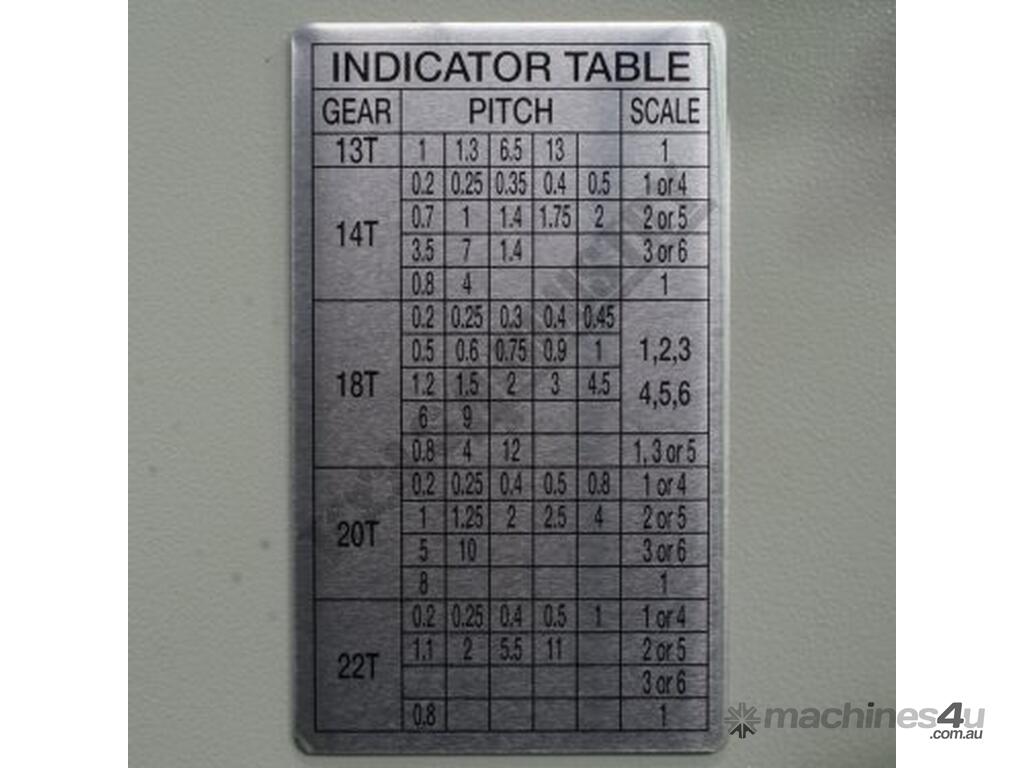

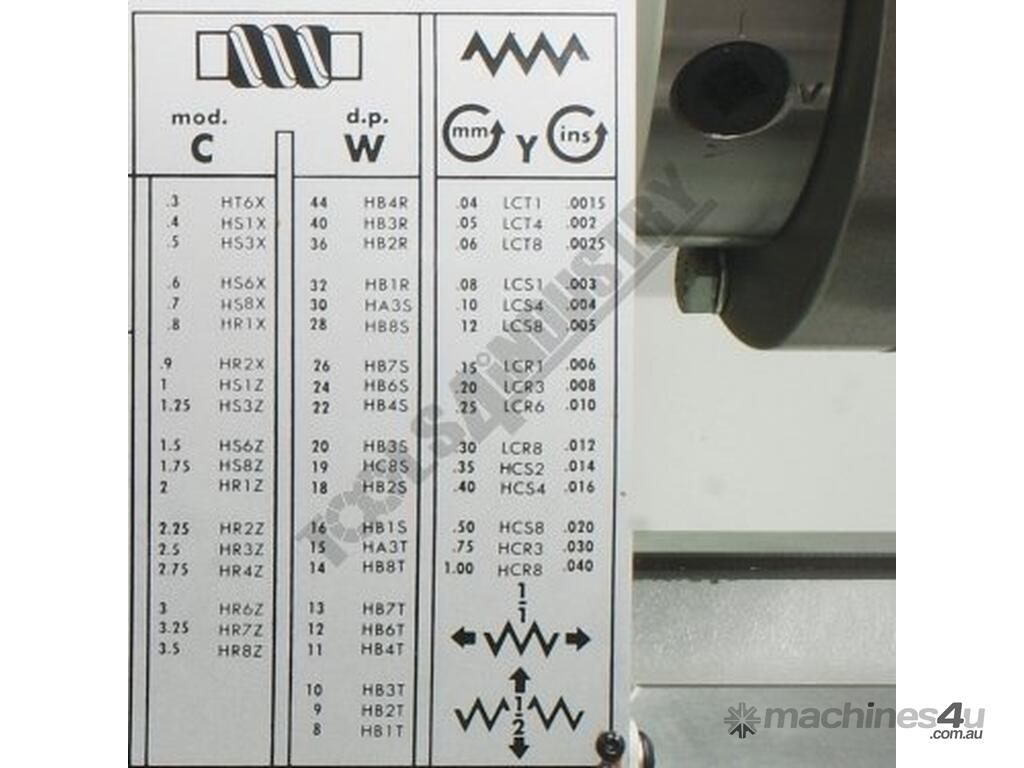

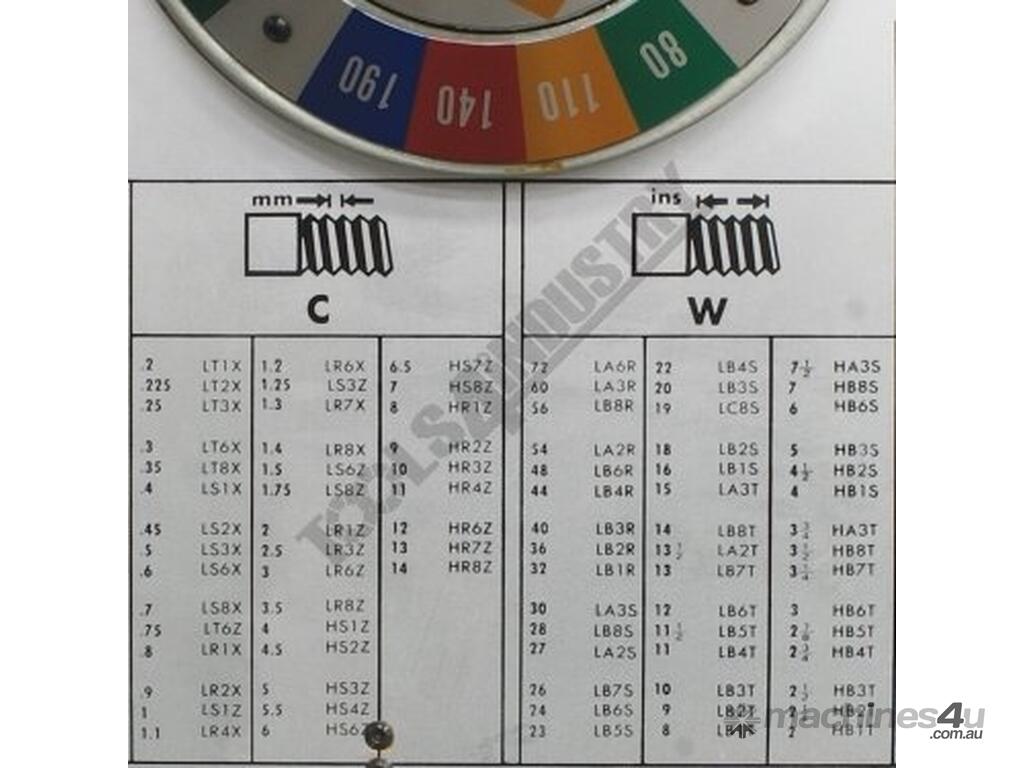

Change gears for metric and imperial thread cutting
D1-6 camlock spindle for quick chuck removal

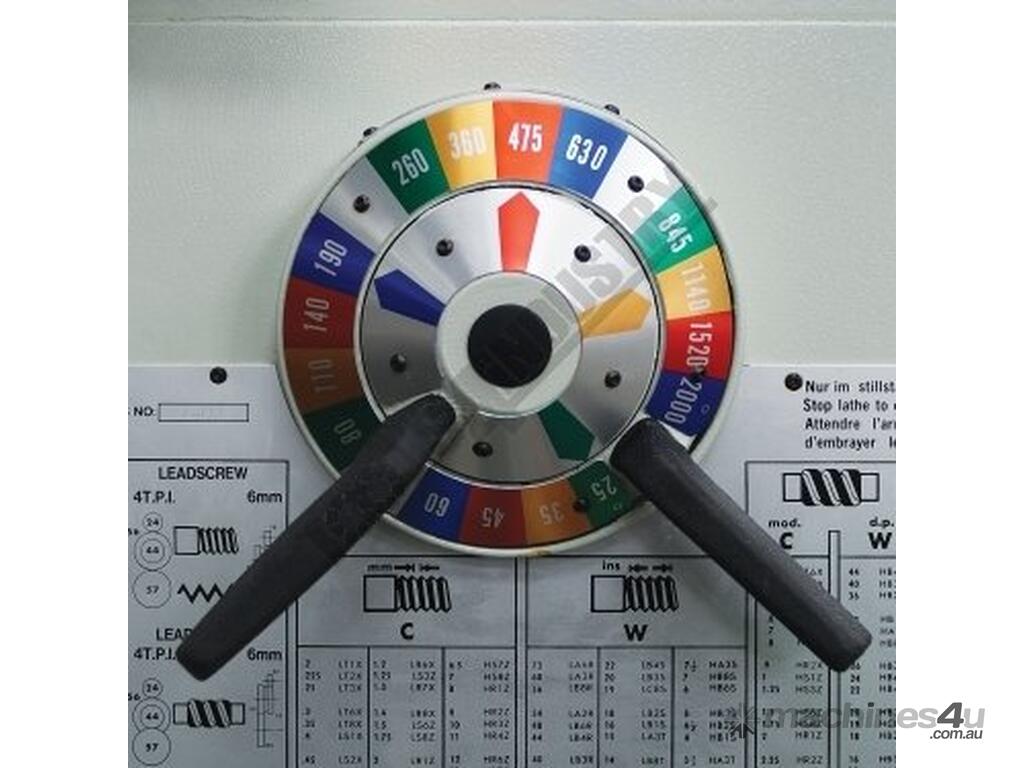

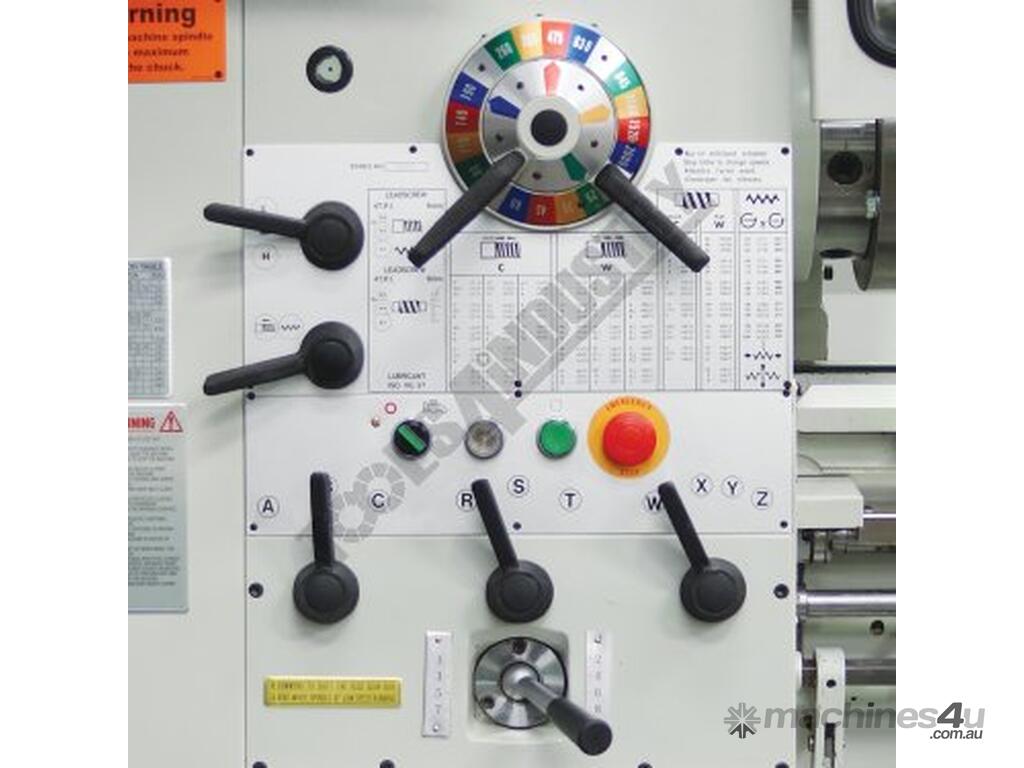

16 spindle speeds from 25-2000rpm in geometric progression
Large 55mm spindle bore
5.5kW / 7.5HP 415V main motor
