SHAW - HAFCO Swivel Head Bandsaw BS-13DS

HAFCO METALMASTER Metal Cutting Bandsaw BS-13DS

CALL FOR OUR BEST PRICE

Order Code: B030

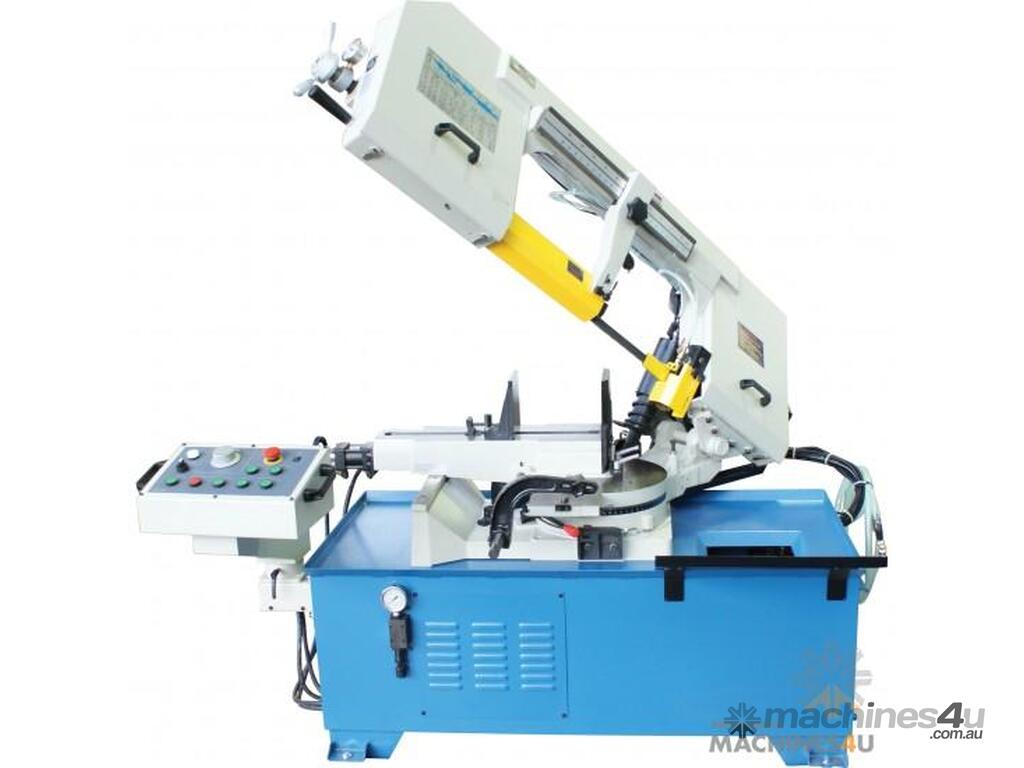

BS-13DS - Dual Mitre Semi - Automatic Swivel Head Metal Cutting Band Saw (415V)
458 x 235mm (W x H) Rectangle

Description
The BS-13DS Industrial duty metal cutting band saw has many features on offer with a double mitre swivel head to cut mitres up to 45 degrees left and 60 degrees right with a variable blade speed system, hydraulic feed control a cutting capacity of up to 330mm diameter or 458 x 235mm in steel at 90º and three ball bearings per side with carbide blade guides for optimal control and accuracy. There is a choice of blade speeds via an adjustable dial system so that the cutting speed can be changed to suit a wide range of materials, whilst the built-in coolant system ensures maximum cutting efficiency and longer blade life. Both blade control arms are adjustable, allowing them to be positioned as close to the cut as possible. This means reliability and accurate cuts!

The cutting operation works automatically with the weight of the head providing the cutting force and a limit switch shutting the machine down when the cut is complete and automatically returning to set height position. The weight of the head is counter balanced by an adjustable hydraulic damper to control the feed rate, an excellent machine choice for maintenance shops, steel fabrications, and industrial engineering workshops. If you're looking for this size range of machine, you'll have a tough time finding a better metal-cutting band saw with these features and at this price, It represents excellent value.

Features
458 x 235mm (W x H) rectangular capacity

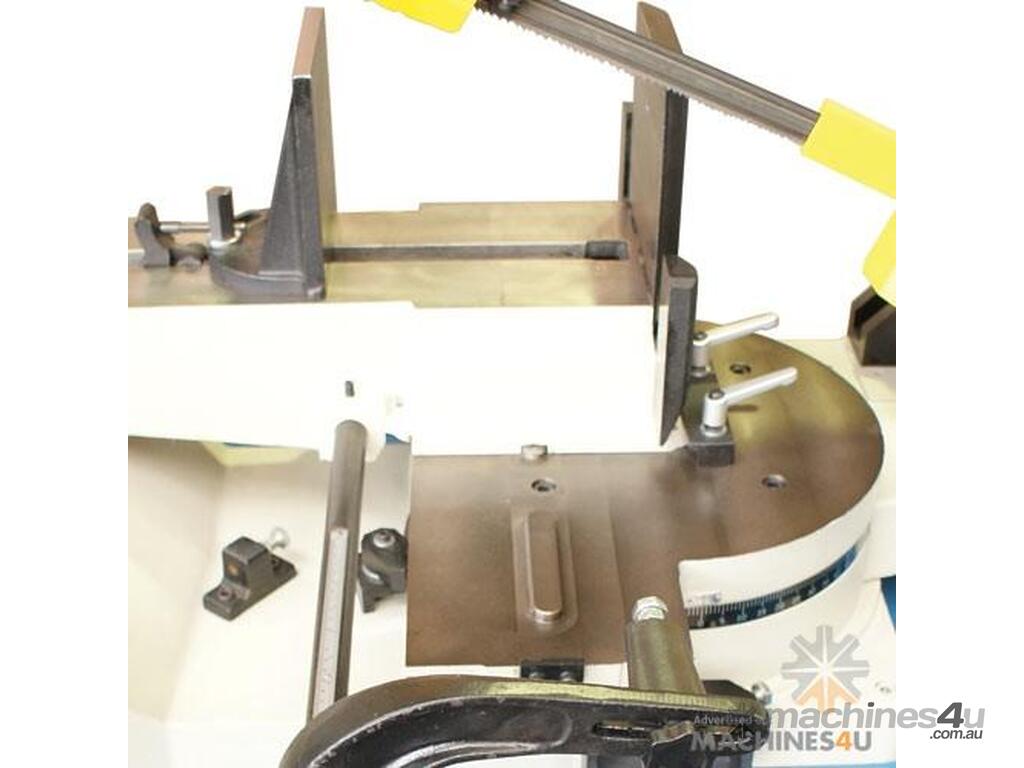

Double mitre swivel head for easy angle cutting without moving material
Semi-automatic operation, machine returns to open height position after finishing the cutting process

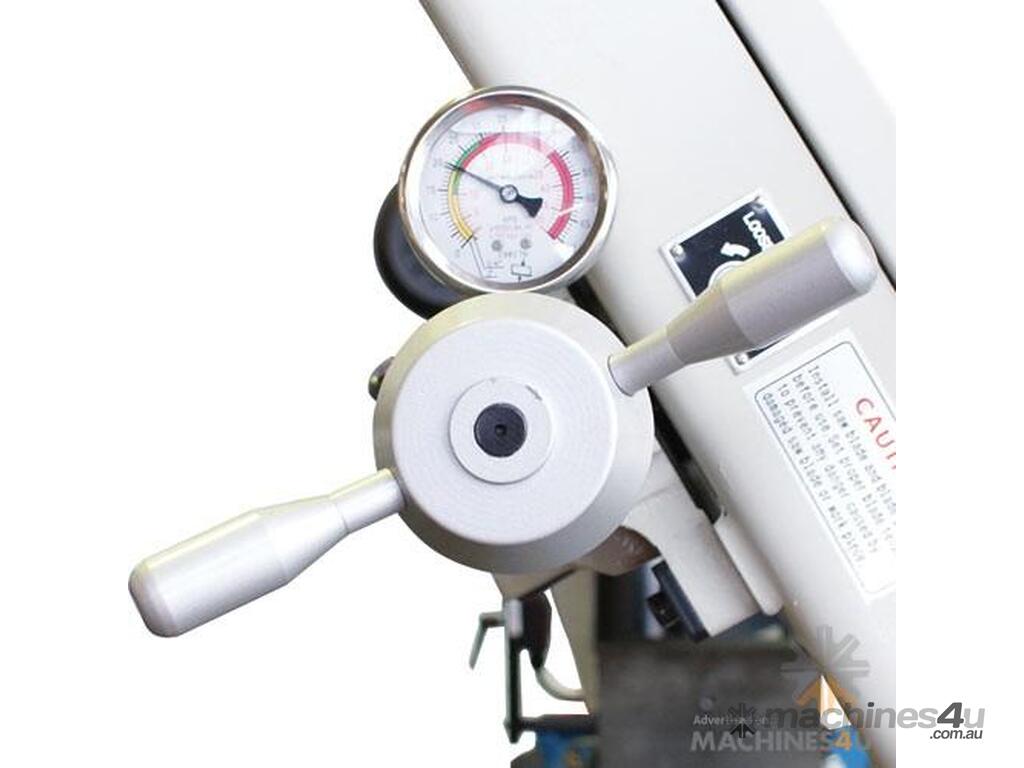

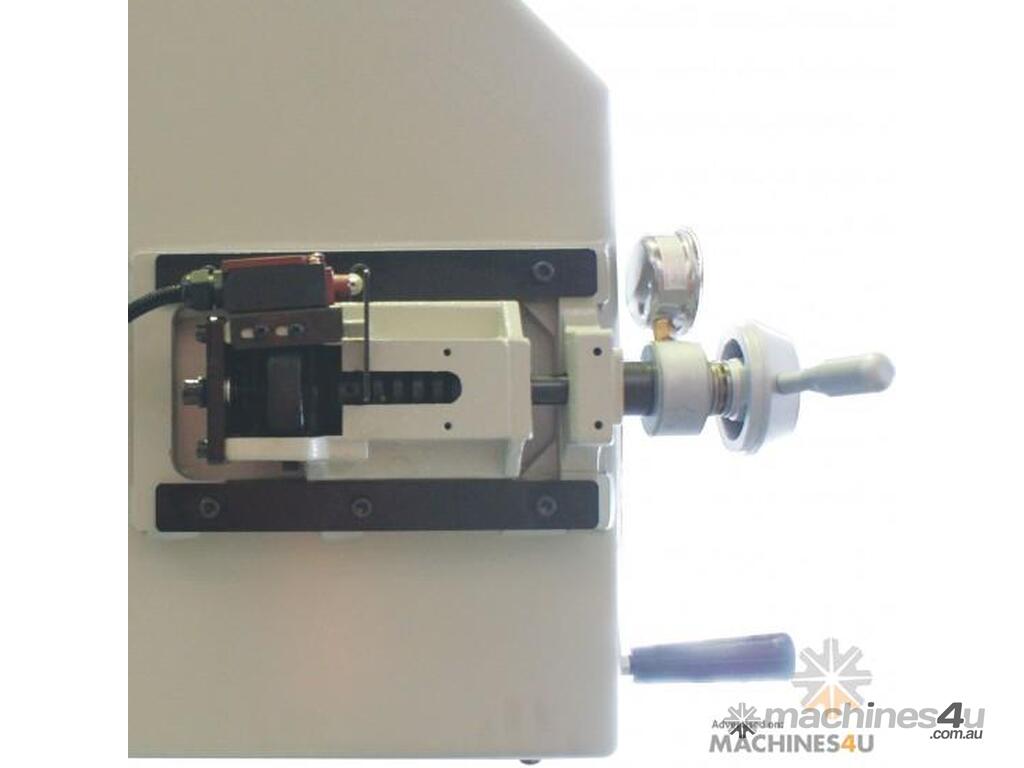

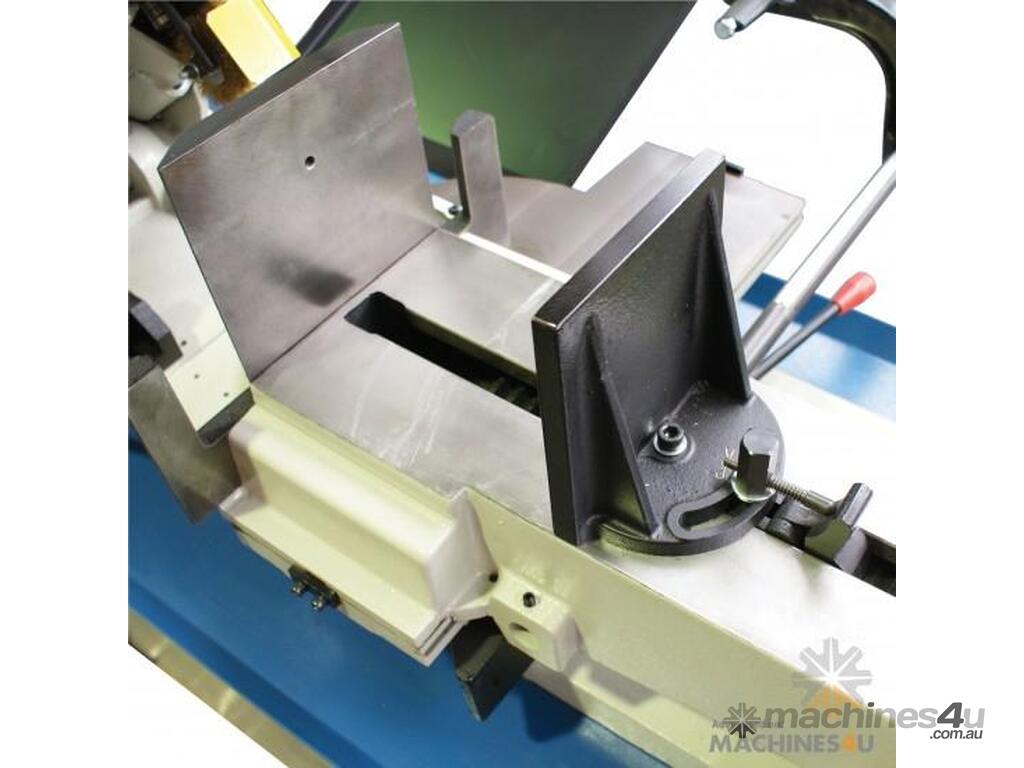

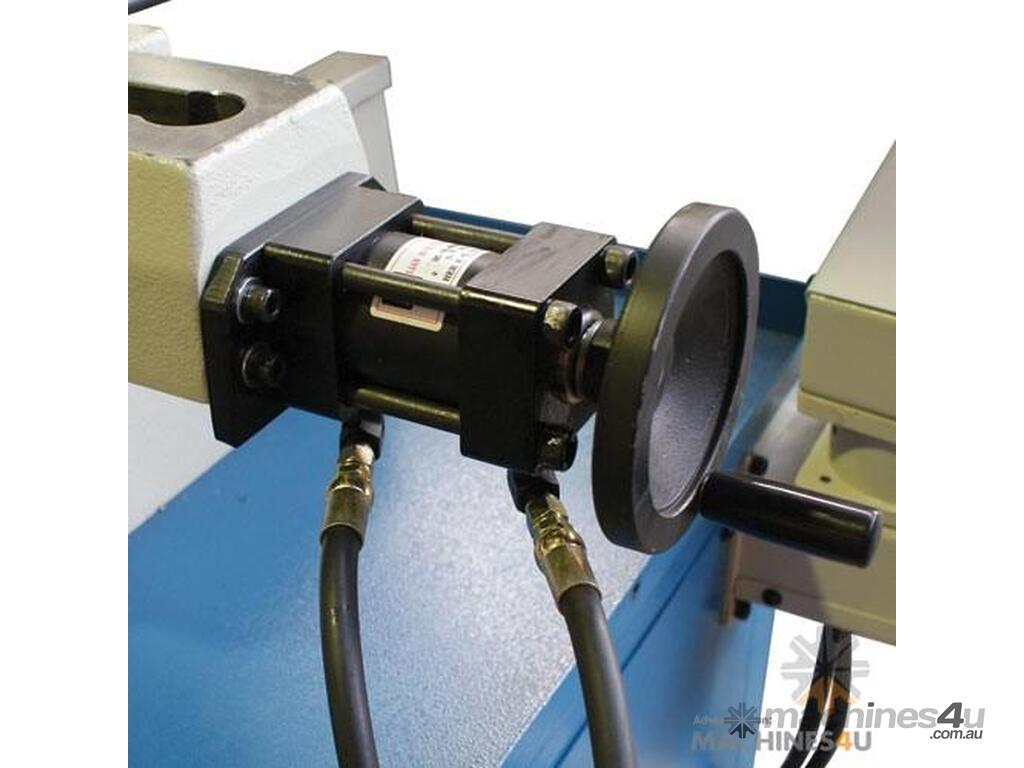

Automatic hydraulic vice incorporated with a manual hand wheel

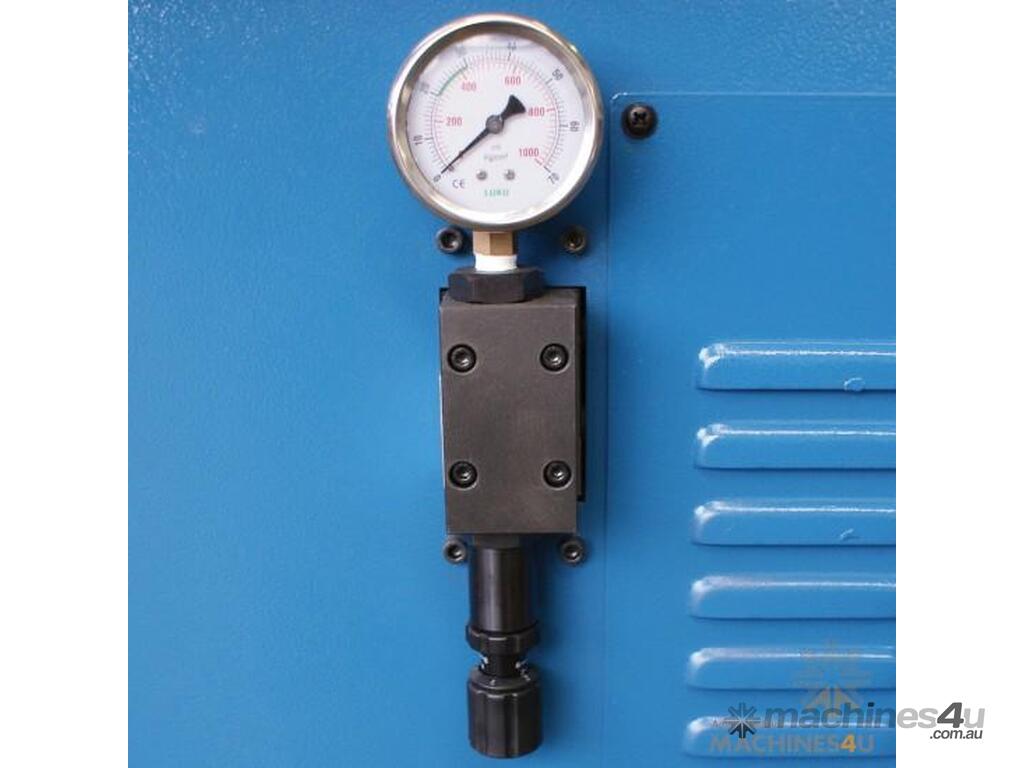

Adjustable hydraulic vice pressure regulator
Hydraulic operated system raising and lowering the cutting beam
Adjustable hydraulic feed cutting rate for multiple applications
Blade breakage sensor fitted that automatically shuts machine off
Mitre cuts to 45º right & 60º left using swivel head
Built-in coolant system for maximum cutting efficiency with wash down trigger

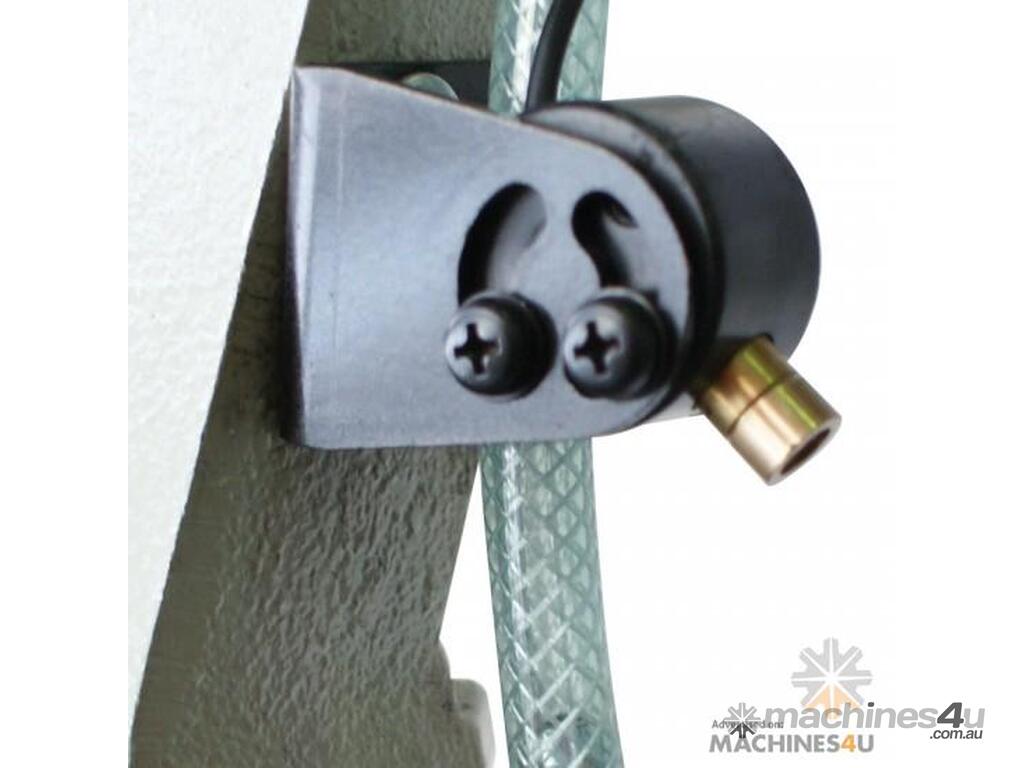

Laser line guide assist in lining up material positioning

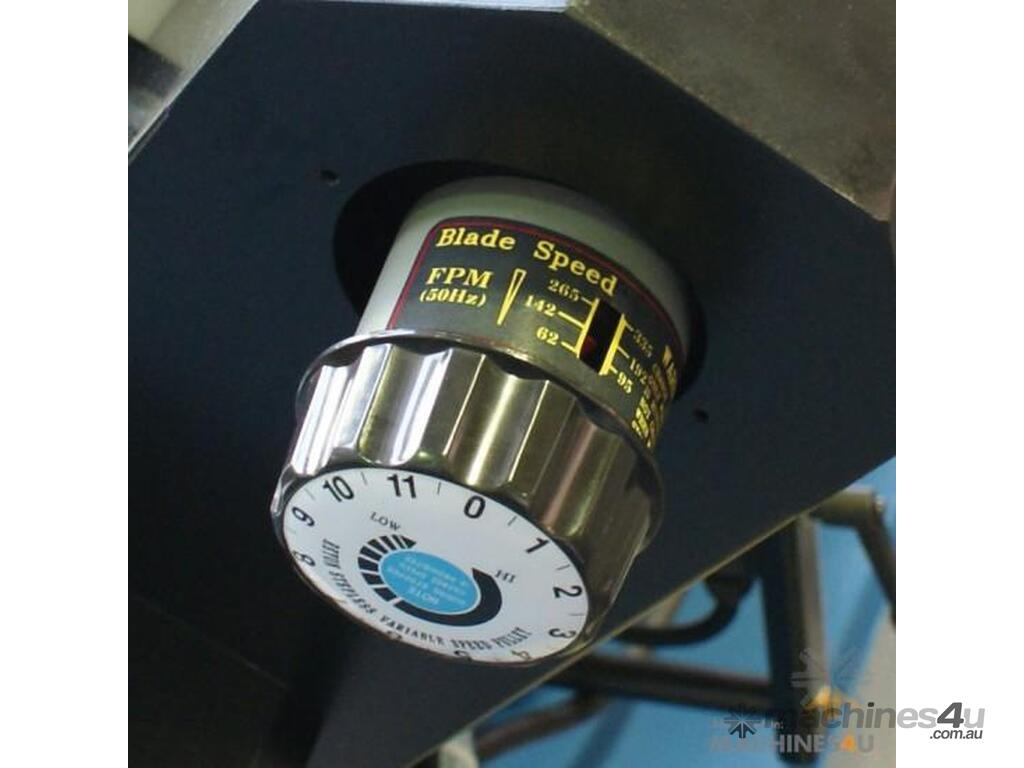

Adjustable variable blade speed system enabling 19-102mpm cutting speeds
Limit switch stops machine and raises cutting beam when cut is complete

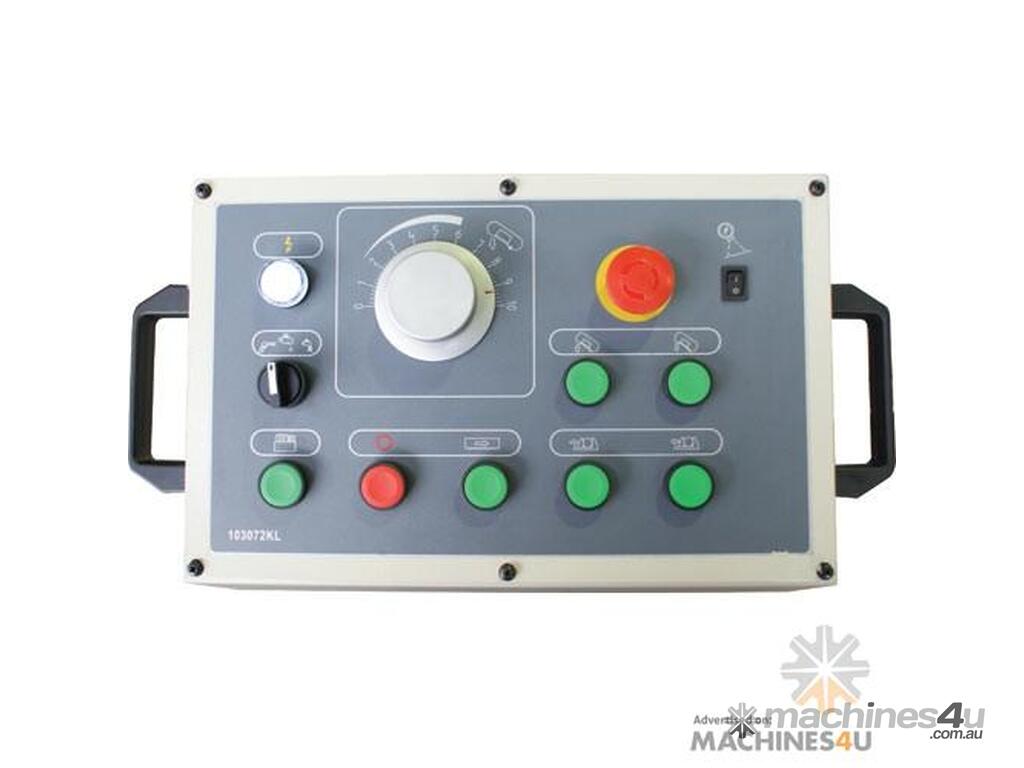

Swivelling electric control panel mounted on base for quick operation

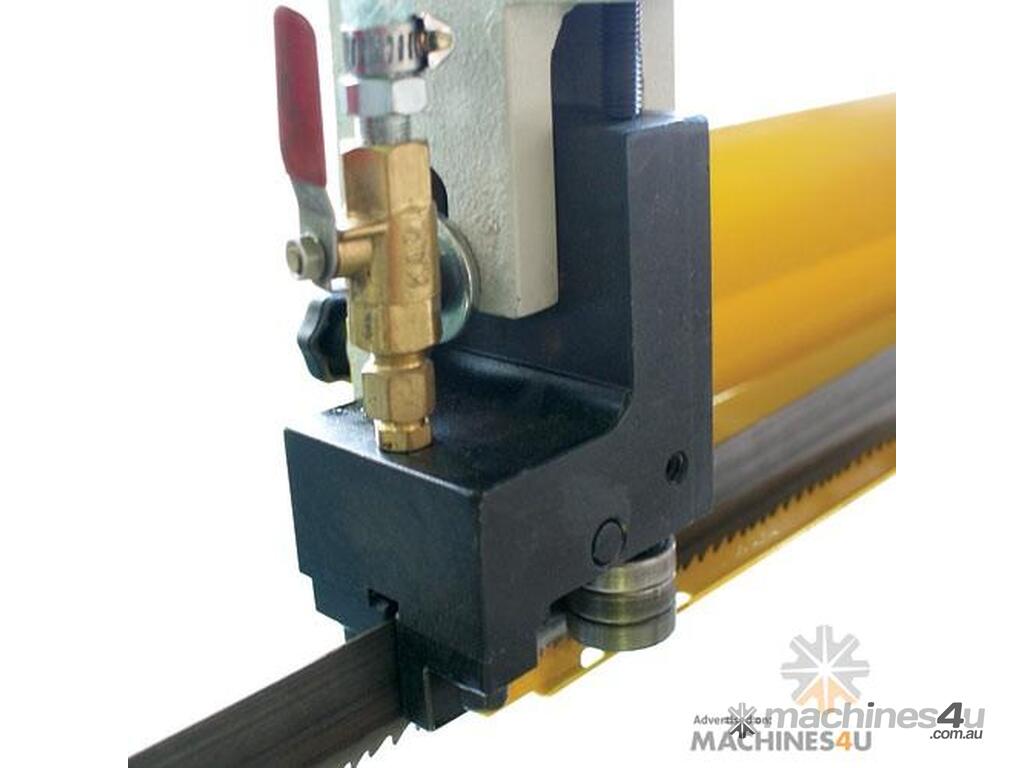

Combination roller bearing & Carbide blade guides
Heavy duty cast Iron blade wheels
Large mitre scale - easy to read
Cast Iron frame with heavy duty fabricated base
Adjustable blade roller guides provides accurate cutting
Adjustable length stop for repetition cutting

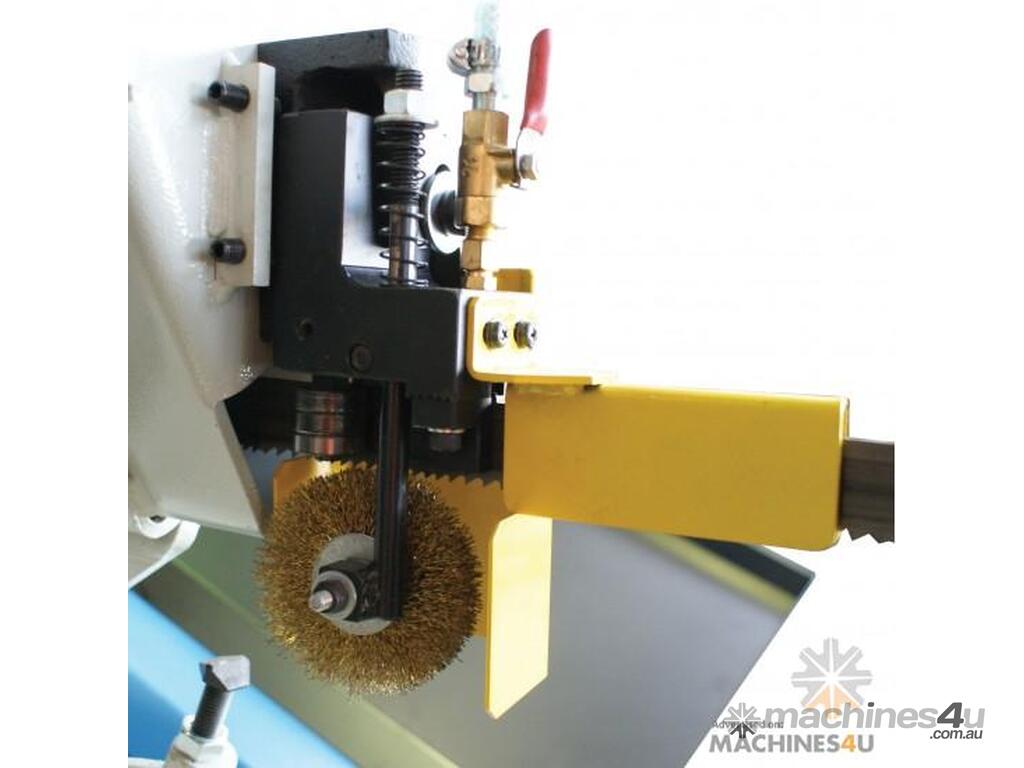

Wire wheel brush to clean swarf from blade

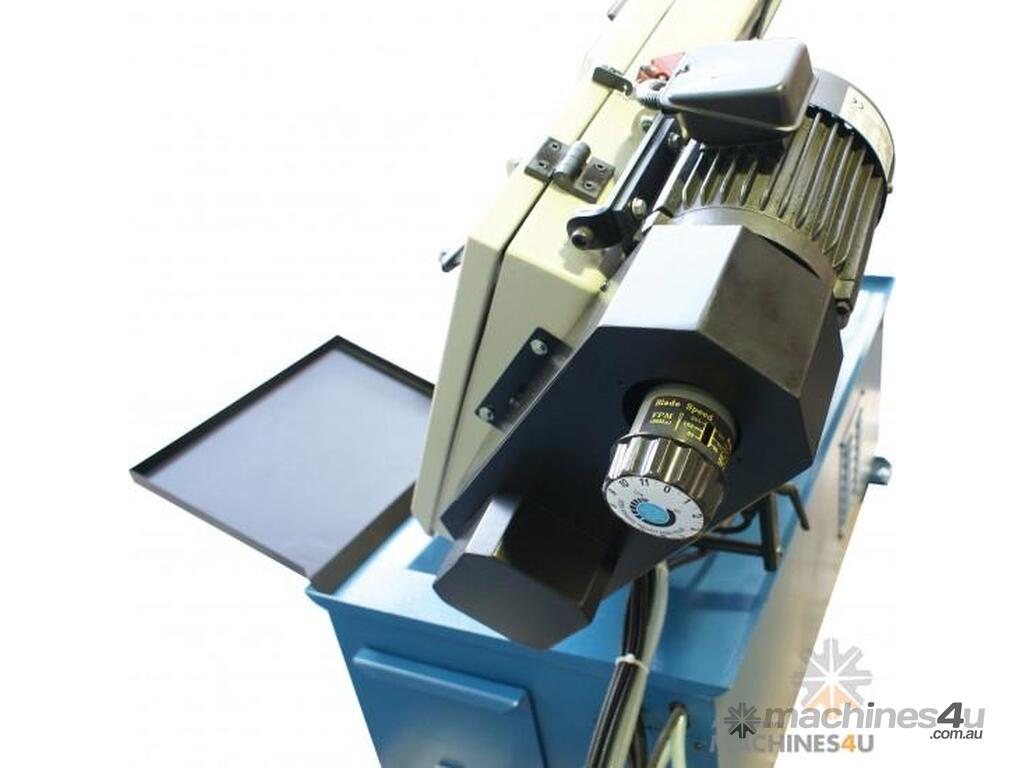

Industrial-duty gearbox driven by a 1.5kW / 2hp 415V motor

Specifications:
ORDER CODE:B030
Model: BS-13DS
Cutting Head Beam: Semi-Automatic
Operation Type: Swivel Head - Dual Mitre
Round 90º: 330mm
Round 45º: 330mm
Round 60º: 204mm
Square 90º: 330mm
Square 45º: 280mm
Square 60º: 160mm
Rectangle (W x H) 90º: 458 x 235mm
Rectangle (W x H) 45º: 310 x 170mm
Rectangle (W x H) 60º: 204 x 80mm
Cutting Beam Return: Automatic-Hydraulic
Vice Clamping Fixture: Automatic-Hydraulic
Coolant System: Yes
Table Working Height: 840mm
Blade Steps / Speeds: Variable 19-102 M/min
Blade Size (L x W x T): 3810 x 27 x 0.9mm
Motor Power: 1.5kW / 2hp
Voltage: 415V
Weight (nett): 600kg

all prices and specifications are subject to change
