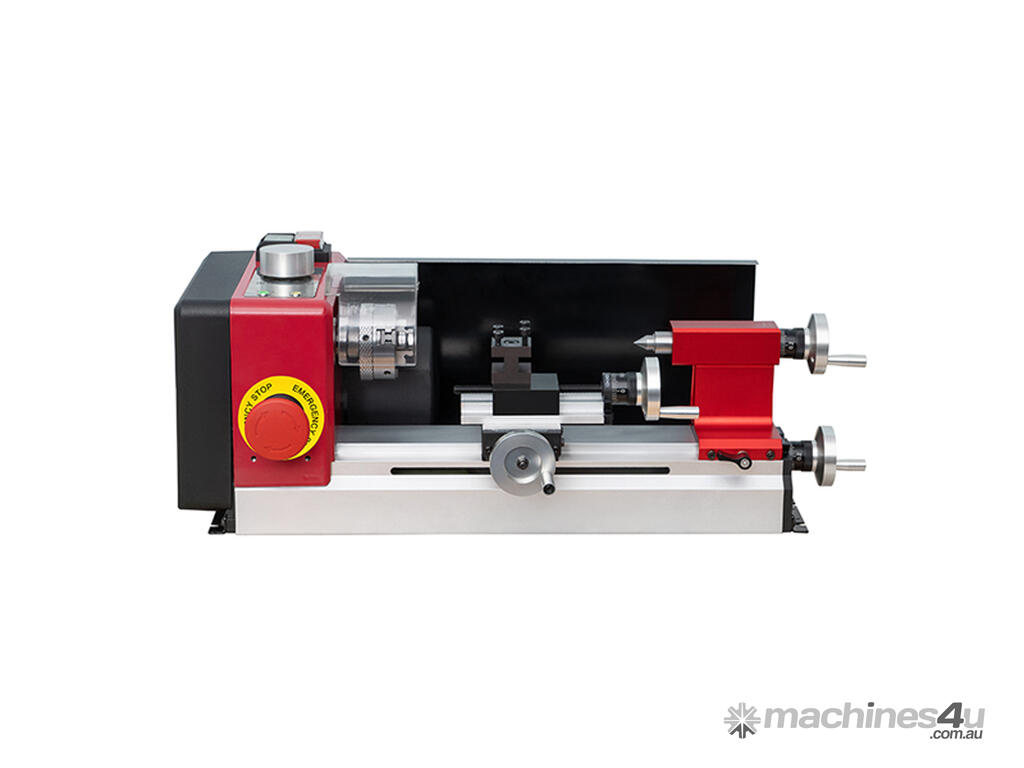

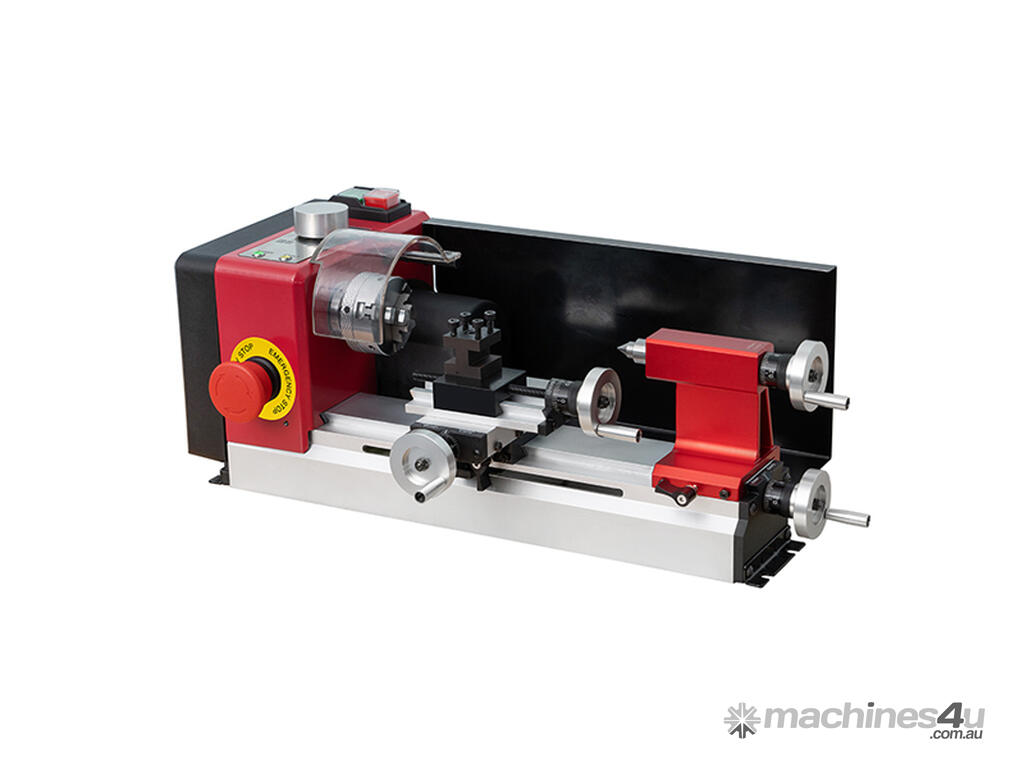

SIEG MC0 Nano Lathe with Accessories Pack

Engineered for Performance:
High-Speed Machining – 5,000 RPM variable speed spindle handles delicate cuts in brass, aluminum, and soft steels with ease
Optimized Stability – Rigid construction ensures precise, vibration-free turning of small parts
Built for Safety – Emergency stop and enclosed drive system for worry-free operation
Space-Efficient – Compact footprint fits even the tightest workspaces

The Perfect Addition To:
Home garages - Finally, a lathe that fits!
Maker labs - Safe and simple for shared spaces
Small workshops - Professional results without industrial bulk
School labs - Safe enough for student projects
Professional shops - Second-op finishing station

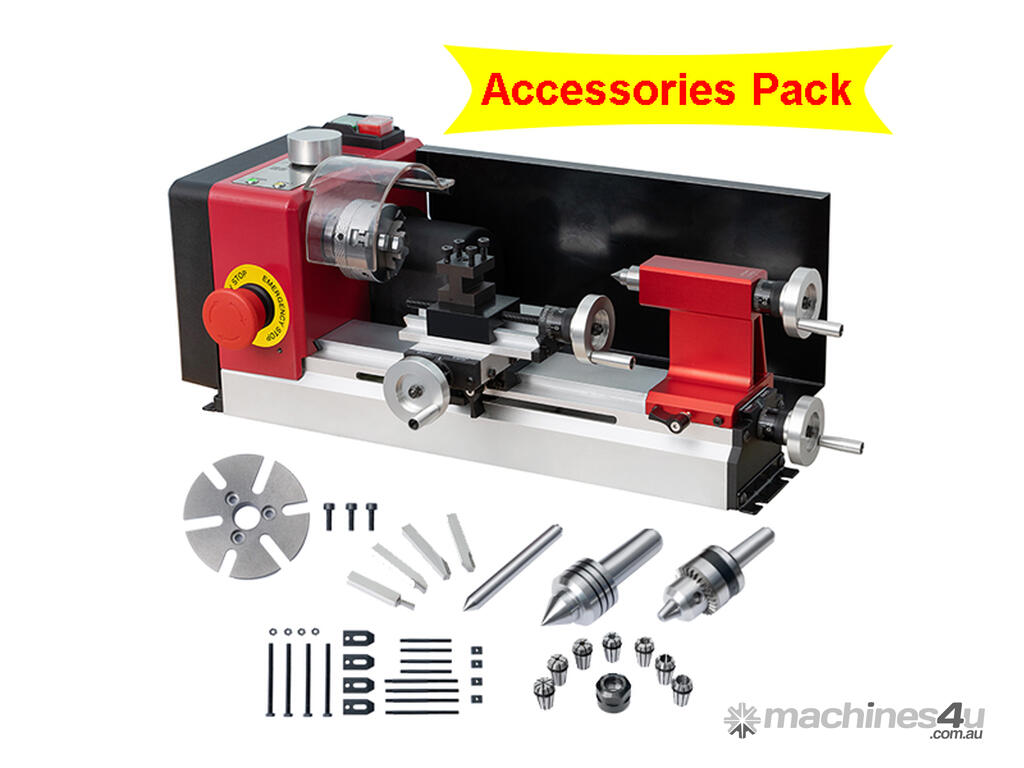

Accessories Pack Includes:
SIEG MC0 Nano Lathe
Face Plate
Spindle Centre
MT1 Live Centre
B10 Tailstock Chuck with MT1 Arbor
HSS Cutter 4pcs Set
ER11 collet 7pcs Set
Clamping Kit 24pcs Set

Specifications:
Model: MC0
Swing over bed: 70mm
Distance between centers: 160mm
Hole through spindle: 7mm
Spindle taper: ER11
Spindle thread: M14x0.75mm

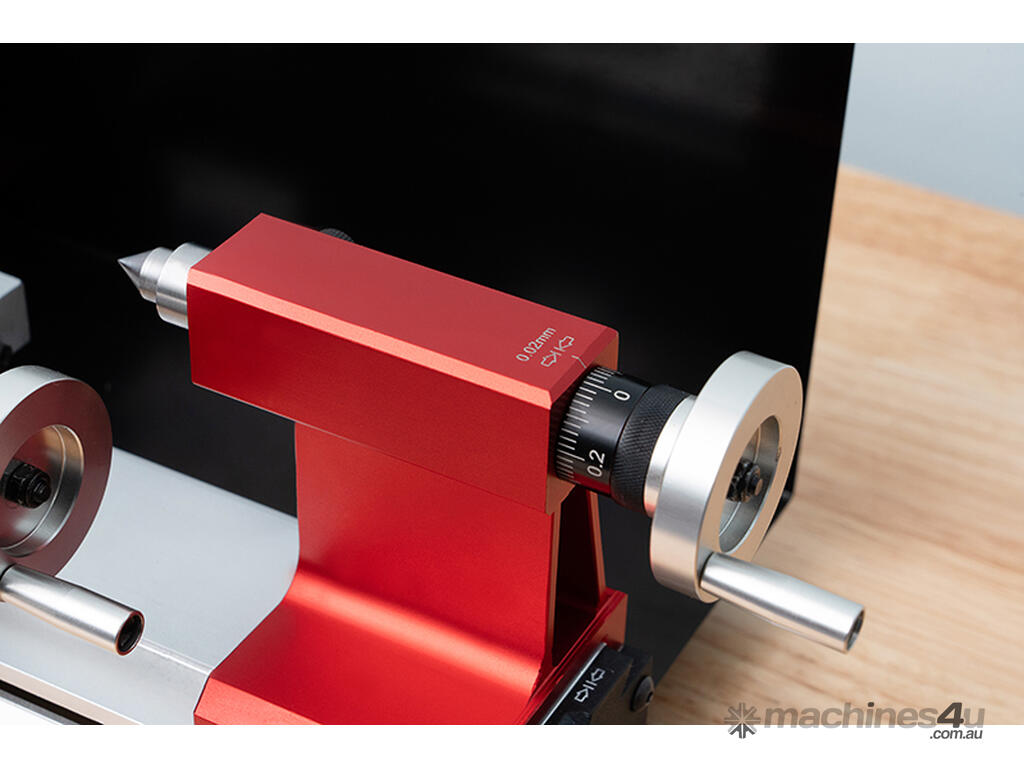

Tailstock taper: MT1

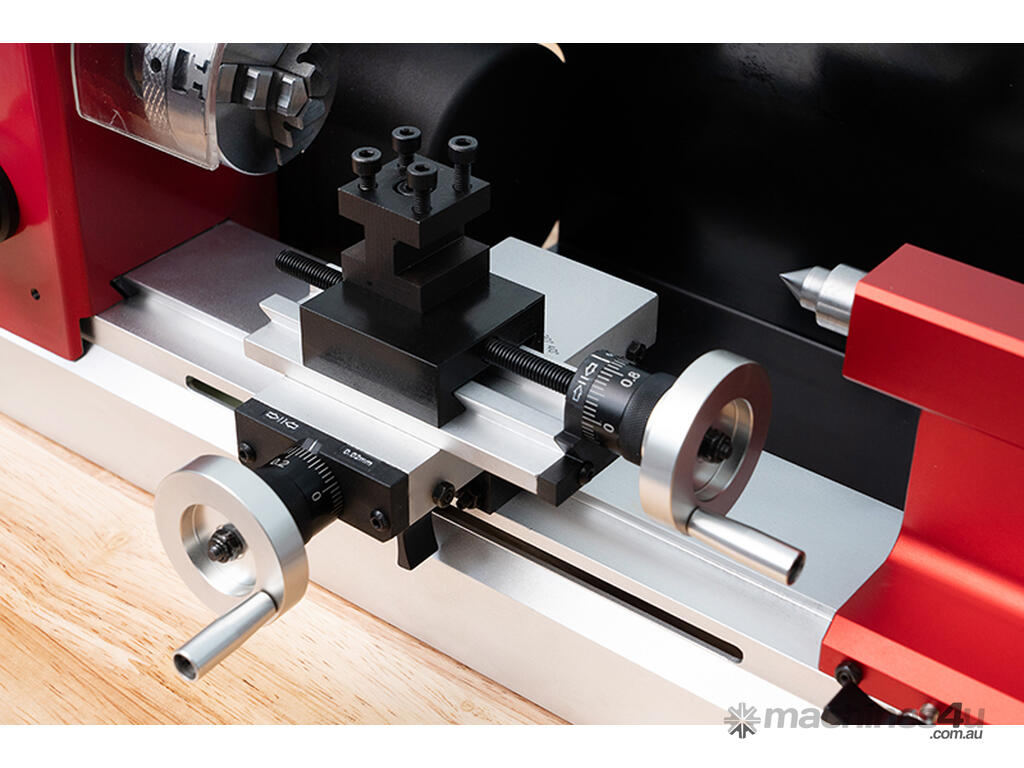

Cross slide travel (X): 45mm
Carriage travel (Z): 120mm
Compound travel: 50mm

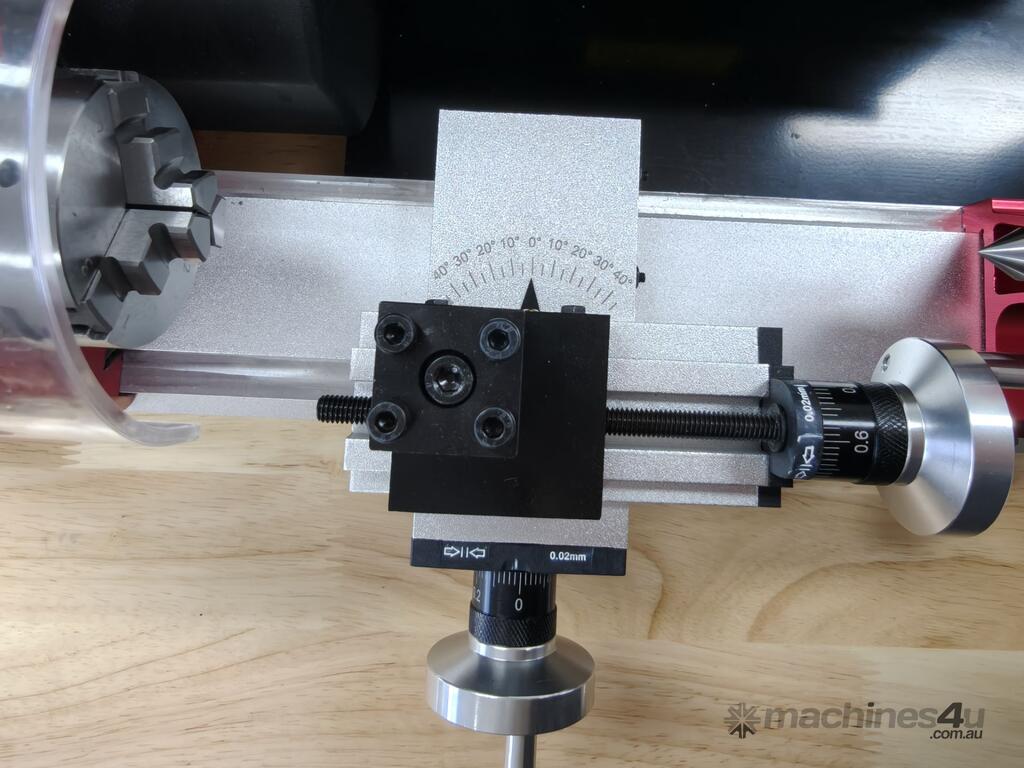

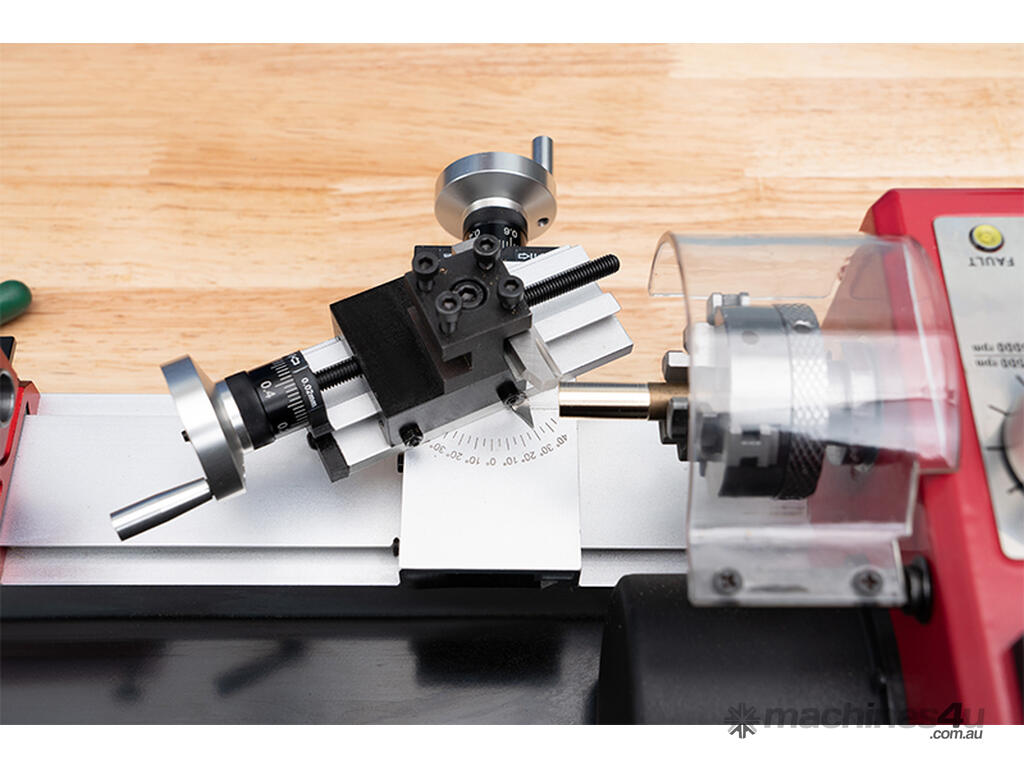

Compound rotating angle: ±45°
Tailstock travel: 30mm
Standard Chuck Size: Ø50mm
Chuck Clamping Range: 2 - 33mm
Motor output power: 100W

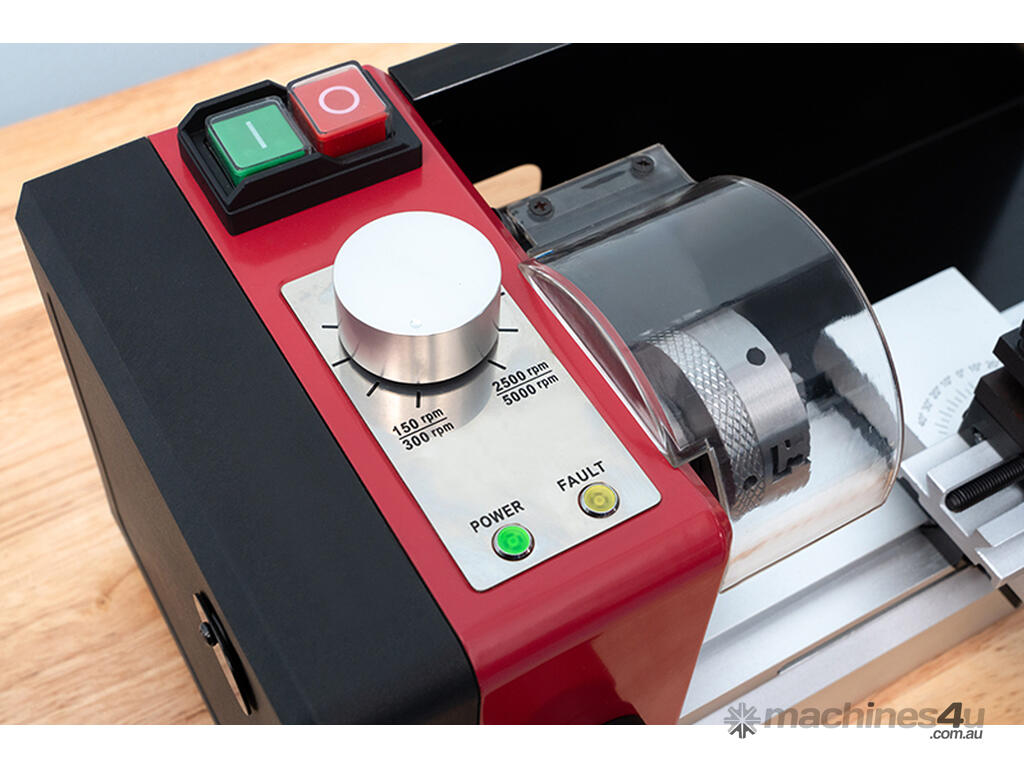

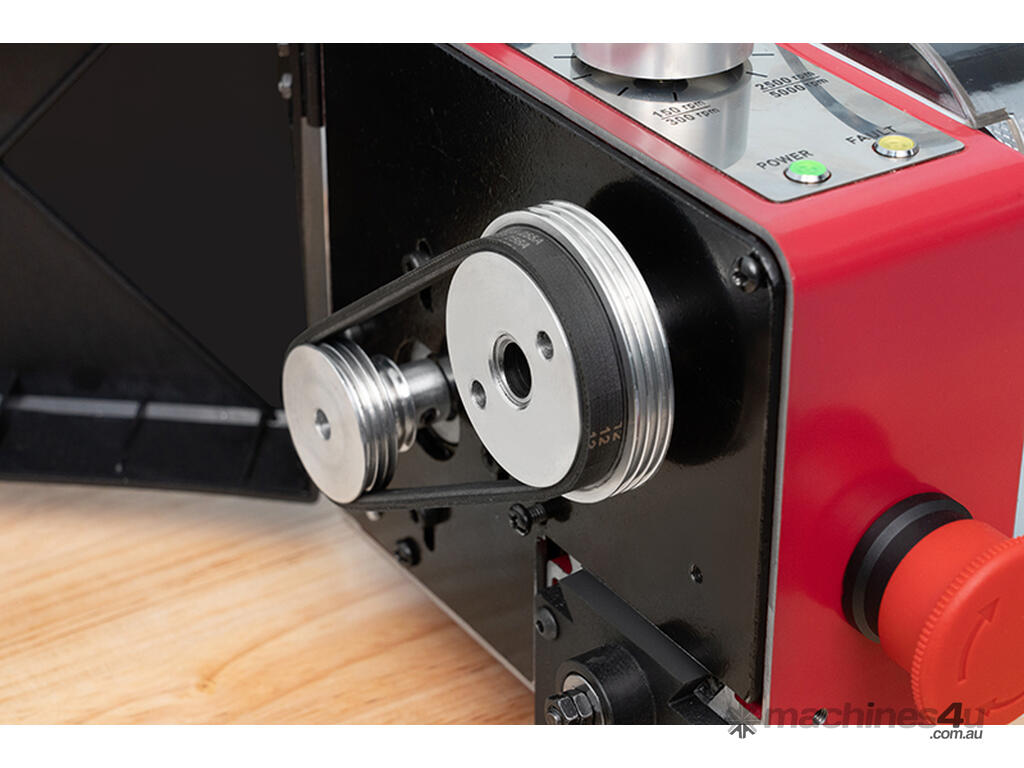

Spindle speed - Low range 150-2500±10% rpm
- High range 300-5000±10% rpm
Overall dimension: 425 x 230 x 175 mm
Packing size (L x W x H): 480 x 260 x 220 mm
Weight (Net / Gross): 6/8 kg
