Engineered for Performance:
High-Speed Machining – 5,000 RPM variable speed spindle handles delicate cuts in brass, aluminum, and soft steels with ease
Optimized Stability – Rigid construction ensures precise, vibration-free turning of small parts

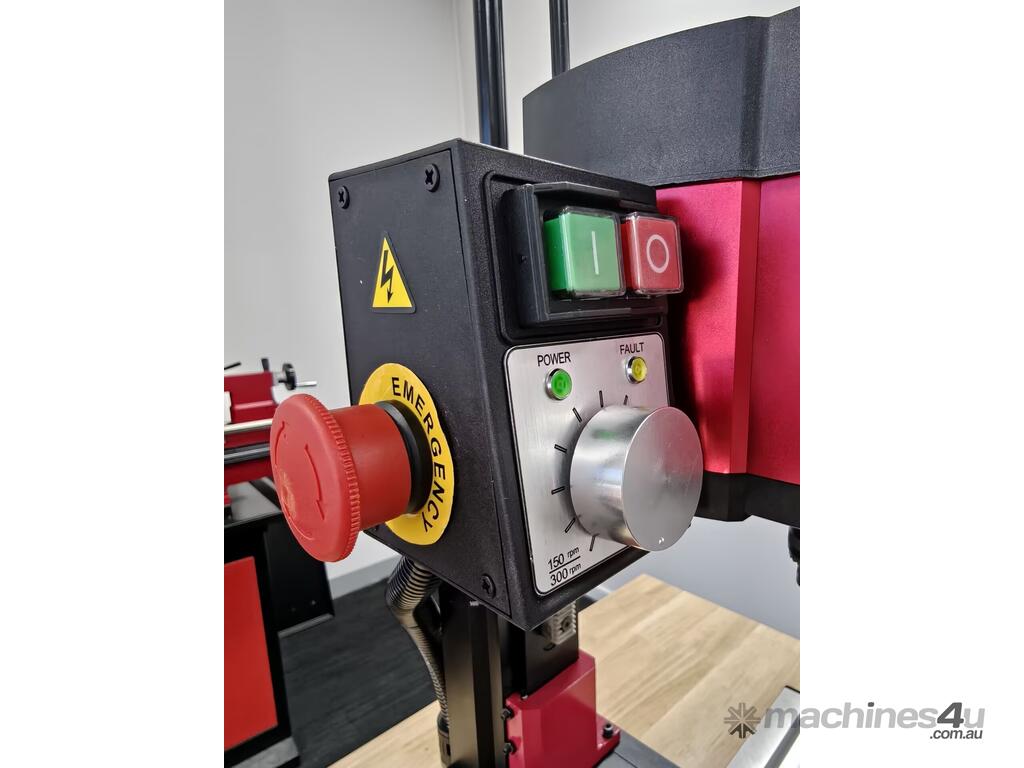

Built for Safety – Emergency stop and enclosed drive system for worry-free operation
Space-Efficient – Compact footprint fits even the tightest workspaces
The Perfect Addition To:
Home garages - Finally, a mill that fits!
Maker labs - Safe and simple for shared spaces
Small workshops - Professional results without industrial bulk
School labs - Safe enough for student projects
Professional shops - Second-op finishing station

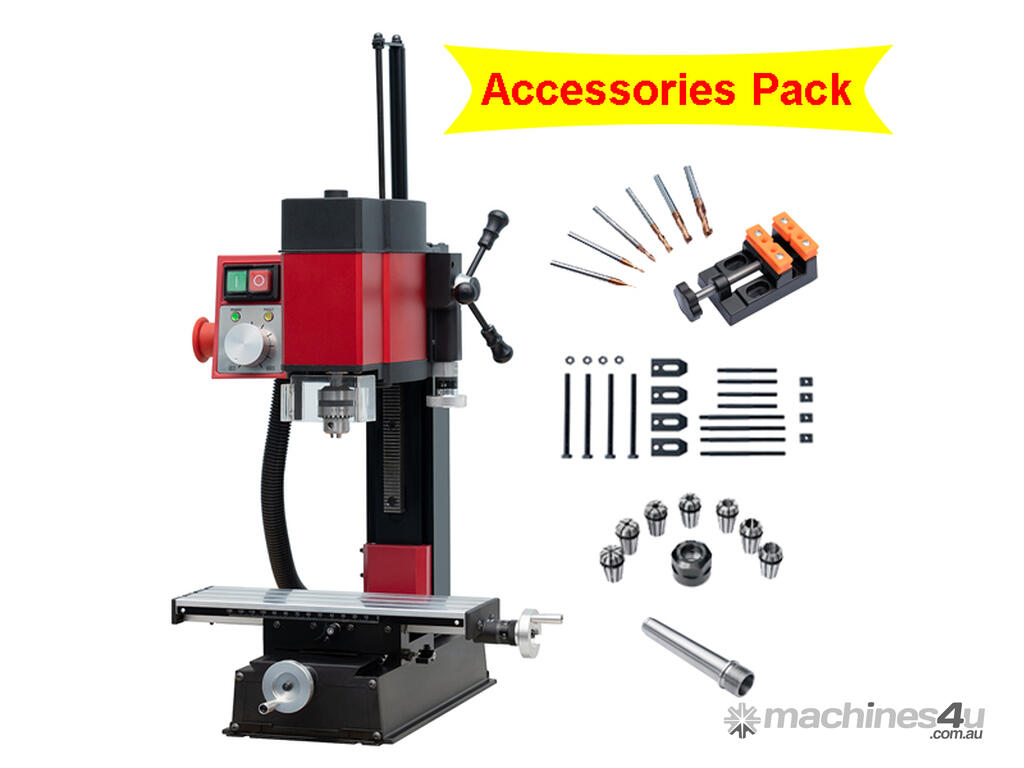

Accessories Pack Includes:

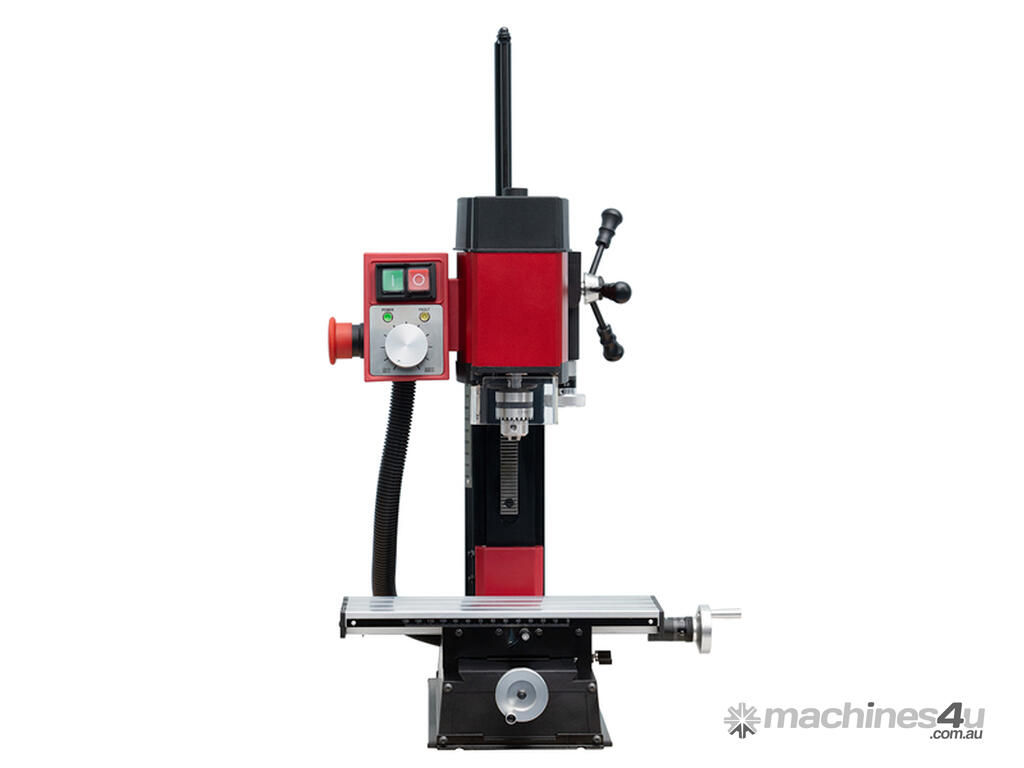

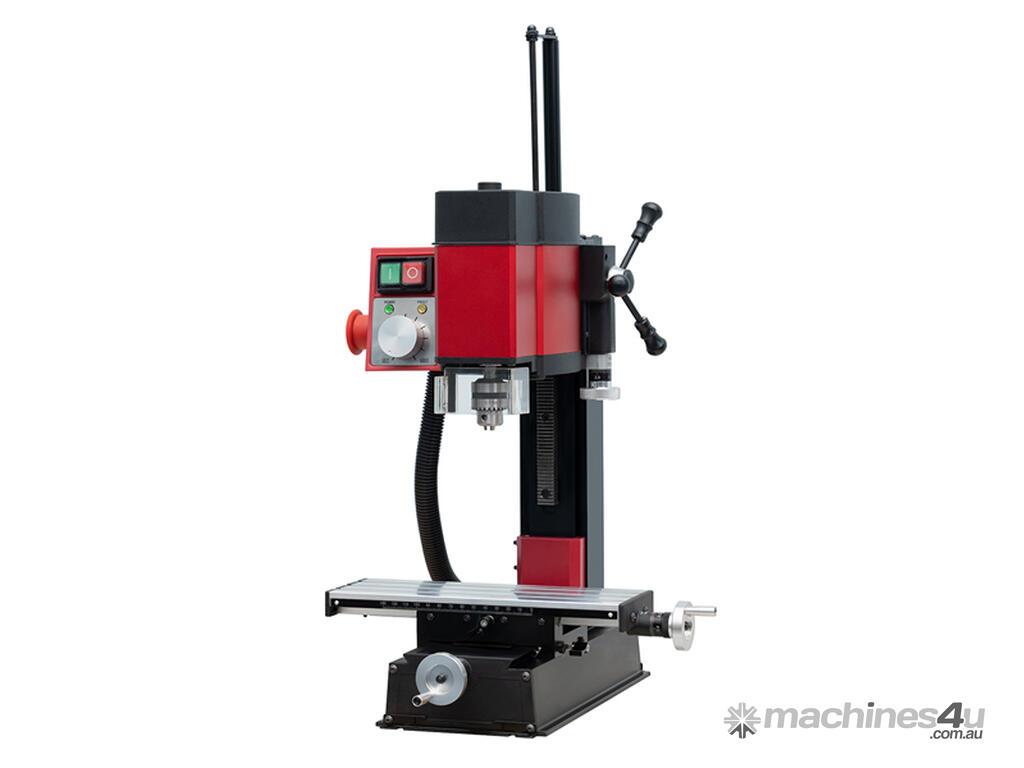

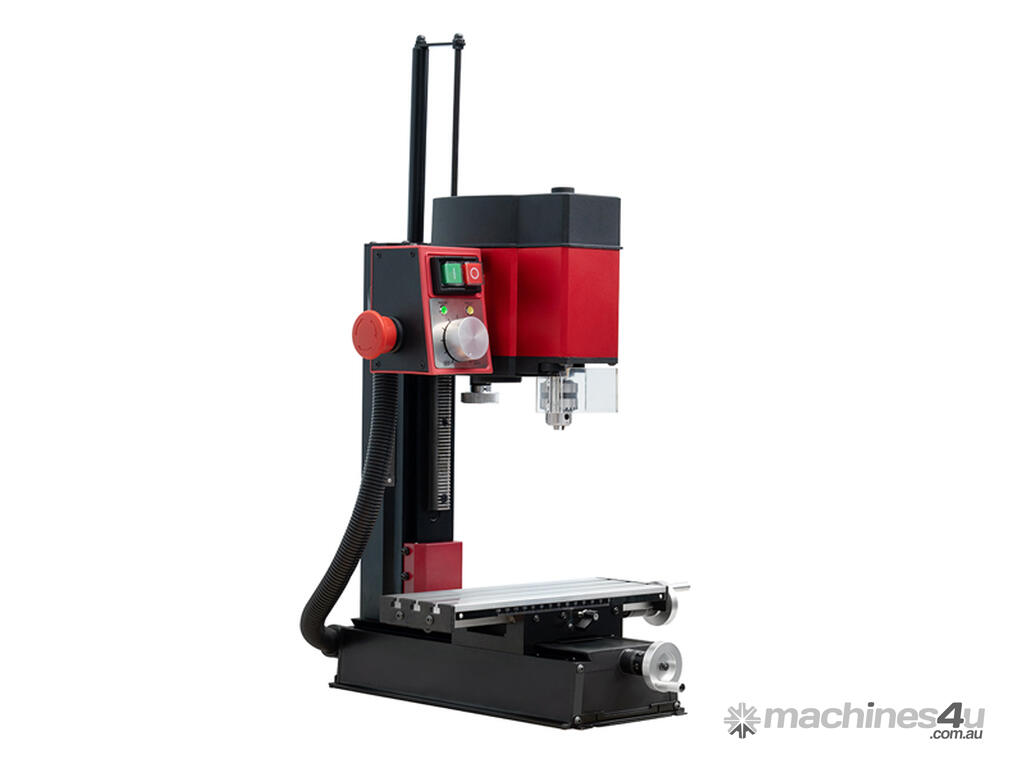

SIEG MX0 Nano Mill Drill
SIEG 50mm Soft Jaw Quick Vice
ER11/MT1 Milling Collet Chuck
ER11 Collet Set 7pcs
HSS End Mill Set 6pcs
Clampking Kit 24pcs Set

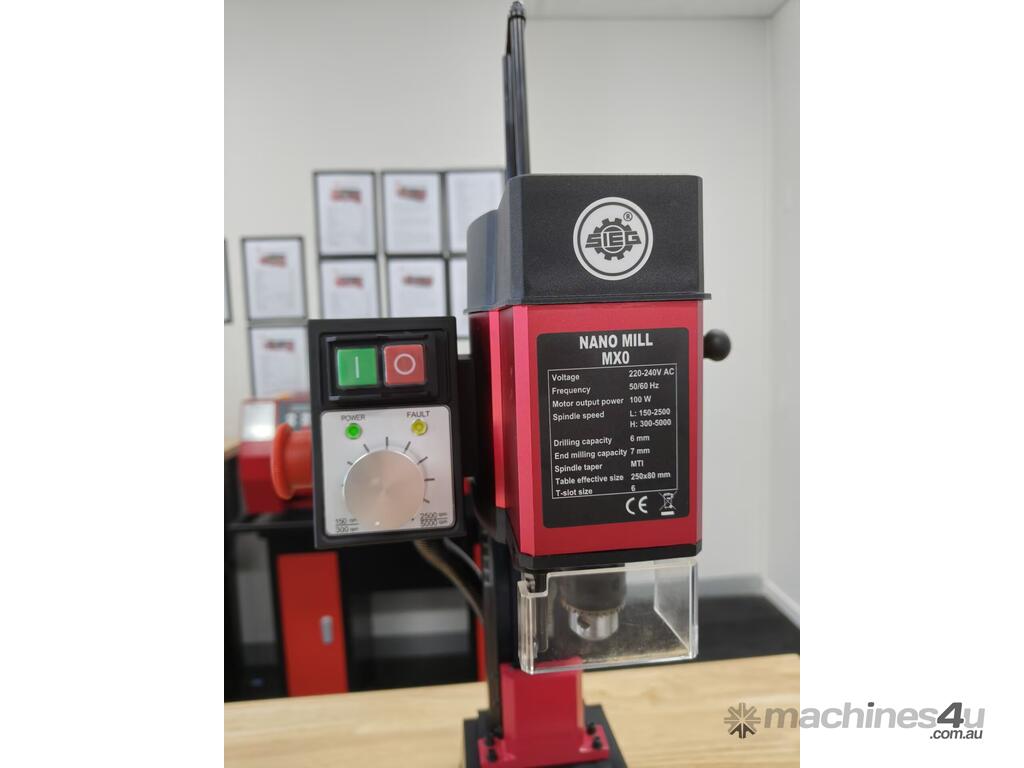

Specifications:
Model: MX0
Drilling capacity: 6mm
End mill capacity: 7mm

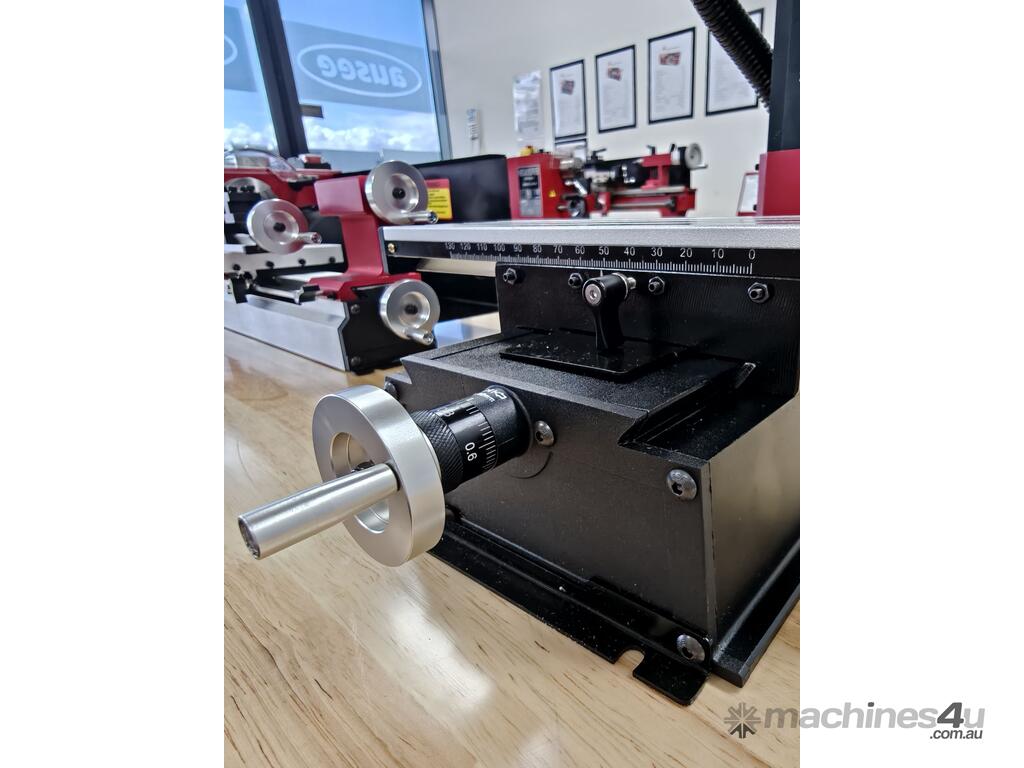

Longitudinal axis (X): 125mm
Cross axis (Y): 90mm

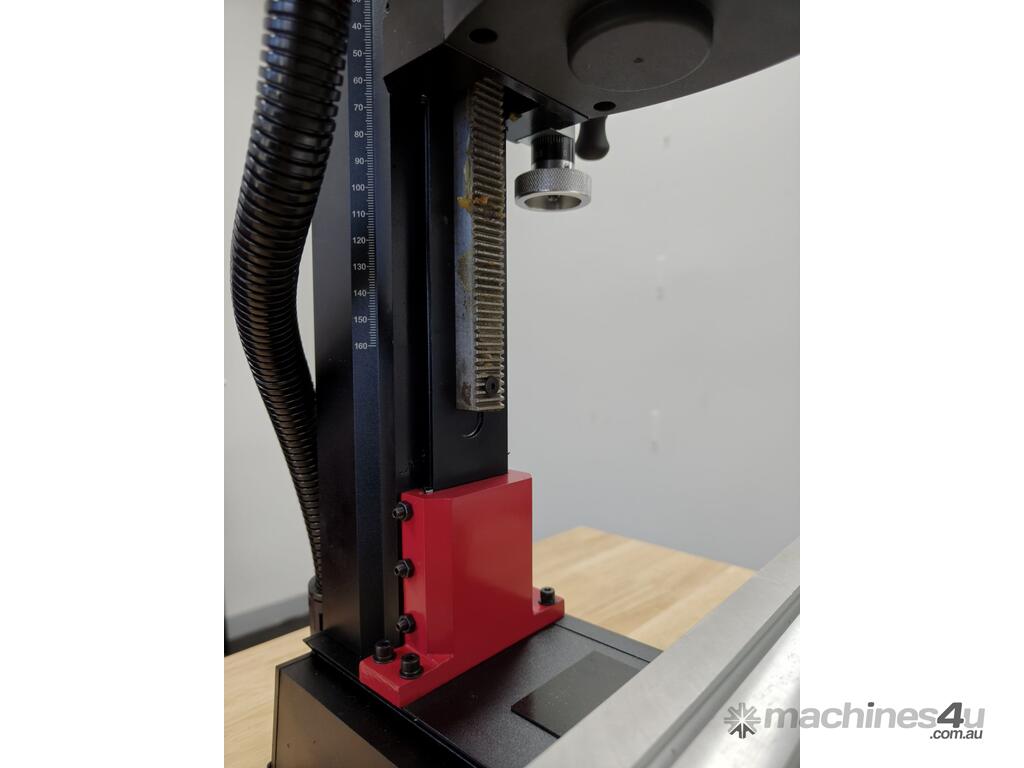

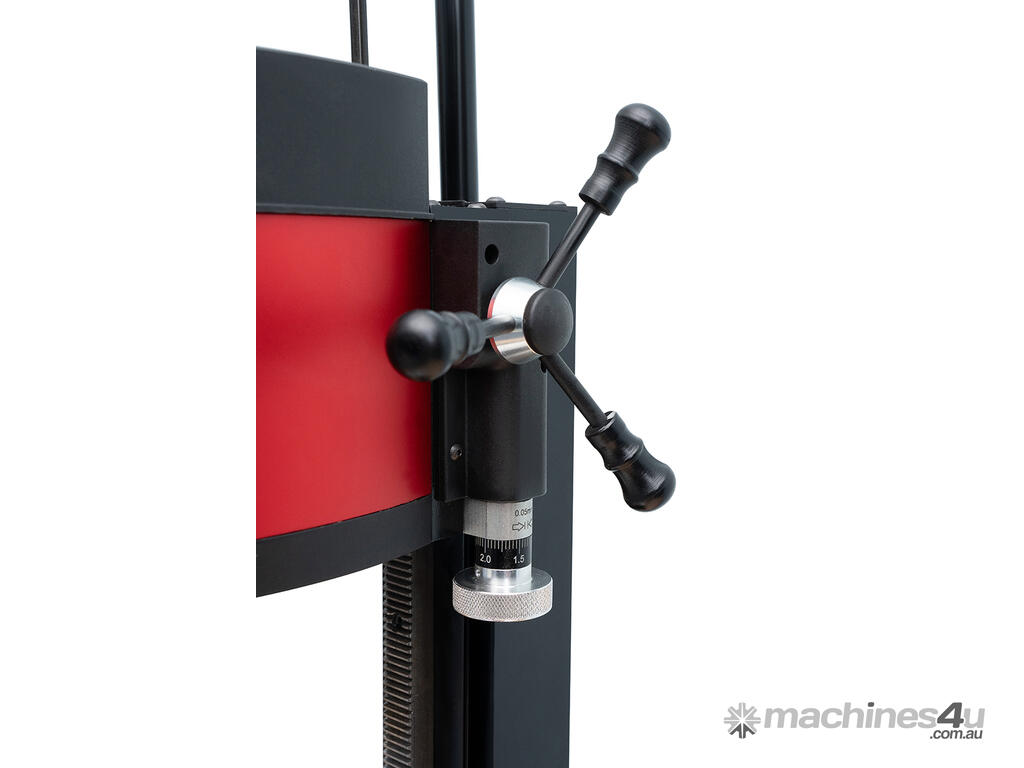

Headstock travel (Z): 135mm
Spindle taper: MT1
Max. Distance spindle to table: 190mm
Standard Drill Chuck Size: Key Type, B10, 1-6mm

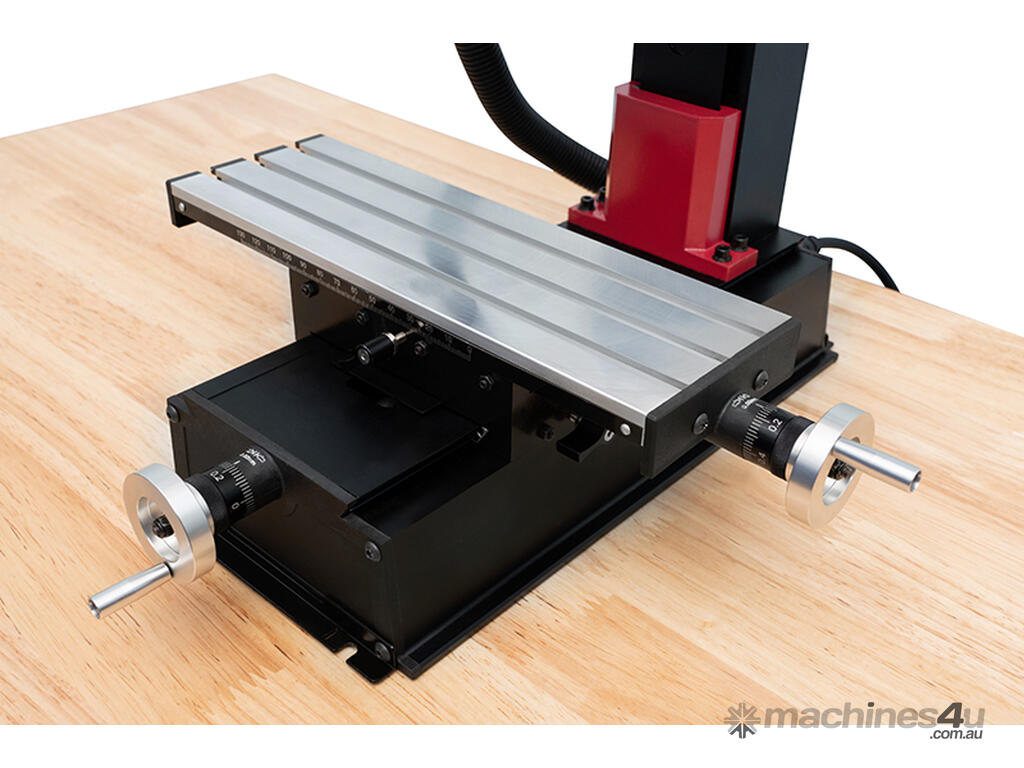

Table effective size: 250x80mm
T-slot size: 6mm
Motor output power: 100W

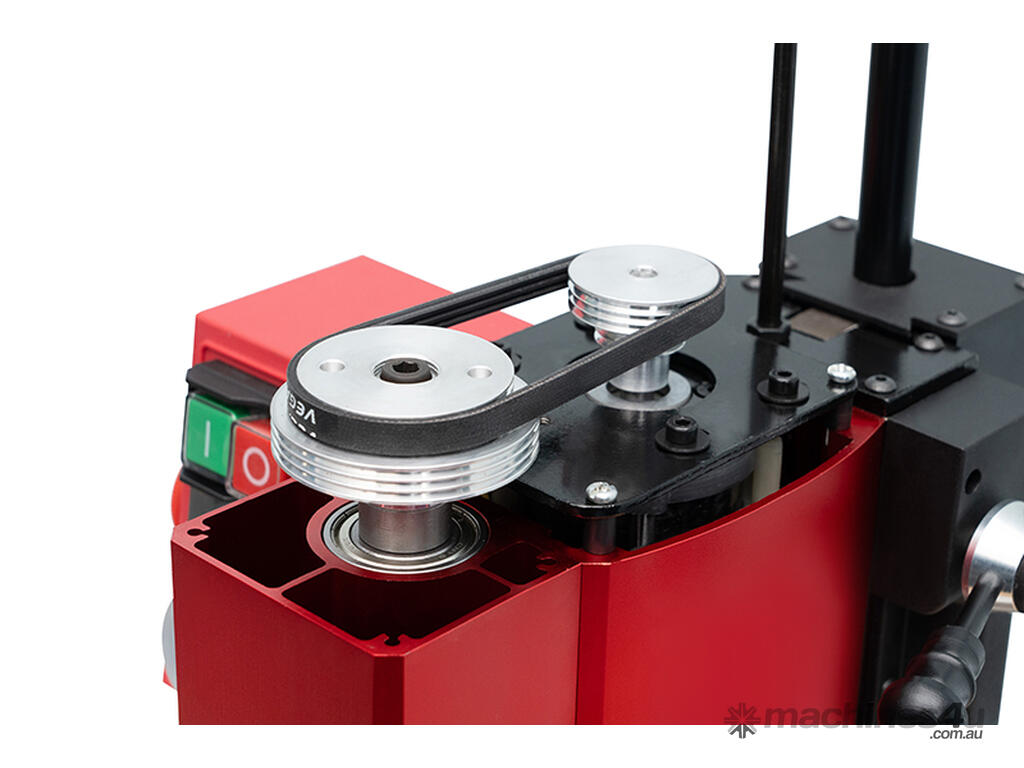

Spindle speed - low range: 150-2500±10% rpm
- high range: 300-5000±10% rpm
Overall dimension: 300 x 360 x 460mm
Packing size (L x W x H): 345 x 420 x 520mm
Weight (Net / Gross): 10/12kg
