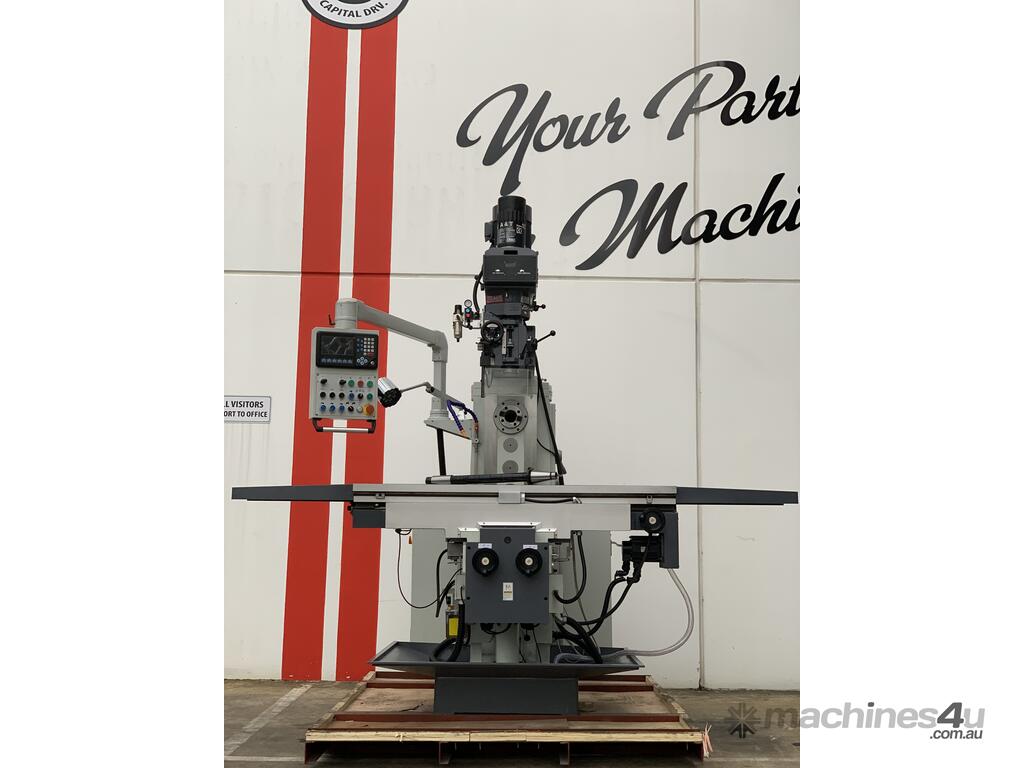

This Mill is made with uncompromising quality Hardened and ground table, chromed quill & Turcite coated ways mean built-in durability for years of service. With a large 127mm quill travel standard and power draw bar fitted. Check out the capacities, features & specifications below! This is the machine to have for years of accurate, trouble-free operation. Fitted with 3 axis digital read out. two axis table feed, power knee, variable speed head, quill feed all combine to serve you well.
Features
large 127mm spindle travel standard
Taiwanese engineered and Q&A
3 axis DRO fitted standard
ergonomic control panel offering total control of all axis operations including joystick controls
infinitely variable speed drive head with digital display
long table travel (1300mm) and large table set-up area

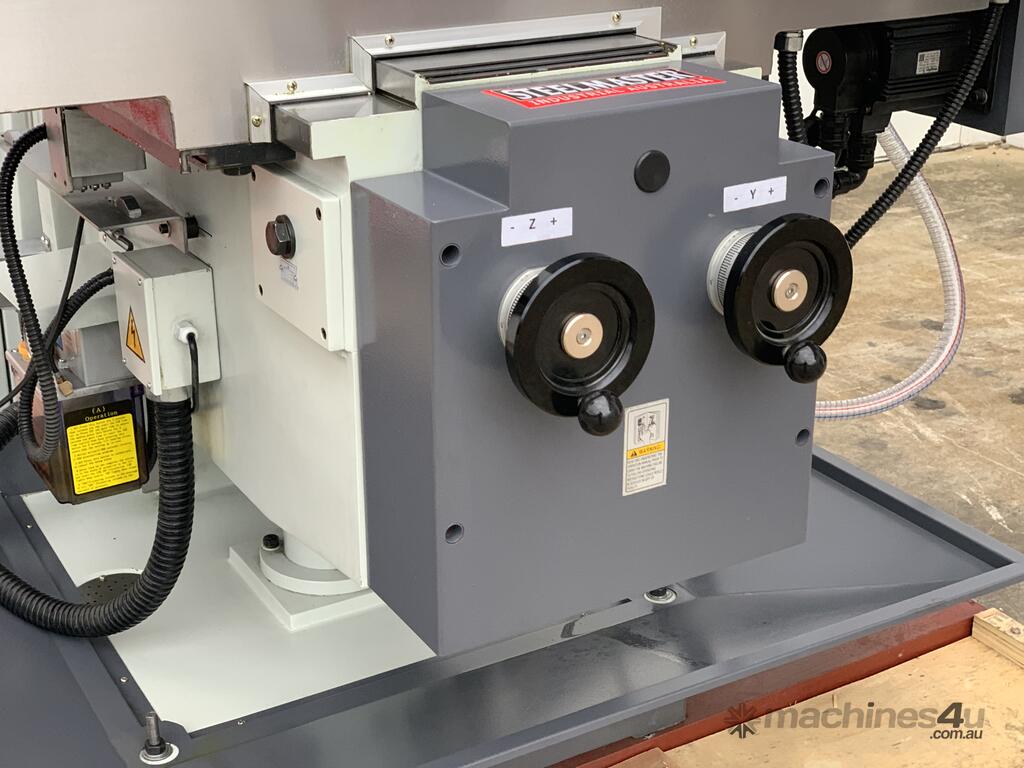

all manual operating handles located at the front of the machine

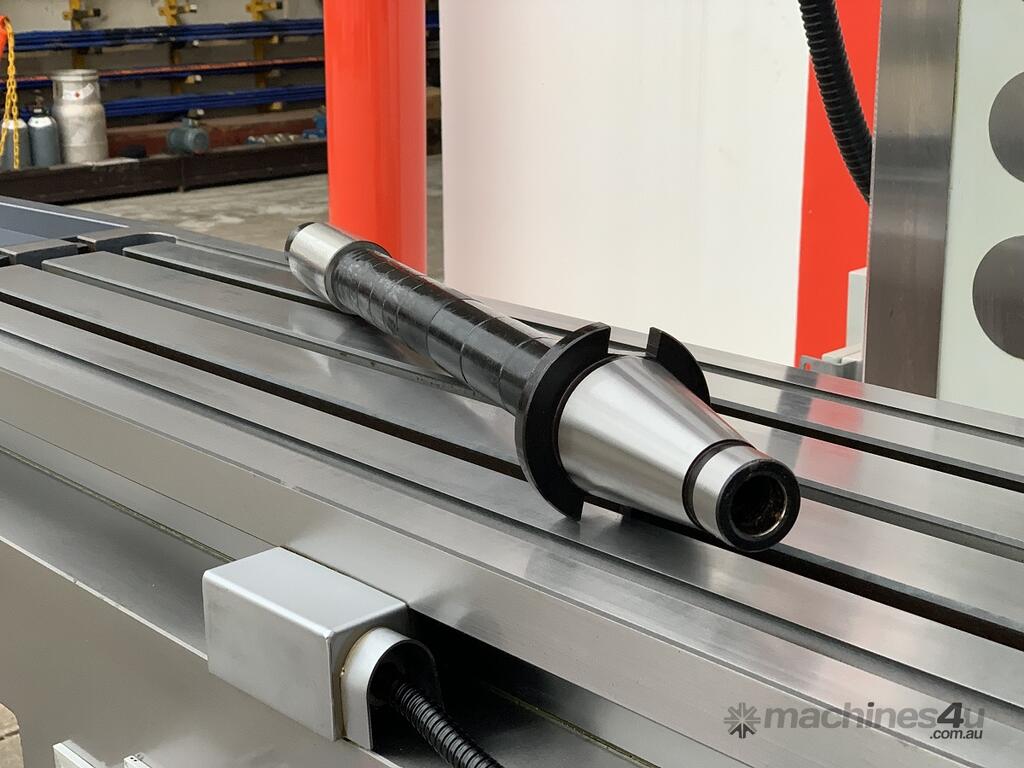

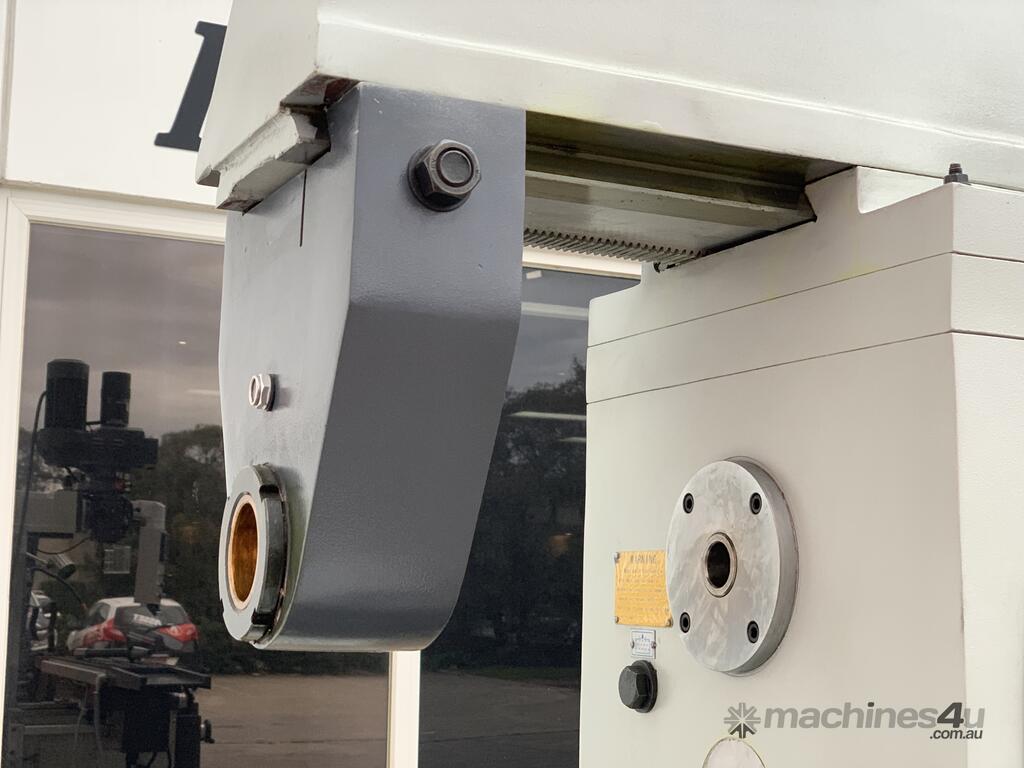

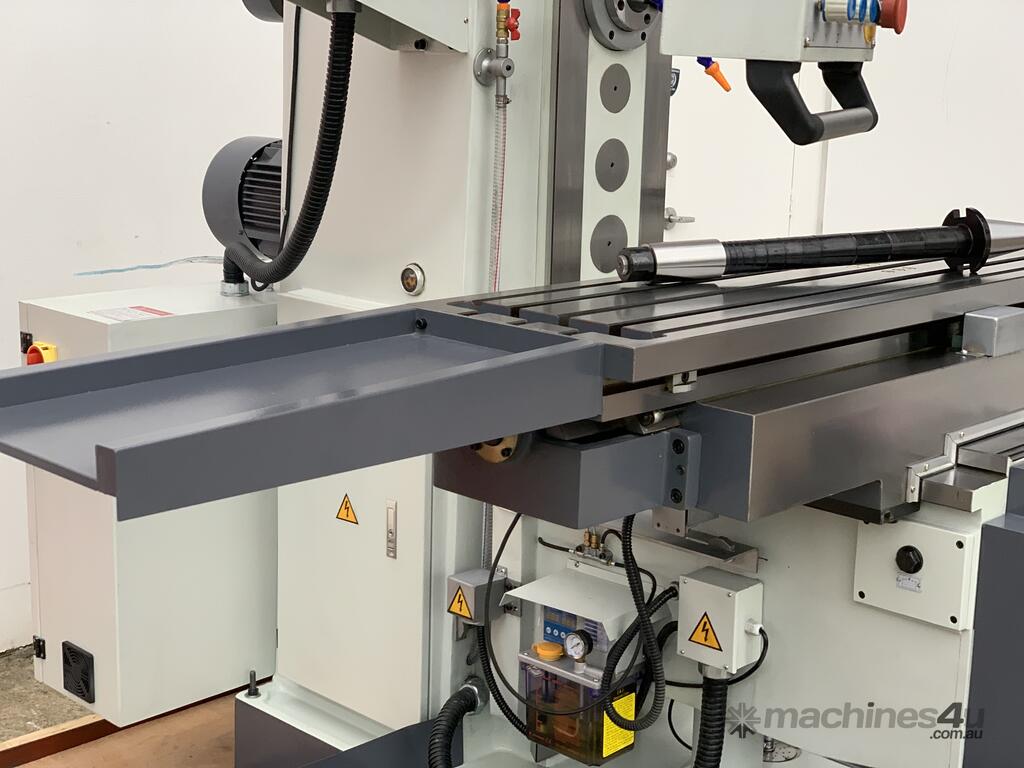

unique horizontal milling arbor

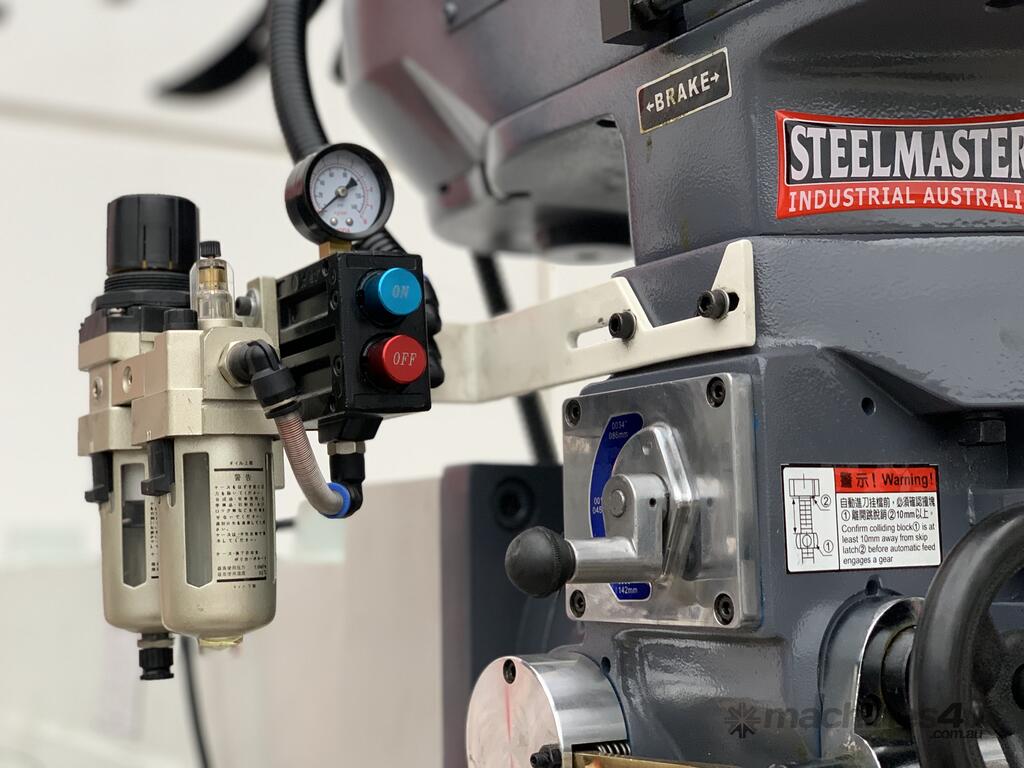

power draw bar fitted standard
Taiwanese head and quality Meehanite cast frame

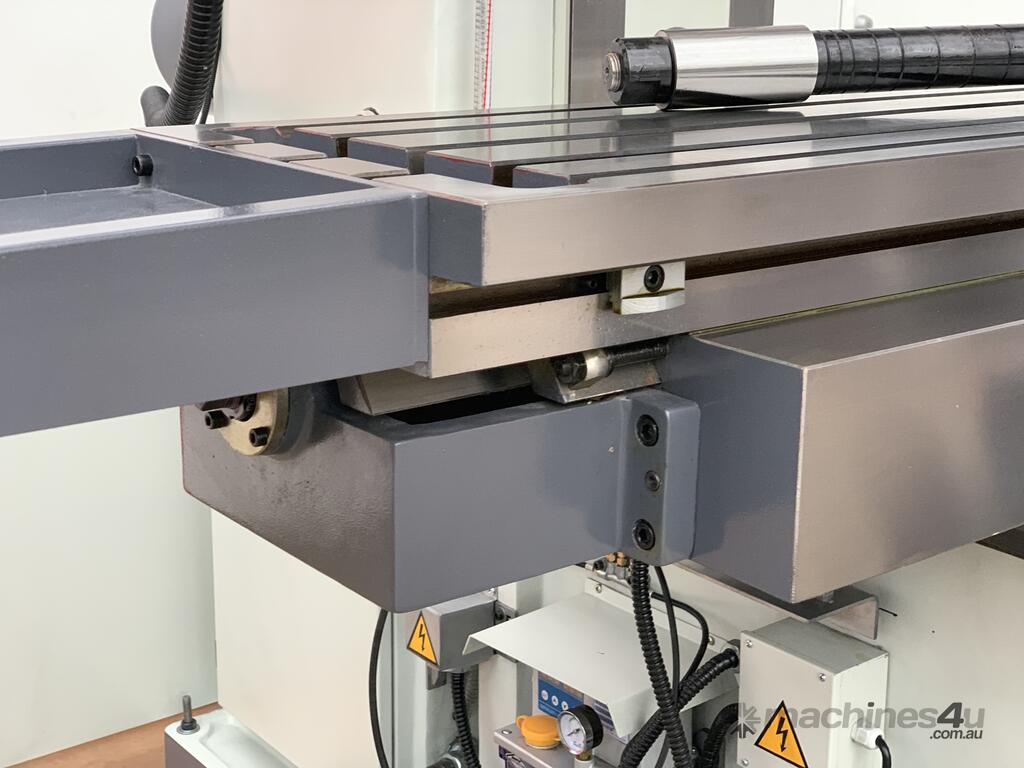

solid, precise cross table with ground surface
precisely ground carriage guides with adjustable dovetail guides
head swivels to left and to right
fine feed on spindle

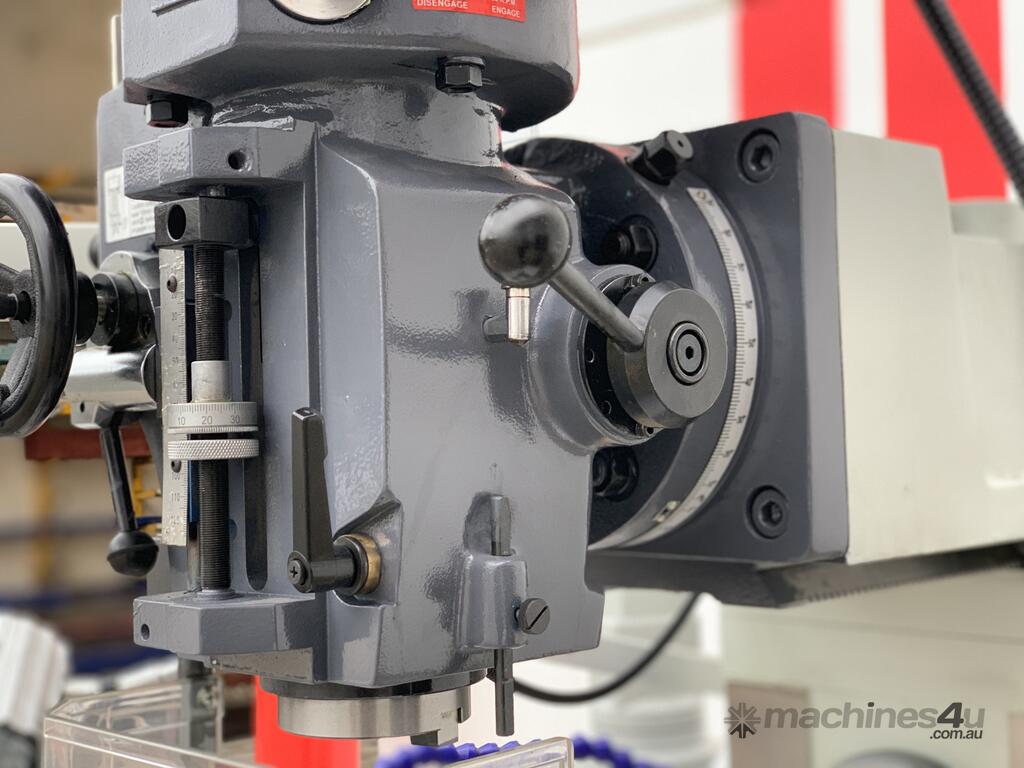

cutter head with honed sleeve support
chrome-plated sleeve with extremely long cutting stroke
large spindle bearings guarantee stability during milling
guaranteed true run out on spindle taper 0.01 mm
SM-KD7SS spindle speed controls operated via control panel
Automatic sleeve stroke
spindle with right or left-handed rotation function
cutter head with reduction gear for high torque
mechanical spindle brake
halogen work light
safety interlocked spindle guard
coolant system standard
drilling and milling guard
tool box with tools
operation & service manual
TECHNICAL DATA
mill type universal / gear head
table set-up area (l x w) (mm) 1600 x 360
number of t-slots (#) 3
t-slot size (mm) 18
spindle quill travel (mm) 127
spindle quill diameter (mm) 105
spindle mount (vert / horiz) (mt) 40 int / 50 int
spindle to table (max) (mm) 650

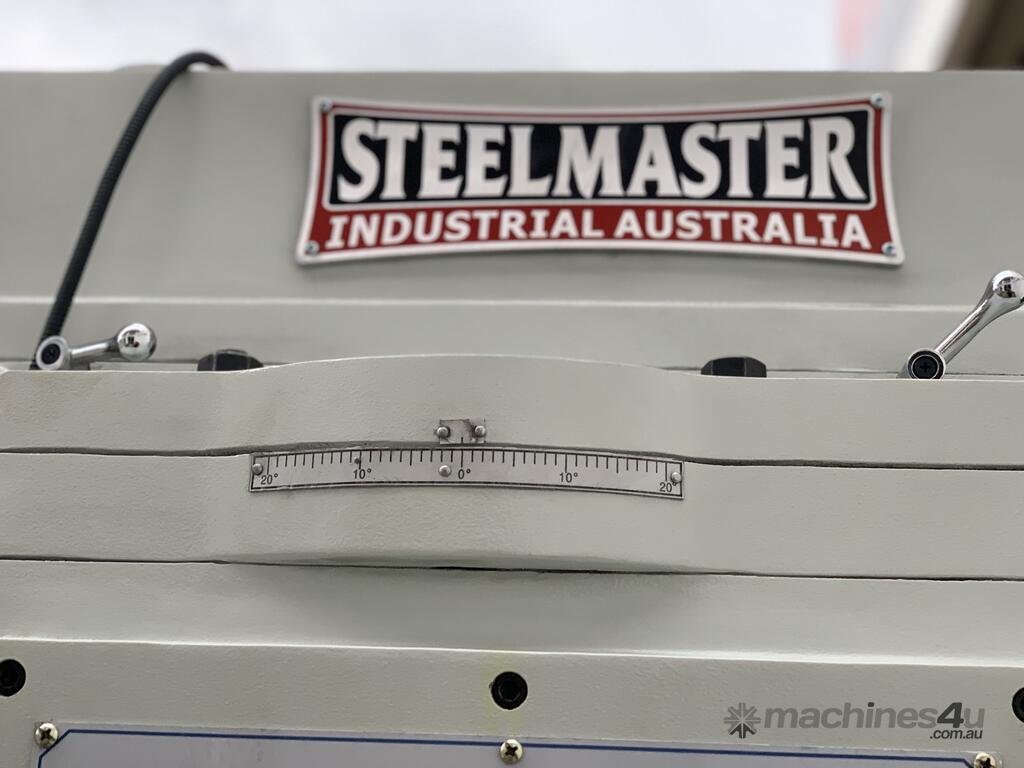

head swivel (l ~ r) (deg) ±90°
head tilt (f ~ b) (deg) N/A
spindle speeds (vertical) (rpm) 80 ~ 5000 / Variable
spindle speeds (horizontal) (rpm) 60 ~ / Variable
longitudinal travel (x) (mm) 1300
cross travel (y) (mm) 320
vertical travel (z) (mm) 440
throat depth (mm) N/A
max. work table capacity (kg) 550

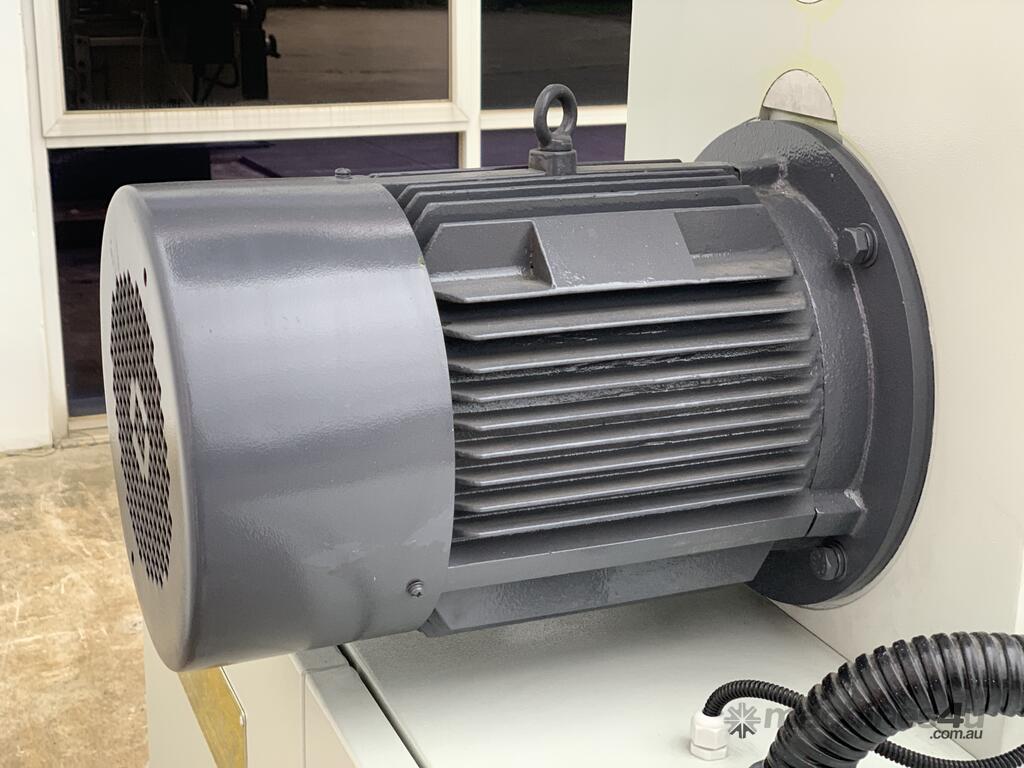

motor power (kw/V) 5.5 /
dimensions (l x w x h) (mm) 2400 x 2100 x 2250
weight (nt) (kg) 2550
#######################################
Machines Can Be Demonstrated Under Power at 8 Capital Drive Dandenong, Vic.
Or See Videos or online
Otherwise call Us On And We Can Discuss Your Requirement
Asset Offer Full Sales Service, Parts & Accessories For Your Support!!!
#######################################
Steelmaster Metalworking Milling Machines.
When looking for a quality metalworking milling machine, look no further than Steelmaster Industrial. Steelmaster Industrial metalworking milling machines offer the machinist a very high quality machine with superb features and tight tolerances at reasonable prices. Steelmaster carries over 12 models of metalworking milling machines in stock at all times for quick shipments. Steelmaster Industrial's ever growing line of metalworking milling machines consists of belt drive 240Volt mills, heavy duty universal bed metalworking milling machines, CNC Vertical Machining Centres along with a large range of accessories. Depending on your needs we have the milling machine for you, starting with our cost effective belt drive mills to our large bed mills.
Metalworking Universal Milling Machines
Depending on your needs, Steelmaster has a great line of cost effective belt & gear drive Milling machines. With several models to choose from these models give the best ``bang for the buck`` of any of the Steelmaster Mills. These metal milling machines come standard with many of the features that are most important. Each mill comes standard with coolant, tee slotted table, halogen work lamps, generous spindle mount sizes, safety guards and interlocks are also all included. Most are also fitted with 3 axis digital read outs.
Metalworking Turret Milling Machines
Steelmaster Industrial offer one of the best selections of turret milling machines around. From our SM-KD0VS to our fully spec's SM-KD7SS with 3 Axis DRO. Our Metalworking Turret Milling Machines have been fitted up to offer you the best selection of features consisting of variable speed drive heads, quality Taiwanese Meehanite cast frames, generous tee slotted tables and travels. Most come standard with auto lube system, 3 axis power feeds perspex safety guards and all e stops to ensure all round safe operation.
Metalworking Universal & Bed Type Milling Machines
We offer a range of Metalworking Universal & Bed Type Milling Machines from our SM-MU1600 up to our servo drive super heavy duty MHD Series. Heave, well ribbed castings on these machines are of good quality and will offer years of rigidity and accuracy. Universal heads, large beds and travels, rapid drives & feeds, digital read outs are some of features we offer.
Metalworking CNC VMC Machines
Our VMC range of milling machines are an extension from our conventional range. We offer a small, however versatile range of VMC machines well fitted with what you would expect to find on all the big name brands. Fanuc controllers, large tool stations, precision components all supported with a great service team.
