SPECIFICATIONS:

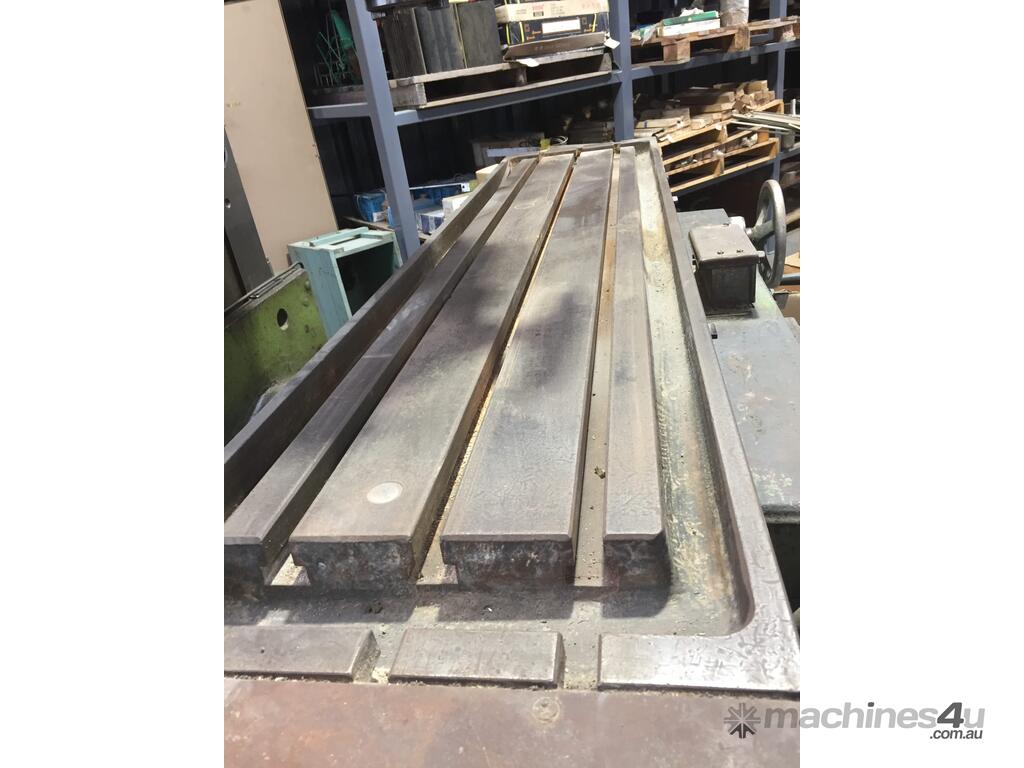

Dimensions of table working surface
- length 1600mm
- width 400mm
Maximum travel of table
- longitudinal travel 1000mm
- cross travel 400mm
- vertical travel 420mm

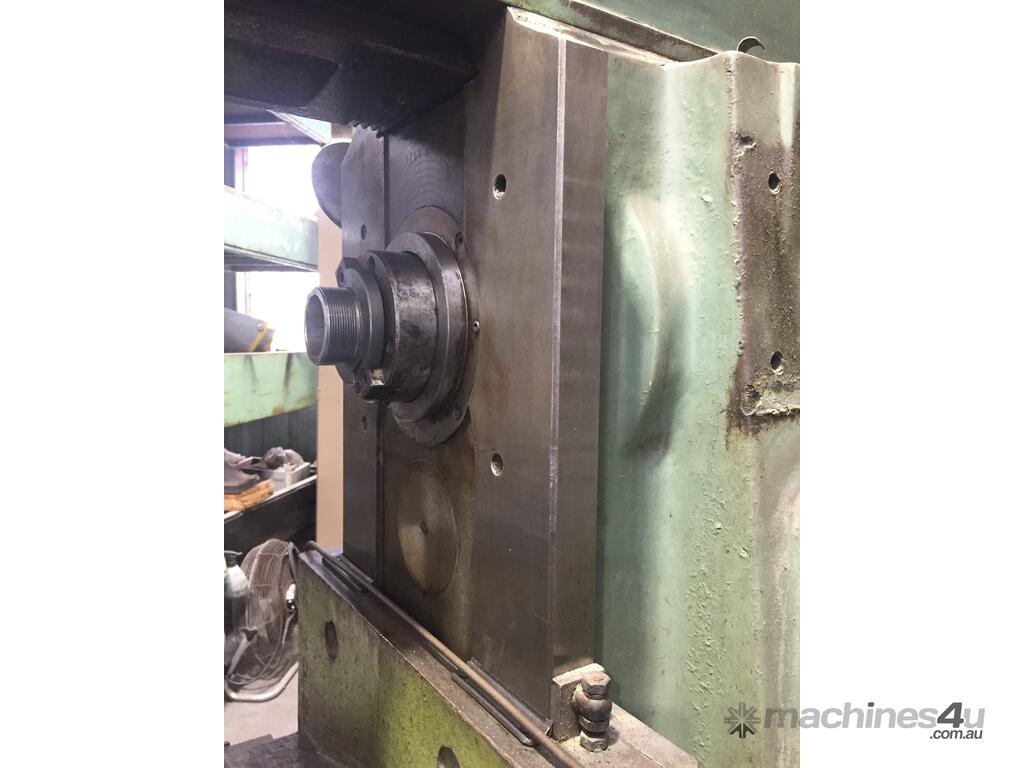

Distance from axis of horizontal
spindle to table working surface 30 - 450mm
Distance from axis of horizontal
spindle to ram guideways 190mm
Distance from axis of swivel
head spindle to column ways 260 - 900mm
Distance from swivel heads
spindle end to table (quill retracted) 160 - 580mm
Rotational speeds of spindles
- horizontal spindle 31.5 -1600 r.p.m.
- swivel and attachment spindles 50 - 1600 r.p.m.
Table feeds
- longitudinal and cross 12.5 -1000mm/min
- vertical 4.1 - 530mm/min
- Proportional slow down feed ½ speed
Service Manual included.
