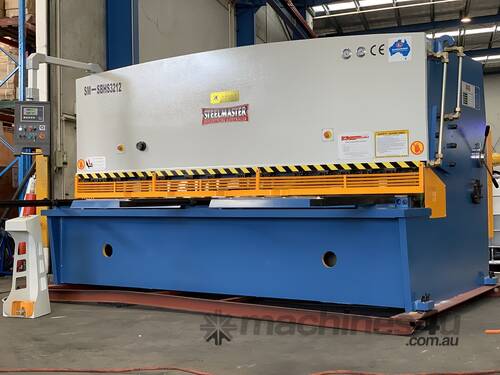

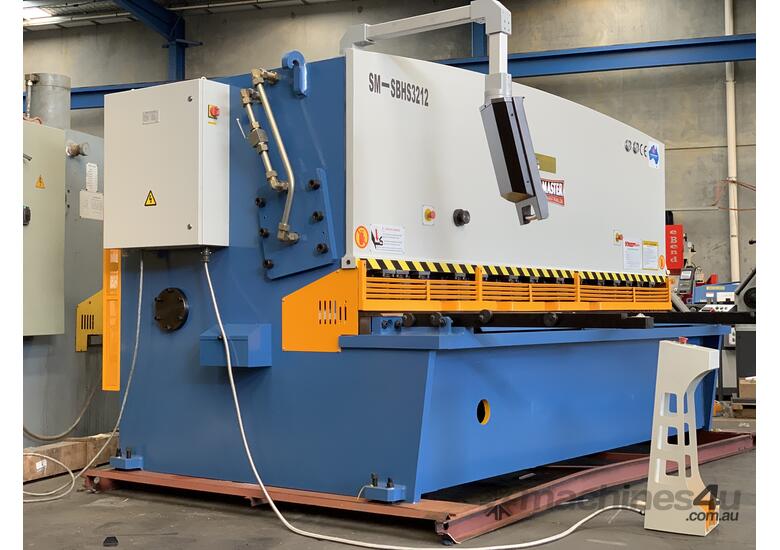

STEELMASTER INDUSTRIAL 3200mm x 12mm Heavy Duty Hydraulic Guillotine Power Backgauge

SM-SBHS3212. Hydraulic Guillotine. Steelmaster 3200mm x 12mm with Power Ballscrew Back Gauge. Quality Reverable Blades, 250mm Side Throat, Quick Action Gap Setting, Squaring Arm & Supports. V
Description
Our feature packed hydraulic guillotine offering all the modern day add ons so you wont be left short.
Combining precision ballscrew swing away backgauge, 250mm deep side throat, quick action blade gap setting - and a very attractive price.
We can also supply models up to 9000mm in length & cutting capacities up to 30mm plate thickness on request.

Features
?swing beam operation ensures clean cut of all applications
?hydraulic individual hold-downs ensure uniform distribution of down pressure across the entire cut length
?shadow-line lighting clearly indicates the cutting line requirement
?standard quick-action blade gap setting ensures burr-free cutting on all materials
?wide plate support table with rollerbearings for simple and smooth material in-feed
?high quality HSS top blade with 2 x cutting edges, while bottom blade has 4 x cutting edges
?side throat for long length slitting
?control console with many operating features including digital display for power back gauge
?swing out back gauge permits longer lengths of material to be cut
?nitrogen assisted return ensures efficient cutting speeds
?variable hydraulic pressure control valving fitted standard
?rear mounted safety lights
?CE compliant

Technical Data Snap-Shot
?3200mm x 12.0mm cutting capacity
?0 ~ 900 power operated ballscrew swing out backgauge
?250mm deep side throat
?variable stroke control & stroke counter.
?shipping dimensions - 3945mm x 2300mm x 2100mm
?weight - 12000Kg
?power - V 18.5Kw

********************************************
Need more details? Can't find what you are looking for?
********************************************

Steelmaster Sheetmetal Metalworking Guillotines.
When looking for a quality Sheetmetal Metalworking Guillotine, look no further than Steelmaster Industrial. Steelmaster Industrial’s Sheetmetal Metalworking Guillotines offer the Sheetmetal worker a very high quality machine with superb features and tight tolerances at reasonable prices. Steelmaster carries over 20 models of Sheetmetal Metalworking Guillotines in stock at all times for quick shipments. Steelmaster Industrial’s ever growing line of Sheetmetal Metalworking Guillotines consists of Manual Treadle, EMS Electro Shears, Swing Beam & Variable Rake Guillotines, along with a large range Pressbrakes, Panbrakes and other Sheetmetal Machinery. Depending on your needs we have the model for you, starting with our cost effective manual machine to our large hydraulic models.

Sheetmetal Manual Treadle Guillotine
With several models to choose from our manually operated Guillotines gives the best “bang for the buck” of any of the Steelmaster Guillotines. This model comes standard with squaring arm, quality blades & adjustable gibs. Heavy steel fabricated frame – Australian Designed & Engineered!

Sheetmetal Electro Shear Guillotine
Steelmaster offer our Electro Shear Guillotine range - fast, efficient & affordable guillotine for use both in jobbing and production. Features a heavy fabricated body with foot control, precision ground blade, spring activated hold down, flat working table with calibrated front guides & squaring arm.
Our Electro Shear Guillotines also offer front extension arms for those longer jobs, stainless foot pedal cable and all safety cut offs to ensure a safe work place. Models start from 1270mm – 3.2mm up to 3200mm x 3.2mm. Designed from the English “Tru Cut” these Electro Shear Guillotines are a winner!

Hydraulic Swing Beam Guillotine
Steelmaster Industrial offer one of the best Swing Beam Guillotines around. Price, Quality and Performance – With ongoing innovations from our Aussie Engineers our market leading models range from our SM-SBHS2504 – 2500mm x 4mm to our heavy duty SM-SBHS6016 – 6000mm x 16mm. Our Swing Beam Guillotines have been fitted up to offer you the best selection of features including rapid blade gap setting, precision Ballscrew back gauges, deep side throats, variable stroke control and much more. Along with this numerous safety e stops, front and rear safety guards, stainless braided foot pedal cable, ensure all round safe operation.

Heavy Duty Variable Rake Guillotine
Our heavy duty range of Variable Rake Guillotines around. Our Variable Rake Guillotine series are designed and constructed to provide excellent shearing of material with clean, square edges, and to exacting tolerance. Variable Rake Guillotines shears are equipped with the productive features and safety devices for optimum, accurate cutting performance usually only found on more expensive units. Feature for feature, they are a smart, economical choice for cutting plate. Three pairs of rollers ensure optimum guiding of the cutting beam. All of these features combined with variable rake angle minimise any deformation of materials even with thin strip cutting.
Our Variable Rake Guillotines are supplied up to 9000mm in length & cutting capacities up to 30mm plate thickness on request.

For More information on our machine, go to our extensive website or contact a Steelmaster industrial Rep
