STEELMASTER ULTIMO CNC Plasma / Flame Combo with HYPERTHERM – Networkable –1500mm x 3000mm

STEELMASTER ULTIMO CNC Plasma / Flame Combo with HYPERTHERM –– Networkable –1500mm x 3000mm

Less than 20 hours and purchased September 2021 from Asset Plant and Machinery (all receipts available).
Comes with Hypertherm Powermax valued at $17k

PRICE: $40,000

Located in Epping, VIC 3076 and inspection, test welcomed.
Contact Charlie on or Steve on



Details below.
Heavy duty industrial build quality – combining cnc plamsa cutting & heavy duty thick oxy cutting

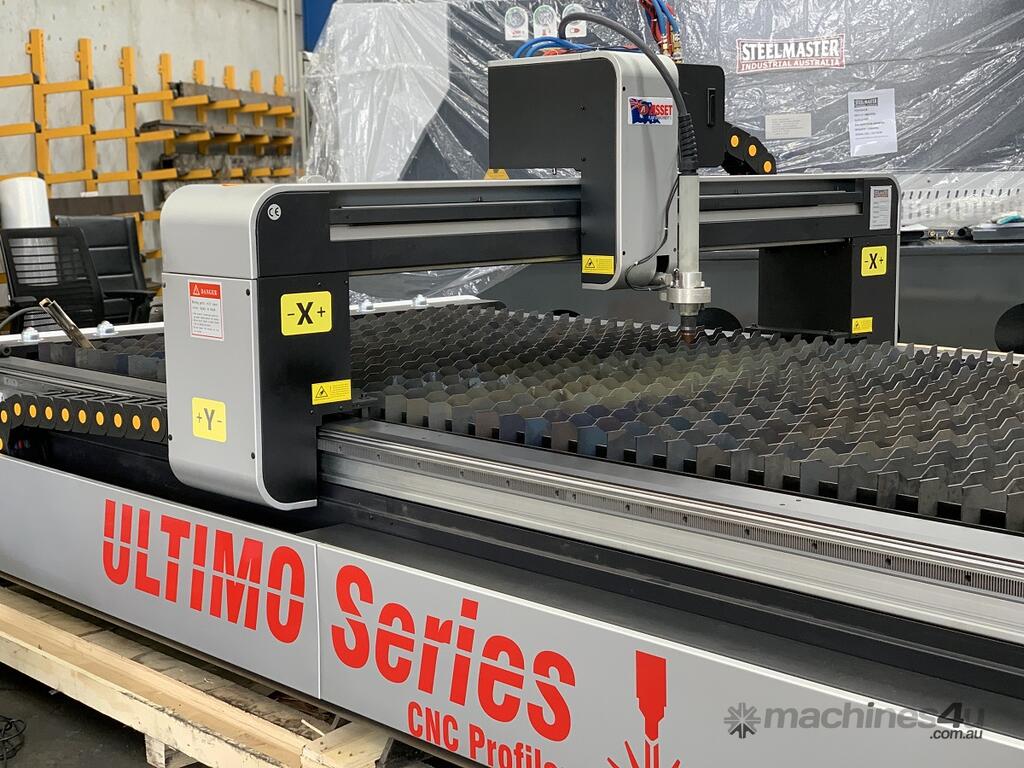

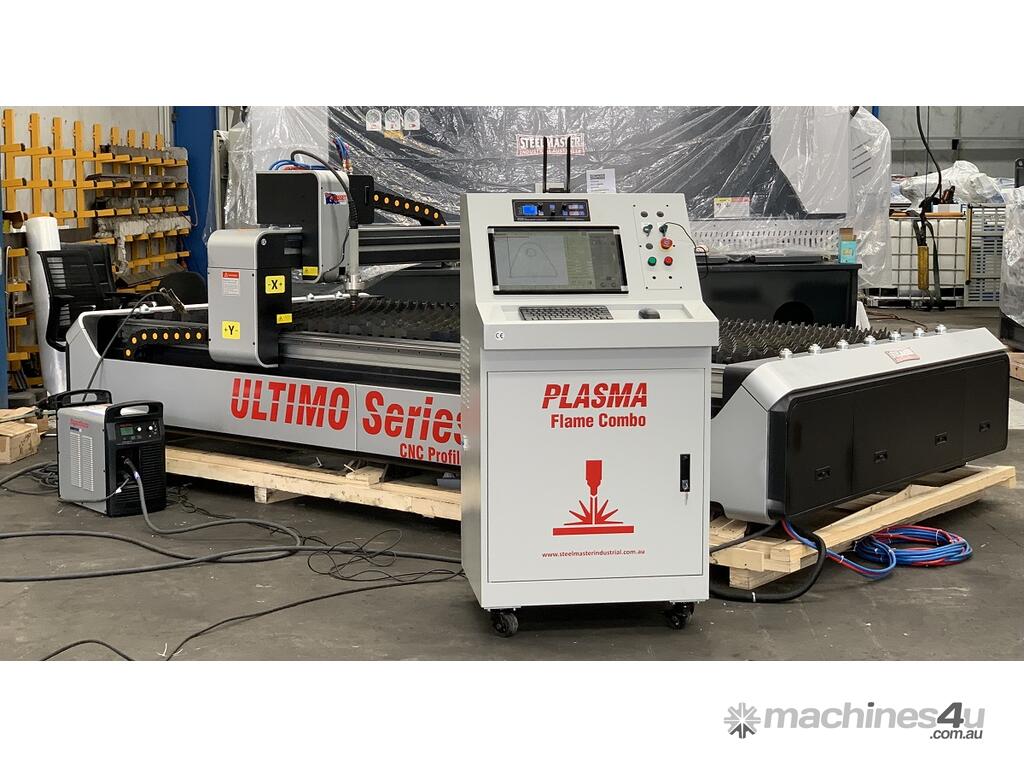

Industrial designed Gantry Type CNC Plasma Oxy Combo ticks all the boxes.
Attractive price, robust heavy duty industrial build design, Fastcam CNC operating system with drawing package and full nesting, backed up with second to none service.
Simply select your Plasma Power Source to be added and away you go!
With our added Network Technology upgrade you can simply send the cutting programs via wireless network technology to the CNC Plasma and start cutting
? PMX125 – 415Volt PC Interface - Machine Torch & Lead. Plasma - USA $16,850.00 4.45 $16,100.00 Hypertherm Powermax - Standard Machine Lead Length 15m Supplied. CNC Machine Torch Supplied Only
Features

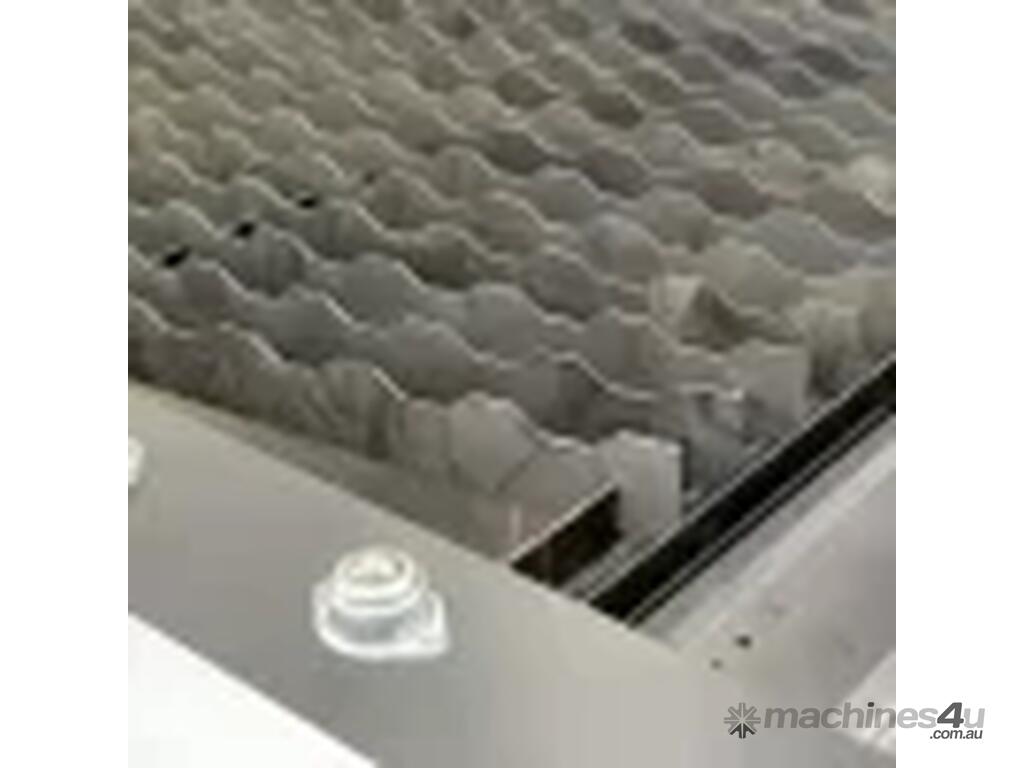

? Heavy Duty Industrial Build 1500mm x 3000mm downdraft cutting table

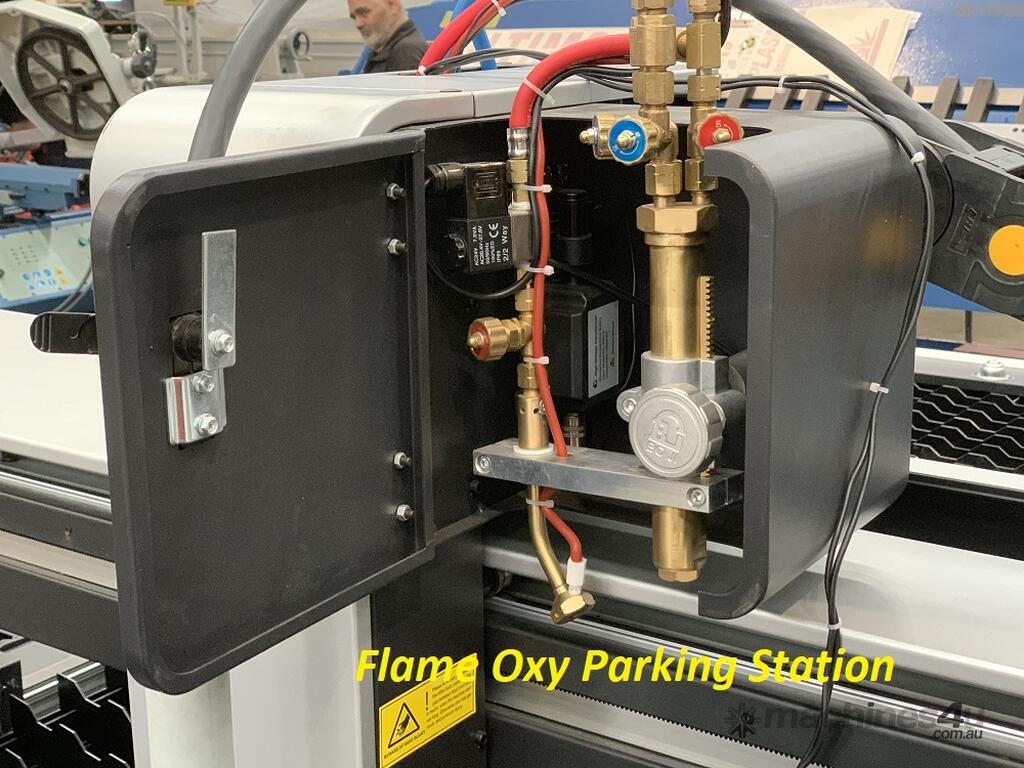

? Dual head machine with Plasma & Oxy fitted.

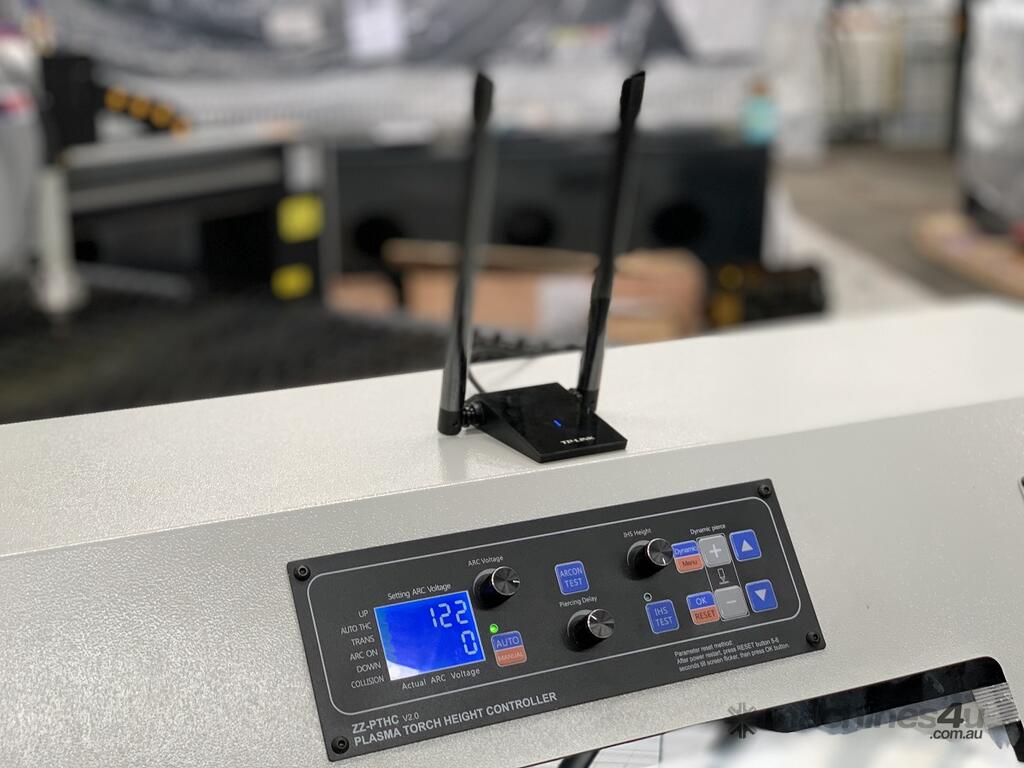

? THC torch height control fitted
? superior cut speed, quality and stability
? optimum track speed. even for fine contours and tight radii
? Huge LCD display
? Fast Cam base module supplied standard
? Roller balls to assist with material loading and unloading
? high quality cnc controller options offering options, accepting G & M codes.
? Plasma Power Source, Lead & Torch need to be added to suit customers cutting requirements.
Technical Data
? plasma cutting area – 1500mm x 3000mm
? etching working area – 1306mm x 3000mm
? Z travel – 100mm
? Oxy cutting capacity approx 80mm
? cutting speed – 0 ~ 8000mm / min
? MAX cutting speed – 12,000mm / min
? accuracy – 0.2mm
? plasma torch diameter – 35mm
? work mode of plasma – non contact ignition

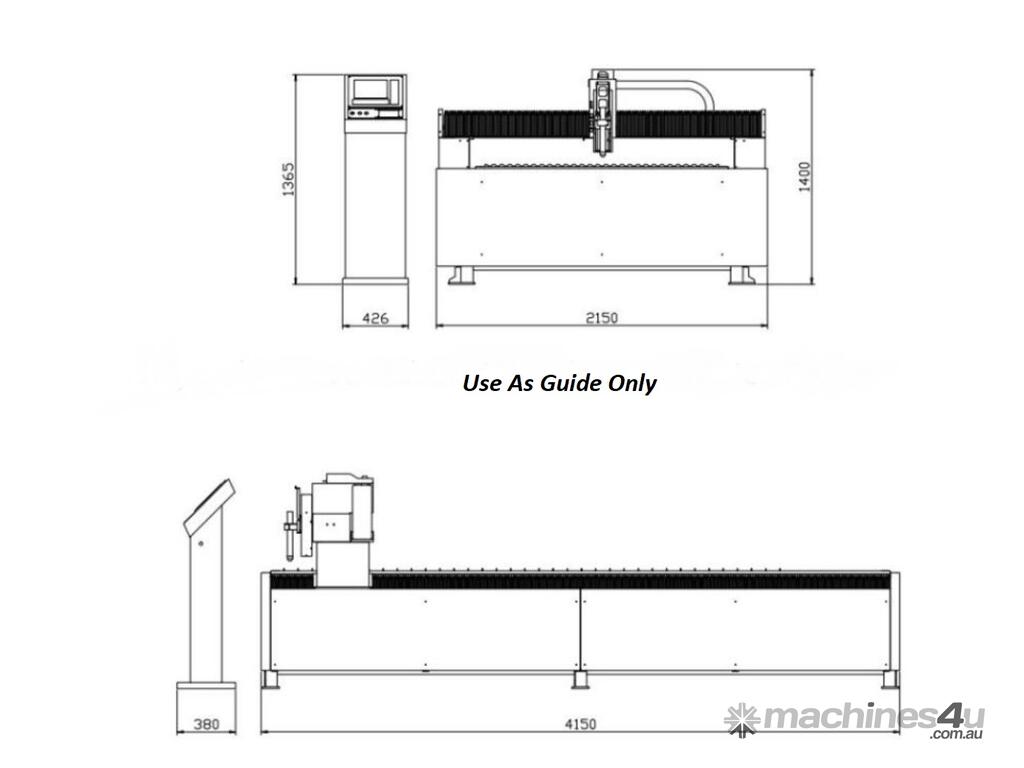

? dimensions – 3800mm x 2200mm
? crate dimensions – 3900mm x 2300mm x 1750mm (H) x 1600Kg
? weight – 1500Kg
? power source – 415volt
? 12 month warranty
Power Sources
? Hypertherm PMX45 ~ Maxpro 200



CNC Software
? Fastcam Professional (Auto-Nesting)
? Save drawings to USB
? All popular DXF and DWG files supported
Webpage:
.fastcam/fastcam.html
Network Remote Technology
? IPC Computer Control, Windows 10
?19” Industrial Touchscreen PC
?Joystick Control

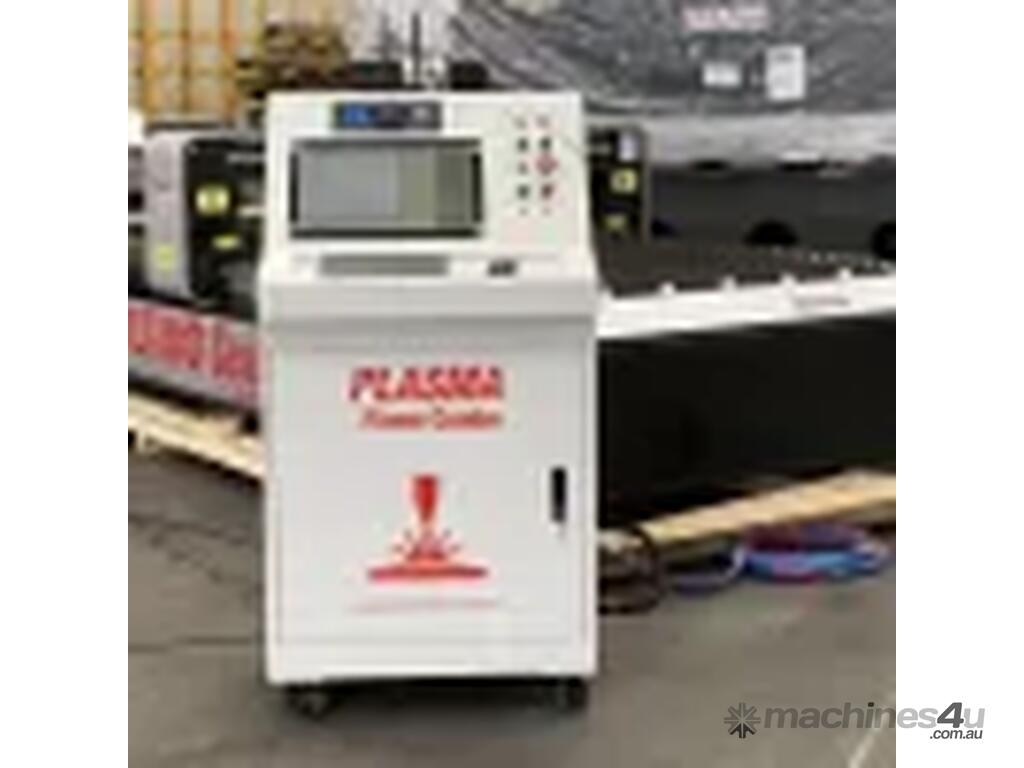

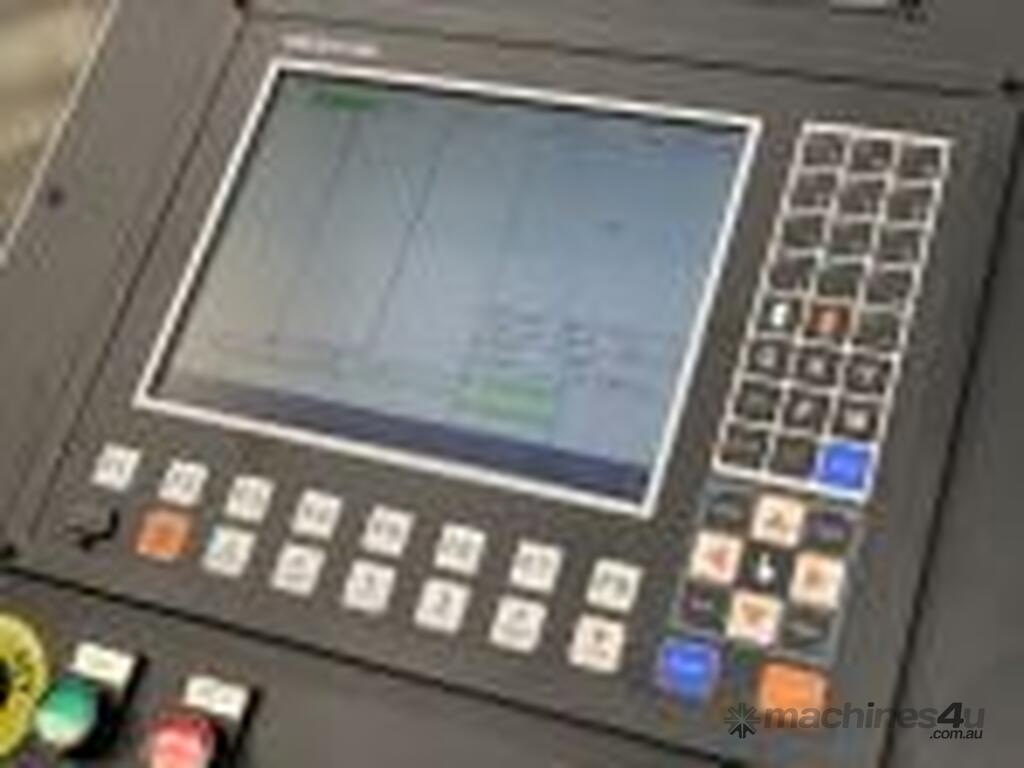

CNC Control
? FLCNC
? Huge 19” LCD colour display
? additional USB input
? Mobile console
? Template library for quick and easy cutting of standard shapes and angles
? Real-time cutting path
