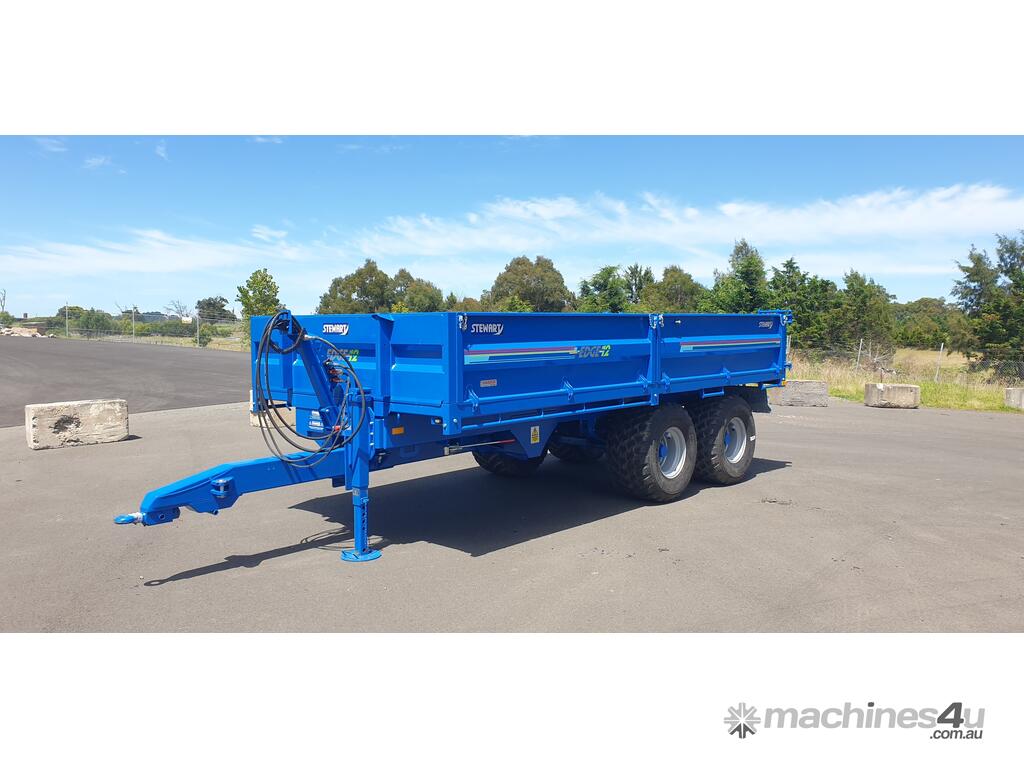

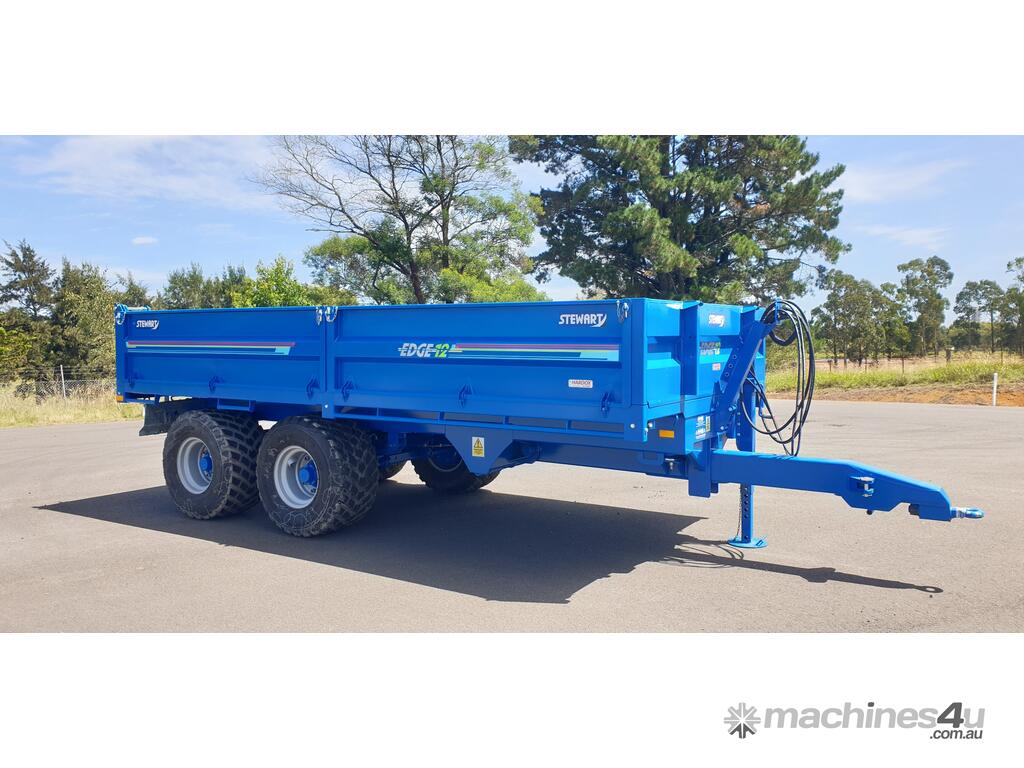

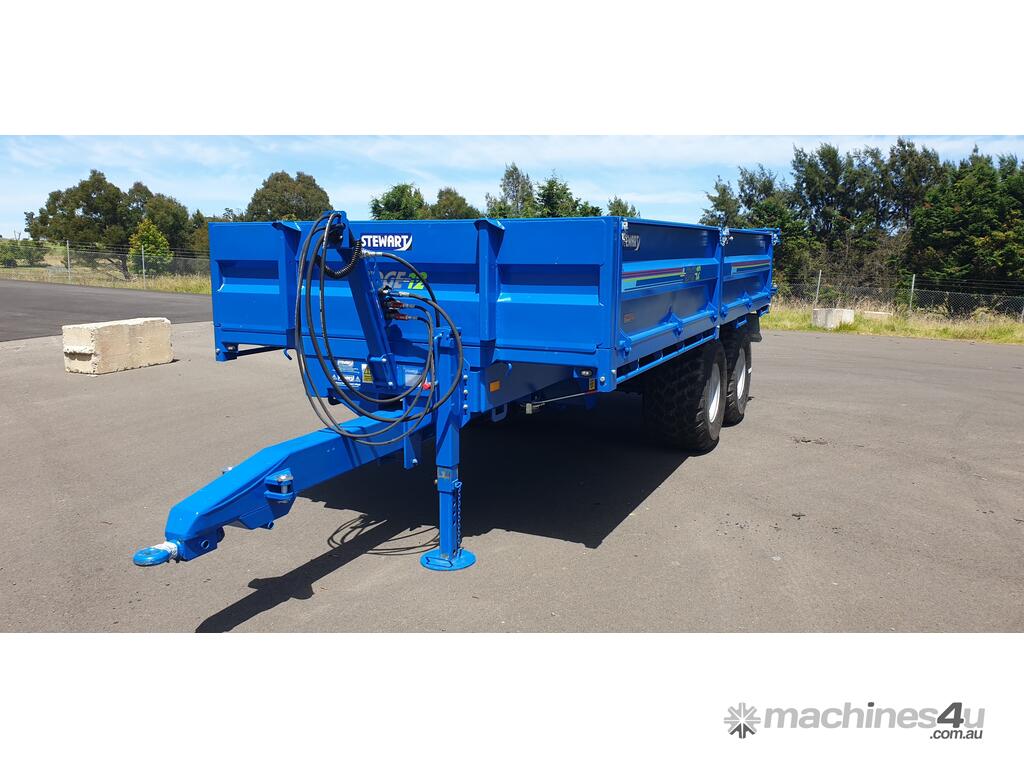

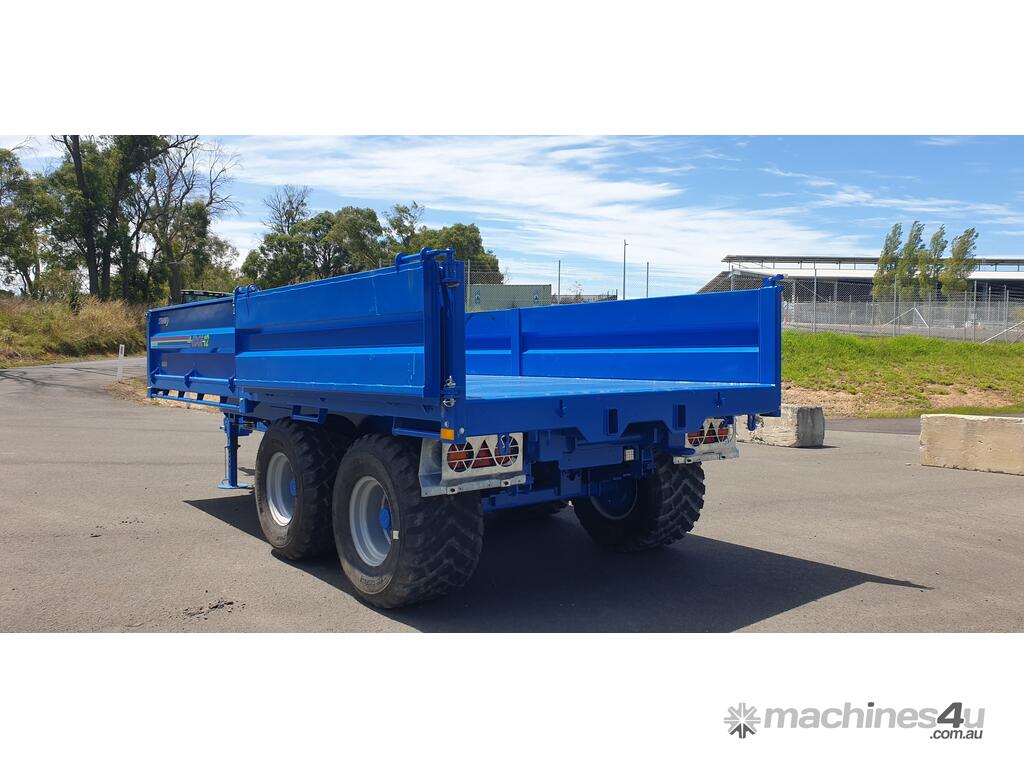

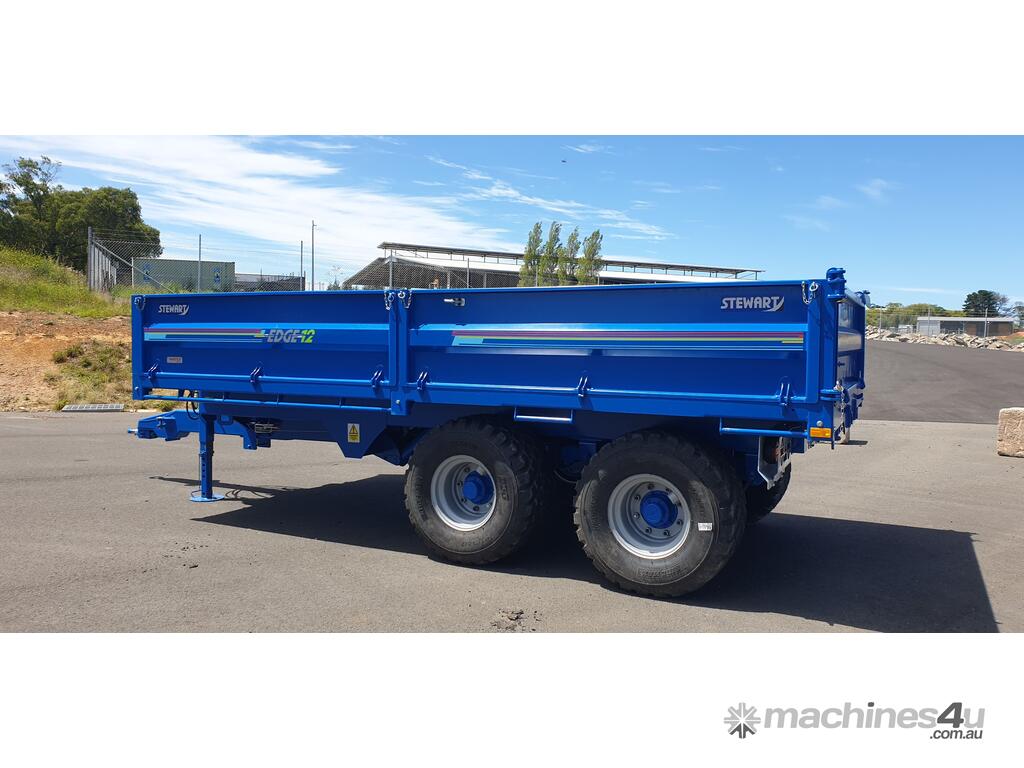

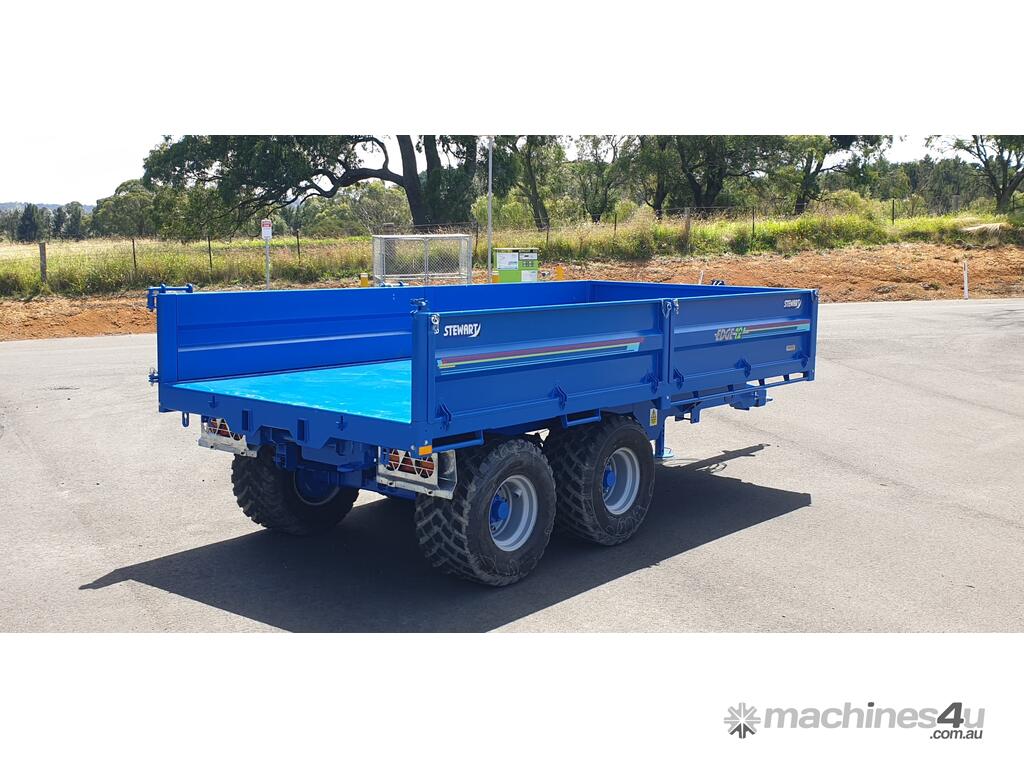

STEWART TRAILERS EDGE 12 DROP SIDE TIPPING TRAILER

The EDGE-12 Trailer, suited to general farming applications has many uses; whether it’s carting soil or gravel around the farm, moving hay and feed supplements to livestock, or even moving mulch around the garden.

STEWART Edge-12 Drop Side Tipping Trailer
• Minimum 125HP required
• 12,000kg Load capacity
• 5000 x 2500 x 600mm Body w. Drop Sides
• 4mm Wall, 2mm Sides HARDOX
• 2-Way Tailgate w. Spreading Chain Attachments

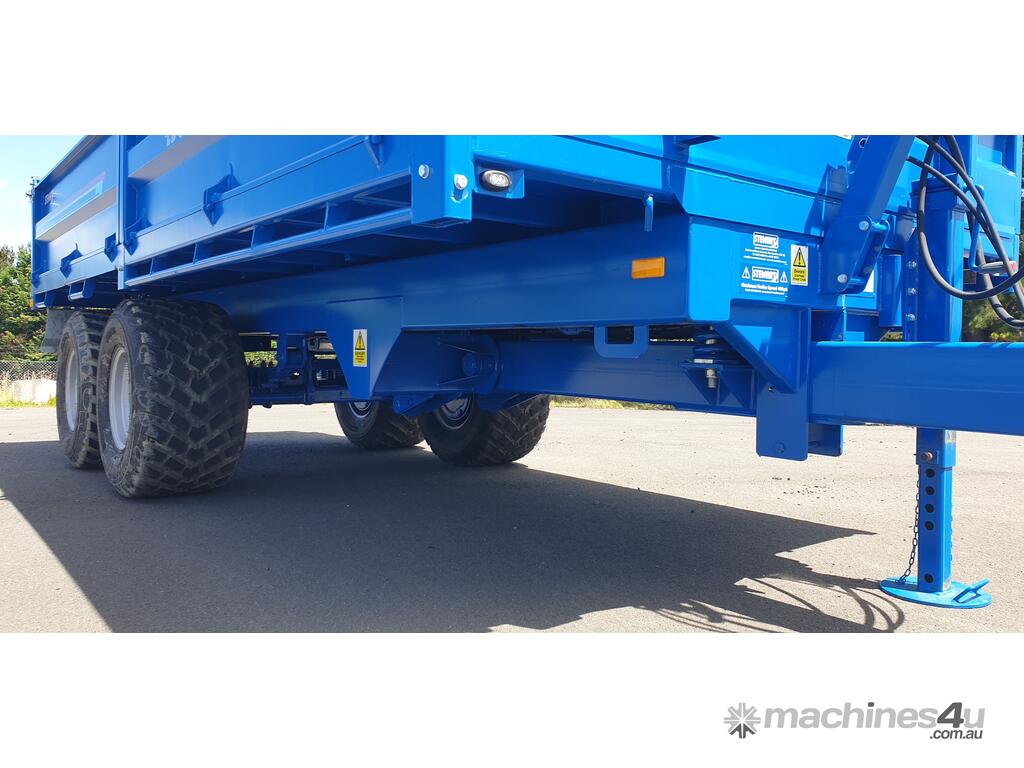

• HD Full-Width Chassis, 250 x 150 RHS
• Spring Drawbar Suspension
• Tandem Axle, ADR 90mm 8 Stud (300x135 Hydraulic Braked)
• 500/50 R17 Flotation Tyres

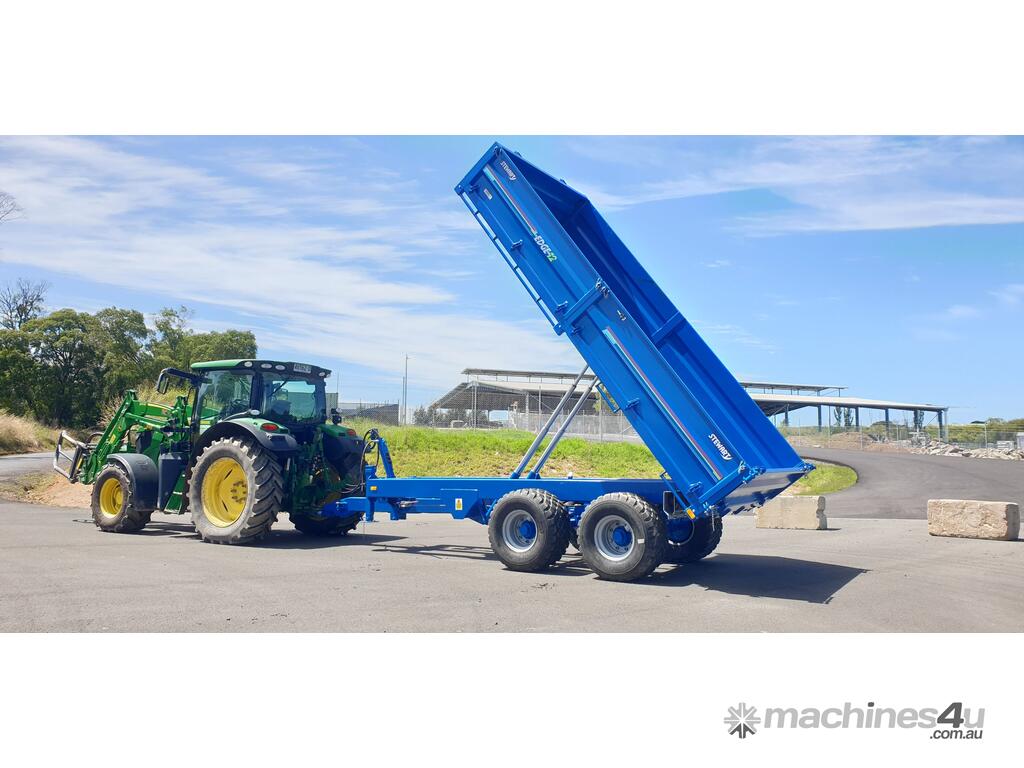

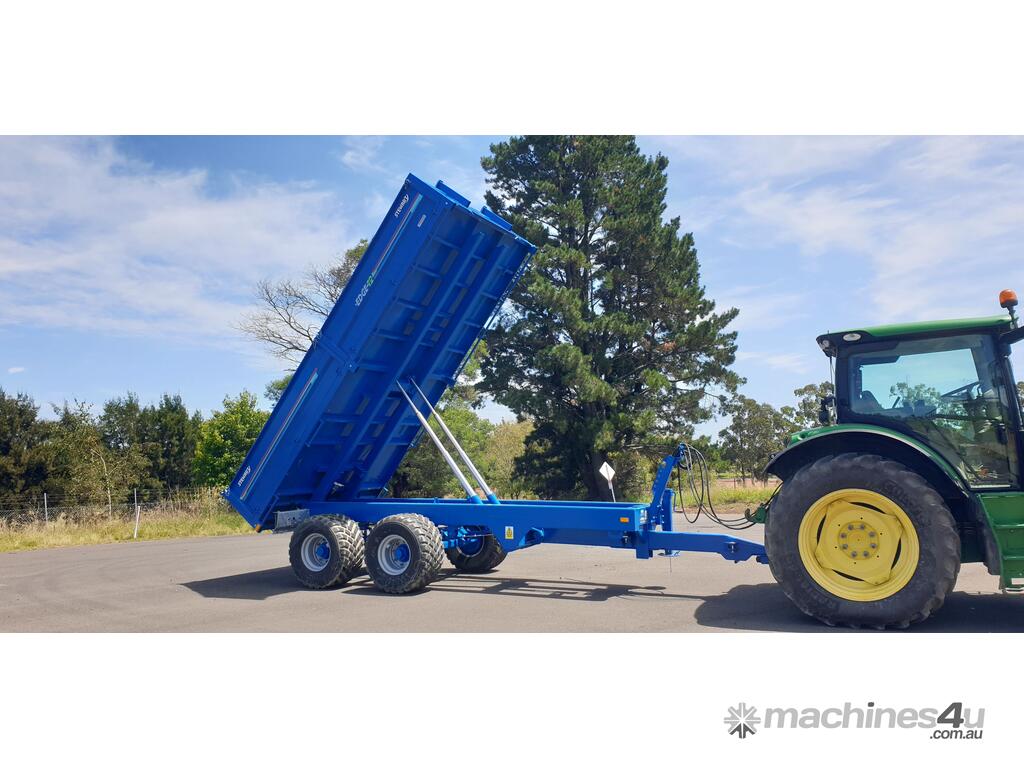

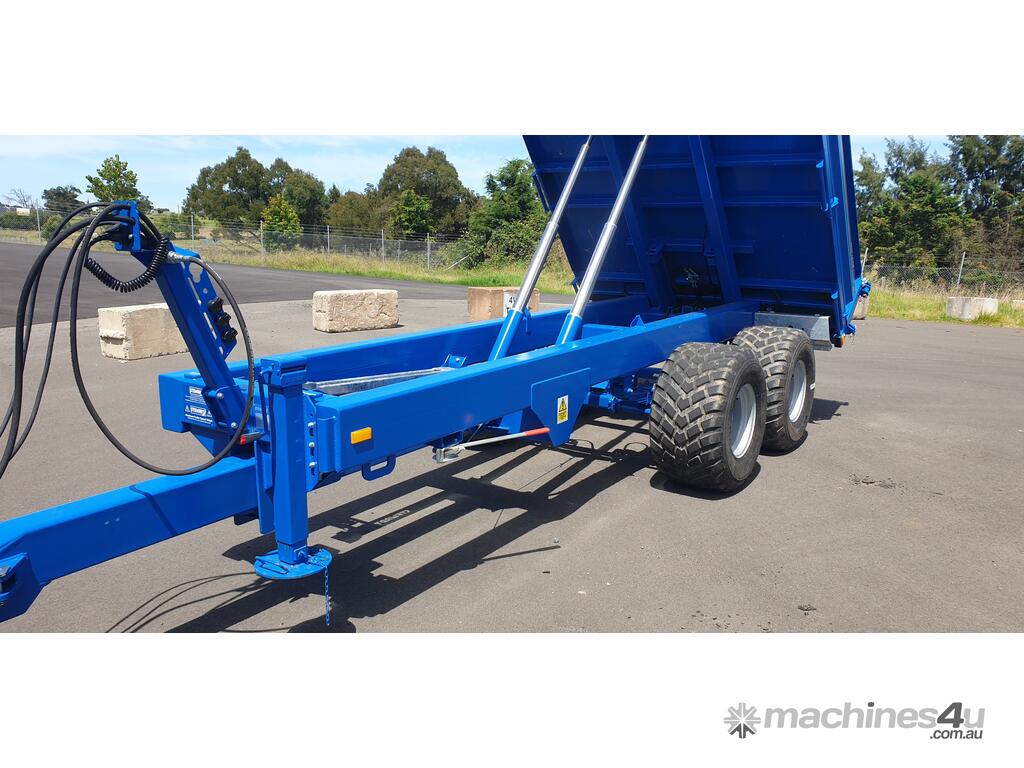

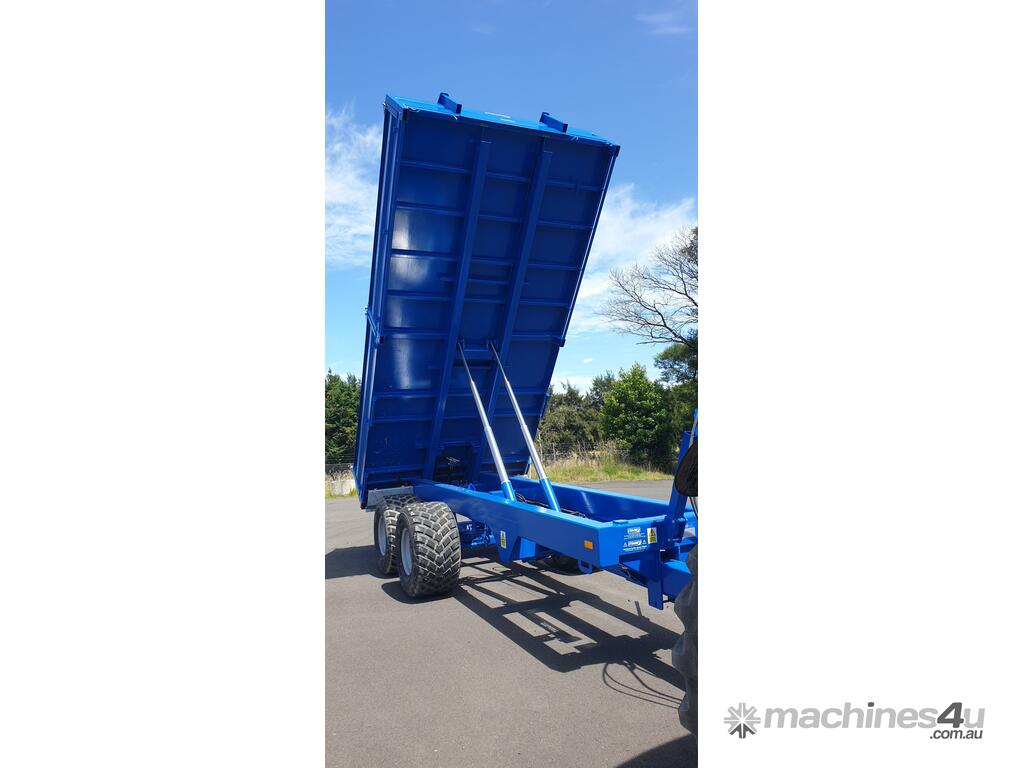

• Dual, 3-Stage Single Tip Ram, 3.5” Diameter, Chrome Plated
• Mechanical Jack Stand
• Full Road Light Kit
• 40mm Swivel Hitch w. Safety Chain Attaching Points
• Shot Blasted & Finished in PPG Flex Paint

Options:
• Rear Bale Extension
• Front & Rear Hay Racks
• Hydraulic Tailgate Latch
• Drop on Fixed Side Grain Body
• Drop On Fixed Side Silage Body

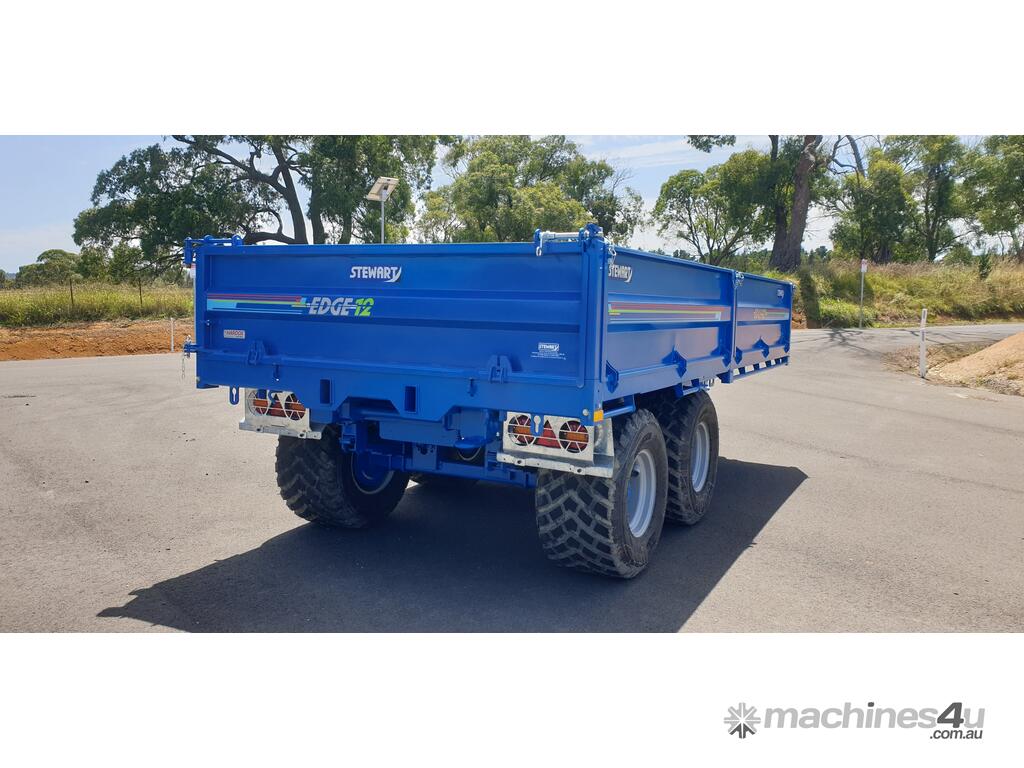

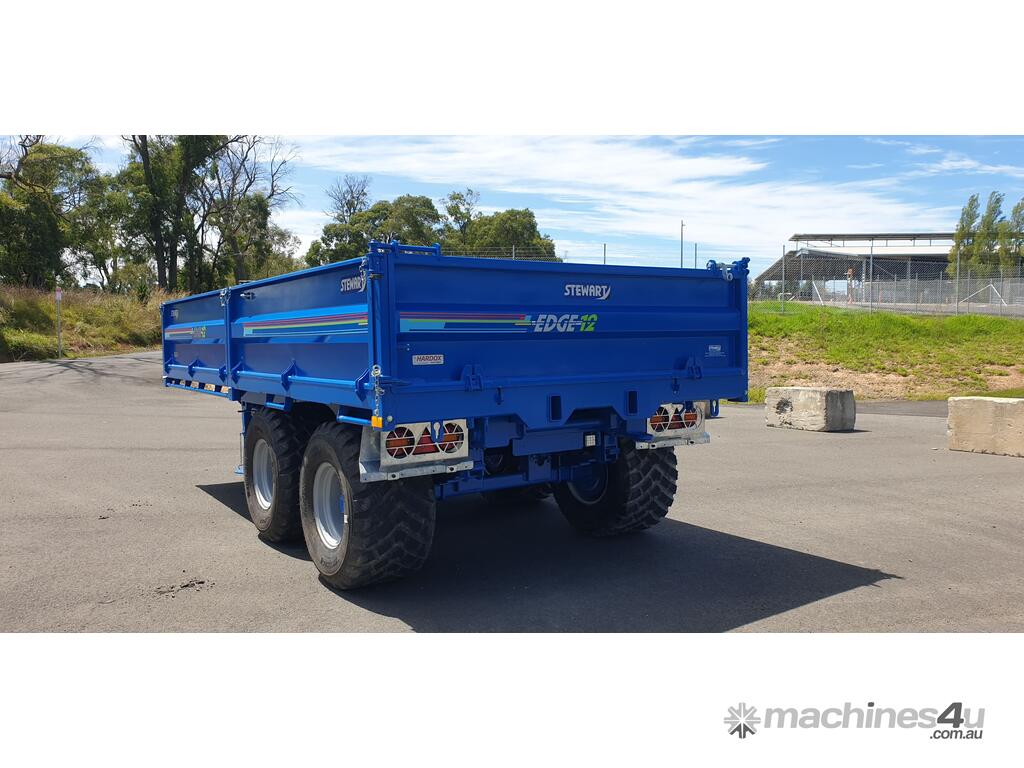

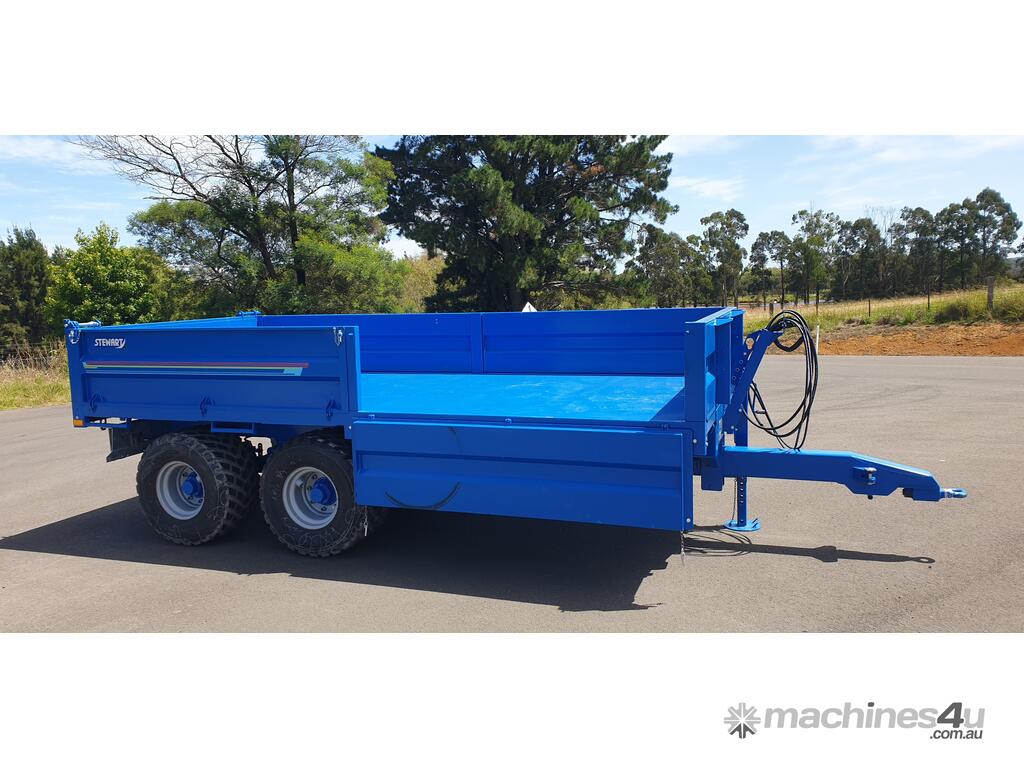

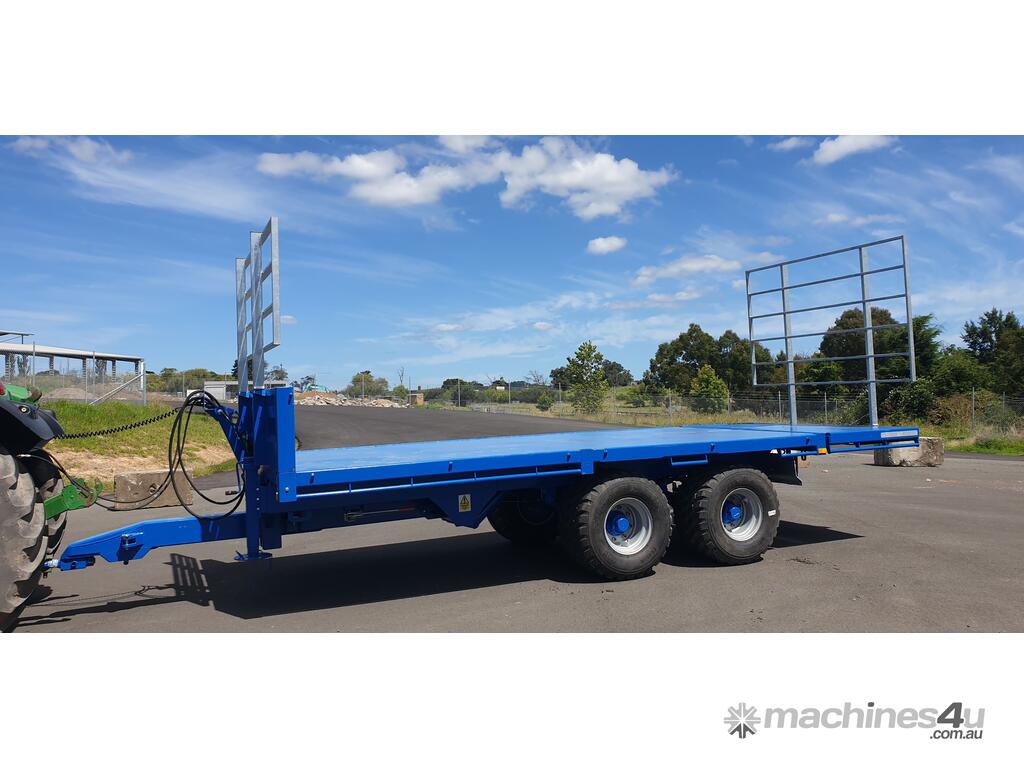

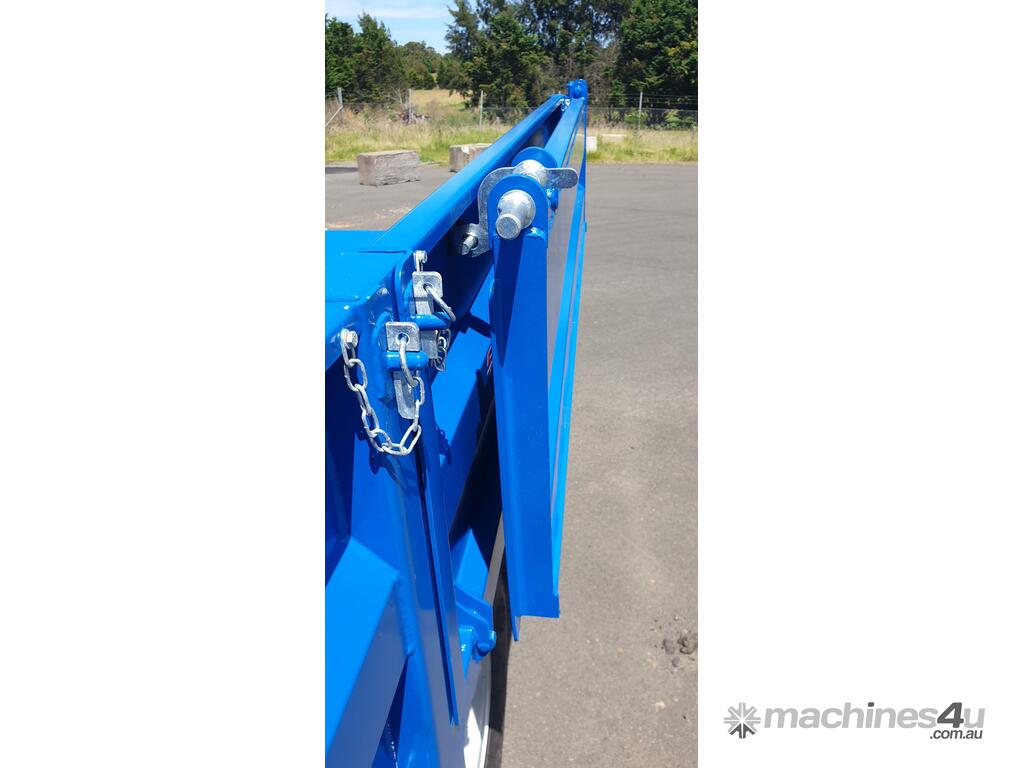

All EDGE trailers feature the 2-way tailgate design which enables any load to be emptied or distributed via the rear tailgate. All sides are able to be removed, easily converting these trailers into a formidable flatbed trailer.

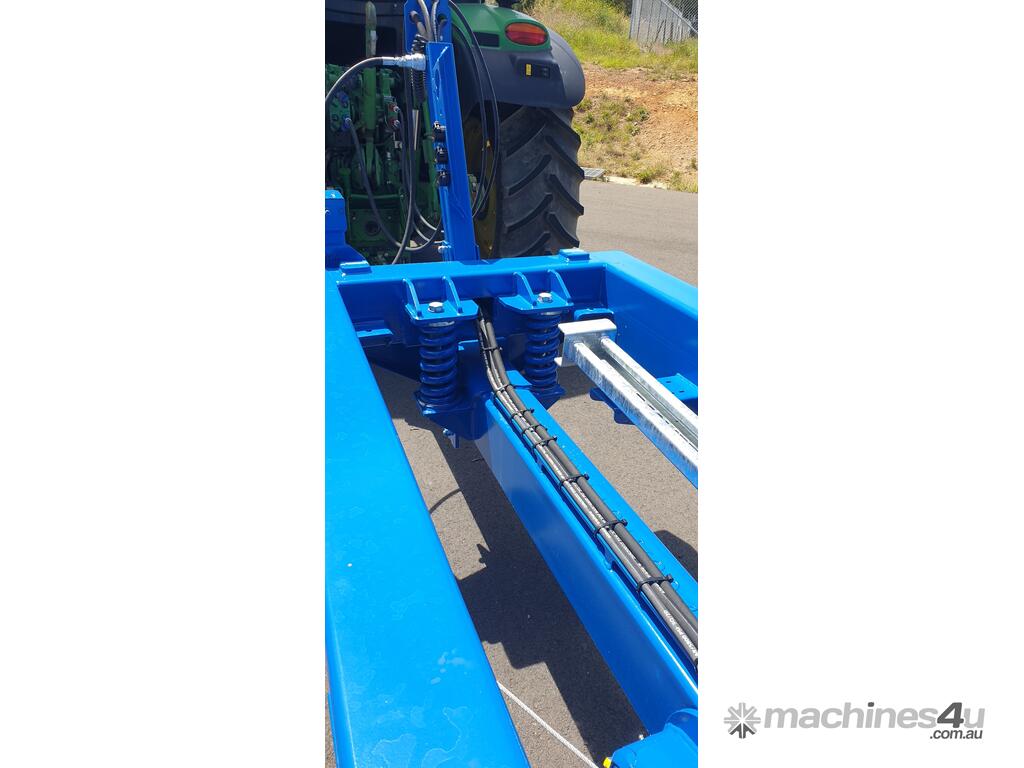

The EDGE 12 Trailer features a sprung drawbar. This feature prevents overloading the drawbar on the tug tractor and provides optimum comfort for the operators. Designed so if filled to capacity evenly in the loading area there is no more than 3 tonnes of down-pressure on the towing vehicle’s drawbar.

Designed and built in Scotland for Australia, the all-new Stewart ‘Edge’ Drop-Sided Tipping trailers are built for you. Featuring full Hardox® body and sides meaning the trailer is very strong, protected from rock damage, and lighter in overall tare weight without sacrificing any strength. Other features such as dual axle hydraulic breaks and LED road lighting on the larger models means road towing is completely legal behind agricultural vehicles and our ADR axles are built to take it.

Chrome-plated rams are a standard feature, ensuring long life without any fear of rust damage. All trailers are painted with 2-pack acrylic gloss paint to give an impressive fit and finish which complements the quality of the build and the pride of the Scottish owners!
