STUCCHI DP Multi-Couplings

Stucchi DP Multi-Coupling System

In Partnership with Nicola’s Machinery

Nicola’s Machinery partners with Stucchi, Italy’s leading manufacturer of quick disconnect couplings with over 65 years of experience, to bring advanced hydraulic connection technology to modern tractors and implements.

Overview

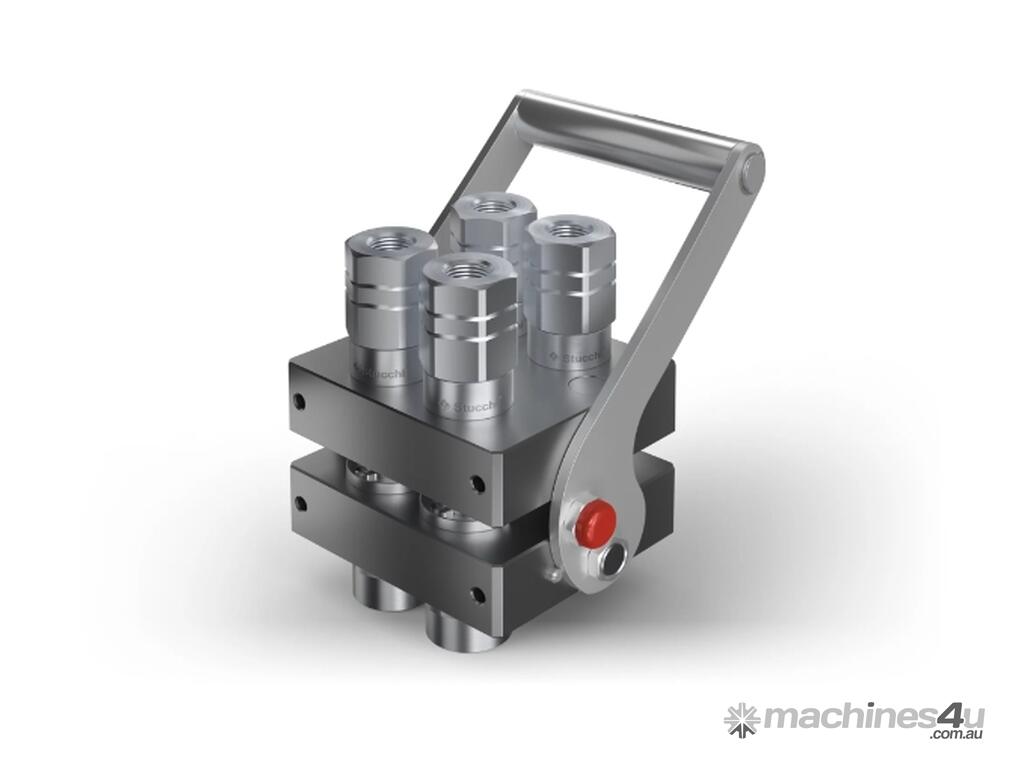

The DP Multi-Coupling System is a compact manual solution that allows up to six hydraulic, electrical, or pneumatic lines to be connected or disconnected in one quick motion.

It ensures clean, safe, and efficient hydraulic operation — ideal for tractors and implements requiring frequent changeovers.


Technical Specifications
• Material / Finish: Carbon steel and aluminium with Cr3 protection
• Seals: Nitrile (NBR)
• Max Pressure: 350 bar?|?Flow Rate: up to 378 L/min
• Temperature Range: –20 °C to +100 °C
• Thread Standards: SAE / DIN

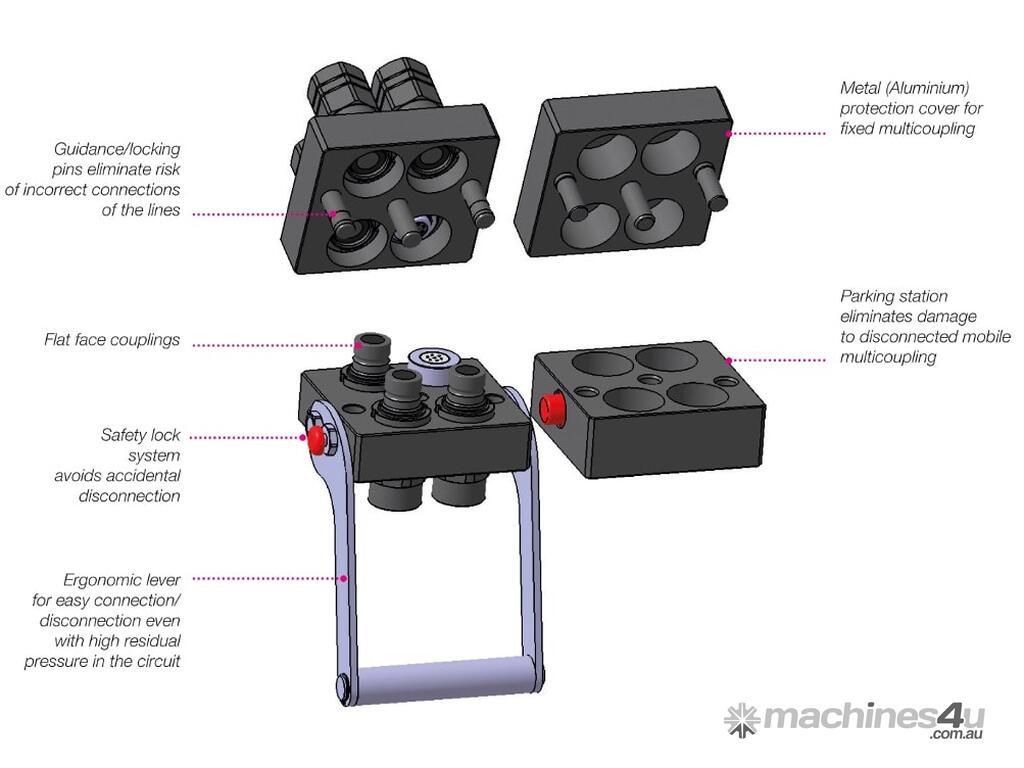

• Design: Flat-face valves with cam-and-pin locking for leak-free performance

Key Advantages
• Connect or disconnect up to six lines at once — hydraulic, electrical, or pneumatic
• Flat-face design prevents leaks and contamination
• Safe connection under residual pressure (FAP version)
• Compact, durable, and easy to install
• Reduces setup time and improves reliability


Installation & Delivery by Nicola’s Machinery

When purchased as an optional upgrade, Nicola’s Machinery provides professional installation and testing before delivery.
Your tractor arrives ready to use, with all hydraulic lines fitted and pre-configured for immediate operation.

Application Example
Please check the video below for a practical demonstration of the Stucchi DP Multi-Coupling System in operation.

Availability
Available from Nicola’s Machinery as an optional upgrade or standalone kit.
