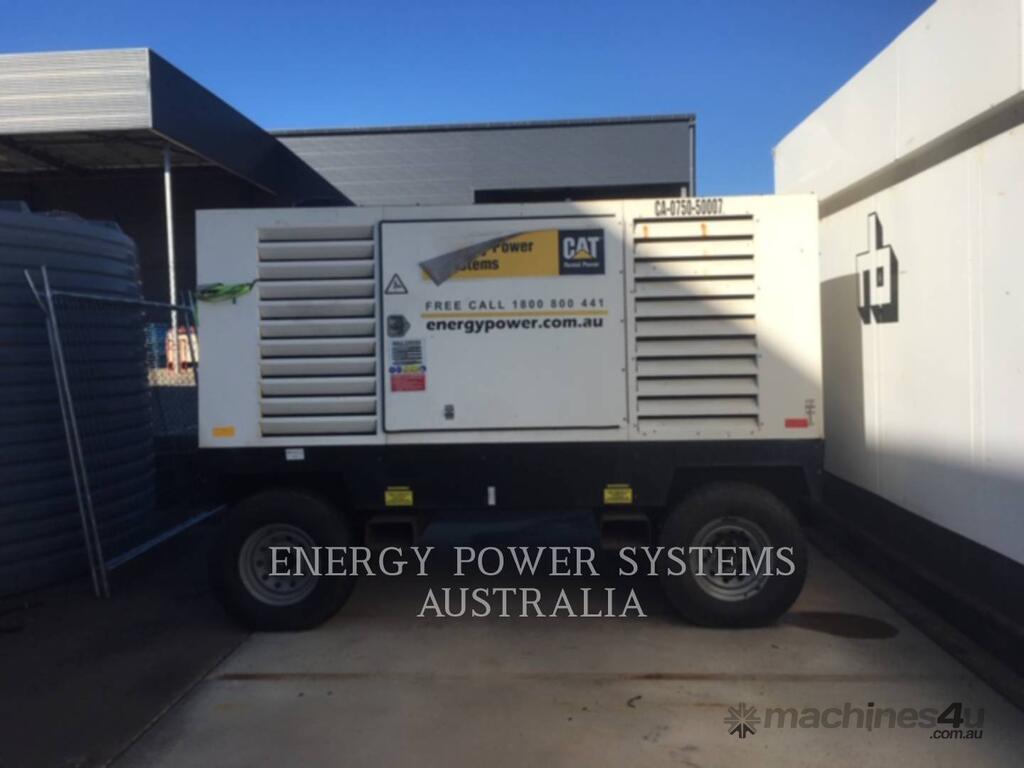

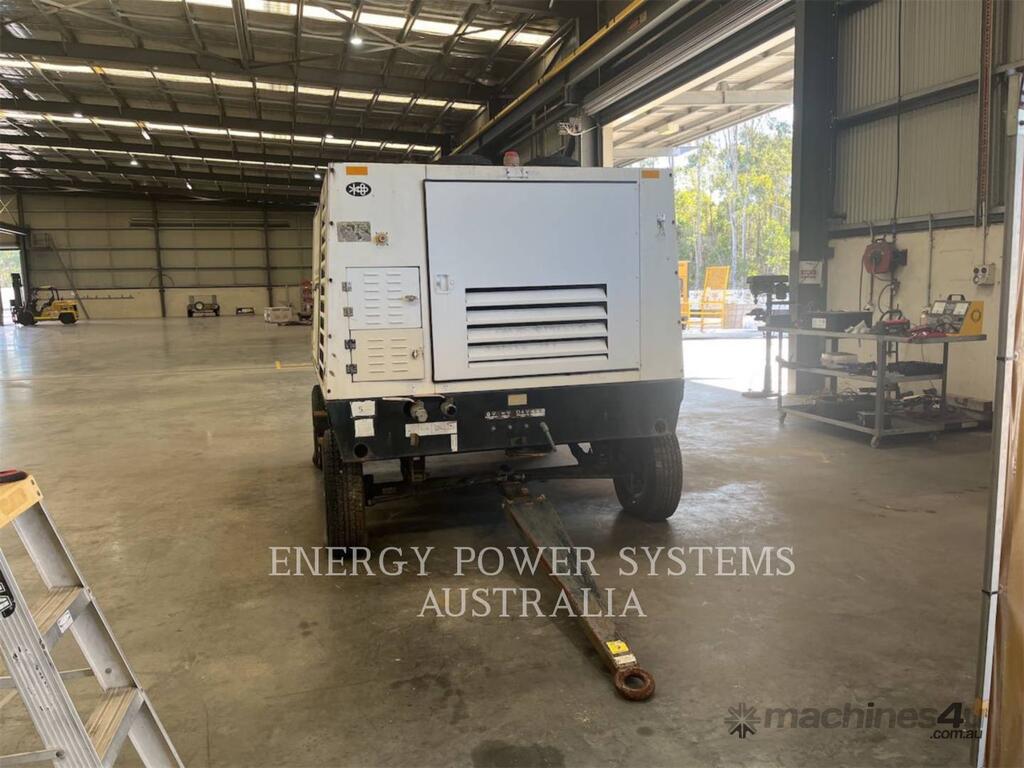

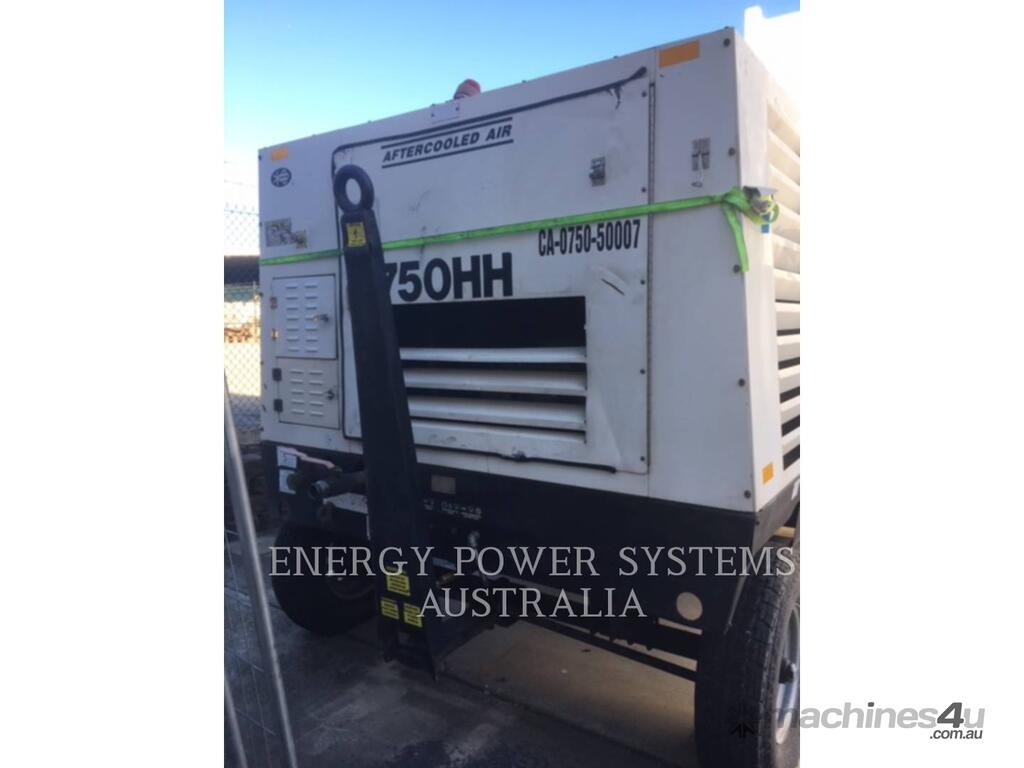

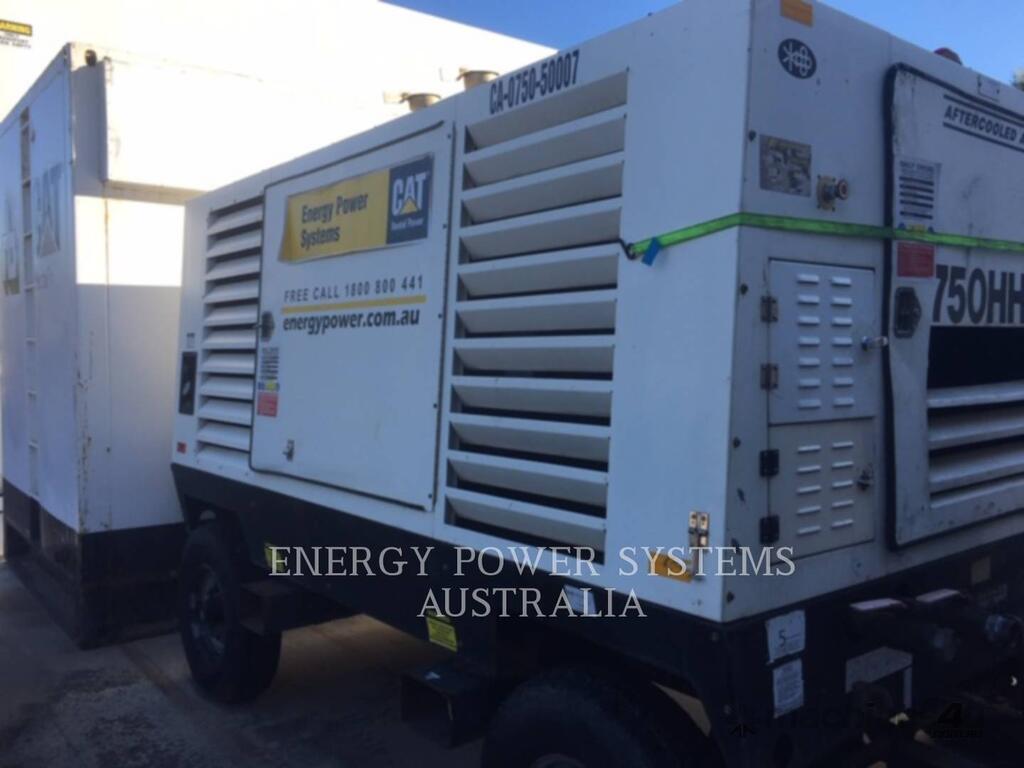

SULLAIR CA-0750 Compressed Air

PRODUCT-FAMILY
COMPRESSED AIR

COMMENT
Class: ELECTRIC AIR Compressors
• Stock No.: UA149
• Manufacturer Year: 2008
• Hours: 2505
• Price: 35,000 AUD (Excl GST)
• Location: BRISBANE

SUMMARY PRODUCT INFORMATION
THIS IS SUMMARY PRODUCT INFORMATION AND IS NOT A FULL SPECIFICATION,
SOME EQUIPMENT MAY VARY.
CFM L/S
Maximum Flow (Free Air Flow) 750 354
PSI Bar
Pressure Range (min - max) .5 - 12
Max ambient temp at full load operation 50°C
Maximum towing speed (site use only) 15 km/h – Vehicle with slow towing capability of 5 tonne
Sound level at full load at 7 metre Approx: 76 db(A)
Compressed air outlet 2”
After cooled air and moisture separator Yes with option for standard air
4 wheel trailer dimensions (not road registered)
Overall Length of Canopy (metres) 3.330 mtr
Overall Length (metres) with drawbar 5.180 mtr
Overall Width (metres) 2.265 mtr
Overall Height (metres) 2.450 mtr
Weight – Wet 4662 kg approx

FUEL
Fuel to be used Commercial Diesoline
Fuel Tank Capacity (litres) 454 ltr
Fuel Reserve at 100% load 9.45 hrs
Fuel consumption at 100% load (l/hr) 48.1 l/hr
Maximum fuel temp at engine inlet 66°C
Engine Caterpillar C-9 ATAAC (T3)
Engine Speed and kW 1800 rpm / 224 kW
