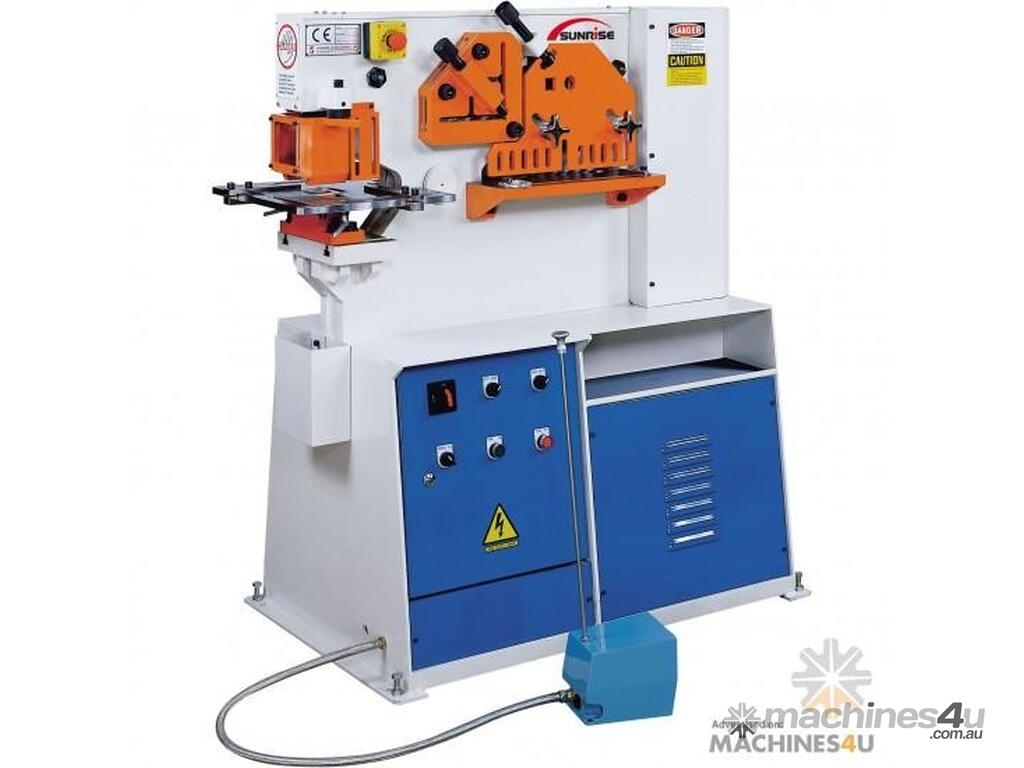

SUNRISE 45 Ton PUNCH AND SHEAR

New Sunrise Punch & Shears 45 Ton

Taiwanese, 2 Year Warranty

Features
Punching capacity up to 40mm standard.
Power inching for easy job set up
Adjustable stroke for faster punching
Punch table and shear table both fitted with guides as standard
All work stations guarded
Most cutting blades are four-sided for long life
Adjustable length stop with rule
Five work stations, including notcher (Four stations on 45MQ)
Fully-filtered hydraulic system

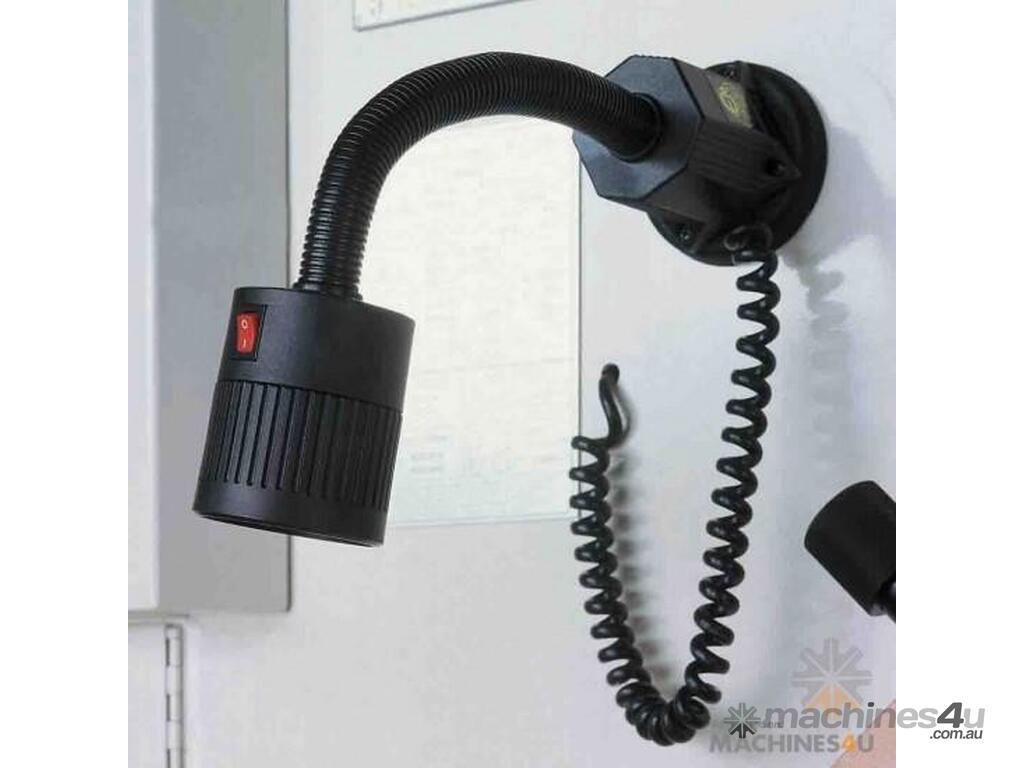

Magnetic-base work lamp (60H only)
Internal and external mitre cutting of angle iron (60H only)
Telemecanique electrical components

NOTE: Specifications based on material strength of 45kg/mm2 tensile.

Includes
Standard Accessories
Full safety guarding at all workstations 1 metre length stop for shear/crop stations
Tooling to all workstations,
Punch, Shear and Notch support tables
2 year warranty

Specifications:
CODE:P170
MODEL:IW-45MQ
PUNCHING
PUNCHING PRESSURE:45T
MAXIMUM CAPACITY:Diameter 22 x 15mm
DIAMETER x THICKNESS:Diameter 40 x 8mm
THROAT DEPTH: 175mm
MAXIMUM STROKE LENGTH:35mm
CYCLE/Min (15mm Stroke):31

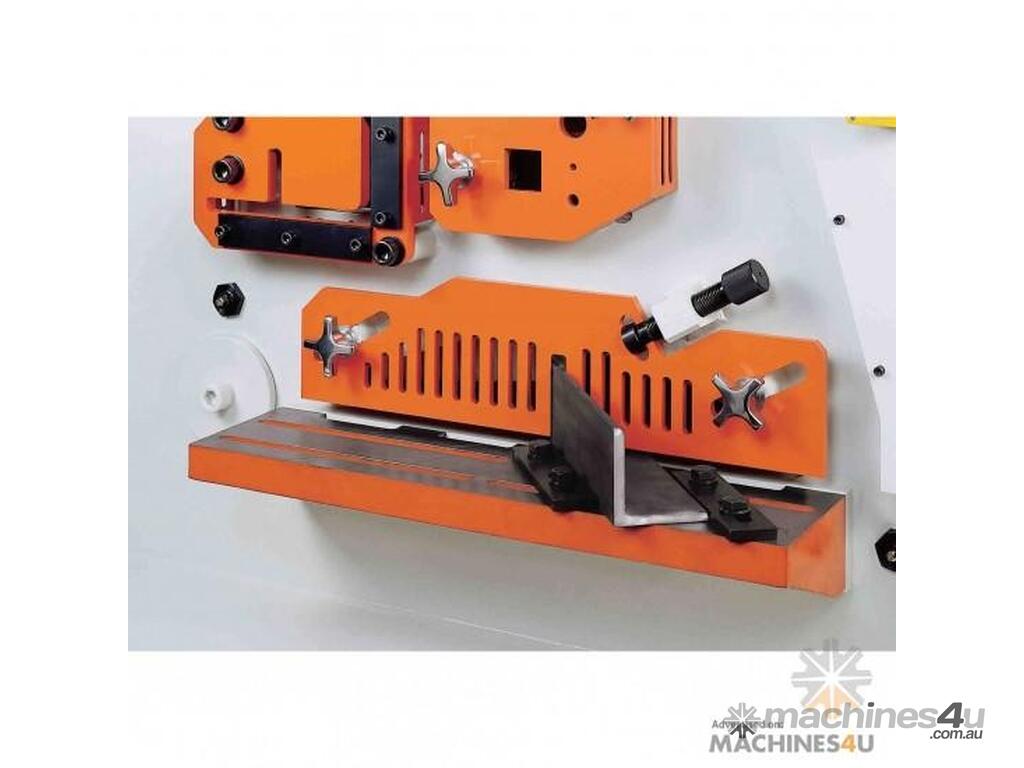

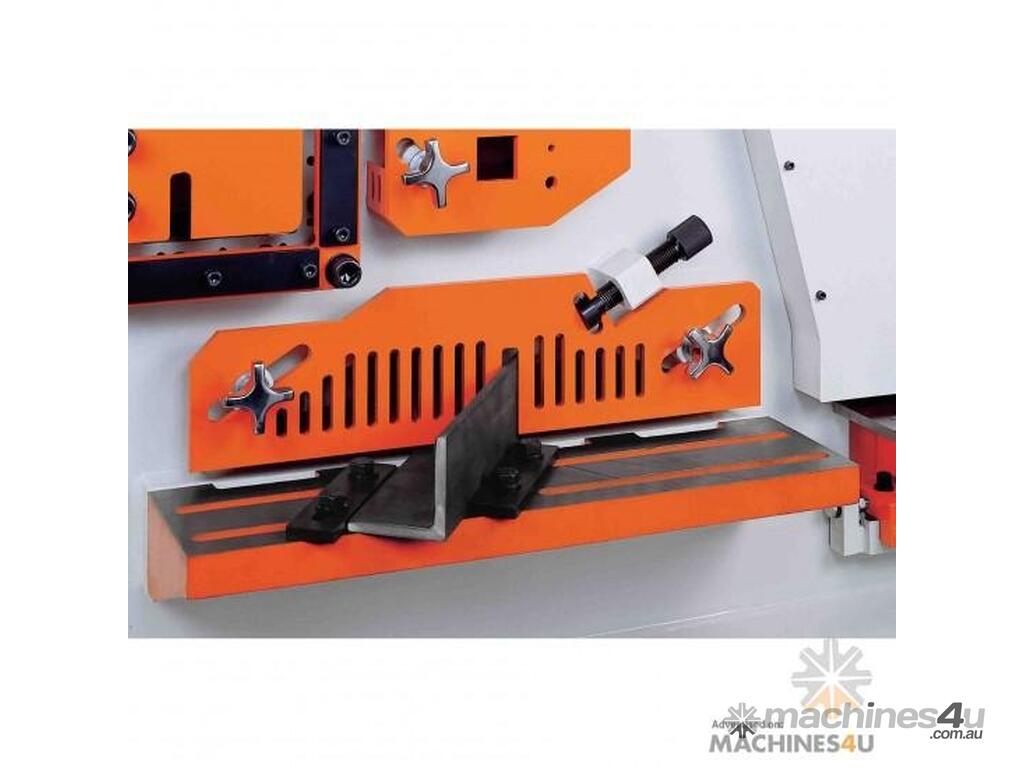

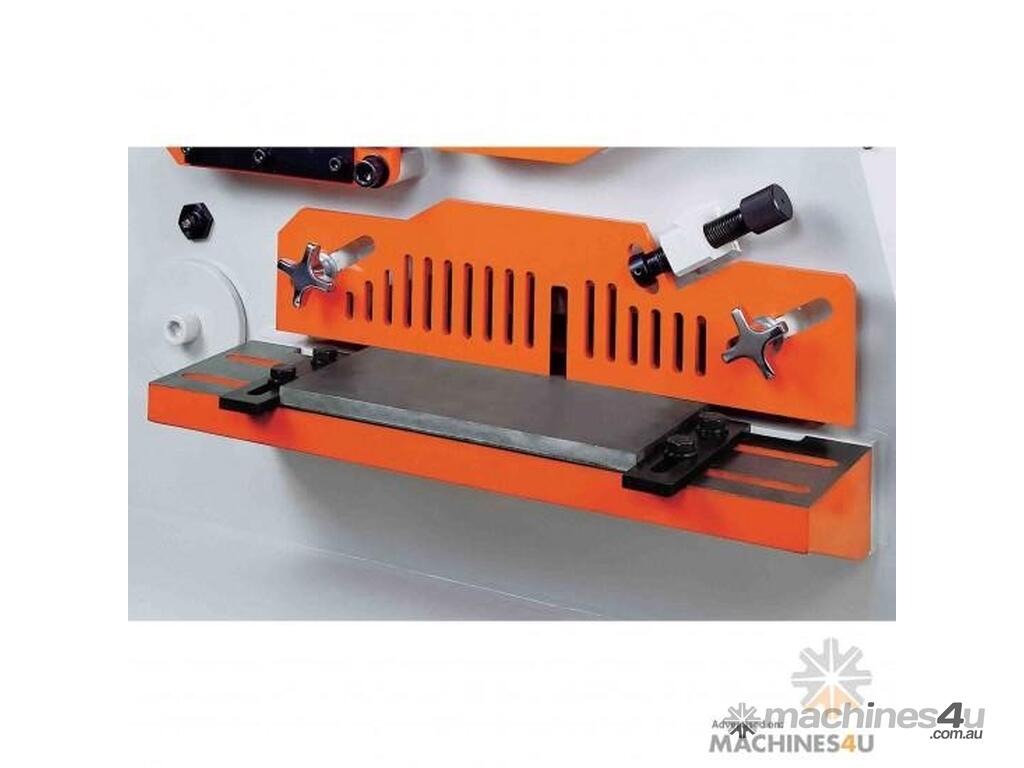

FLAT BAR SHEARING
FLAT BAR SHEAR:350 x 8mm
WIDTH x THICKNESS:180 x 12mm
BLADE LENGTH:360mm

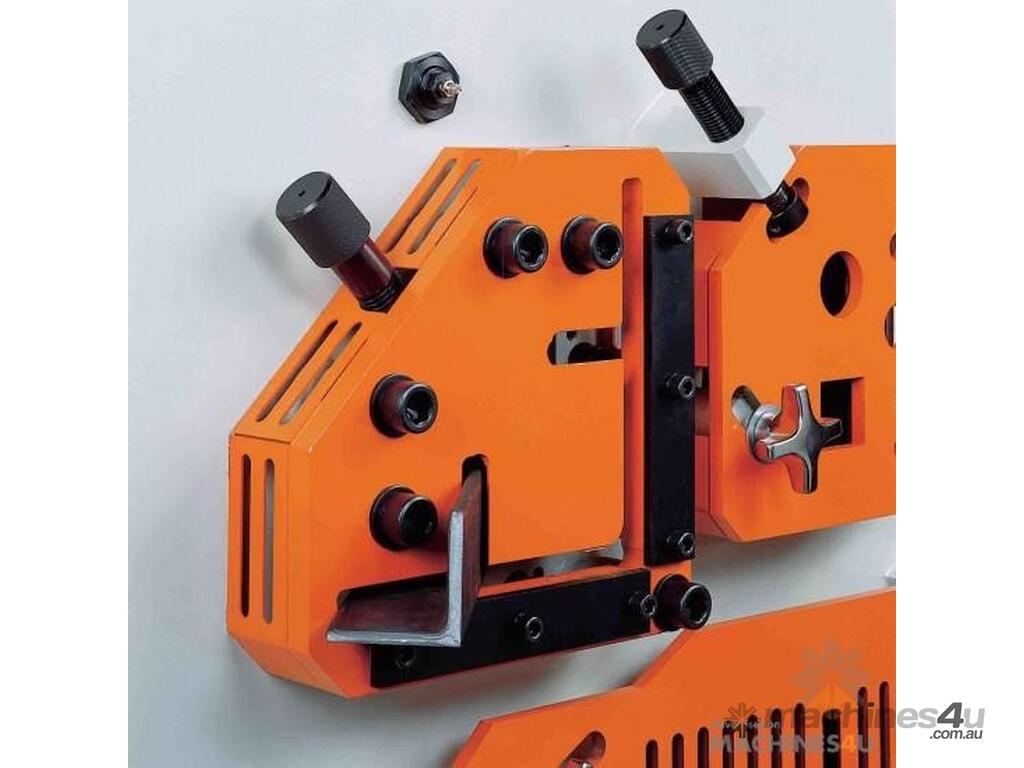

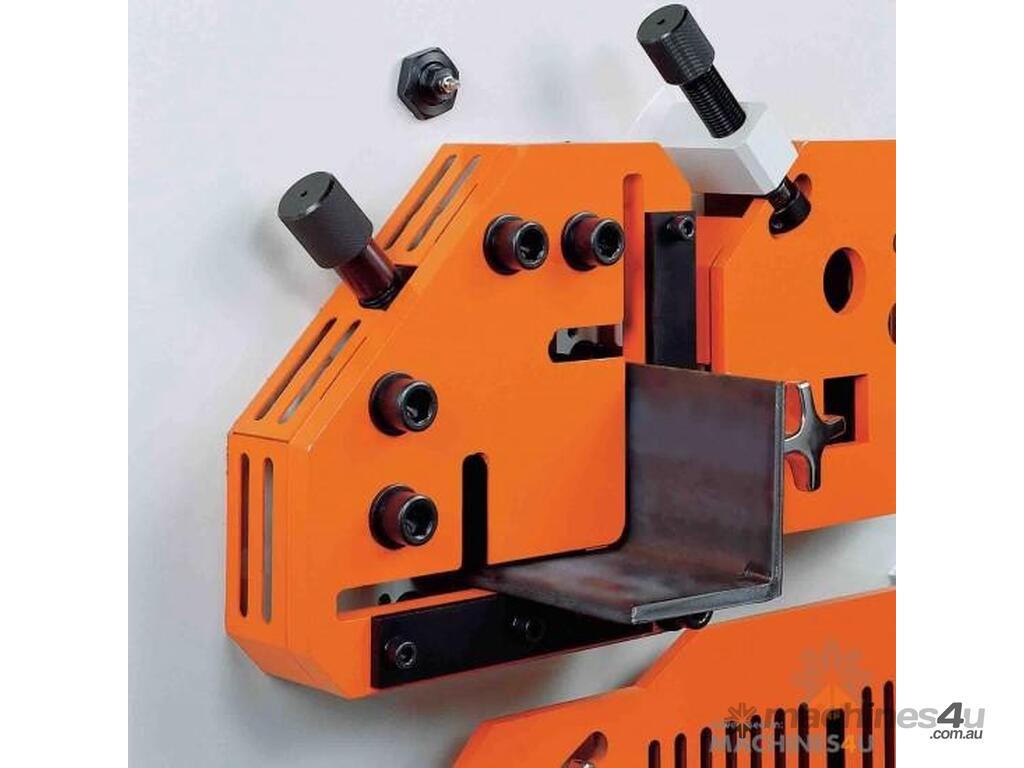

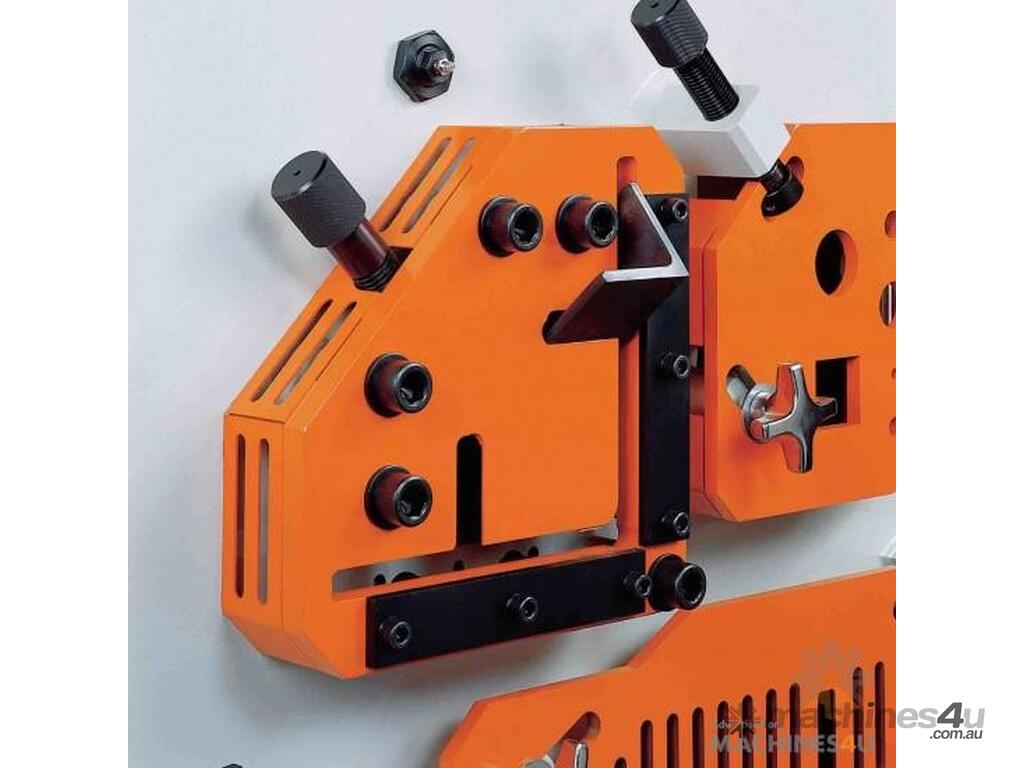

ANGLE SHEARING
AT 90 degree SHEARING:80x80x8mm
AT 45 degree SHEARING:50x50x6mm

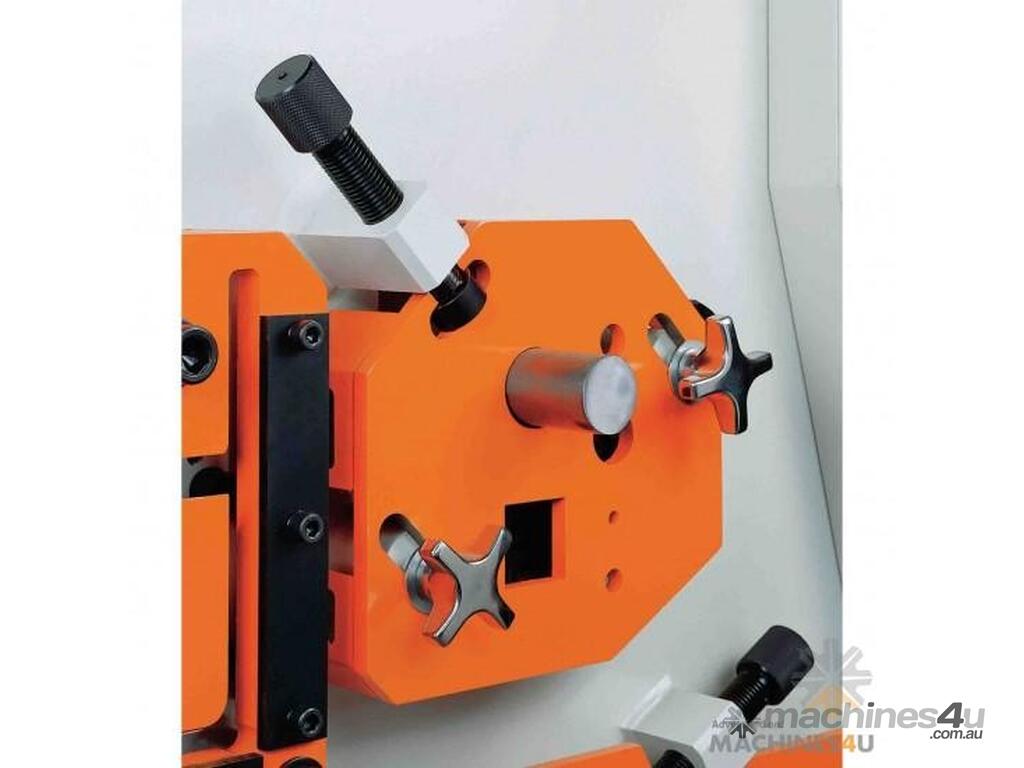

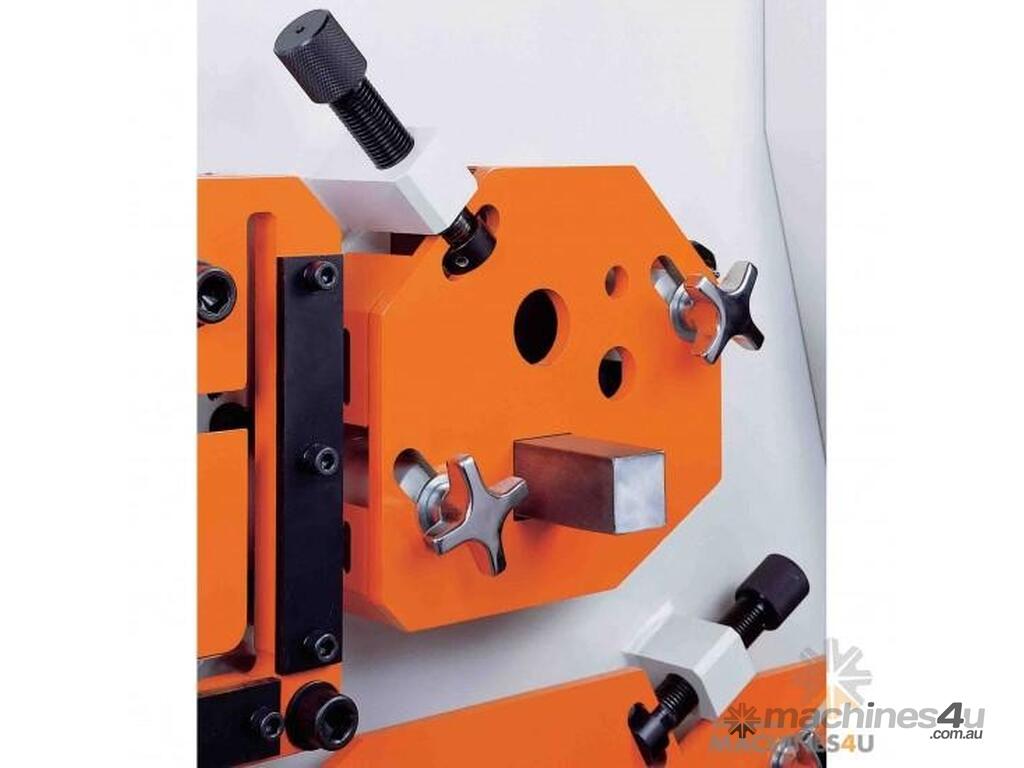

BAR SHEARING Diameter
ROUND BAR SHEAR:Diameter 25
SQUARE BAR SHEAR:25x25mm
NOTCHING
RECTANGLE NOTCHER:-
MOTOR:5HP
VOLTAGE:415V
WEIGHT (NETT):830kg

Packages of 10 sets of Punches and Dies available

All prices and specifications are subject to change
