SUNRISE Punch and Shear IW-60S 60 ton New

New IW 60S Punch and Shear
Taiwanese, 2 Year Warranty
CALL FOR OUR BEST PRICE

Order Code: P174
IW-60S - Hydraulic Punch & Shear (415V)
60 Tonne, Dual Independent Operation
Includes 10 Sets of Punch & Dies 6-26mm

Features 'S' Range
Two-pedal operation allows two people to work machine to greatly speed up production

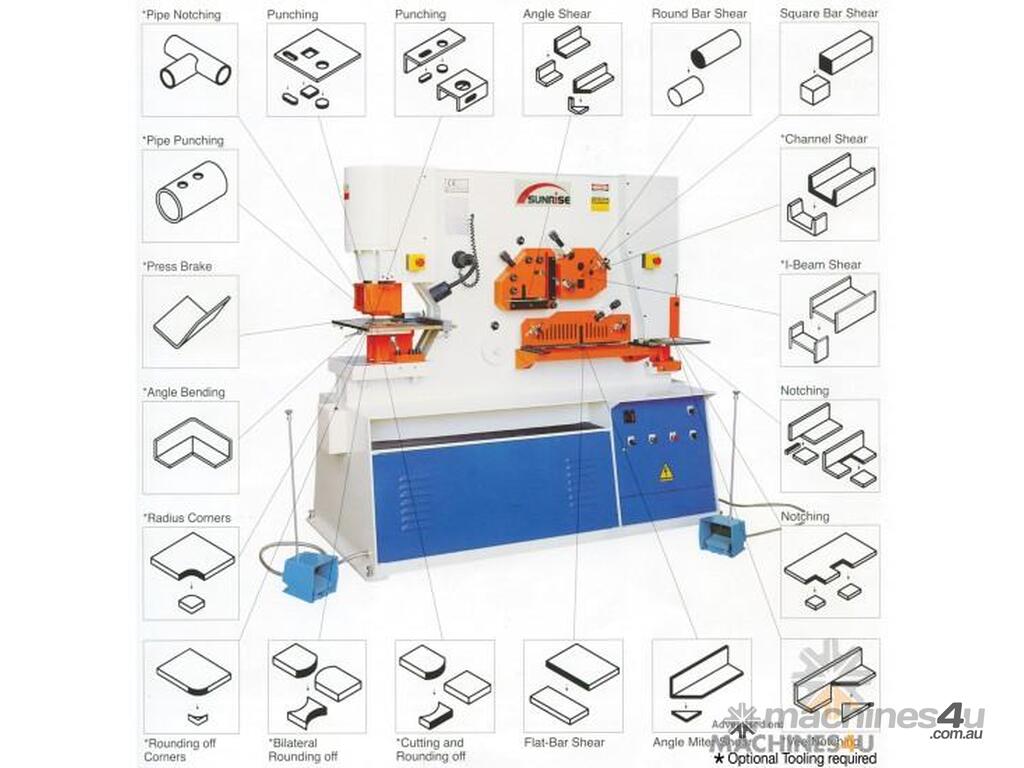

Five work stations, including notcher
Punching capacity up to 50mm standard.

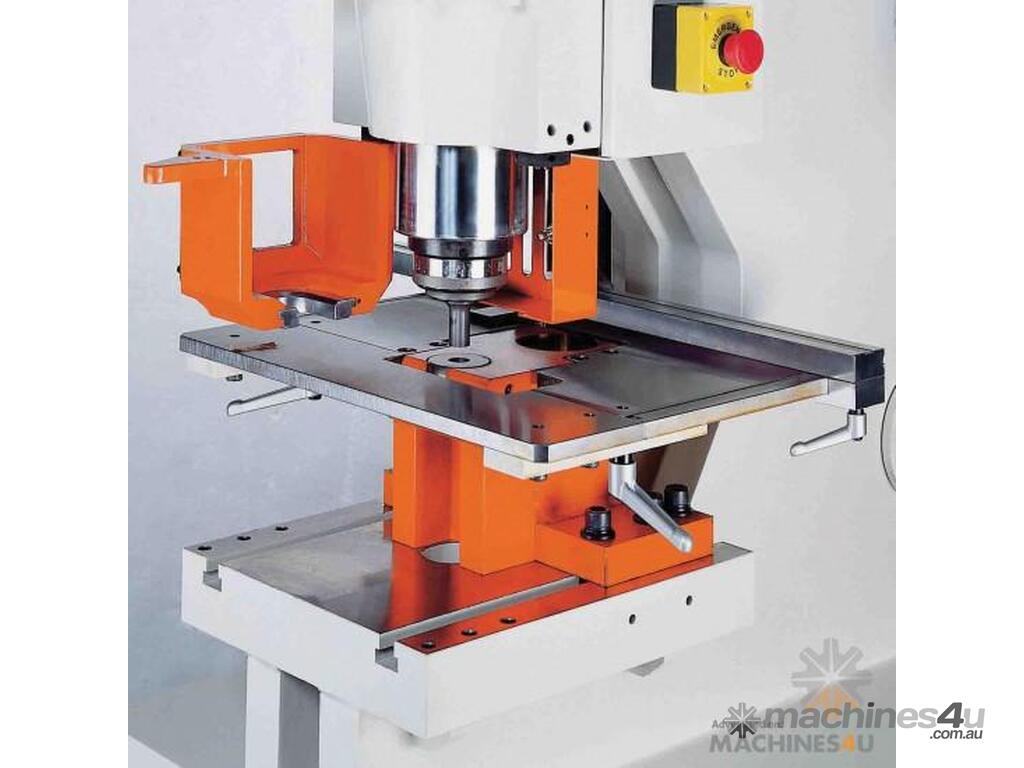

Large punch table with multi-purpose bolster, featuring a removable block for channel and beam flange punching
Punch, shear and notch table fitted with stops and guides as standard
Adjustable stroke for faster punching
Power inching for easy job set up

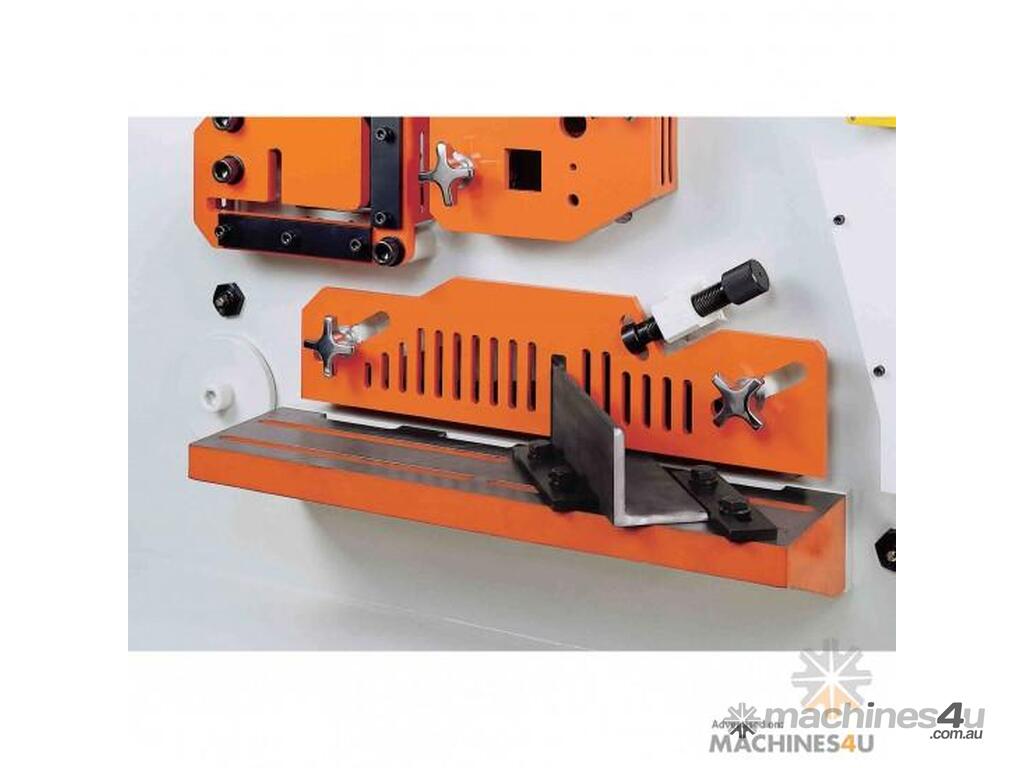

Curved shear blade for minimal job distortion
Most cutting blades are four-sided for long life

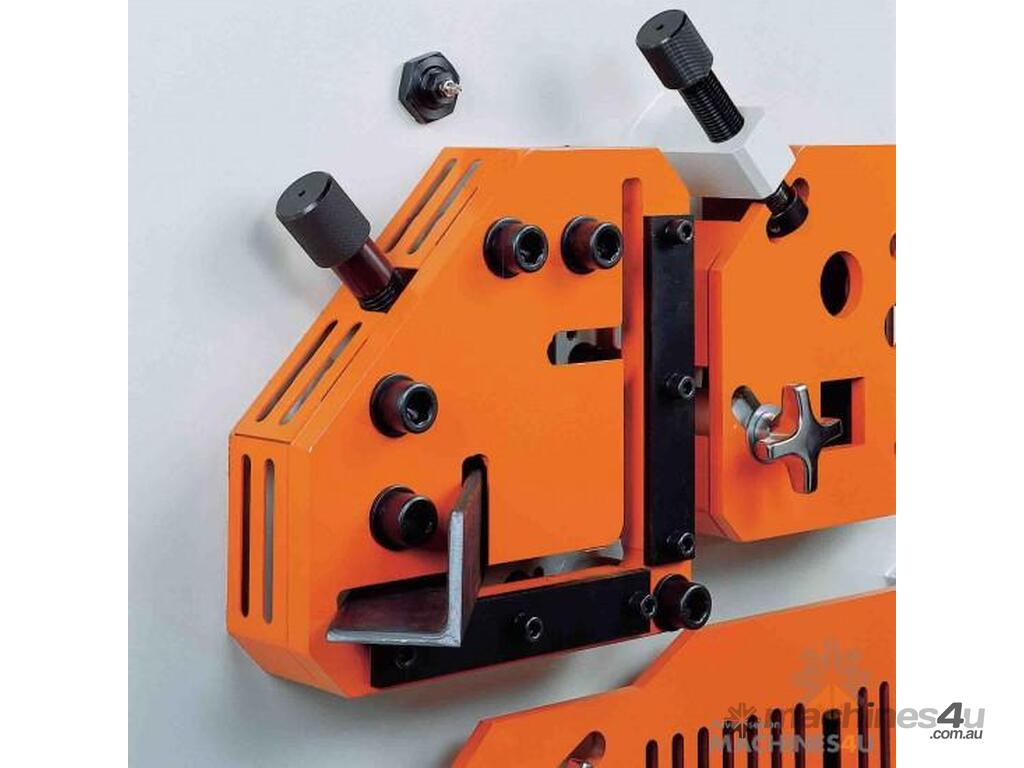

Mitre cutting of angle iron

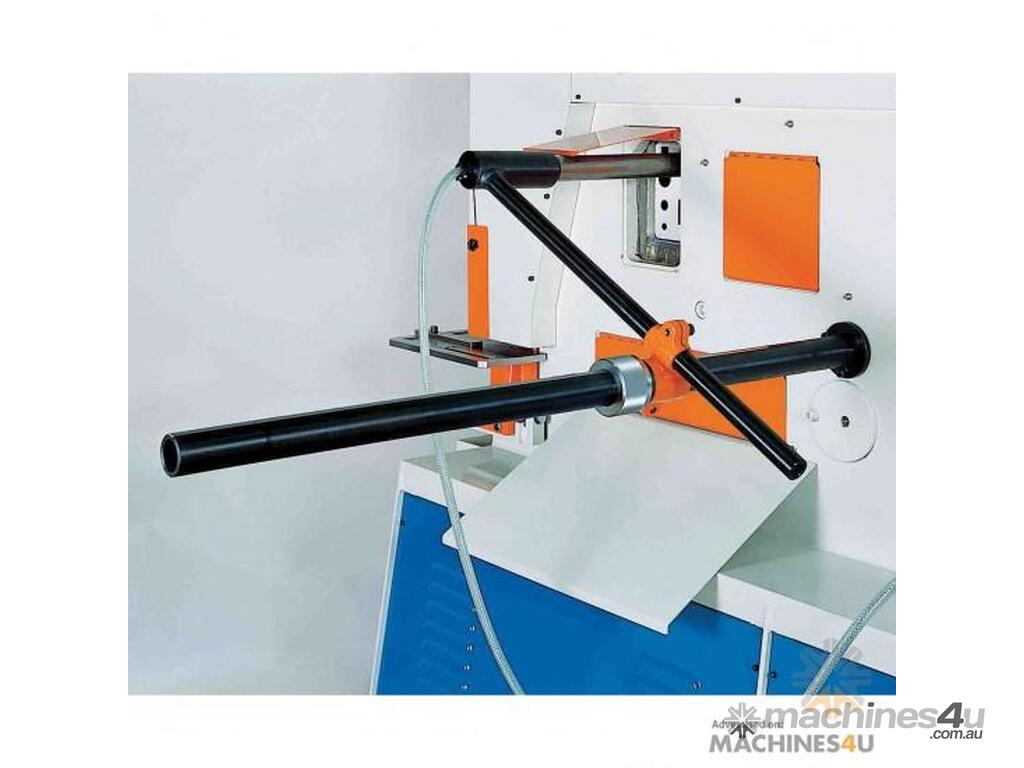

Adjustable length stop with One-touch electronic backgauge for greater efficiency in repetitious work

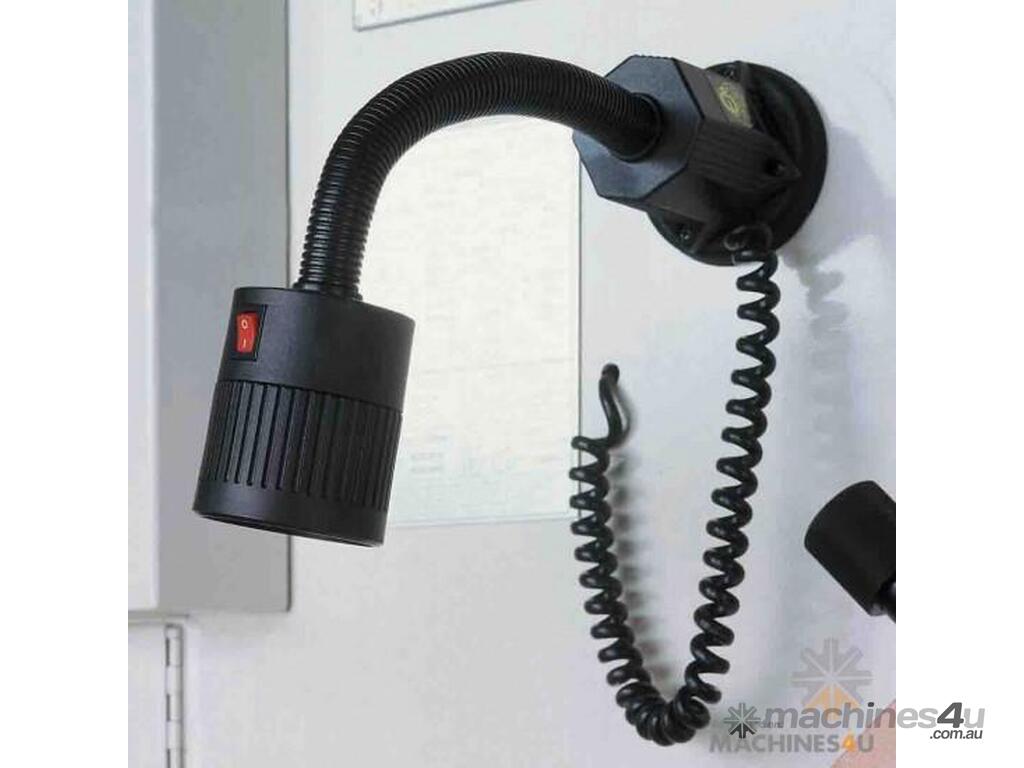

Magnetic base halogen lamp
All work stations are guarded
Fully-filtered hydraulic system

Includes
2 Year Warranty
Now with Quick Change Tooling

Specifications:
ORDER CODE:P174
MODEL:IW-60S
PUNCHING
PUNCHING PRESSURE:60T
PUNCHING CAPACITY
Diameter x Thickness):ø22 x 20mm / ø50 x 9mm
THROAT DEPTH: 310mm
MAXIMUM STROKE LENGTH:100mm
CYCLE/Min (15mm Stroke):30

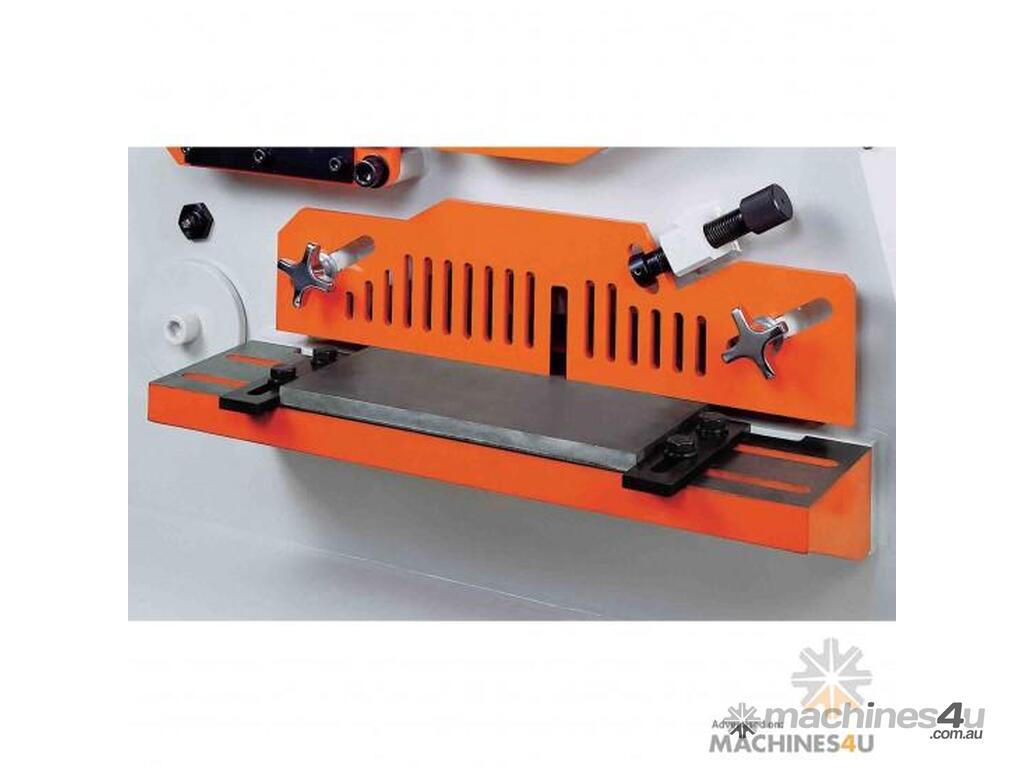

FLAT BAR SHEARING
FLAT BAR SHEAR(Width x Thickness):350 x 15mm / 240 x 20mm
BLADE LENGTH:360mm

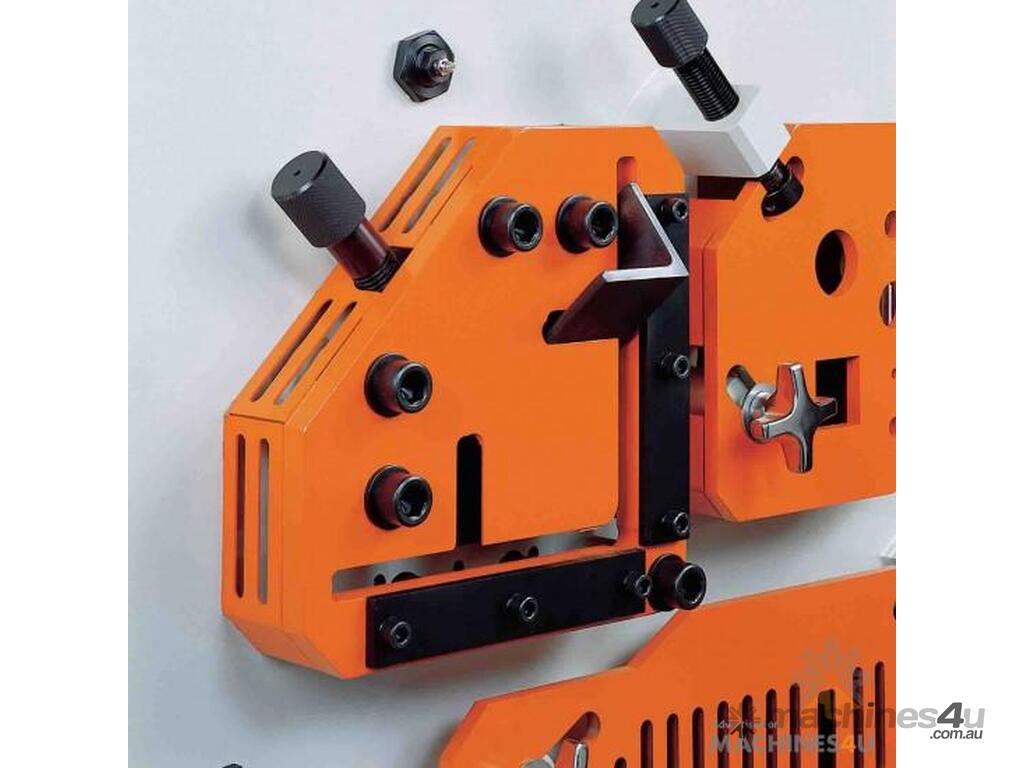

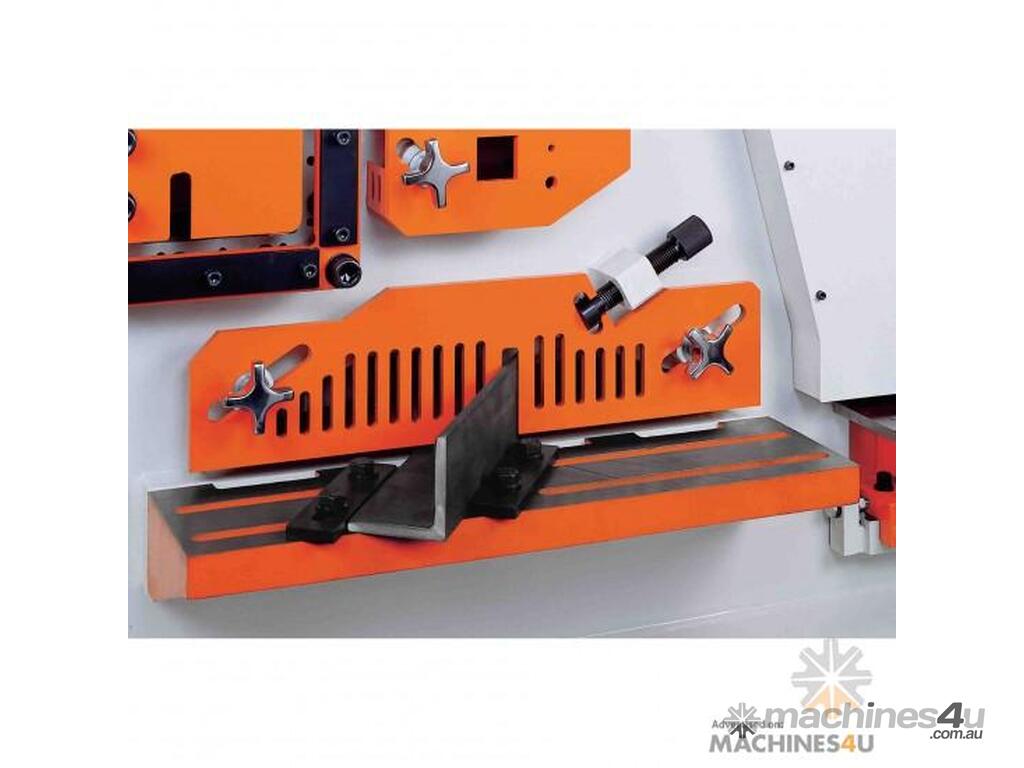

ANGLE SHEARING
AT 90º SHEARING:130x130x13mm
AT 45º SHEARING:65x65x8mm

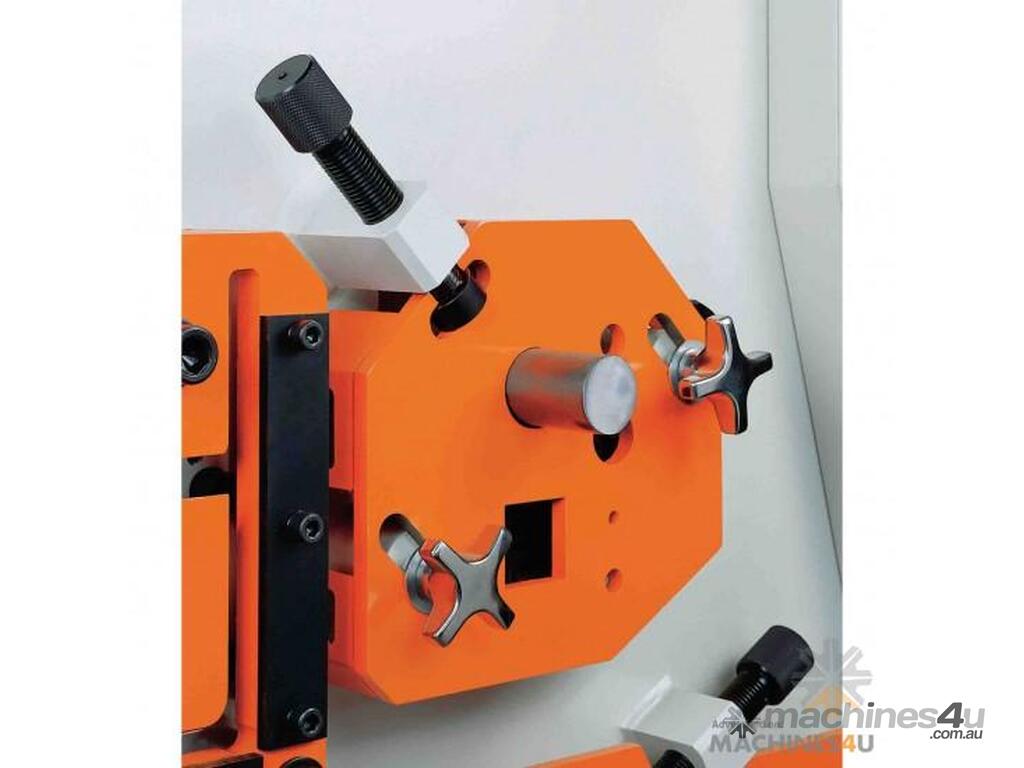

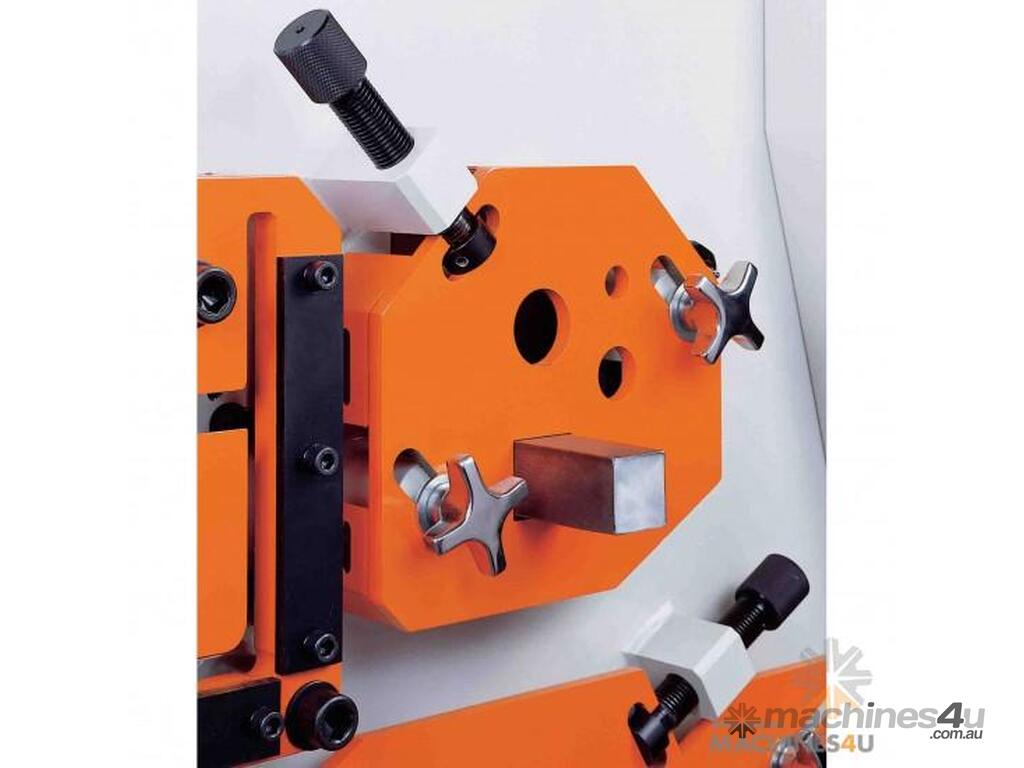

BAR SHEARING
ROUND BAR SHEAR:ø40
SQUARE BAR SHEAR:38x38mm

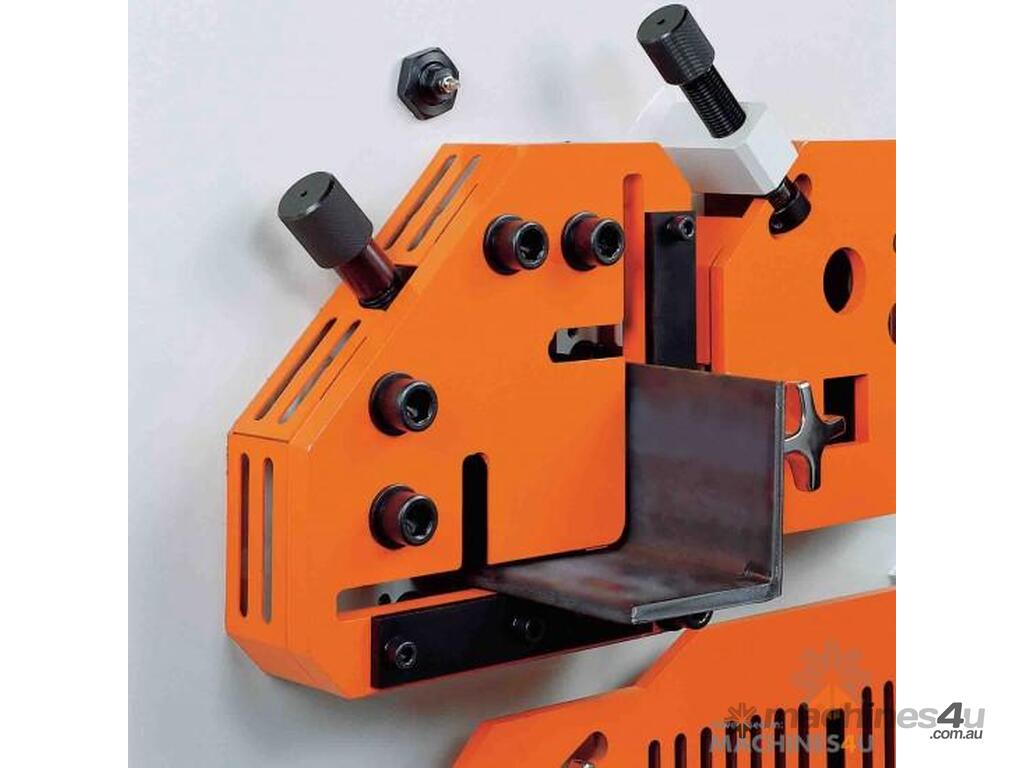

NOTCHING
RECTANGLE NOTCHER:50.8x90x9mm
MOTOR:7.5HP
VOLTAGE:415V
WEIGHT (NETT):1950kg

Packages of 10 sets of Punches and Dies available

All prices and specifications are subject to change
