SUPERAXE WS150 - Powered by 9hp GX270 Honda

SUPERAXE WS150

AUSTRALIAN DESIGNED, AUSTRALIAN BUILT, VERTICAL HYDRAULIC LOG SPLITTERS.

The legendary Superaxe has earned an unrivalled reputation for ergonomic design, safety and heavy duty construction to last a lifetime. Proudly designed and built by Australian company Whitlands Engineering since 1993.

Price refers to WS150 model including 9hp Honda GX 270 engine.
Price excludes freight - we can send machines anywhere and will quote freight at time of order.

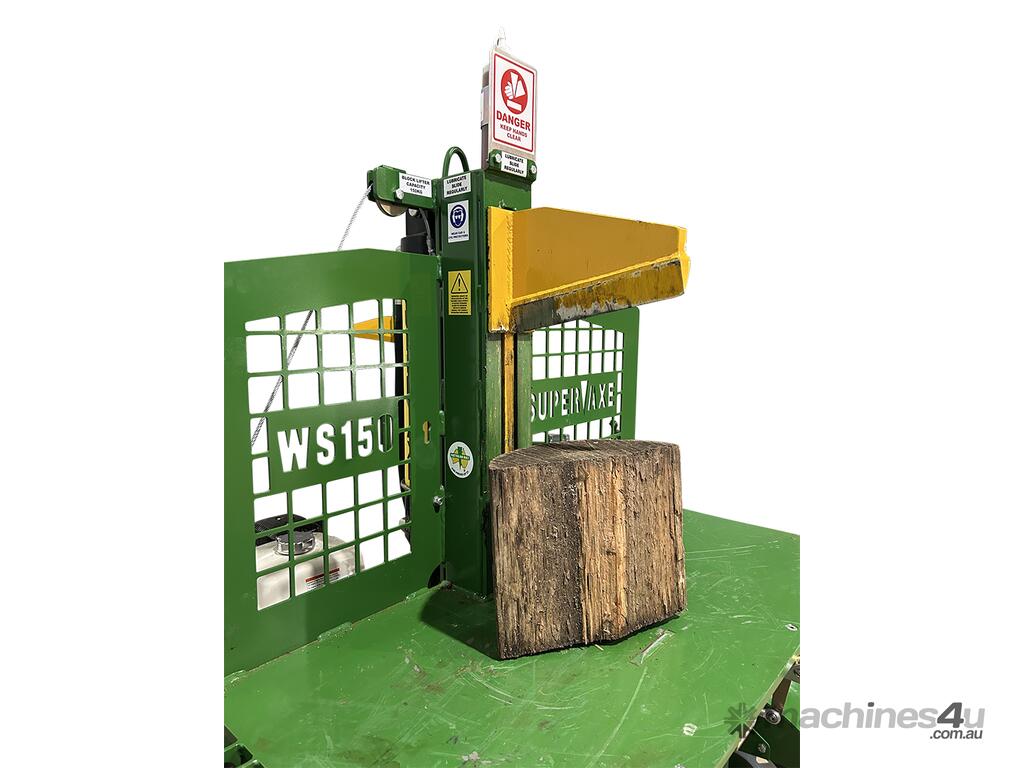

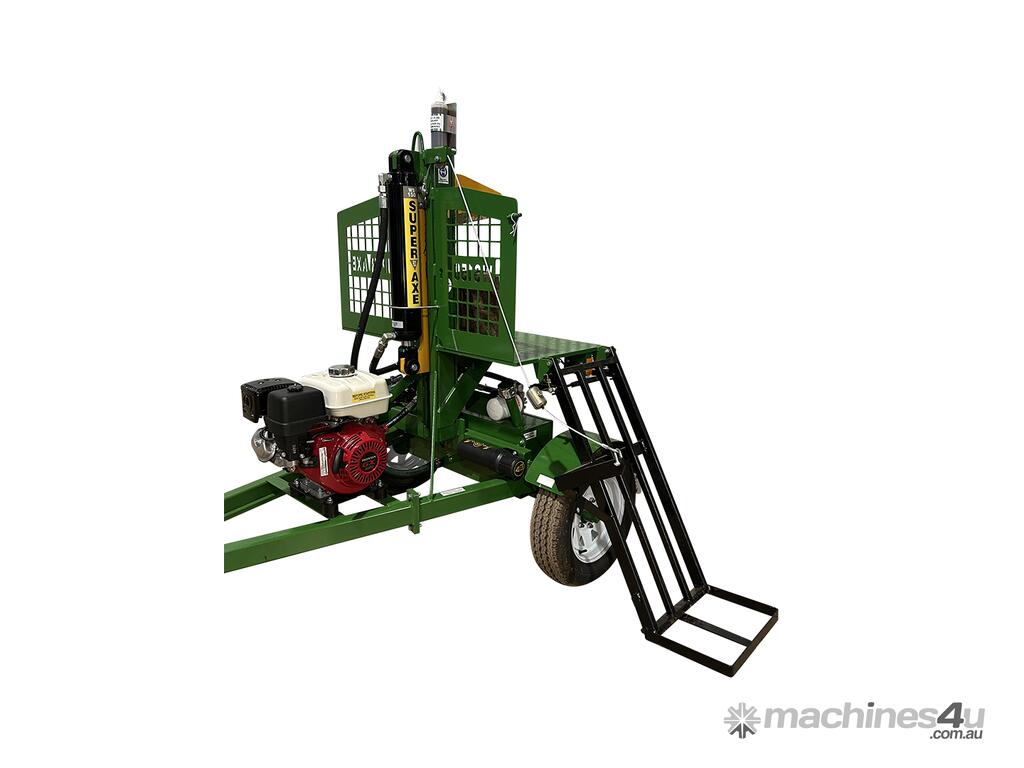

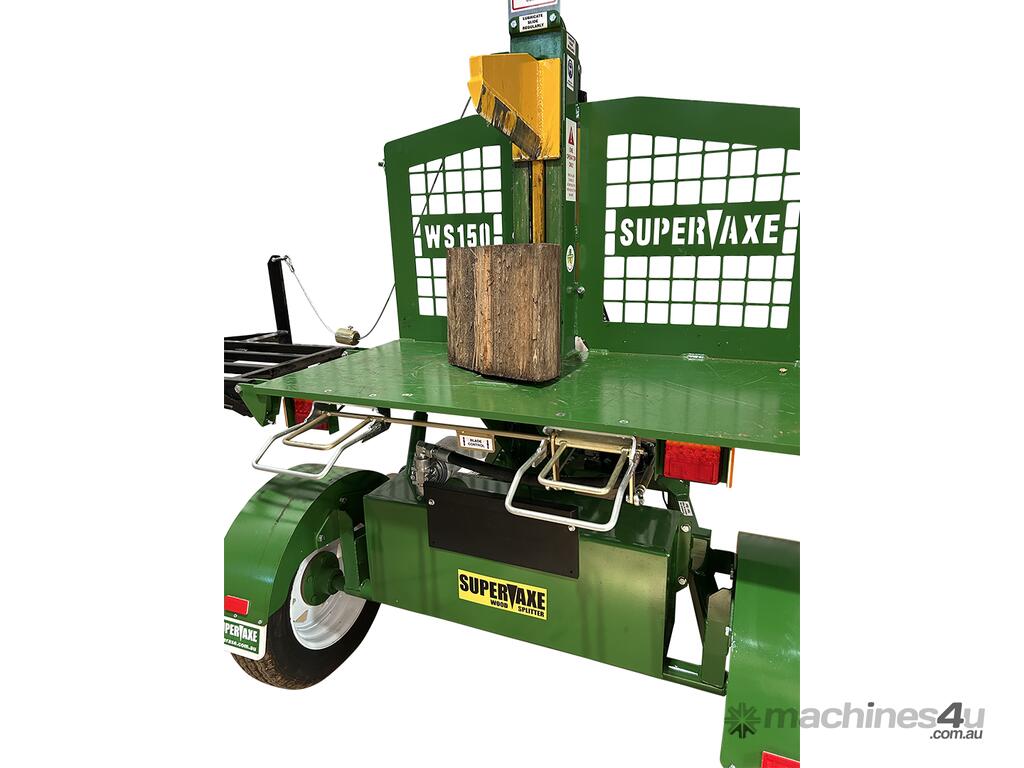

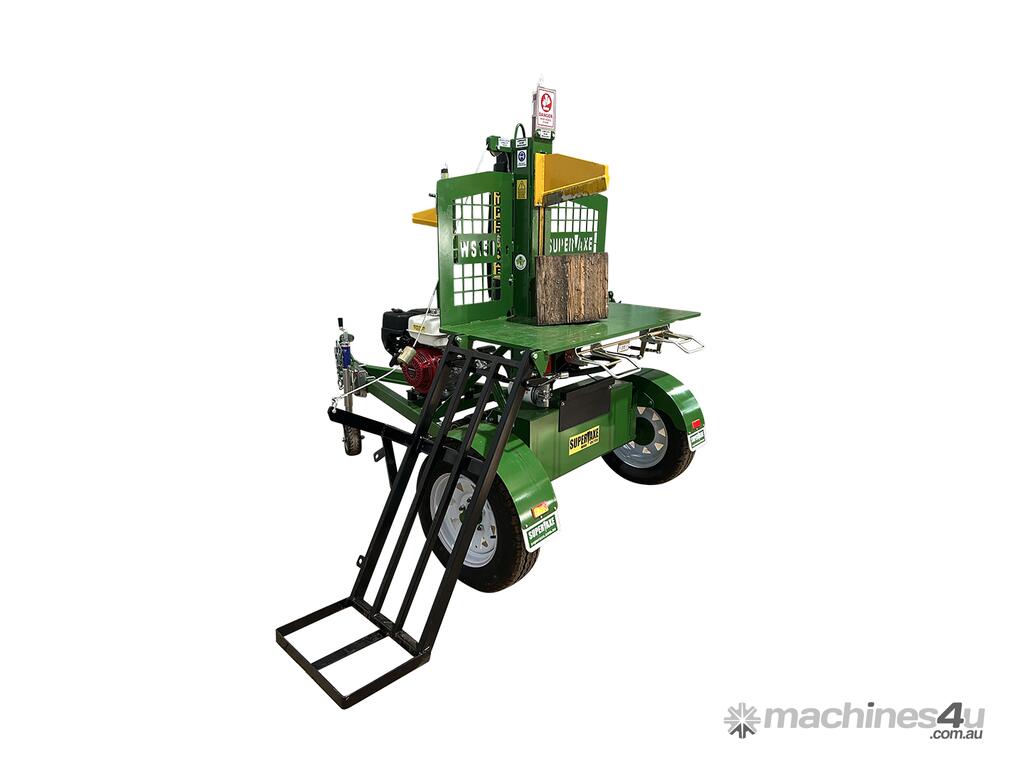

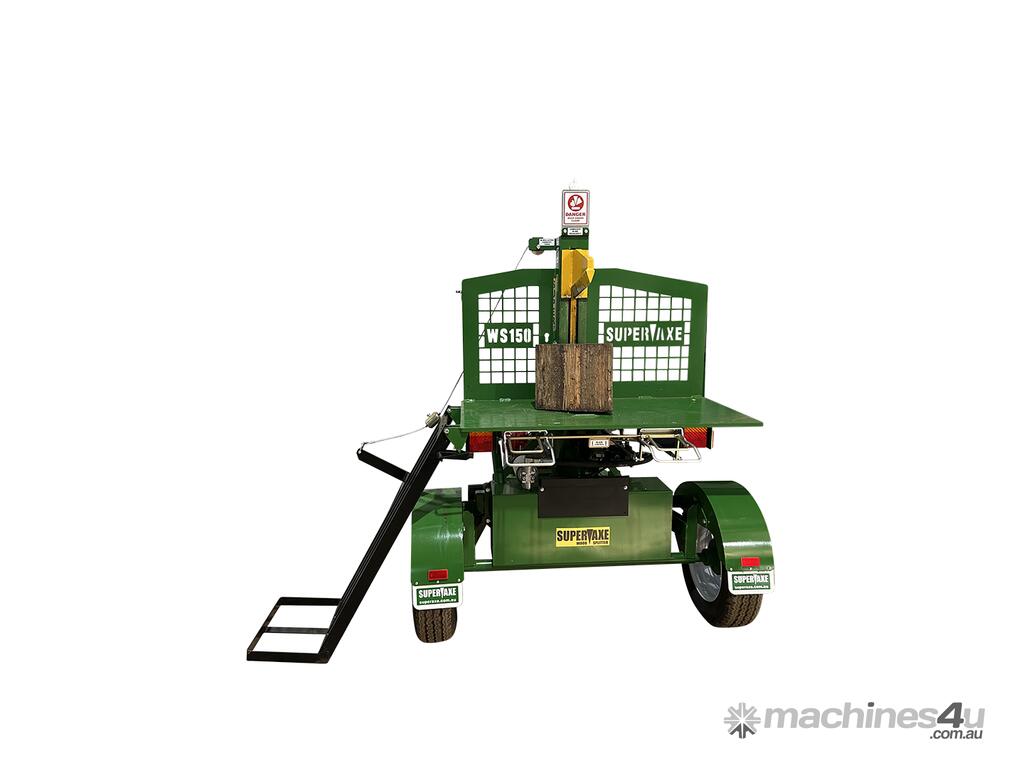

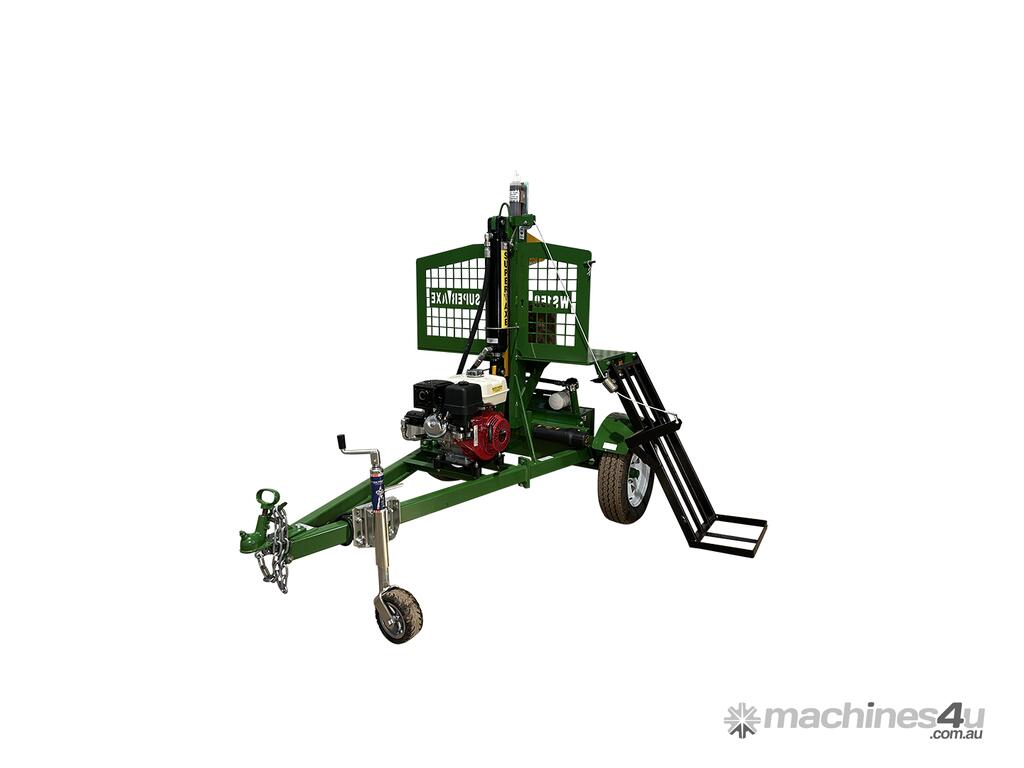

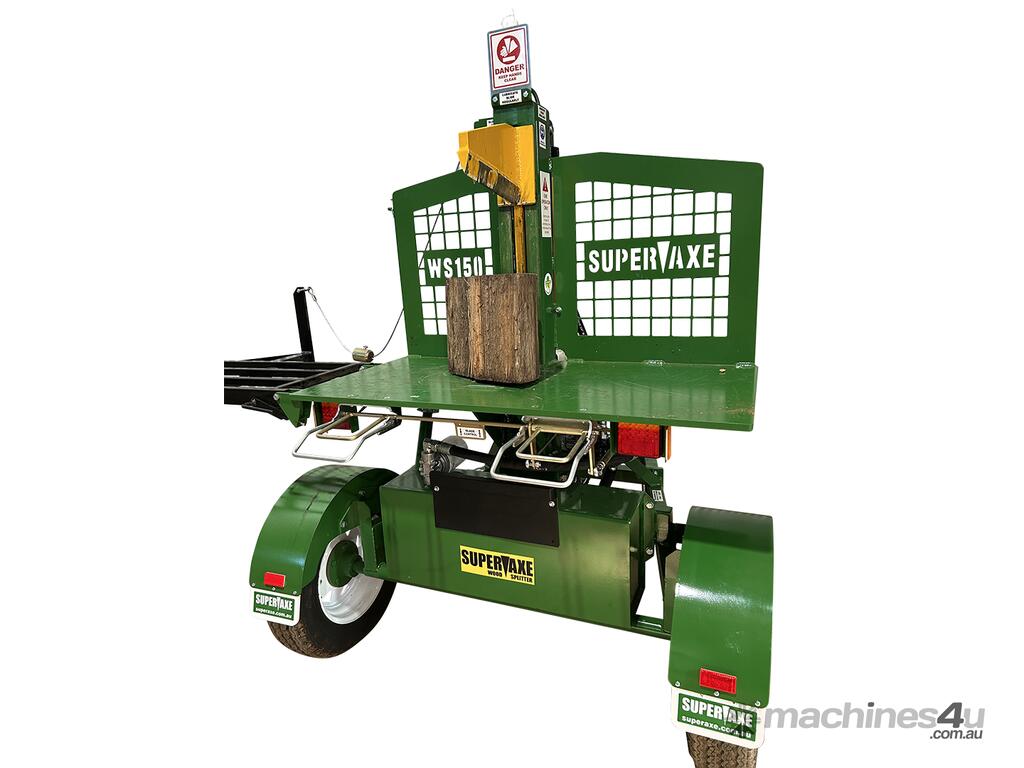

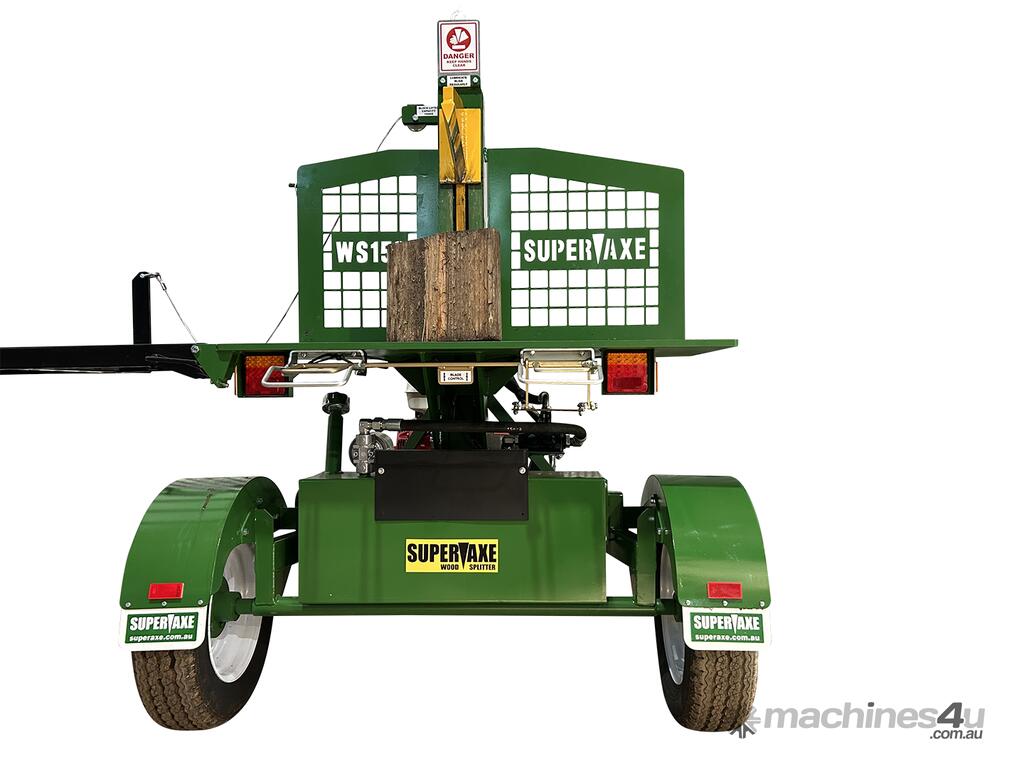

The machine pictured is fitted with a Hire & Rental Kit which included mudguards, lights etc. This is not standard.

The Superaxe range of log splitters are available in 3 different models – the WS150, WS3150 and the WS4150. All models feature the following >>

PROUDLY MADE IN AUSTRALIA: Designed and built in our Victorian workshop with quality components
SLIDING BLADE: Patented vertical action sliding blade with innovative wedge design easily splits the toughest Australian hardwood. Handles different lengths of wood up to 450mm.
INNOVATIVE DESIGN: Block lifter, large bench area, compact, portable & towable.
BUILT TO LAST: Rugged heavy-duty construction with minimal maintenance required.
LASER CUT GUARDS: Back guards enhance safety around the operator.
ERGONOMIC: Back saving log lifter and ideal bench height for advanced ergonomic comfort
EASY & SAFE TO USE: Double handed control system enhances safety by keeping hands away from moving blade.
LONG WARRANTY: Two-year warranty on all parts and construction. Three year warranty on all Honda Engines

CAPACITY & OUTPUT >>
ESTIMATED OUTPUT: Up to 4 cubic meters per hour output (guide only)
SPLITTING FORCE: 21 tons splitting force (9hp)
CYCLE TIME: 9hp engine – 8 seconds

ENGINE & HYDRAULICS >>
ENGINE OPTIONS: 9hp – Honda GX270
ENGINE WARRANTY: All engines backed by comprehensive manufacturers warranty
PUMPS: American cast iron 2 stage hydraulic pump
RAM: High quality Australian made 4 inch ram with 2 inch rod develops genuine 21 tons of splitting force
HYDRAULIC HOSES: All double wire rated ¾ inch hydraulic hoses
OIL RESERVOIR: 38 litre oil reservoir

CONSTRUCTION >>
BUILT TO LAST: Rugged heavy duty construction with minimal maintenance required, for a lifetime of trouble free use
BENCH: 1200mm wide x 450mm deep;
WARRANTY: Two year warranty on the frame
COUPLING: Approved 50mm, 2000kg rated cast iron coupling. Safety chain fitted
WHEELS AND HUBS: 155 x 13 Sunraysia wheels and high speed hubs. Handles all towing requirements.
JOCKEY WHEEL: High quality 8 inch heavy duty swing up jockey wheel
DIMENSIONS: Weight 450kg / Height 1700mm / Width 1450mm / Length 2400mm

BLOCK LIFTER >>
BLOCK LIFTER: Heavy duty cable & pulley system will lift 150kg blocks up to bench height.
TOWING: Block lifter is easily folded and secured for traveling.

BLADE >>
PATENTED SPLITTING SYSTEM: Vertical sliding blade design gives superior splitting performance and long life with minimal maintenance. 300mm cutting edge.
BLADE CONSTRUCTION: Blade and slide surfaces made from high tensile Hardox 450 steel

DESIGN, SAFETY & CONTROLS >>
ERGONOMIC DESIGN: Ideal bench height & block lifter ensures the operator can work with a straight back
with minimal bending or straining.
CONTROLS: The innovative double handed control system ensures ease of use, quick cycle times & unmatched safety
EASE OF USE: Easy splitting with ample room on table to work blocks. Never lift another block again.
SAFETY COMMUNICATION: Weatherproof canister on every machine contains an operator instruction & safety training sheet for quick reference. All machines also come with a detailed operator manual which includes operator training, maintenance recommendations & risk assessment.

All machines come with a two-year warranty, and full service and after-sales support is only a phone call away.
Support Australian Made! We do.
