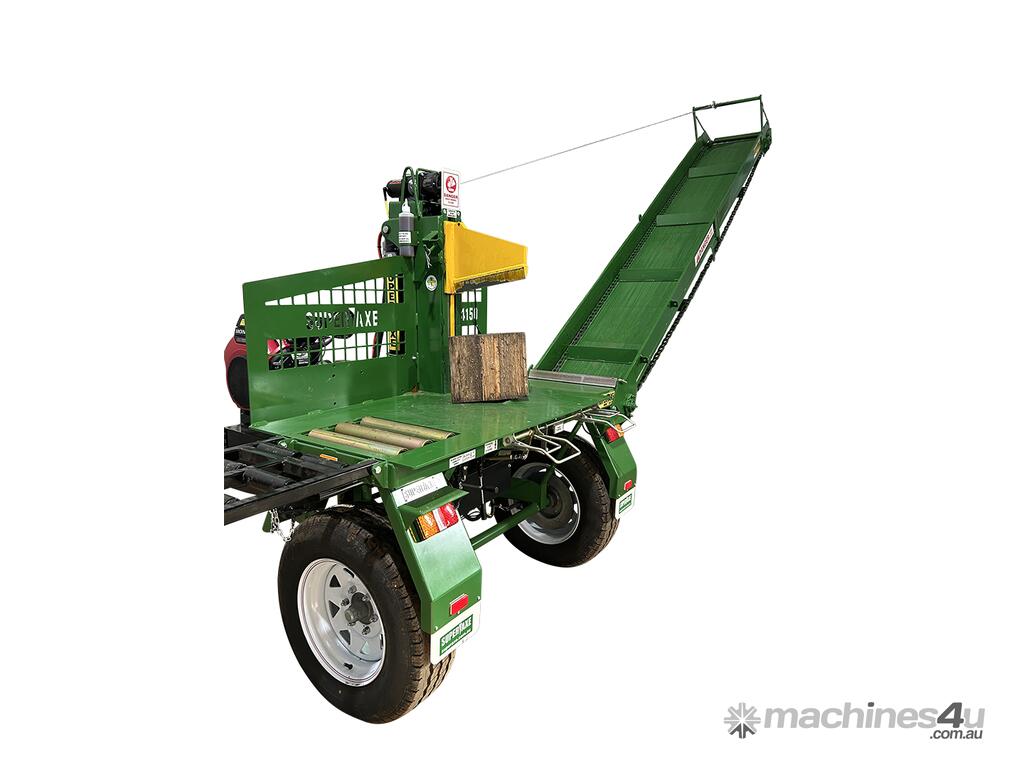

SUPERAXE WS4150 - Powered by 18hp GX630 Honda

WS4150 SUPERAXE
AUSTRALIAN DESIGNED, AUSTRALIAN BUILT VERTICAL, HYDRAULIC LOG SPLITTERS

The legendary Superaxe has earned an unrivalled reputation for ergonomic design, safety and heavy duty construction to last a lifetime. Proudly designed and built by Australian company Whitlands Engineering since 1993.

Price refers to WS4150 model including 18hp Honda engine. Price excludes freight and any options such as the folding elevator. We can send machines anywhere and will quote freight at time of order.

The WS4150 is the most powerful machine in the range with extra features built in to ensure large volumes of firewood can be split with ease. Standard features include an 18hp GX630 Honda engine, 200kg capacity hydraulic block lifter, larger bench area, offset splitting head, longer blade, rollers for easy block manoeuvring and the innovative double handed control system for safe and easy machine operation. A 360mm straight blade is fitted as standard, with optional Tee or Cross shaped blade for three or four way splitting. Registration Kit fitted on standard models which Includes HD mudguards, LED lights, VIN plate for registration compliance. Fleet colours available.

The Superaxe range of log splitters are available in 3 different models – the WS150, WS3150 and the WS4150. All models feature the following >>

PROUDLY MADE IN AUSTRALIA: Designed and built in our Victorian workshop with quality components
SLIDING BLADE: Patented vertical action sliding blade with innovative wedge design easily splits the toughest Australian hardwood. Handles different lengths of wood up to 450mm.
INNOVATIVE DESIGN: Block lifter, large bench area, compact, portable & towable.
BUILT TO LAST: Rugged heavy-duty construction with minimal maintenance required.
LASER CUT BACK GUARDS: Enhance safety around the operator
ERGONOMIC: Back saving log lifter and ideal bench height for advanced ergonomic comfort
EASY & SAFE TO USE: Double handed control system enhances safety by keeping hands away from moving blade. These systems are completely Workcover compliant.
LONG WARRANTY: Two-year warranty on all parts and construction

WS4150 SPECS:

CAPACITY & OUTPUT >>
ESTIMATED OUTPUT: Up to 5 cubic meters per hour output (guide only)
SPLITTING FORCE: 26 tons splitting force
CYCLE TIME: 6 seconds

ENGINE & HYDRAULICS >>
ENGINE: 18hp GX630 Honda with oil cooler and external fuel tank
ENGINE WARRANTY: All engines backed by comprehensive manufacturers warranty
PUMPS: Proven American & Italian 2 stage hydraulic pumps with auxiliary pump for block lifter and optional elevator.
RAM: High quality Australian made 4 ½ inch ram with 3 inch rod for quick blade return. Develops genuine 26 tons of splitting force.
HYDRAULIC HOSES: All double wire rated ¾ inch hydraulic hoses.
OIL RESERVOIR: 60 litre oil reservoir
OIL COOLER: Fitted standard.

CONSTRUCTION >>
BUILT TO LAST: Rugged heavy duty construction with minimal maintenance required, for a lifetime of trouble free use
BENCH: 1500mm wide x 700mm deep & three in-bench rollers ensure easy block manoeuvring. Grip bars in bench (under blade) grip blocks for secure splitting
WARRANTY: Two year warranty on the frame
COUPLING: Approved 50mm, 2000kg rated cast iron coupling. Safety chain fitted
WHEELS AND HUBS: 185 x 14 Sunraysia wheels and high speed hubs. Handles all towing requirements
JOCKEY WHEEL: High quality 8 inch heavy duty swing up jockey wheel
DIMENSIONS: Weight 650kg / Height 1700mm / Width 1500mm / Length 2400mm

BLOCK LIFTER >>
BLOCK LIFTER: Hydraulic block lifter will lift blocks weighing up to 200kg up to bench height
TOWING: Block lifter is easily folded and secured for traveling.
ROLLERS: Extra rollers within the block lifter & bench assist in easy block movement

BLADE >>
STANDARD BLADE: Vertical sliding blade design gives superior splitting performance and long life with minimal maintenance. 360mm cutting edge.
BLADE OPTIONS: Cross or Tee blade for three or four way splitting.
BLADE CONSTRUCTION: Blade and slide surfaces made from high tensile Hardox 450 high

DESIGN, SAFETY & CONTROLS >>
OFFSET SPLITTING HEAD: Reduced distance between splitting head and edge of the machine to maximise efficient disposal of split firewood.
ERGONOMIC DESIGN: Ideal bench height & block lifter ensures the operator can work with a straight back with minimal bending or straining.
CONTROLS: The innovative double handed control system (with auto-return) ensures ease of use, quick cycle times & unmatched safety
EASE OF USE: Easy splitting with in-table rollers & ample room to move blocks.
SAFETY COMMUNICATION: Weatherproof canister on every machine contains an operator instruction & safety training sheet for quick reference. All machines also come with a detailed operator manual which includes operator training, maintenance recommendations & risk assessment.

OPTIONAL ADD ONS >>

ELEVATORS: 3.6m folding elevator can be fitted to this machine. Free standing elevators are also available.
BLADE OPTIONS: Cross or Tee blade for three or four way splitting.

THREE PHASE: Units available
PERMANENT BASE: Units available
OTHER OPTIONAL EXTRAS: Engine cover & hour meter.
