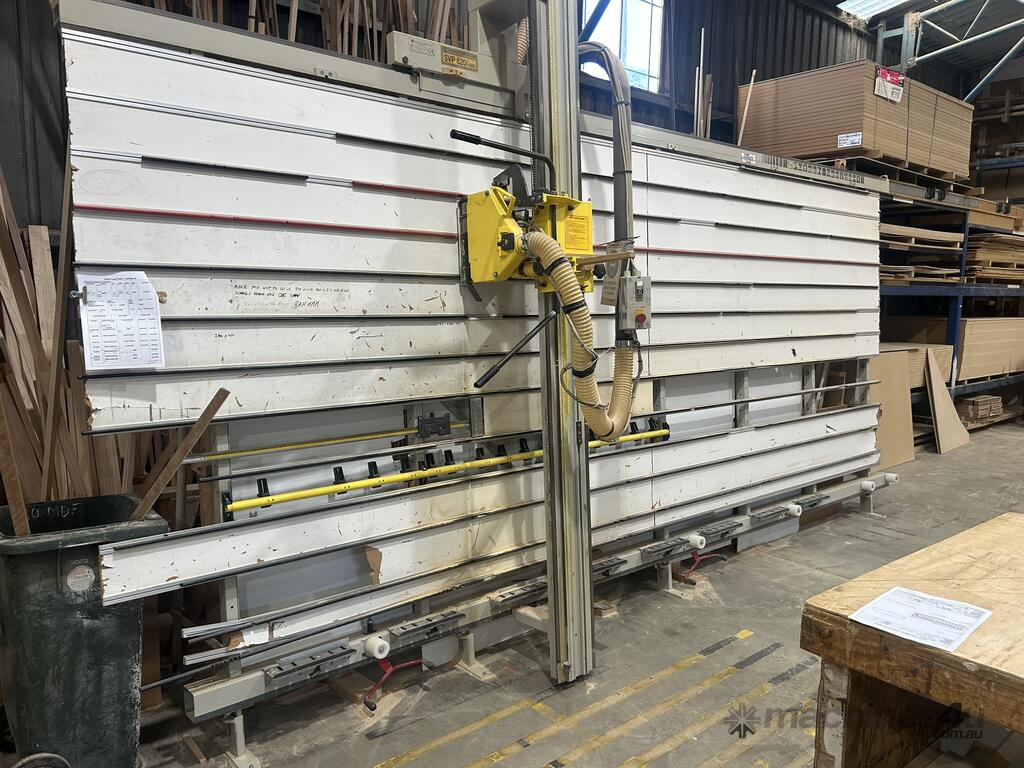

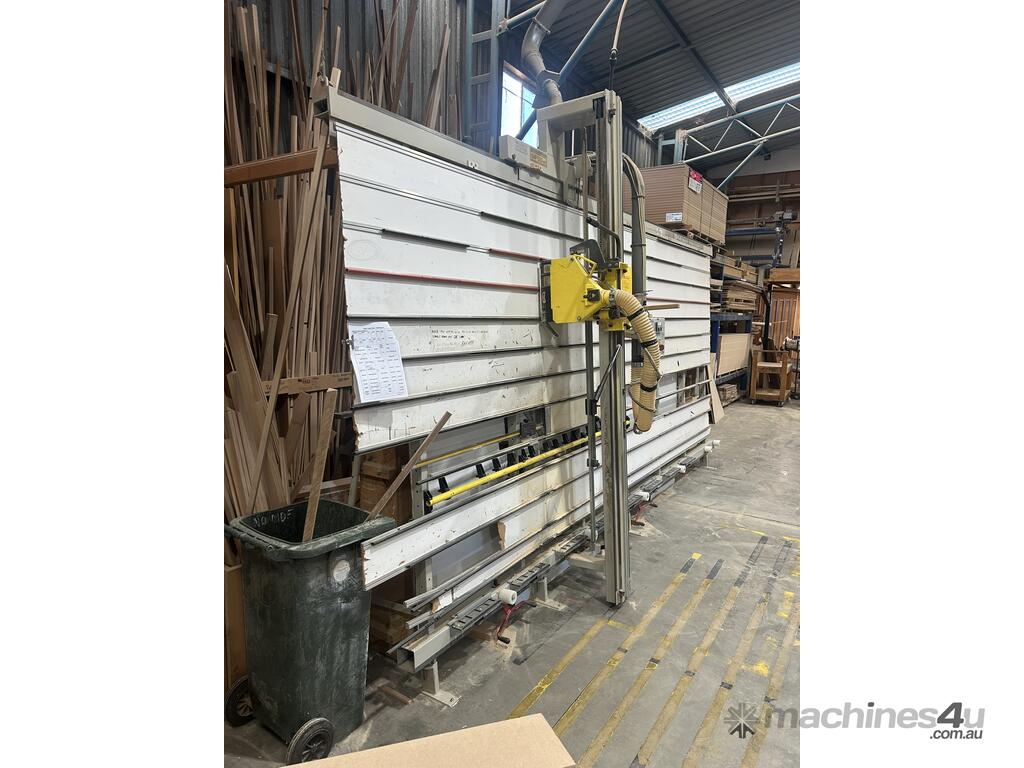

SVP 620 Manually Operated Vertical Panel Saw

Here are some characteristics of the SVP 620 manually operated vertical panel saw:

• Rotation of the cutter block head through 90' balanced with a torsion bar
• Three metric scales for visualizing the horizontal cutting heights
• Movable device avoiding bending and/or breakage of the blade
• Supporting surface fitted with valorized panels
• Safety device for blade cover when motor block in resting position
• Safety device for vertical cuts

TECHNICAL CHARACTERISTICS
Max. height of vertical cut ....................... mm. 1930/2130
Max. height of horizontal cut .................. mm. 1880/2080
Max. cutting length .................................. mm. 4200
Max. cutting depth ................................... mm. 45
Motor output ............................................ HP 3
Blade diameter ....................................... mm. 250
Net weight ............................................... Kg. 480

STANDARD ATTACHMENTS
– Attachments for cutting short panels
– Batten for vertical cuts
– 4 positioners for horizontal cuts
– Blade Z = 48

EXTRAS ON REQUEST
-Extra support batten
-Extra device for cutting short pieces
-Device for repeat cutting of horizontal stripes

If you are interested in purchasing this machine please contact George Cycon on GCPMSVP620
