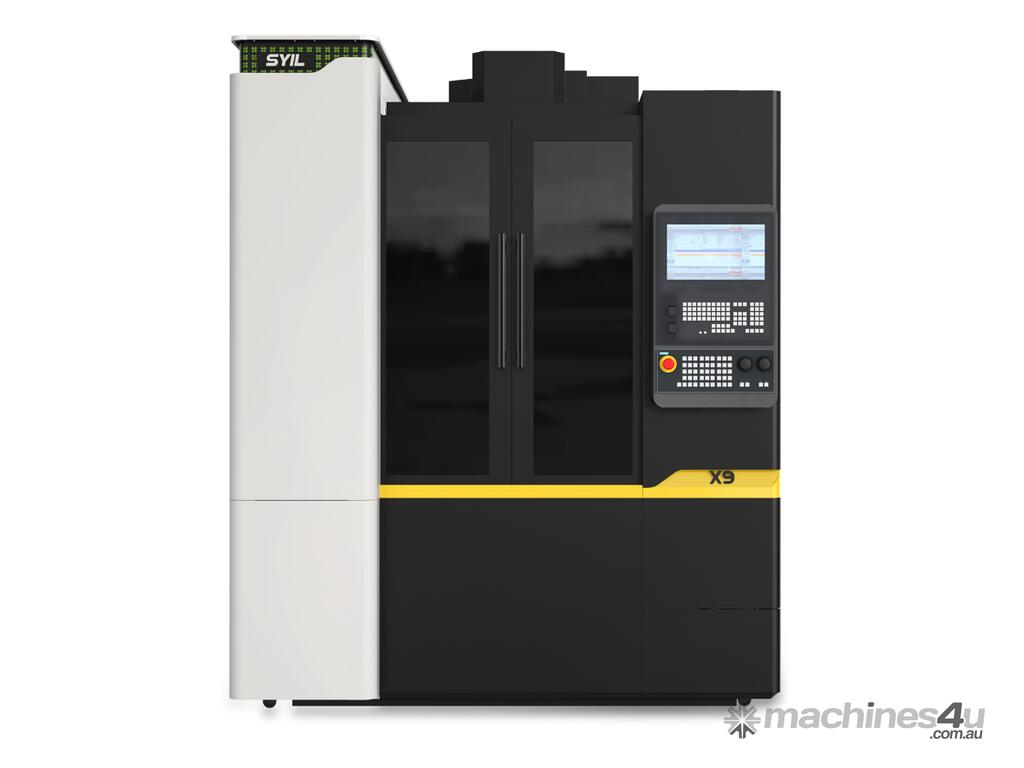

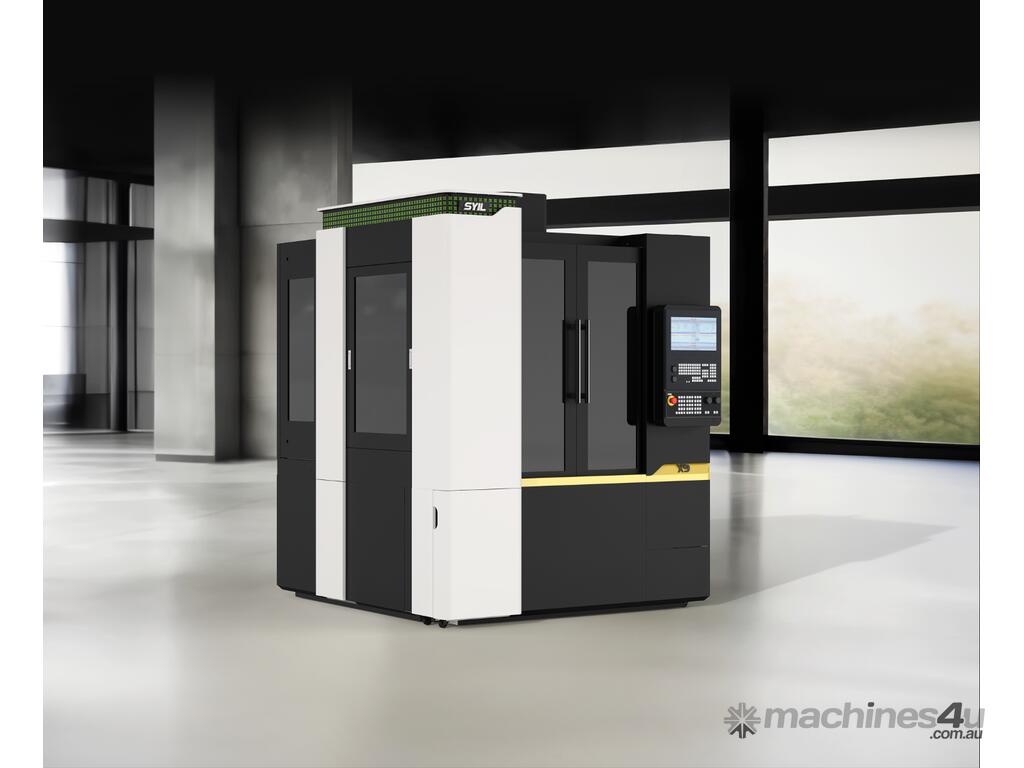

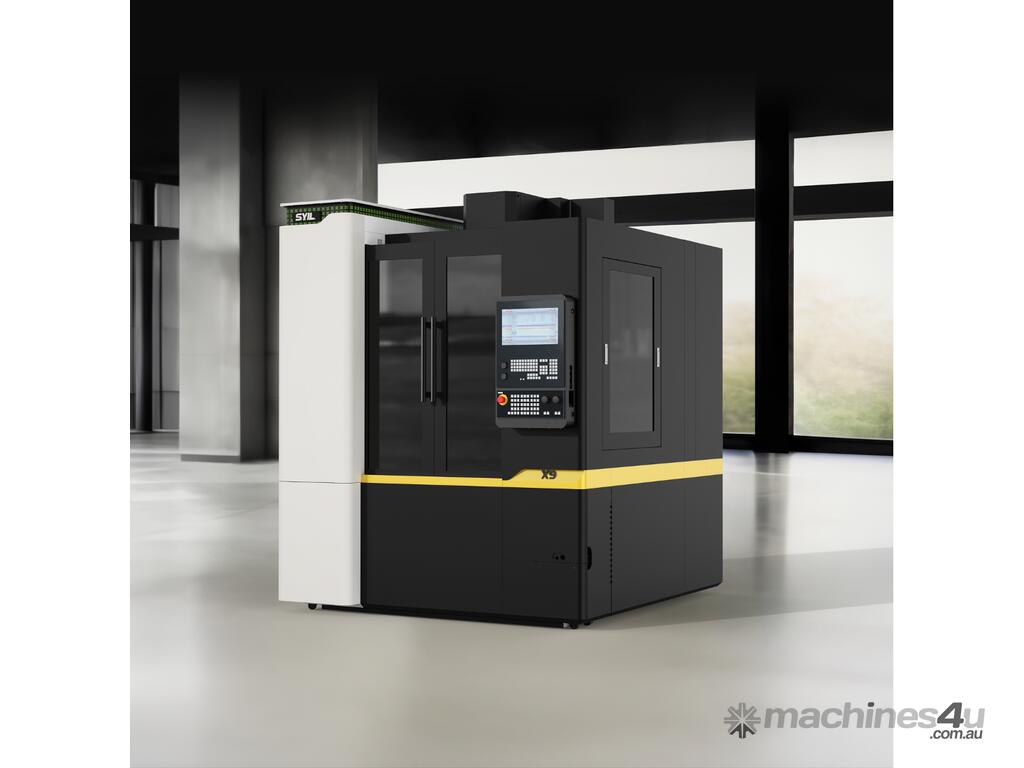

SYIL X9 Vertical Mill - BT40 - 15" Touchscreen Siemens 828D - 24 Tool ATC

BT40 Platform, 760 x 500 x 500 Travels, 24-Tool Arm ATC, Siemens 828D ShopMill Standard

Available now in Australia from an official distributor. Ask us about finance. Price includes delivery to the customer’s premises.

If you have outgrown smaller VMCs or BT30 machines and you need more table capacity, more rigidity, and faster toolhandling for production work, the SYIL X9 is built for that exact step up.

The X9 is designed around first-class components and solid construction, combining a BT40 spindle platform, a 24-tool high-speed servo tool changer, and Siemens SINUMERIK 828D control as standard.

Why the SYIL X9 makes sense for Australian workshops:

More capacity for real jobs - 760 x 500 x 500 mm travels and an 860 x 500 mm table with 500 kg table load give you room for larger parts, bigger fixtures, and multi-op setups without constant compromise.

BT40 platform for heavier cutting - BT40 tooling improves rigidity and tool availability for steel, general machining, and higher-load work compared with smaller tapers.

Fast tool changes to protect cycle time - 24-position arm-type ATC with around 2.0 second tool-to-tool keeps mixed work moving and reduces idle time across longer runs.

Siemens control as standard - Supplied with 15" Touch Screen Siemens SINUMERIK 828D.

Standard inclusions

- SCHNEEBERGER mineral casting frame
- BT40 spindle (10,000 rpm standard)
- 24-position automatic tool changer (arm type)

Features also include

- Absolute servo motors
- Rigid tapping
- High-pressure coolant system
- Coolant washdown hose
- LED signal tower
- USB and network data transfer
- Remote manual pulse generator (handle jog)
- Air gun outlet
- Steel axis way covers
- Fully enclosed working area

Local support - Australia wide

360 Automation is the exclusive SYIL distributor in Australia. We provide machine setup and installation, operator training and technical support, plus spare parts and servicing.

Optional upgrades available

- Servo-driven 4th axis NC rotary table (255 mm) and tailstock
- Wireless probe system and tool setter
- Coolant through spindle (20 bar)
- Filtermist unit
- Chip conveyor
- Tooling package and 4th axis preparation package

Enquire to confirm availability, lead time, and the exact configuration you want (spindle option, probing, CTS, 4th axis, tooling bundle).
