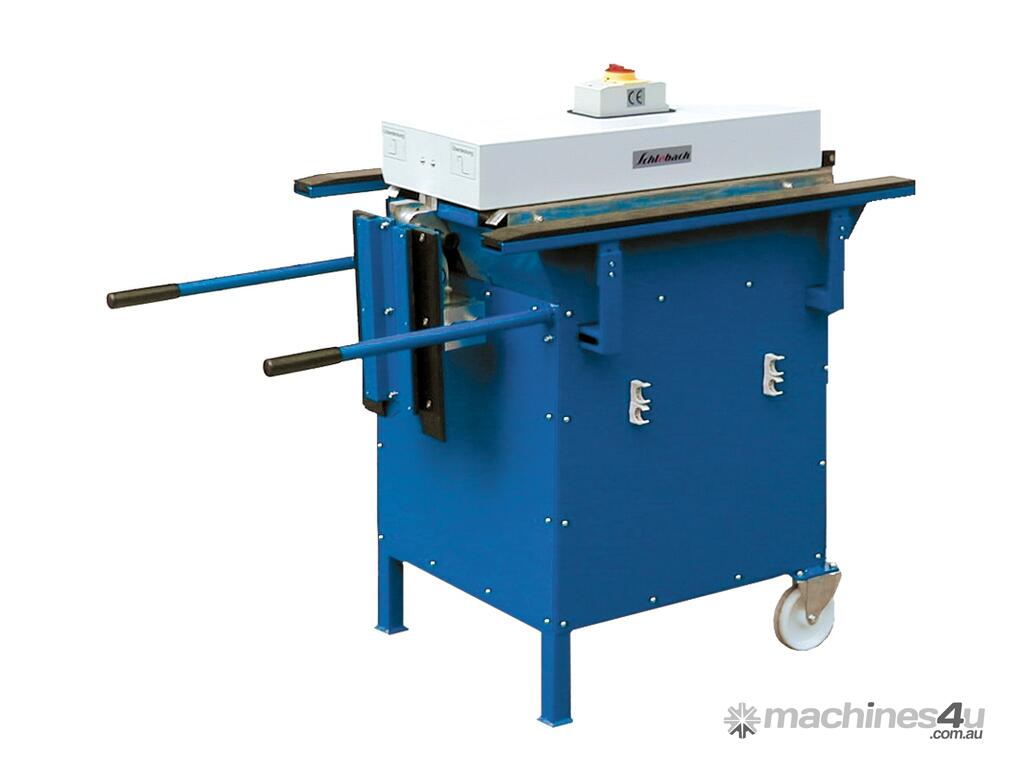

Schlebach EPM 25 Profiling Machine

The purpose of profiling machine EPM-25 is to produce double standing seam profiles 25 from blanks or cut lengths in two passes.
It is designed as a universal machine for the entry-level users or as a backup machine for onsite work.

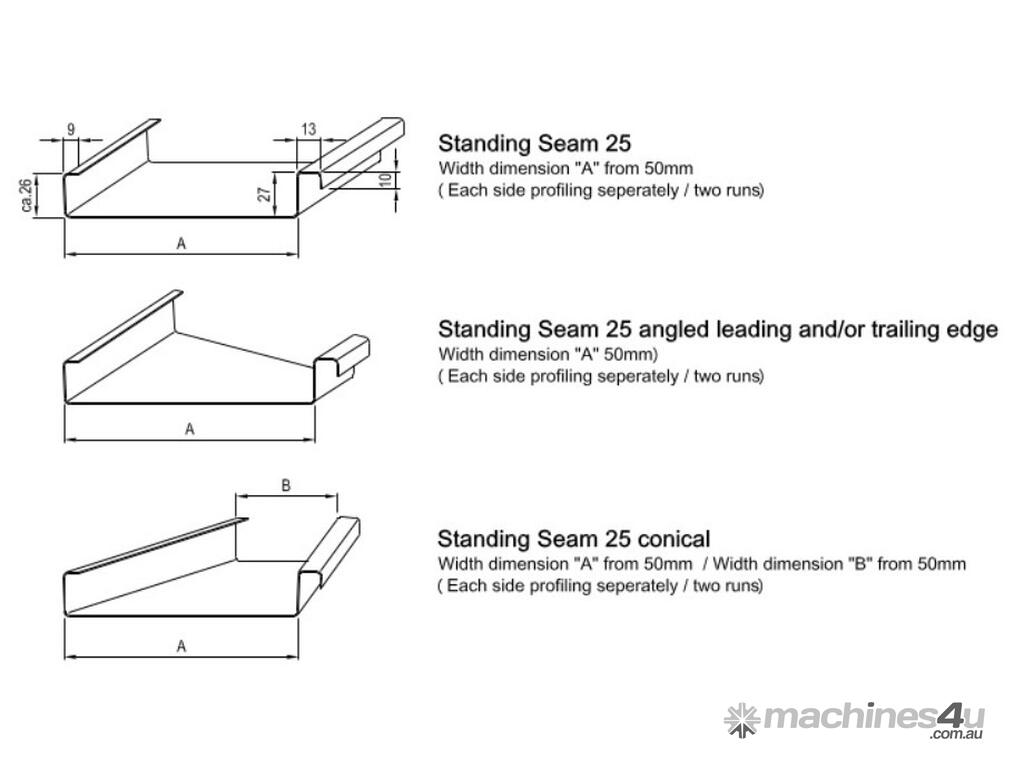

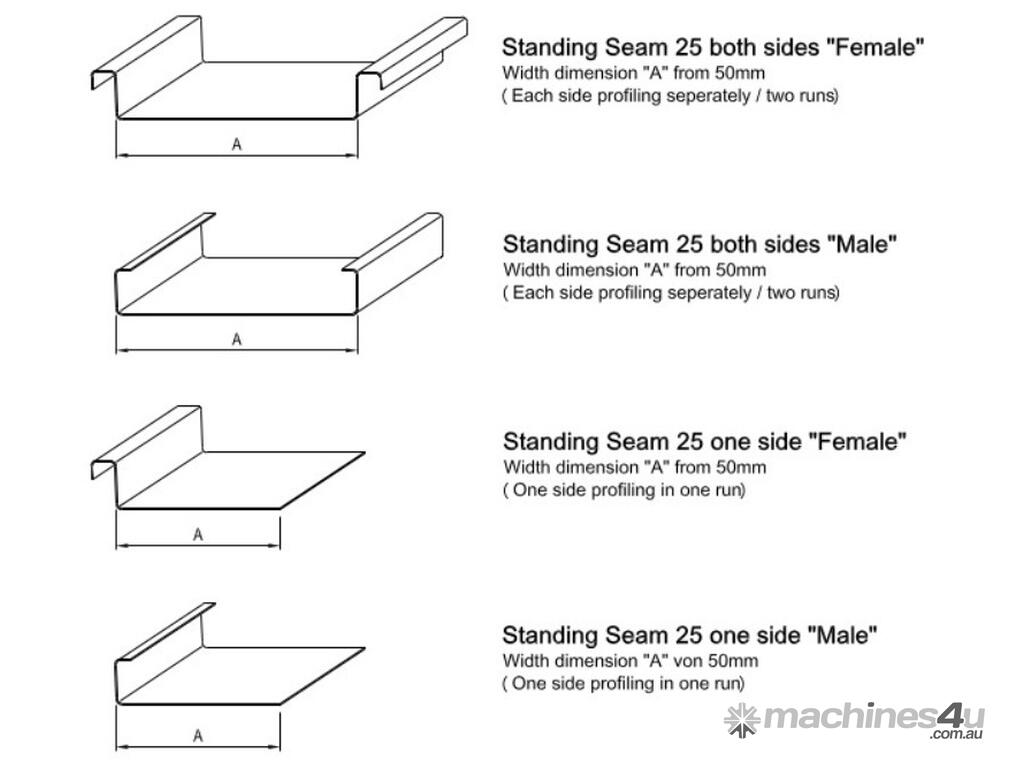

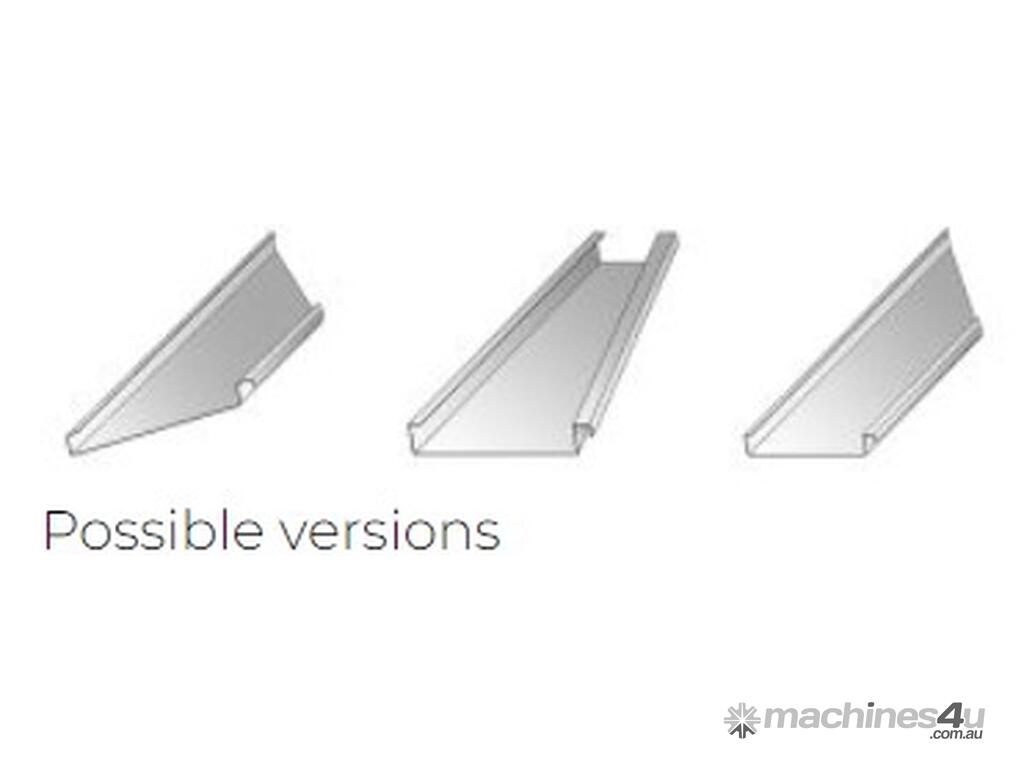

A single sided run can produce conical, oblique panels or standing seam sheets from a centre to centre distance of 50 mm.
The length of the shortest panel is approx. 250mm.
The production rate is approx. 11 metres per minute.
The profile shapers drive is turned on at the main switch and the blanks or cut lengths with a running drive manually and separately in two passes, one for each side of the profile.
The profiling unit (tie-bars) with 7 shaping levels are supplied on a torsion-proof steel frame. The strip or sheet material is guided by lateral infeed guides on ball-bearings on the fixed as well as the adjustable side. These are adjustable to set the outer edges of the profile.

The profile rollers are made of high quality special steel and surface treated. This special treatment provides the rollers with a high level of corrosion and wear protection. The bearings of the upper profile rollers are have
resilient mounts to allow them to adapt to the material thickness. This ensures that impression-free and low-wear production of the panels.
It is easily moved and quickly set up due to its low weight and the use of plug-in carrying handles. This ensures a wide range of applications for the machine during operations and on the construction site.

TECHNICAL DATA
Gauges: Non-ferrous metals up to 0.8 mm
Steel: up to 0.7 mm
Stainless Steel: up to a gauge of 0.5 mm

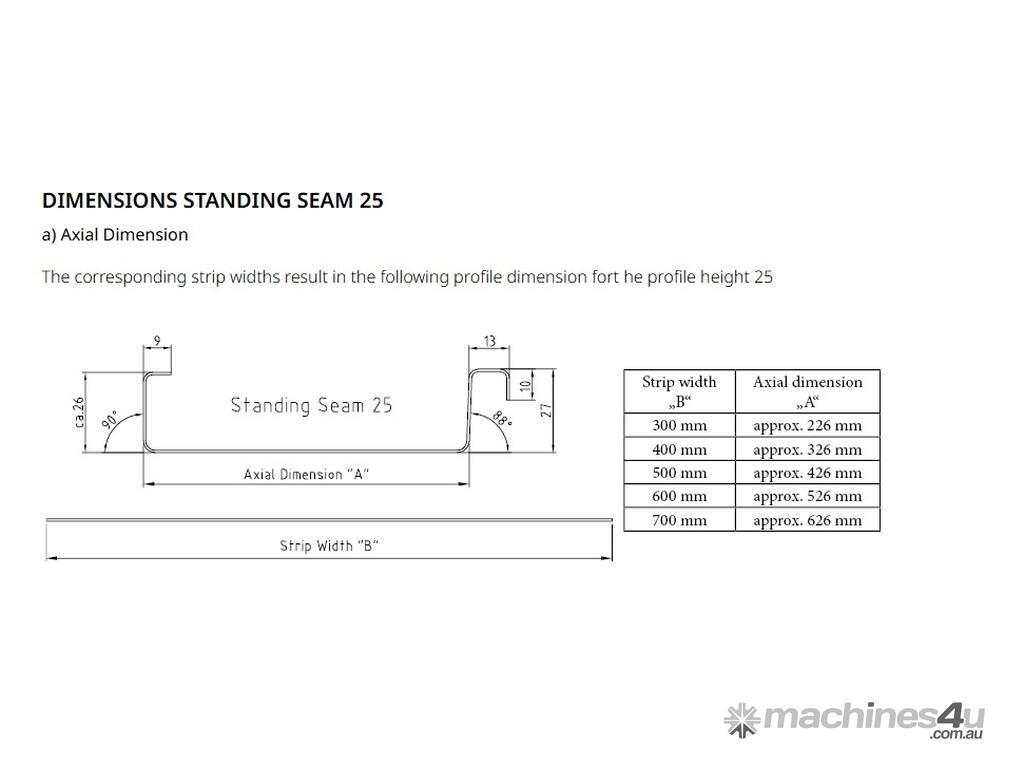

Width adjustment: 230 – 850 mm in the infeed 160 – 780 mm axial dimensions
Infeed Height: 670 – 870 mm infinitely adjustable
Feed Rate: app. 11 m/min.
Dimensions: L X W x H: 950 / 1,250 mm x 600 mm x 1,070 mm
Weight: approx. 180kg
Drive Power: 1.1 kW, 400 Volt, 3-ph.,

Optionally available: 230 Volt, 1-ph.

OPTIONAL ACCESSORIES

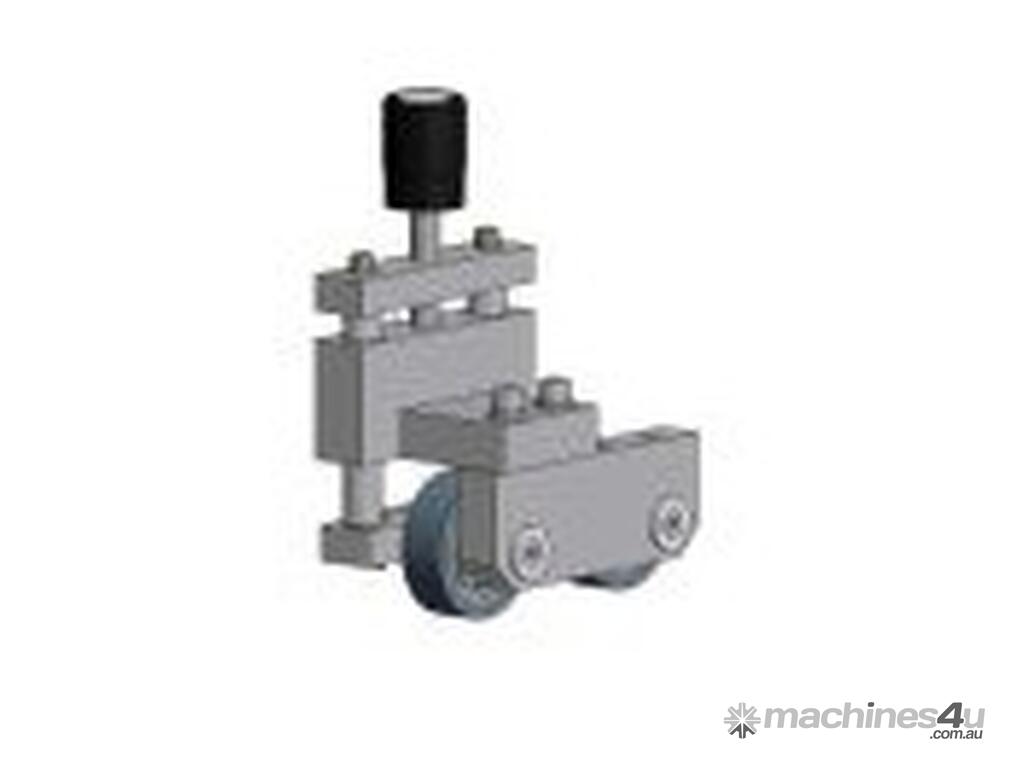

GUIDEBOY
Additional material guide for single-sided profile shaping of panels. The installation of the guideboy on any of the Schlebach profile shaping machine infeed guides requires little effort.

The Guideboy prevents the sheet material from shifting towards the centre of the machine during single-sided profile shaping operations. The required lateral force across the profiling direction may be adjusted by means of the directional angle, as well as an increase of the contact pressure on the sheet metal.

Damage to the material surface is ruled out by the use of high quality pressure rollers with a special rubber coating.
