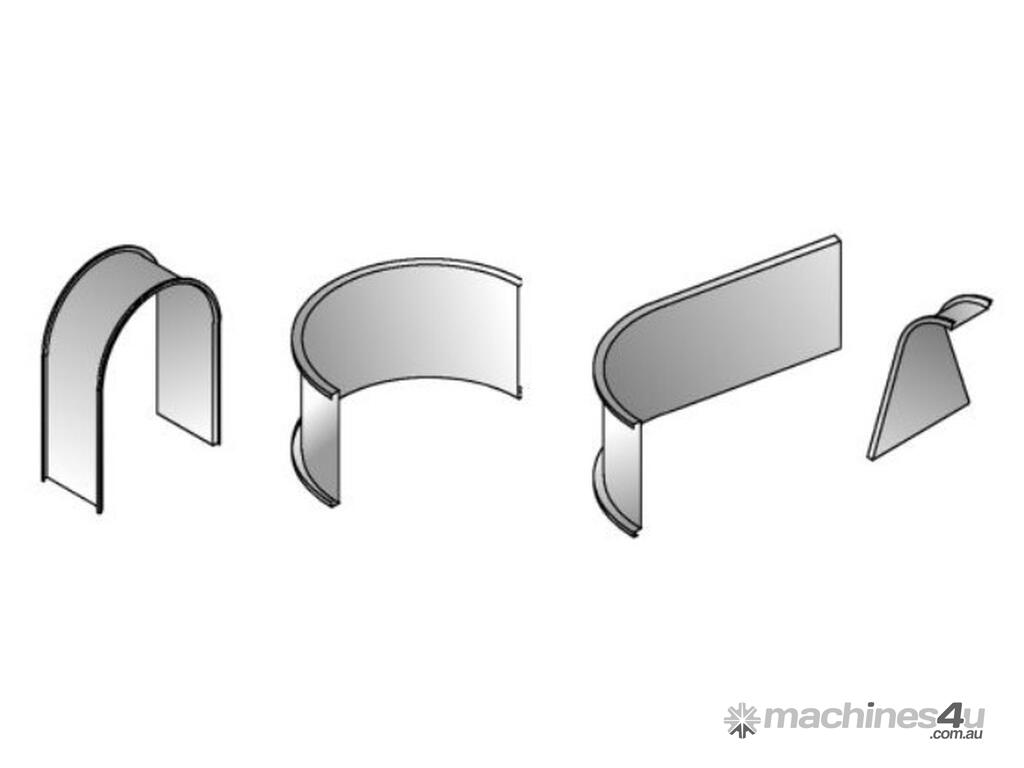

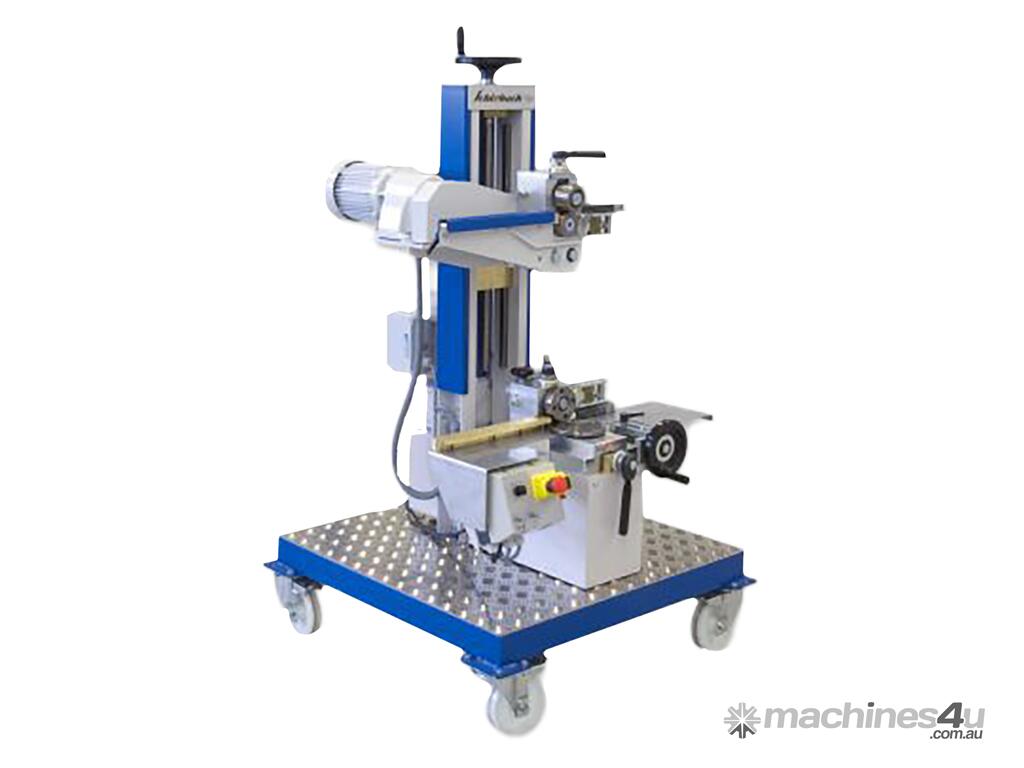

The round arch moulding machine. The RBM 25/38 is used to shape profile panels from double standing seam profile material with a profile height of 25mm and 38mm. Applications include dormers, round arcs, domes or barrel-vault roofs. A table provides the respective contact pressure, depending on the radius, and it is entered via the operating panel.

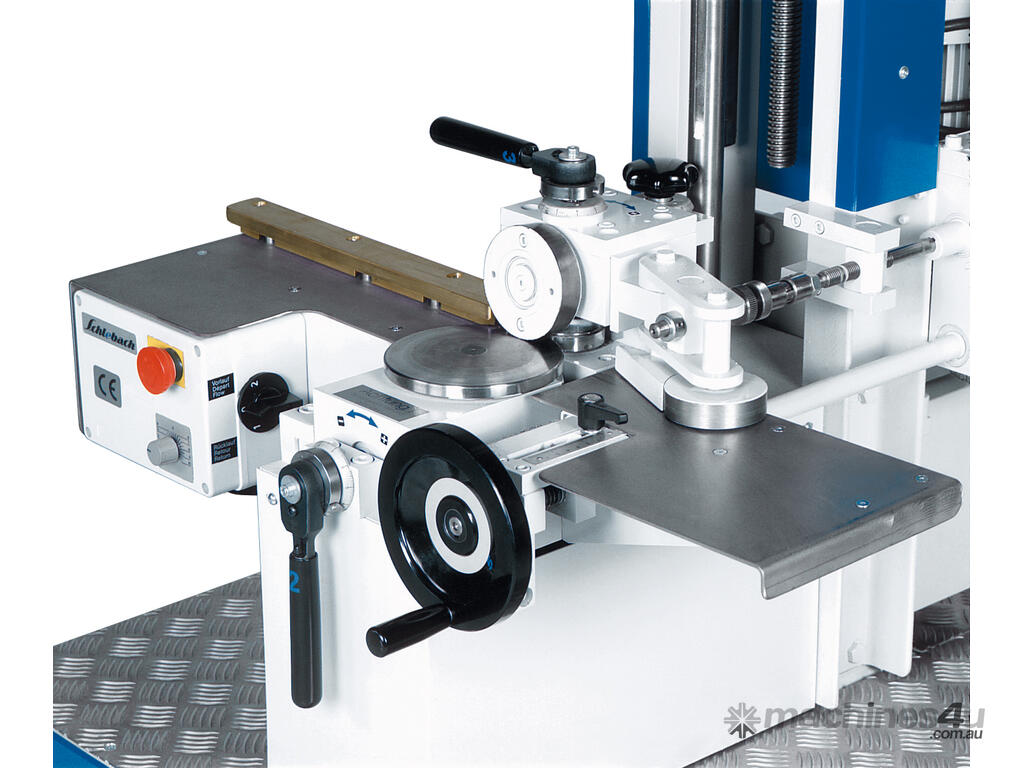

Motors generate the selected pressure. The feed is adjusted by means of a speed regulator. Separately powered bending units for upper and the lower folds. Differently shaped profiles are available by exchanging rollers.
connection voltage 230V / 50Hz / 1ph.
drive power 1 x 0.75kW
2 x 0.37kW
Axle dimension adjustment range 330 - 660mm
drive speed max. 12 m/min (infinitely variable)
Smallest radii
Non-ferrous metals from a radius of 3,000 mm (50 mm)
Sheet steel from a radius of 4,000 mm (50 mm)
Stainless steel from a radius of 5,000 mm (50 mm)
Materials that can be processed
Non-ferrous metals 0.8mm or less 0.7mm
Sheet steel or less
Stainless steel 0.5mm or less
Dimensions (L x W x H) 1,000mm x 1,000mm x 1,930mm
Weight 870kg
