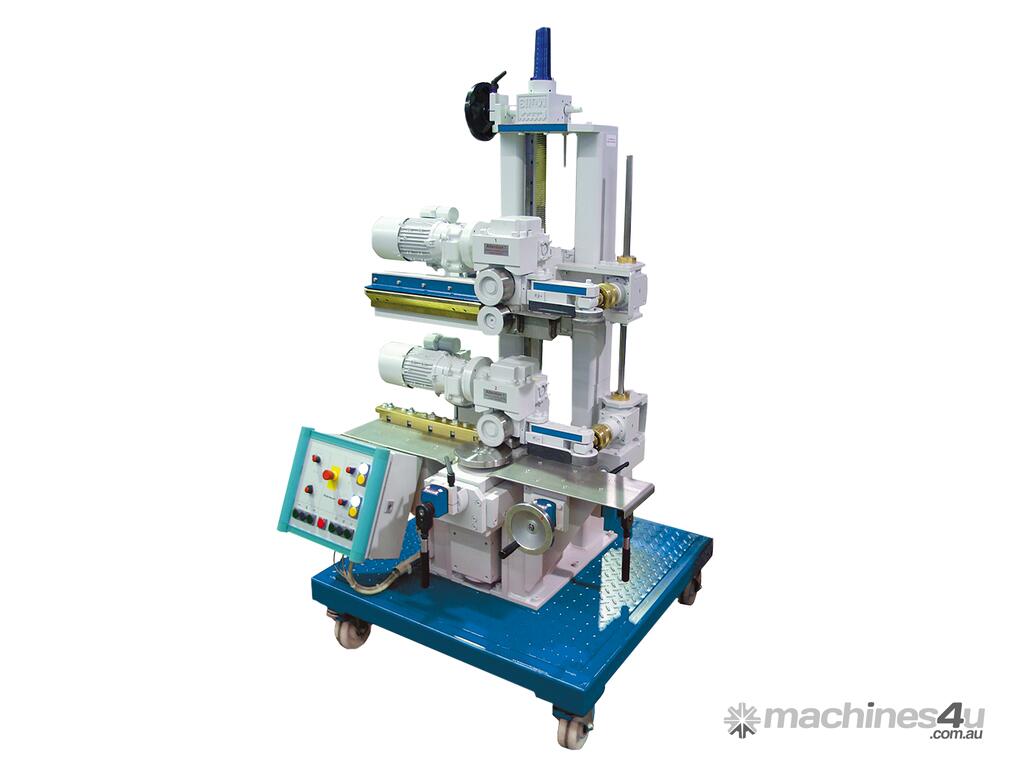

The RBM 50/38 round arch curving machine is used to shape profile panels from double standing seam profile material with a profile height of 50mm and 38mm.

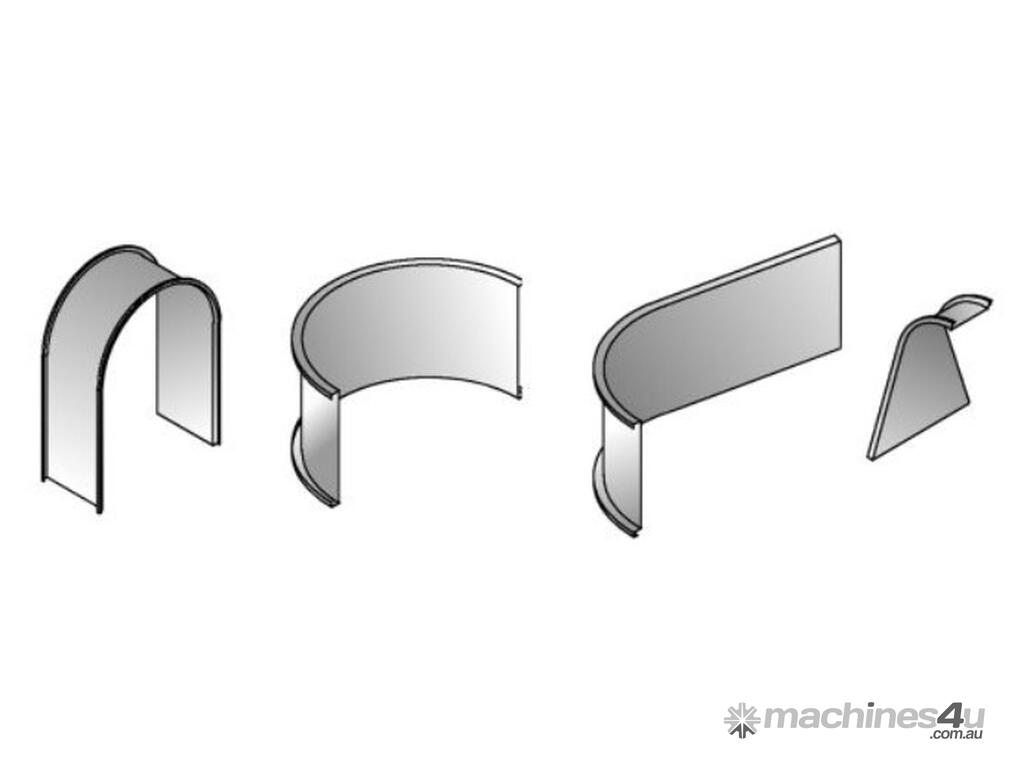

Applications include dormers, round arcs, domes or barrel-vault roofs. A table provides the respective contact pressure, depending on the radius, and it is entered via the operating panel.
Motors generate the selected pressure. The feed is adjusted by means of a speed regulator. Separately powered bending units for upper and the lower folds. Differently shaped profiles are available by exchanging rollers.
Connection voltage: 230V / 50Hz / 1ph.
Drive power: 1 x 0.75kW
2 x 0.37kW
Axle dimension adjustment range: 330 - 660mm
Drive speed max. 12 m/min (infinitely variable)
Smallest radii: Non-ferrous metals from a radius of 3,000 mm (50 mm)
Steel from a radius of 4,000 mm (50 mm)
Stainless steel from a radius of 5,000 mm (50 mm)
Materials that can be processed: Non-ferrous metals - Max 0.8mm
Steel - Max 0.7mm
Stainless steel - 0.5mm
Dimensions (L x W x H) 1,000mm x 1,000mm x 1,930mm
Weight 870kg
