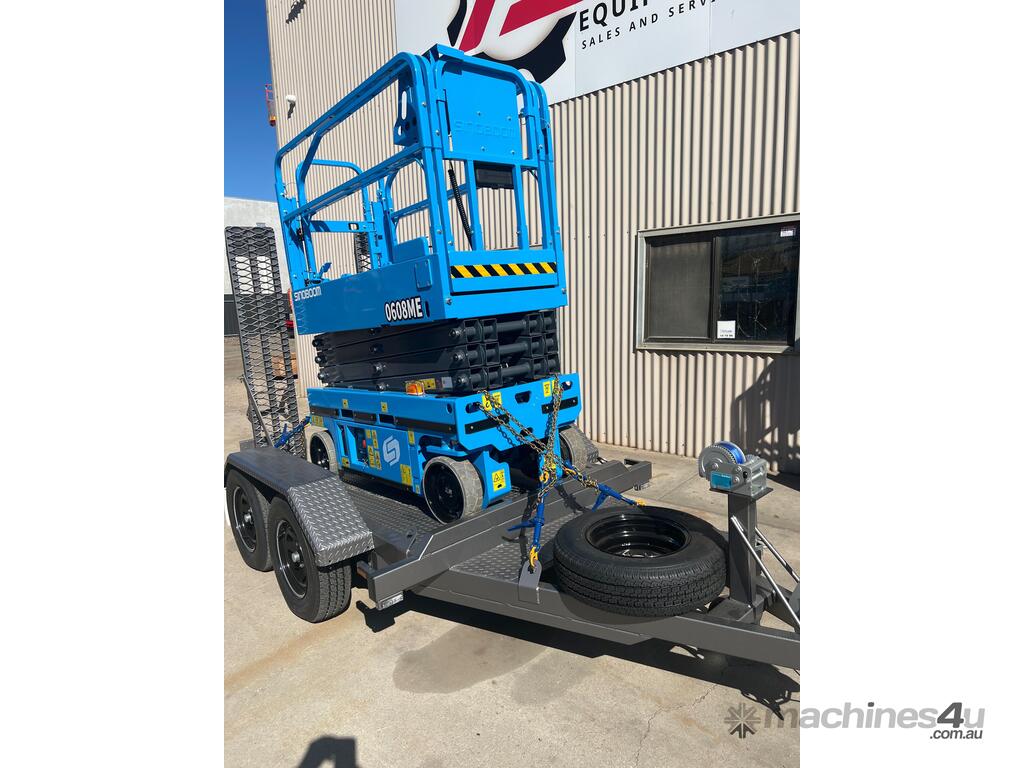

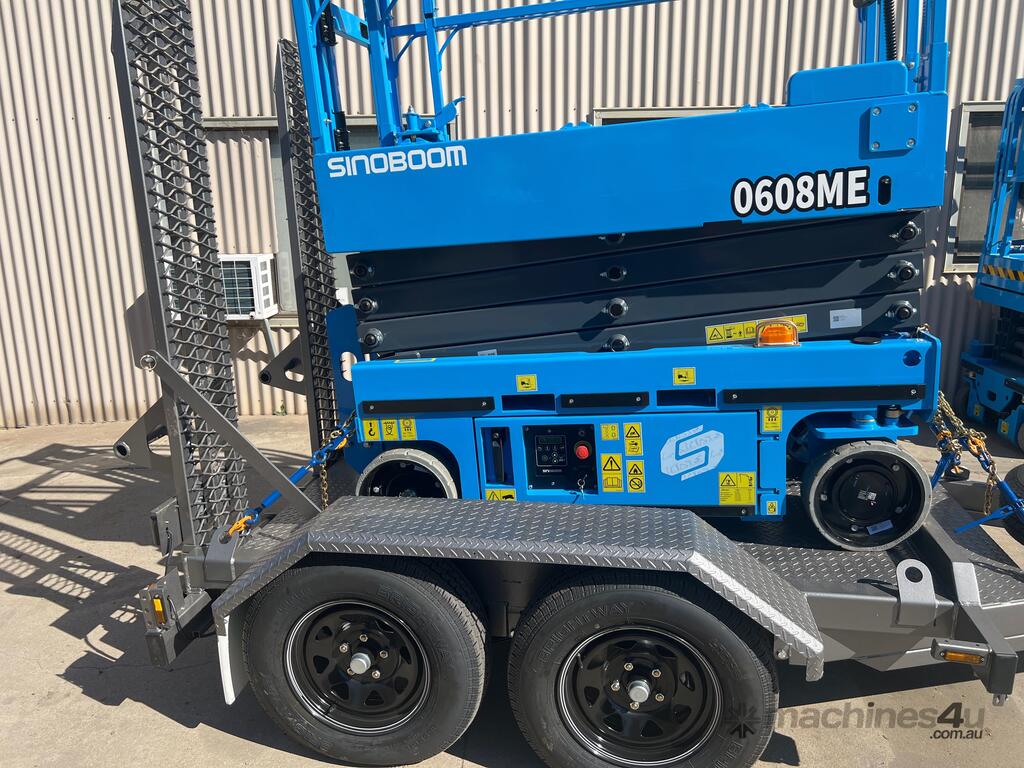

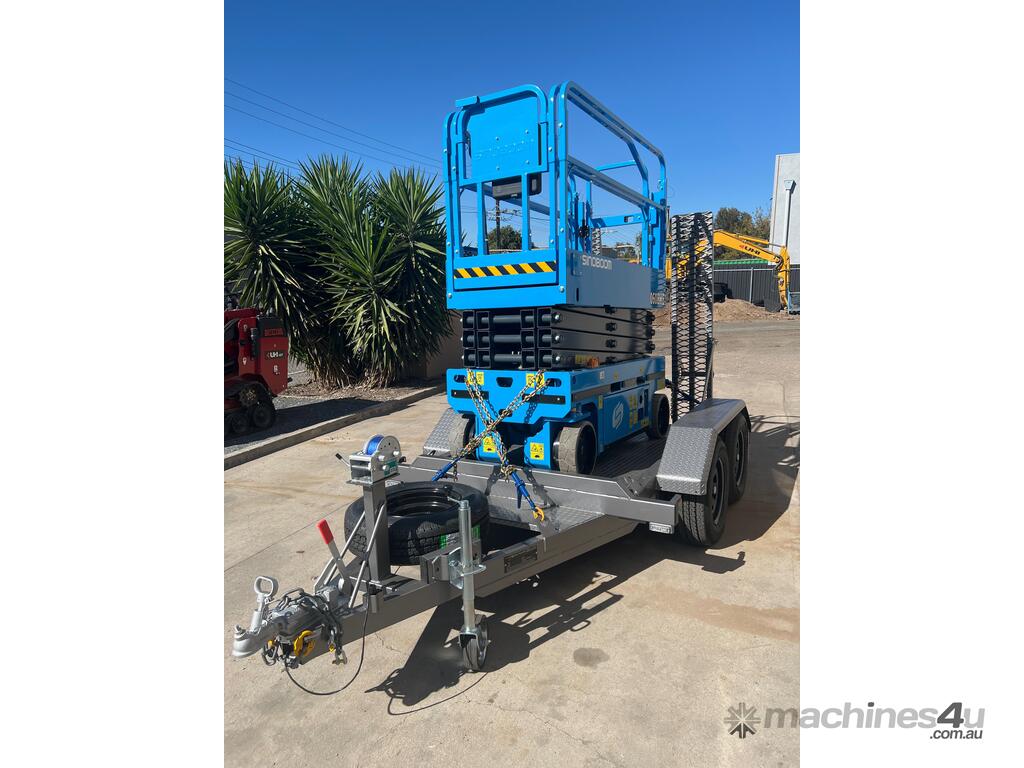

Scissor Lift & 7x4 Trailer Package

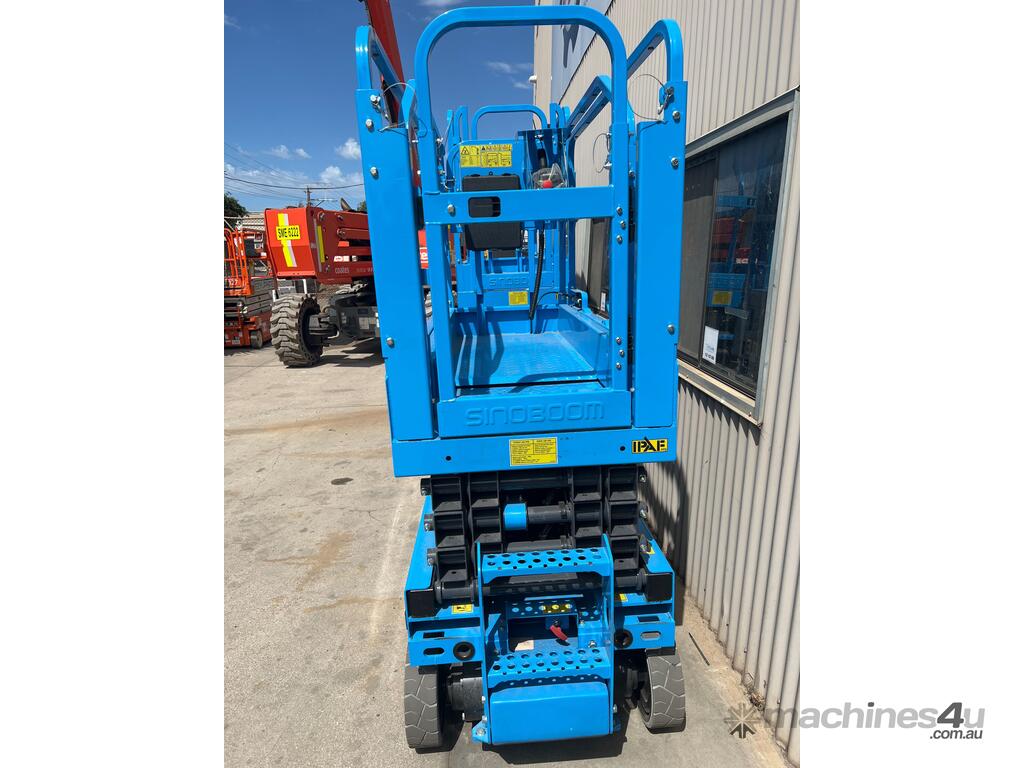

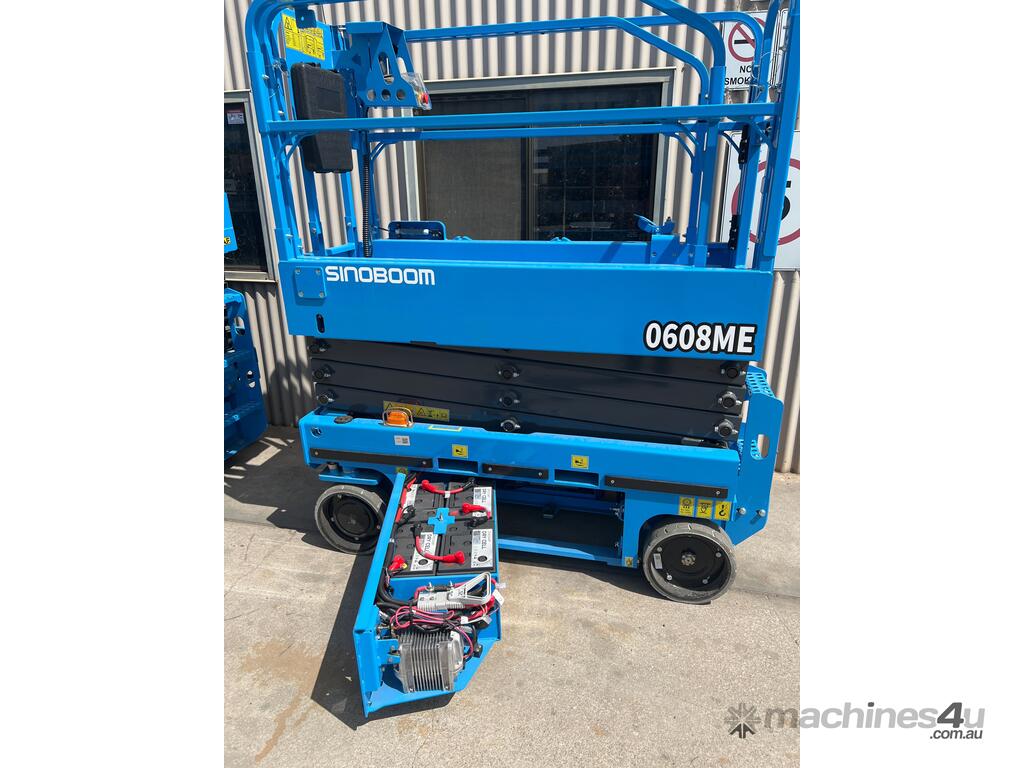

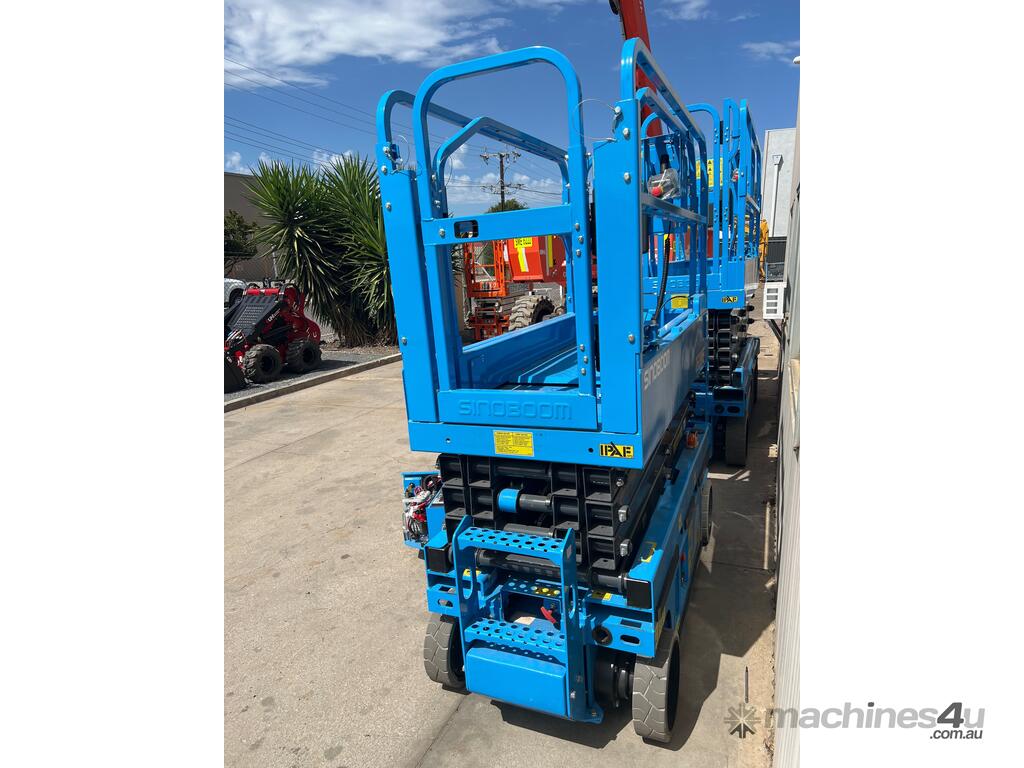

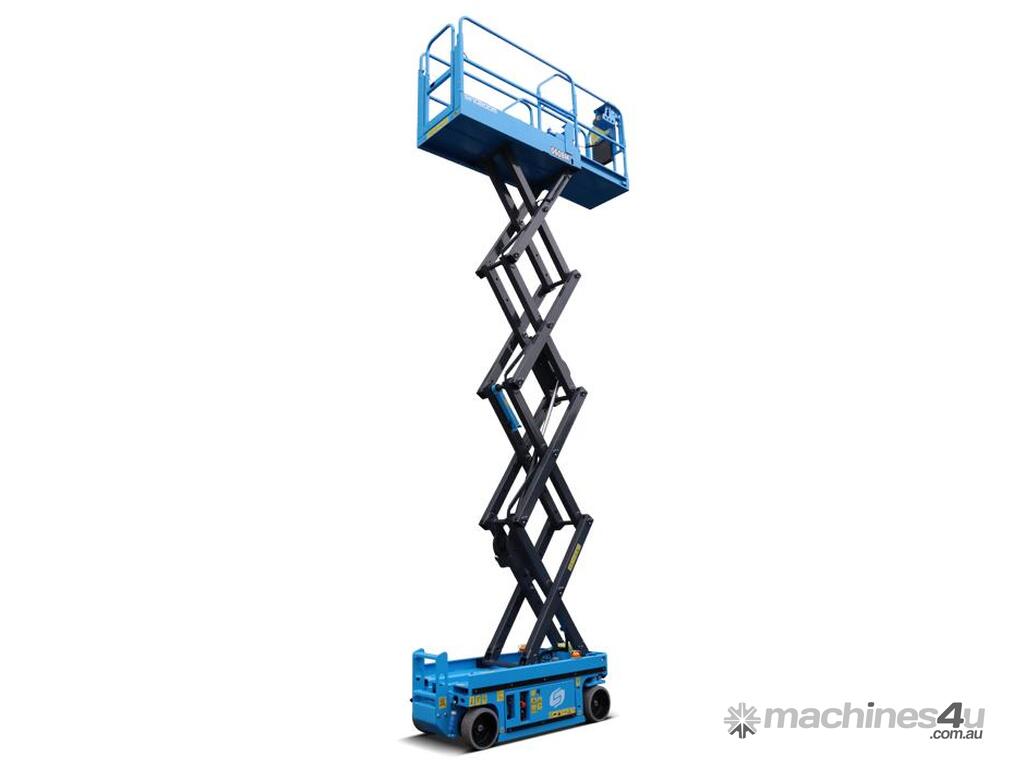

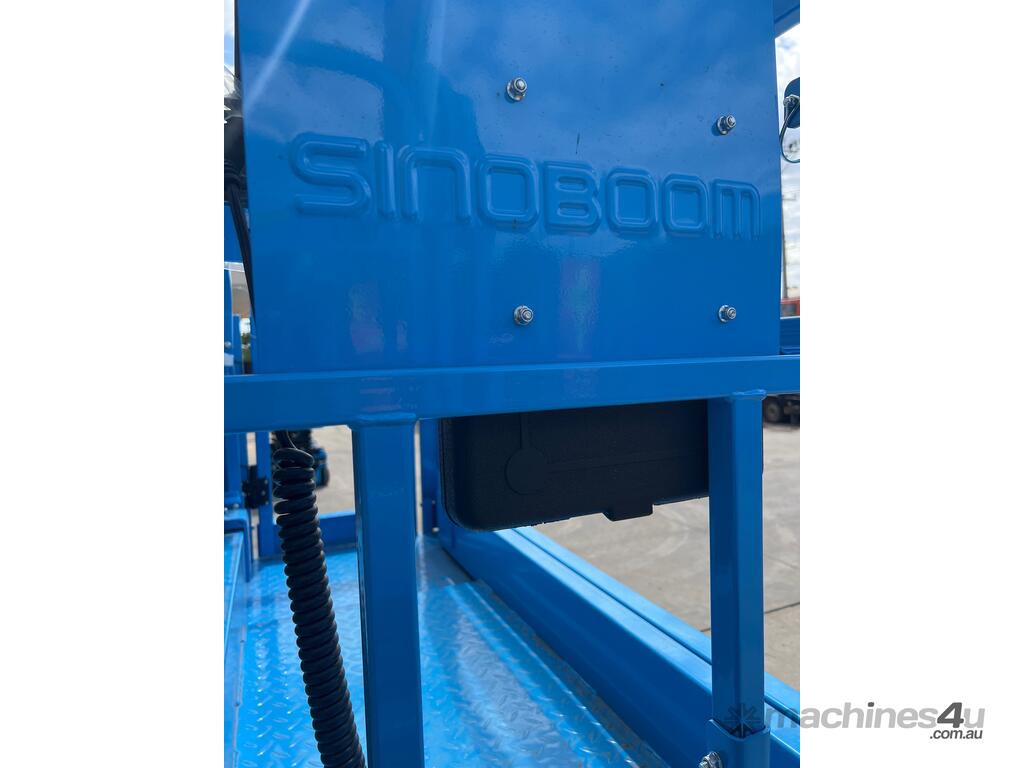

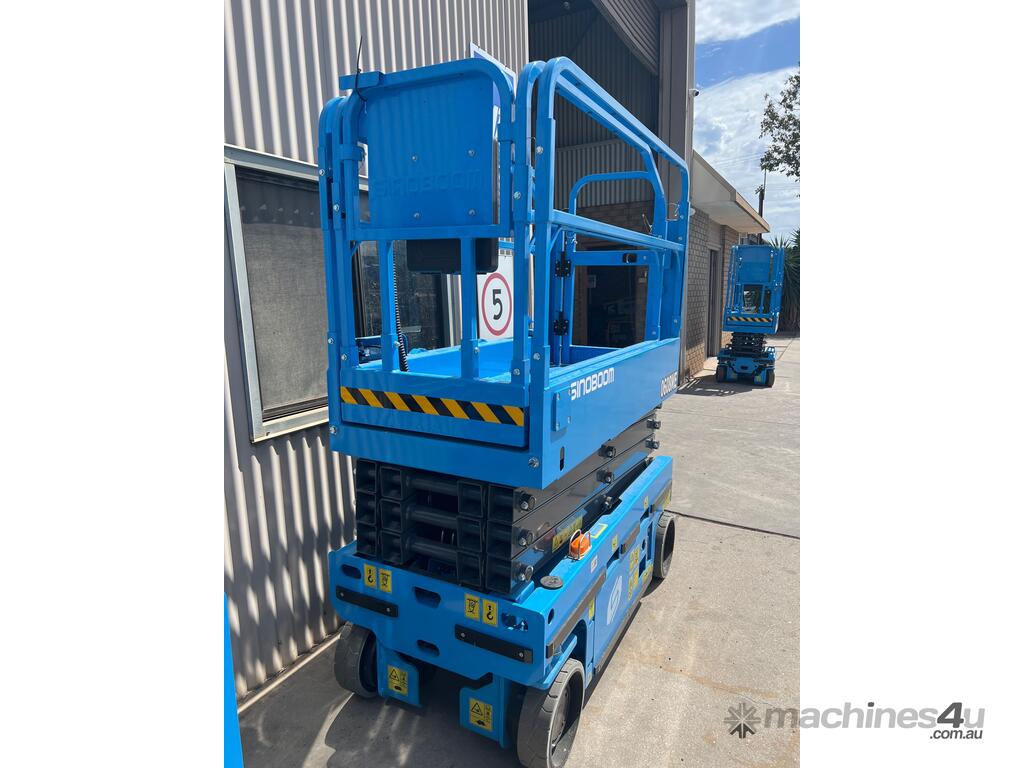

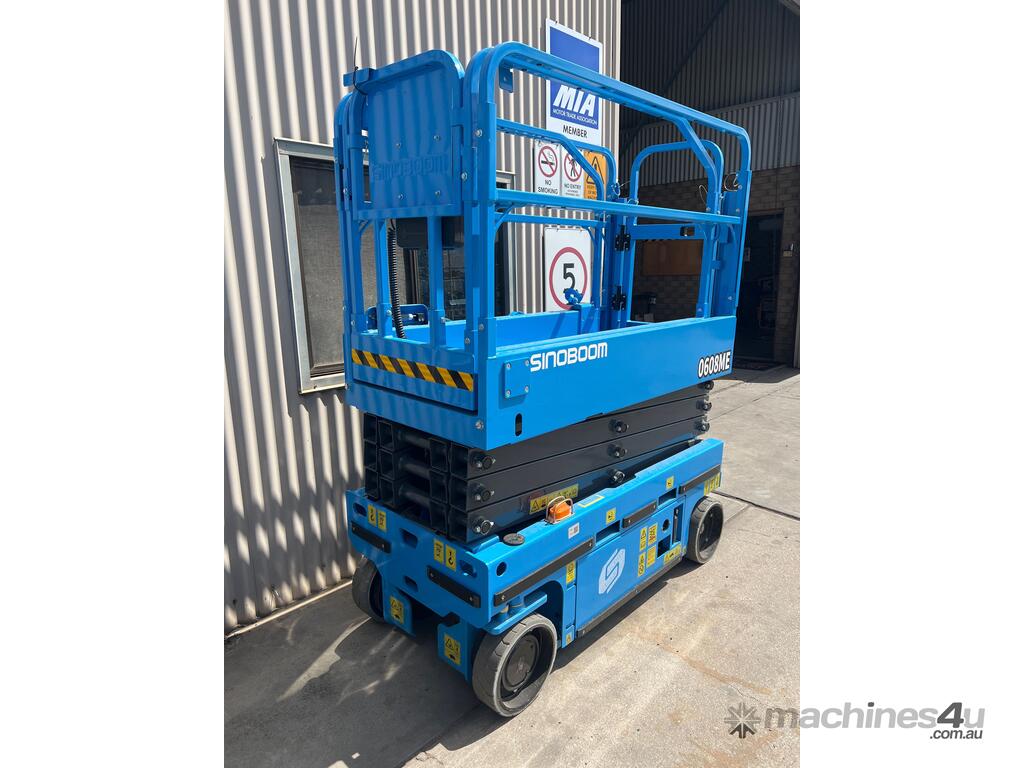

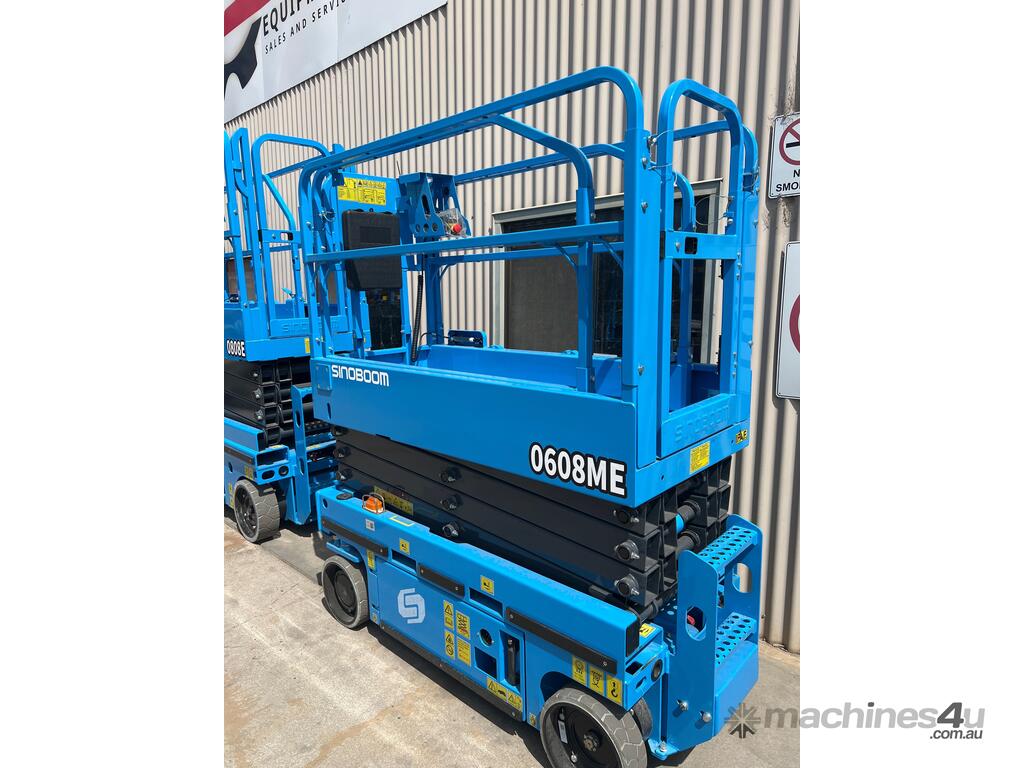

Sinoboom 0608ME Scissor Lift
Working height
7.8m
Platform Capacity
230kg
Gradeability
25%

Trailer,
ATM 2200kg

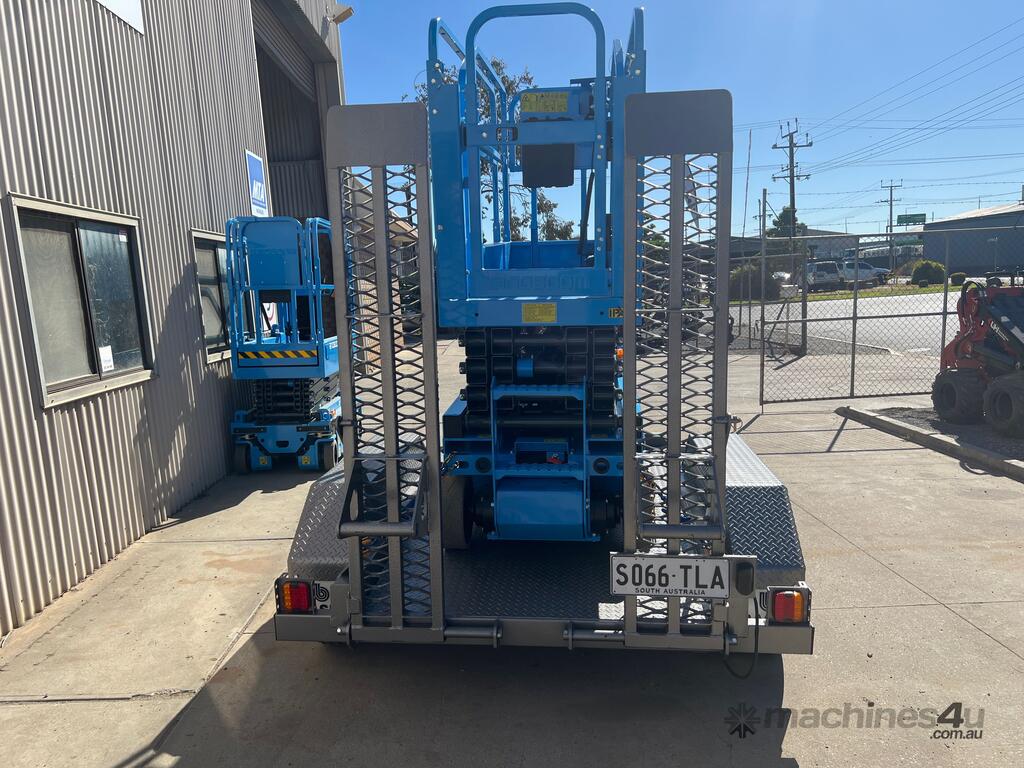

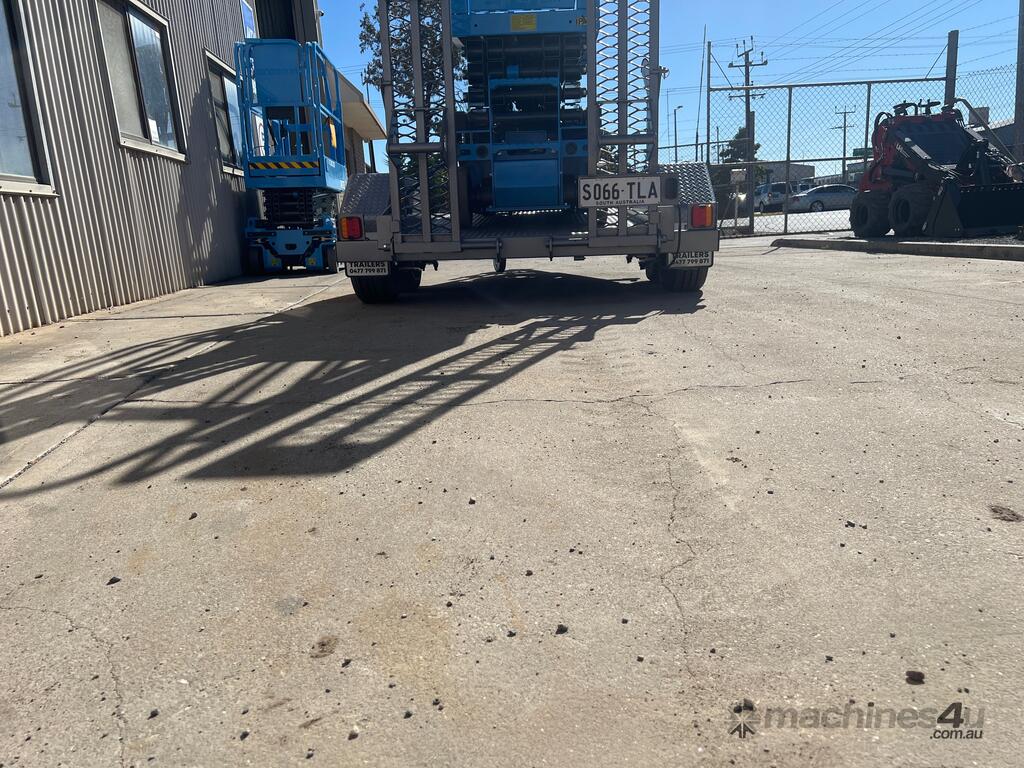

7x4 Scissor Lift Trailer -Tandem Axle
2" Drop Axle to suit 1990kg ATM

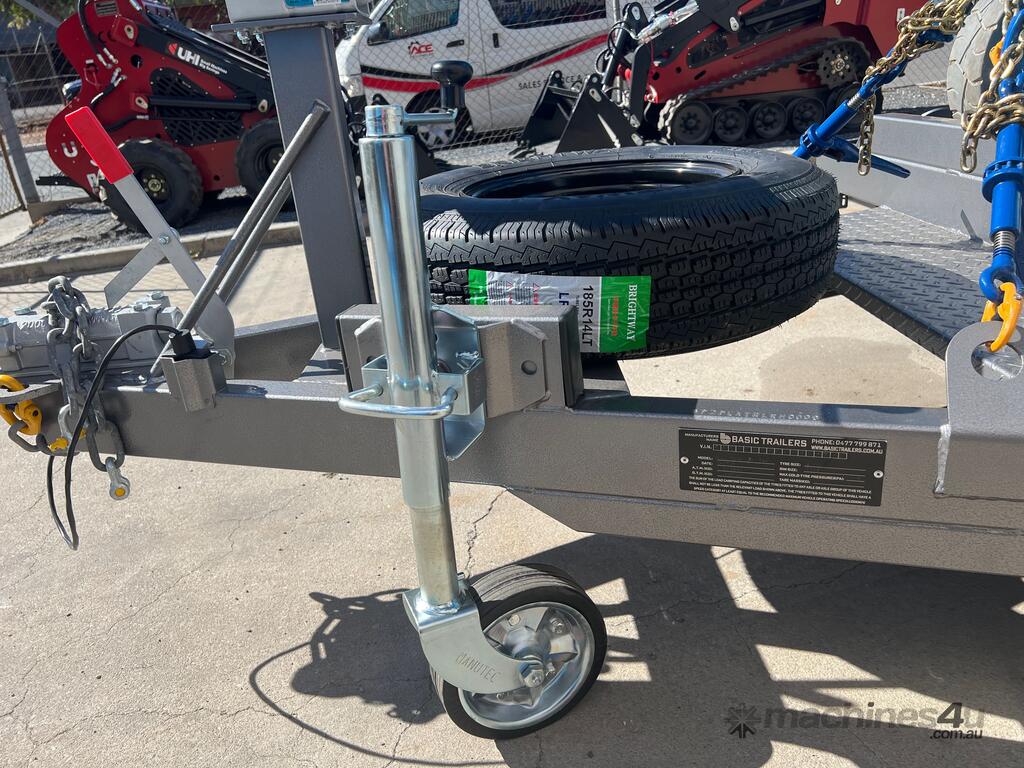

Winch Post on Drawbar
Floor supports the length of the Trailer
Heavy duty Winch
Mesh Ramp
Spare Wheel

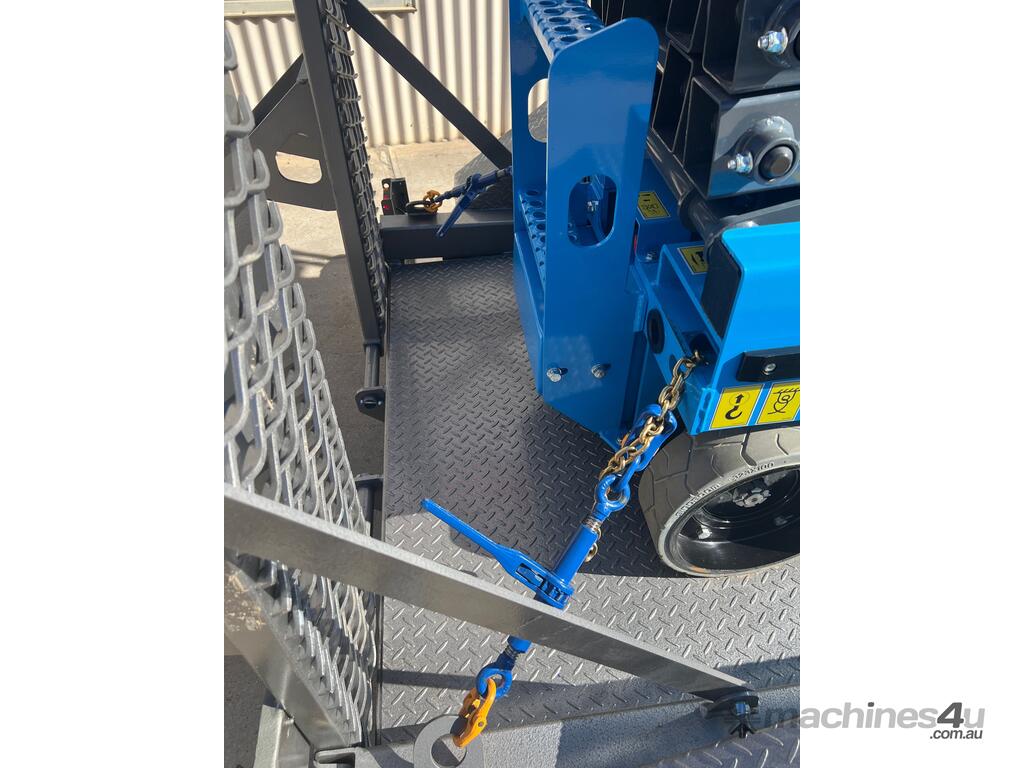

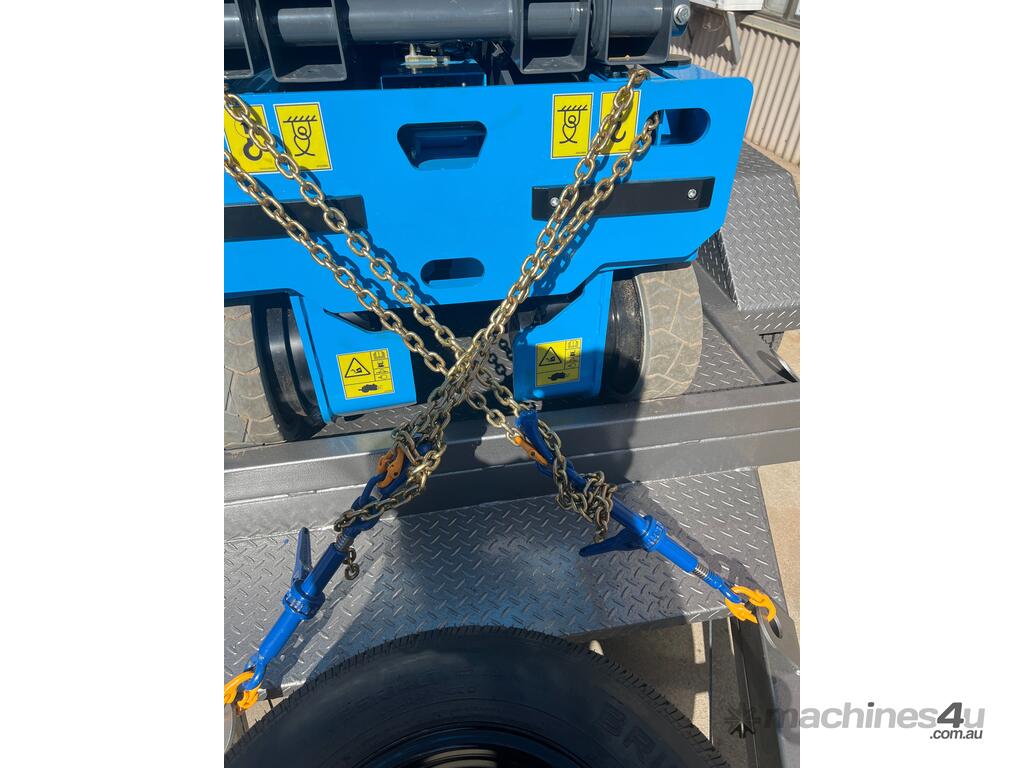

Tie down chains and Ratchet binders included

SCISSOR PRODUCT HIGHLIGHTS
MORE RELIABLE PERFORMANCE
- Battery voltage early warning to ensure battery life
- Bumper rail protection
- The pothole protection reporting and horizontal protection system give peace of mind during operation
REDUCED MAINTENANCE COSTS
- Double-door design for easy maintenance
- Troubleshooting for quick fault diagnosis
- Highly quality parts and components
EFFICIENT AND ENVIRONMENTALLY FRIENDLY
- Small turning radius, flexible operation in narrow spaces
- Standard forklift slot, for efficient equipment transportation
- Folding guardrails for easy transport
DIMENSIONS
Max Working Height
7.8m (25'7")
[A] Max Platform Height
5.8m (19')
[B] Max Horizontal Extension
0.9m (3')
[C] Length-Stowed
1.78m (5'10.1")
[D] Width-Stowed
0.76m (2'6") / 0.81m (2'8")
Height - stowed (Rail Folded)
1.86m (6'1")
[E] Height - stowed
(Rail Unfolded)
2.12m (6'11.5")
[F] Wheelbase
1.325m (4'4.2")
Ground Clearance
73mm (3")
Platform Dimensions(L×W×H)
1.64m×0.76m×1.1m(5'4.6"×2'6"×3'7")
PERFORMANCE
Platform Allowable Occupants
?Indoor/Outdoor?
0608S(1930S): 2 persons(Indoor Only)/- 0608M(1932M): 2 persons
Platform Capacity
230kg (507lbs)
Drive Speed-Stowed
3km/h (1.86mph)
Drive Speed-Raised
0.8km/h (0.5mph)
Elevation Time
(Unloaded)
15s~20s
Descent Time
(Unloaded)
25s~30s
Gradeability
25%
Turning Radius
(Inside/Outside)
0/1.49m (0/4'10.7")
Tilt Rating
(Front to Back/Side to Side)
3°/1.5°
Tyres-solid
305×115mm(12×4.5'')/solid
POWER

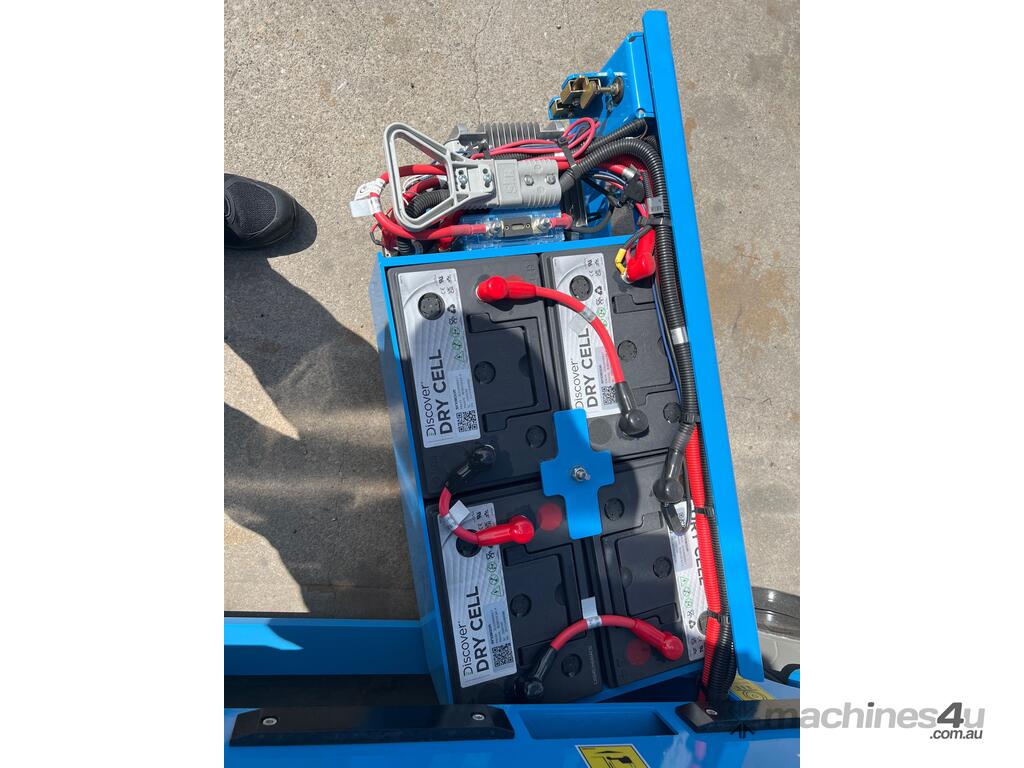

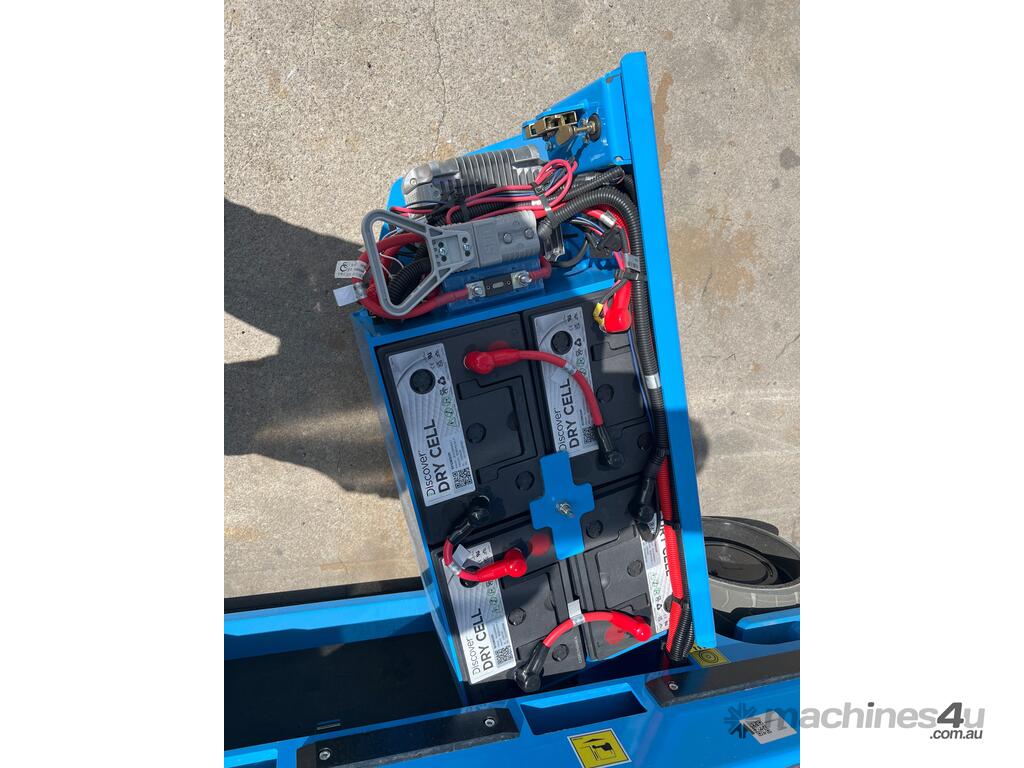

Batteries
24V, 220Ah (Lead acid battery)
Power Source
24V DC
Drive Mode
2WD, front wheel
Charger Input
100~240V AC
Charger Output
30A
Brake
2 rear wheel
Hydraulic System Capacity
9L (2.0 gal(UK)/2.4 gal (US))

Weight(Indoor/Outdoor)
0608M: 1,526kg(3,365lbs)
Weight(Indoor Only)
0608S: 1,526kg(3,365lbs)
Standards Compliance
0608S: CE/ANSI/CSA/KCS/EAC 0608M: CE/ANSI/CSA/AS/EAC
