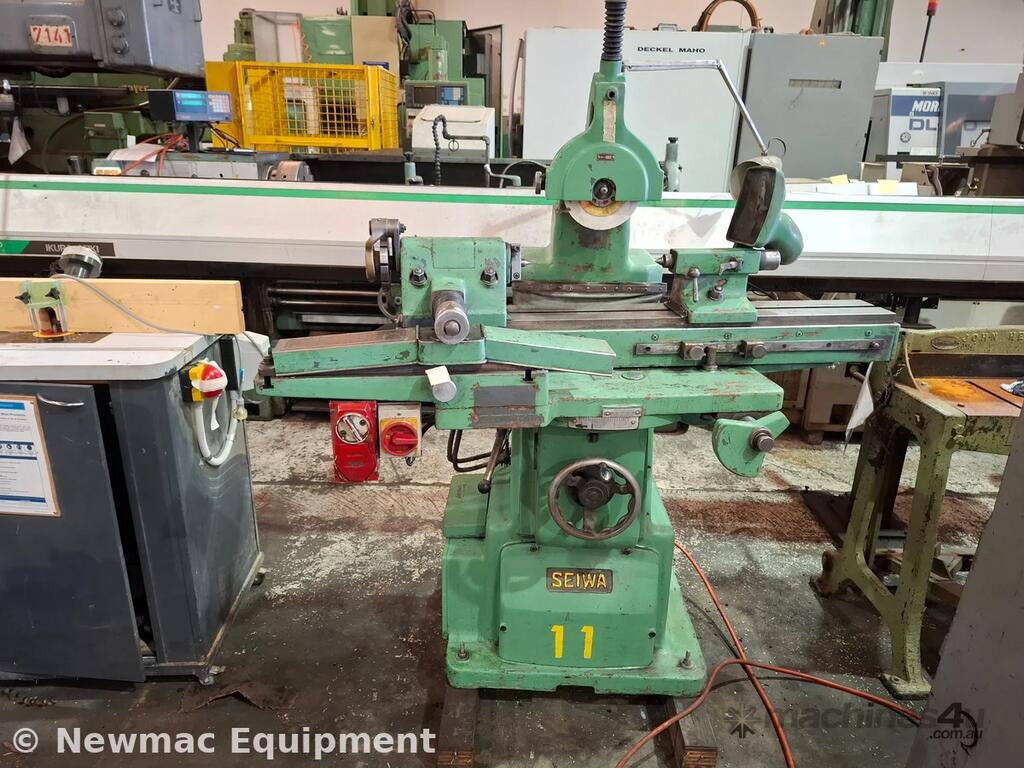

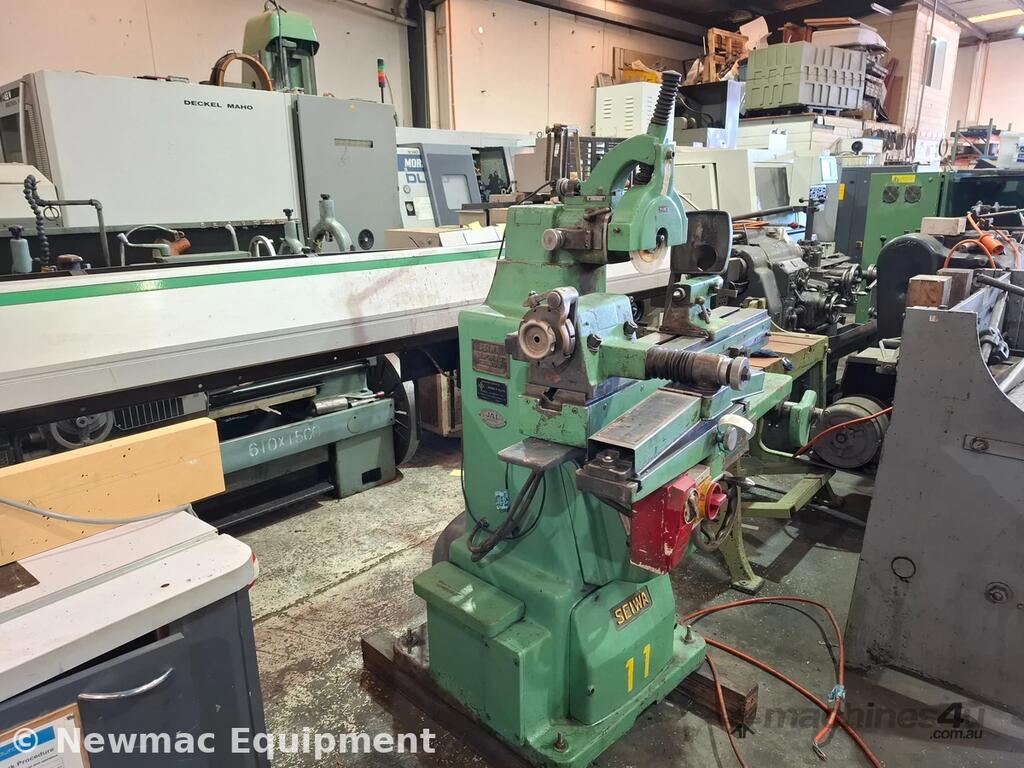

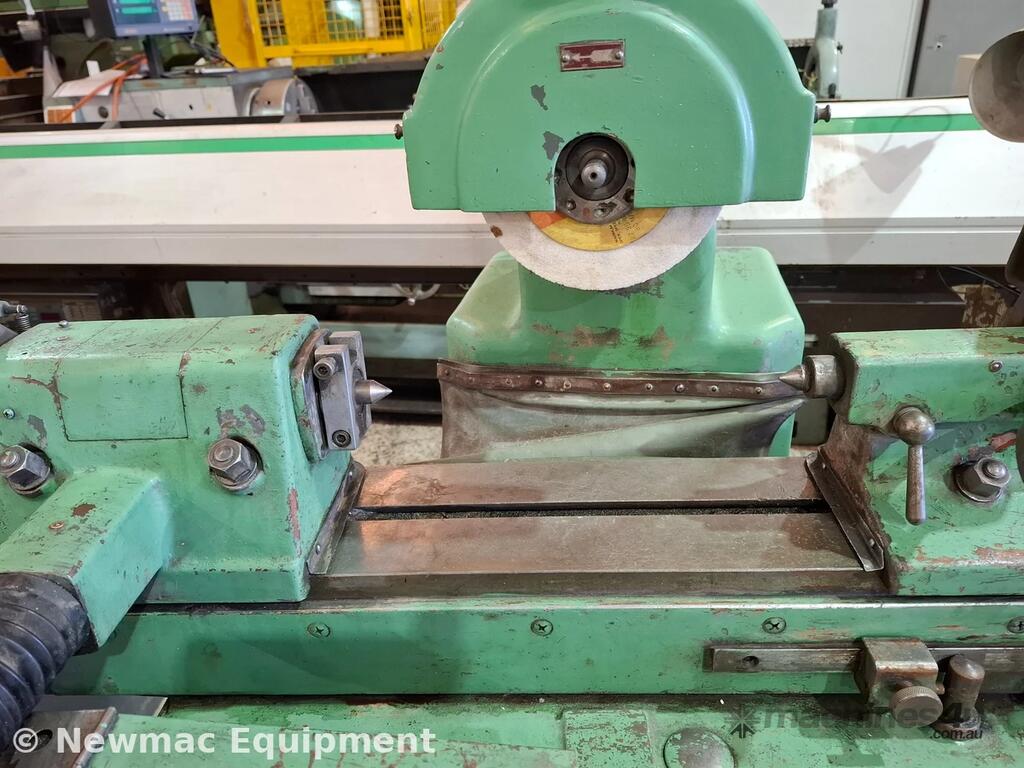

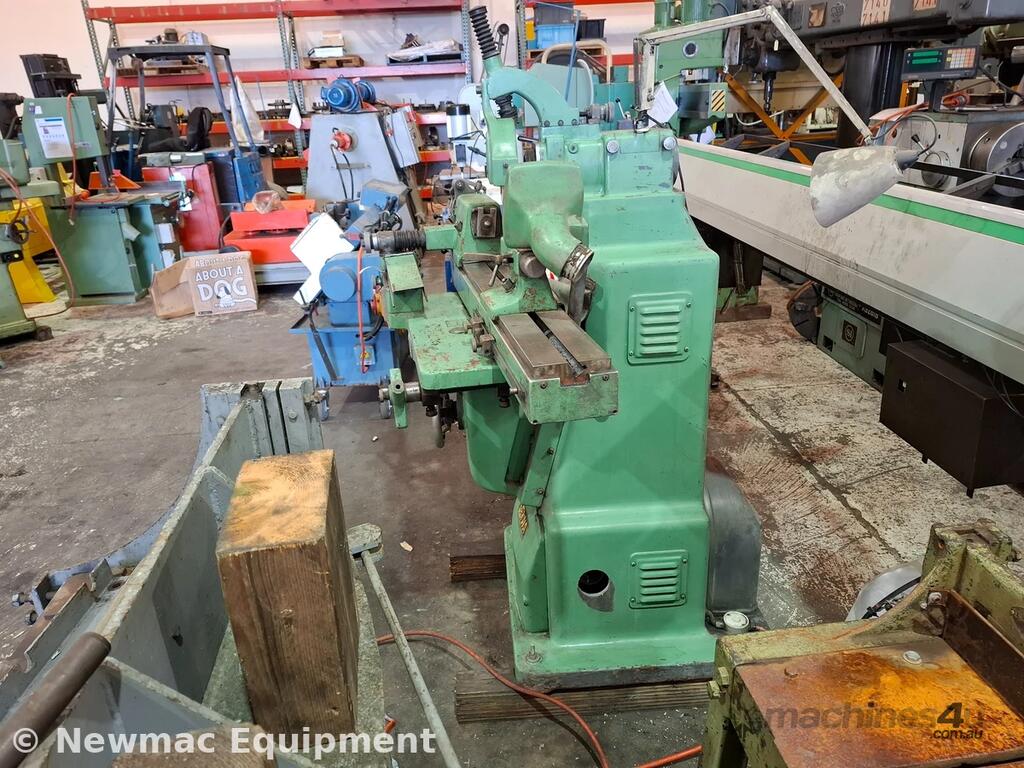

Seiwa SHG-16 Hob Blade Groove Grinding Machine

Seiwa SHG-16 Hob Blade Groove Grinding Machine for sale

The Seiwa SHG-16 is a specialised machine designed for precision grinding of hob flutes, ensuring gear cutting tools remain sharp and accurate for continued use in production. Built in Japan, this model reflects the robust engineering quality that Seiwa is known for in the gear-manufacturing industry.

Key Specifications:

Maximum hob diameter: 200 mm (8?)
Maximum hob length: 250 mm (10?)
Maximum module: m16 (DP 1½)

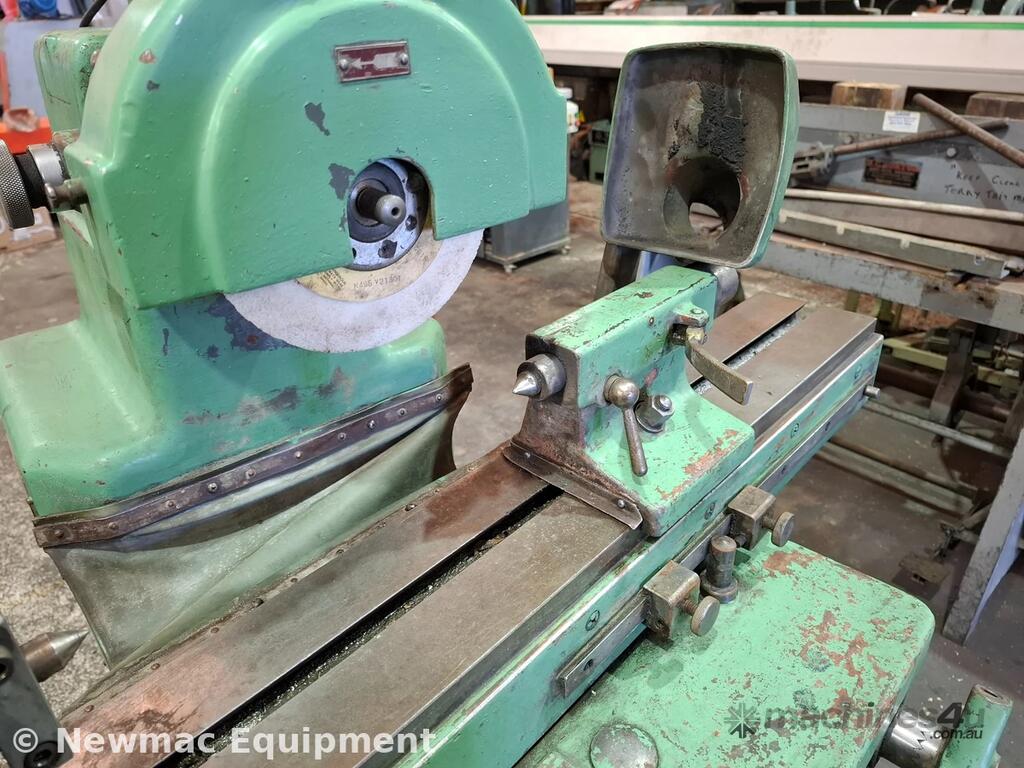

Grinding wheel diameter: 200 mm (8?)
Wheel spindle speed (2 steps): 2,100 & 2,600 rpm
Maximum longitudinal travel of work table: 380 mm (15?)
Maximum vertical travel of work table: 120 mm (4¾”)
Distance between centres: 550 mm (21?”)

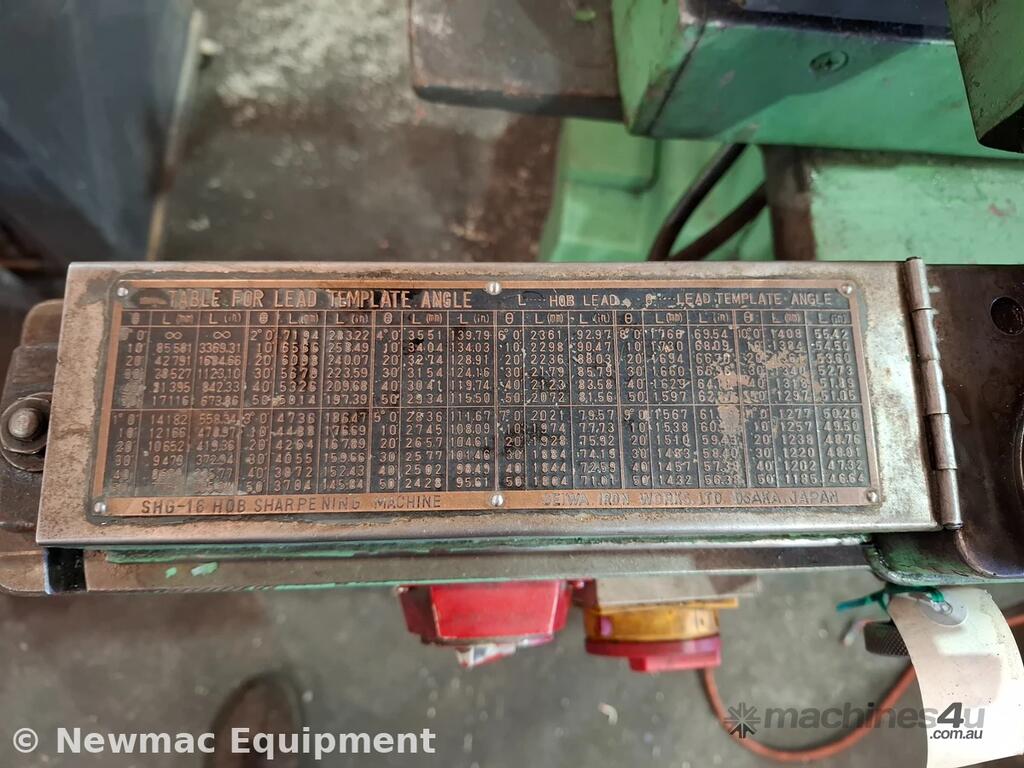

Range of lead template angle (either side): 10°4233
Minimum hob lead: 1,408 mm (55½”)
Working surface of work table: 1,060 × 140 mm (41½” × 5½”)
Motors:
Main: 0.75 kW (1 HP)
Dust collector: 0.2 kW (¼ HP)
Floor space (L × W × H): 1,700 × 1,060 × 1,620 mm (66? × 41½” × 63?)
Net weight: 750 kg (2,640 lbs)
Click here for additional information & price (will open a pdf in a new tab)

Features & Benefits:

Purpose-built for regrinding hob grooves with accuracy.
Extends the service life of expensive hobs, reducing tooling costs.
Maintains the precision needed for high-quality gear production.
Compact, heavy-duty construction for long-term reliability.

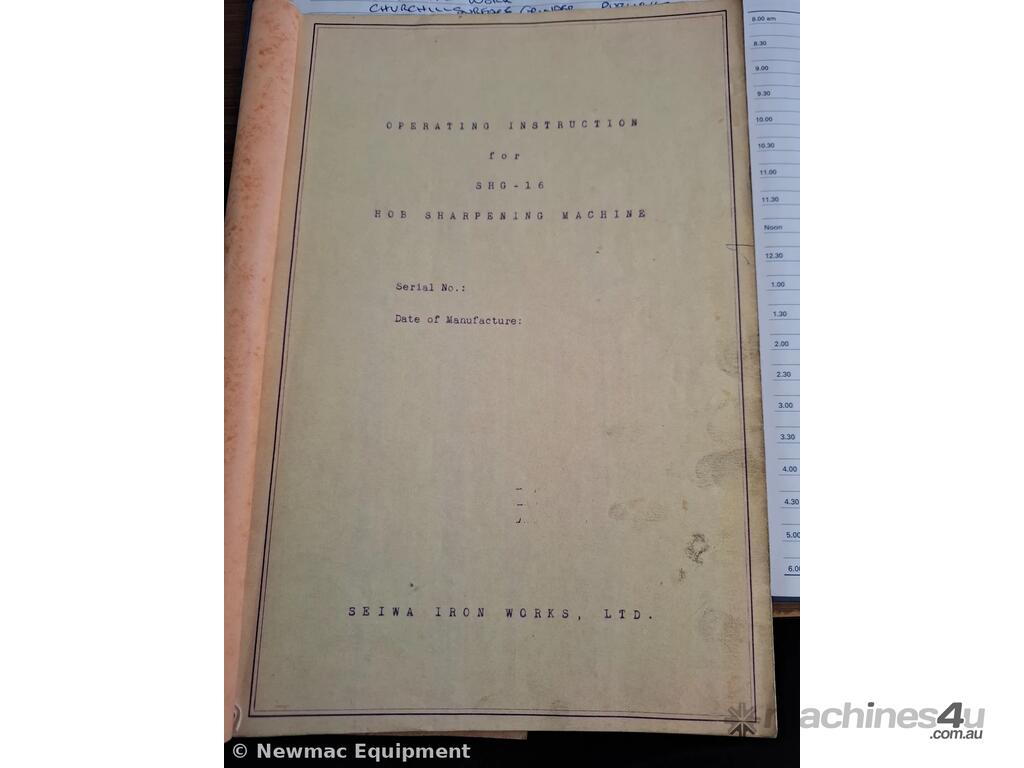

Comes with manual
