Semi-Universal Dividing Head BS-1, Tiltable Rotary Table with 40:1 Ratio

Semi-Universal Dividing Head BS-1

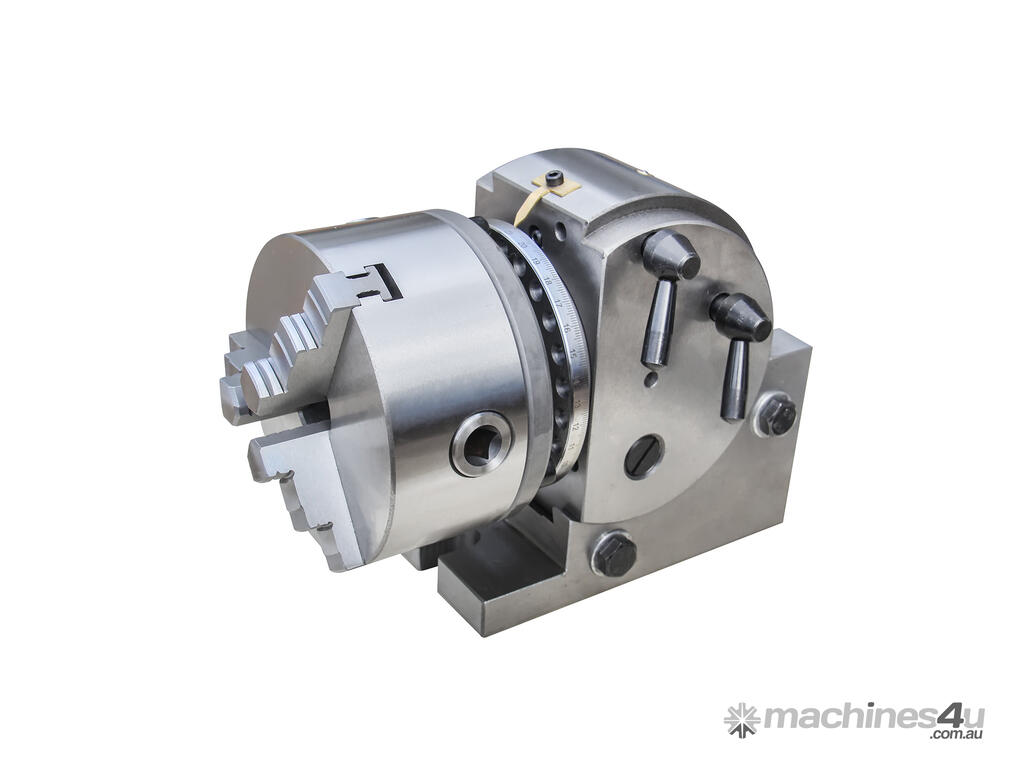

The Semi-Universal Dividing Head BS-1 is a high-precision machining tool designed for accurate angular division and indexing of workpieces in milling, drilling, and gear-cutting operations. The head supports direct, indirect, and differential dividing methods with a 40:1 worm-to-worm gear ratio, allowing for precise positioning. The hardened and ground spindle is supported by taper roller bearings, while the swivel head can be locked at any angle from 10° below horizontal to 90° vertical for versatile setups. It features a threaded spindle nose and a 24-hole dividing plate for quick direct indexing on common divisions like 2, 3, 4, 6, 8, 12, and 24. The indexing head enables easy indexing for all numbers from 2 to 50 and many up to 380, making it suitable for professional trades and industrial applications.

High Precision and Versatility Dividing Head. Ideal for the machinists and hobbyists needing accurate dividing for complex tasks like gear production or custom fabrication, the swivel range and multiple indexing options provide flexibility in compact workshops.

Quality Construction Indexing Head. Built with hardened components and taper bearings for longevity, resisting wear in diverse working conditions, from humid coastal areas to dry interiors.

Comprehensive Package Milling Accessory. Comes ready-to-use with chuck, plates, and tailstock, offering great value and reducing the need for additional purchases.

Ease of Setup and Operation. Quick direct indexing and positive locking mechanisms minimize setup time, beneficial for small-scale operations or home users in where efficiency is key.

Compact Design Indexing Tools. At 220 mm height, it's space-efficient for garage or mobile setups. Easy to store or transport.

Features

BS-1 dividing head is suitable for direct and indirect indexing

MT3 spindle taper

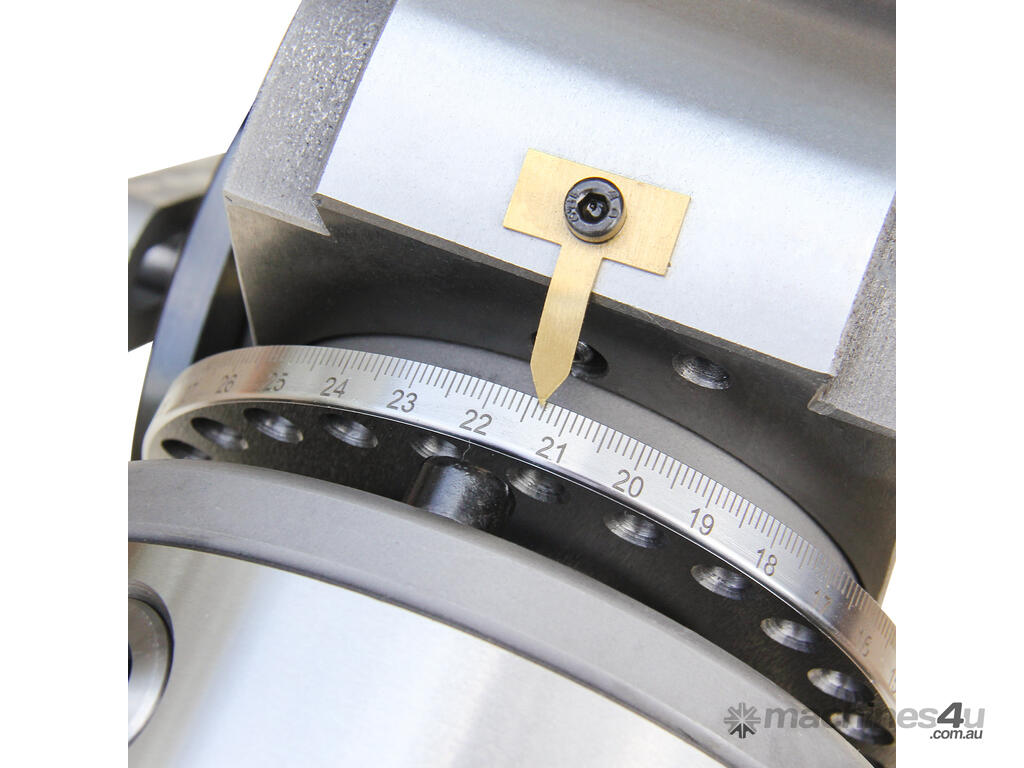

The 24 quick-dividing holes can complete 2,3,4,6,8,12,24 division indexing

Worm and worm wheel ratio 40:1

Tilt from horizontal to vertical (-10° to +90°)

Each is divided from 2 to 50, and many are divided from 51 to 380

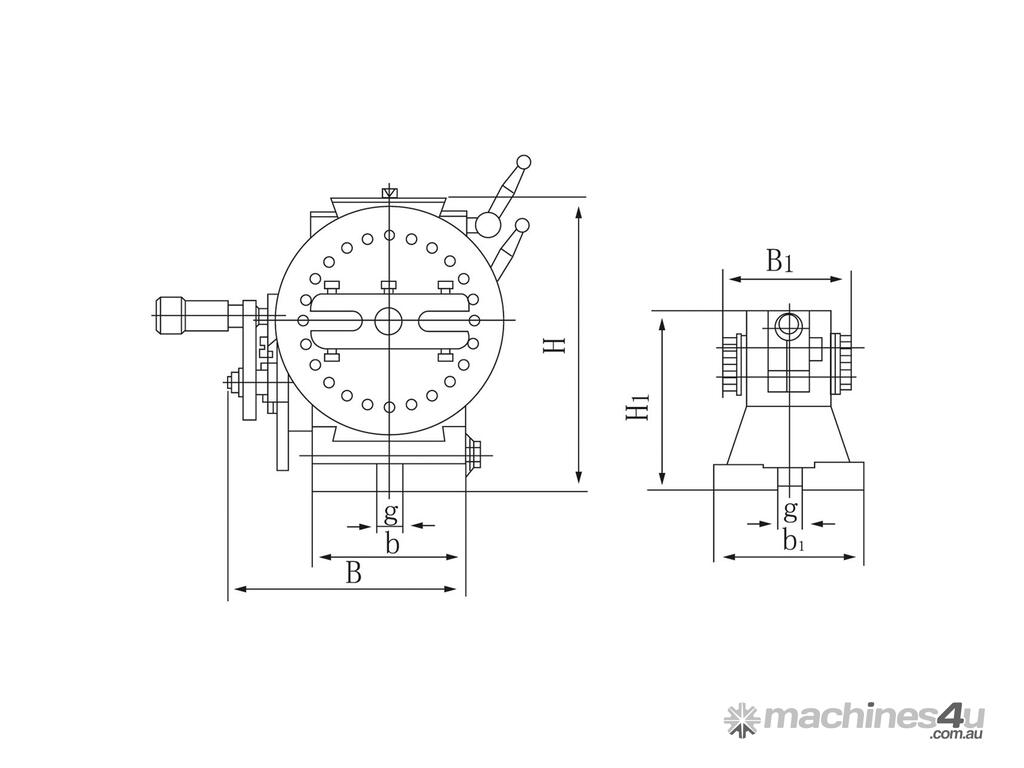

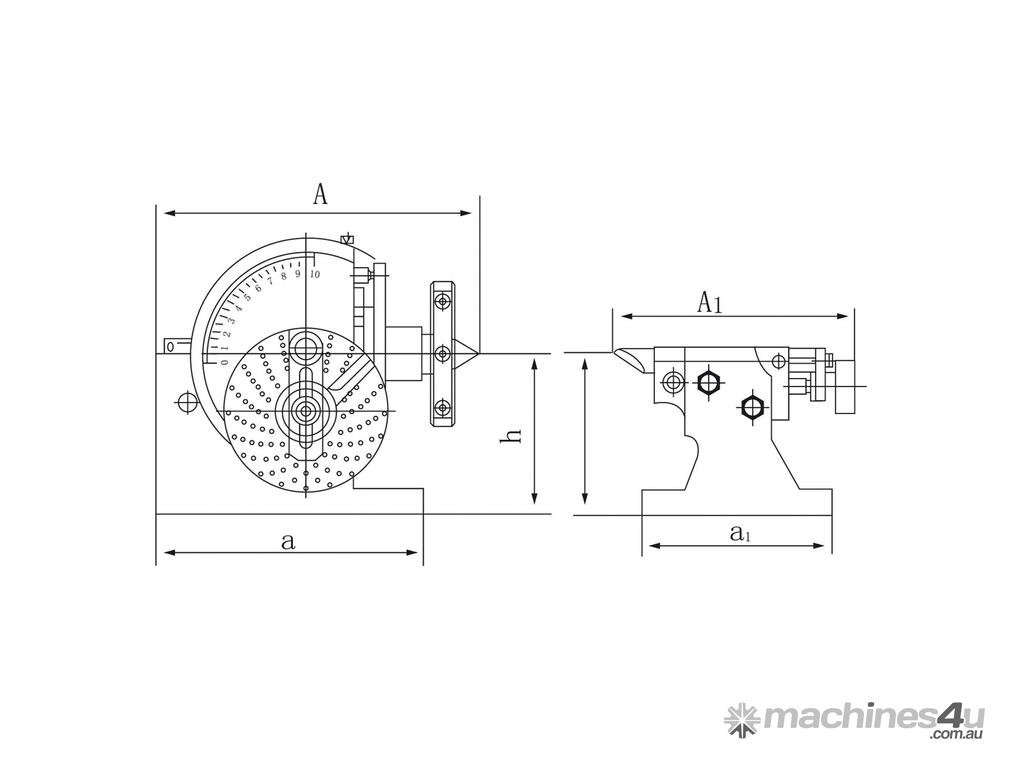

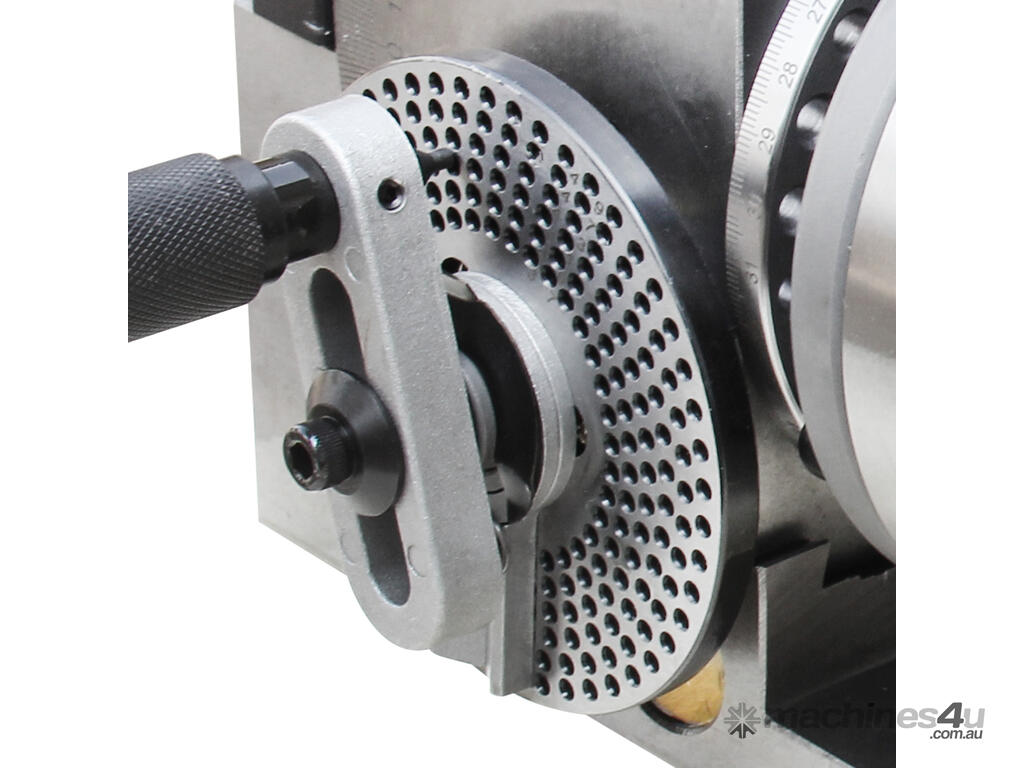

Dividing Plates: Set A (15, 16, 17, 18, 19, 20), Set B (21, 23, 27, 29, 31, 33), Set C (37, 39, 41, 43, 47, 49)

Standard Accessories

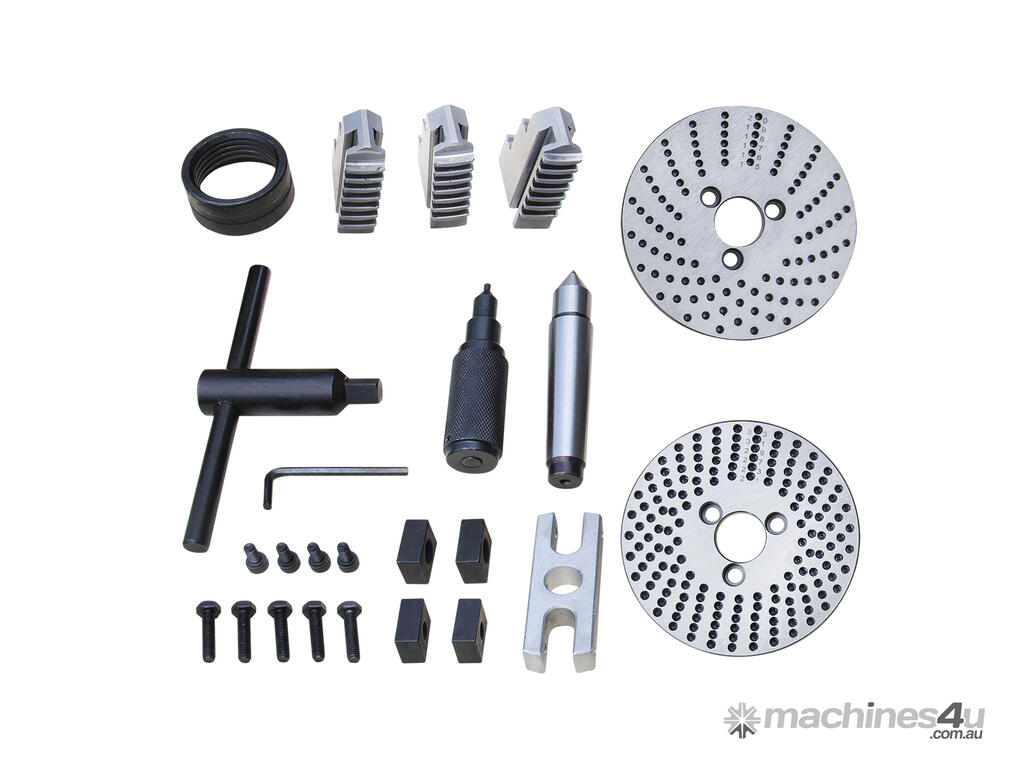

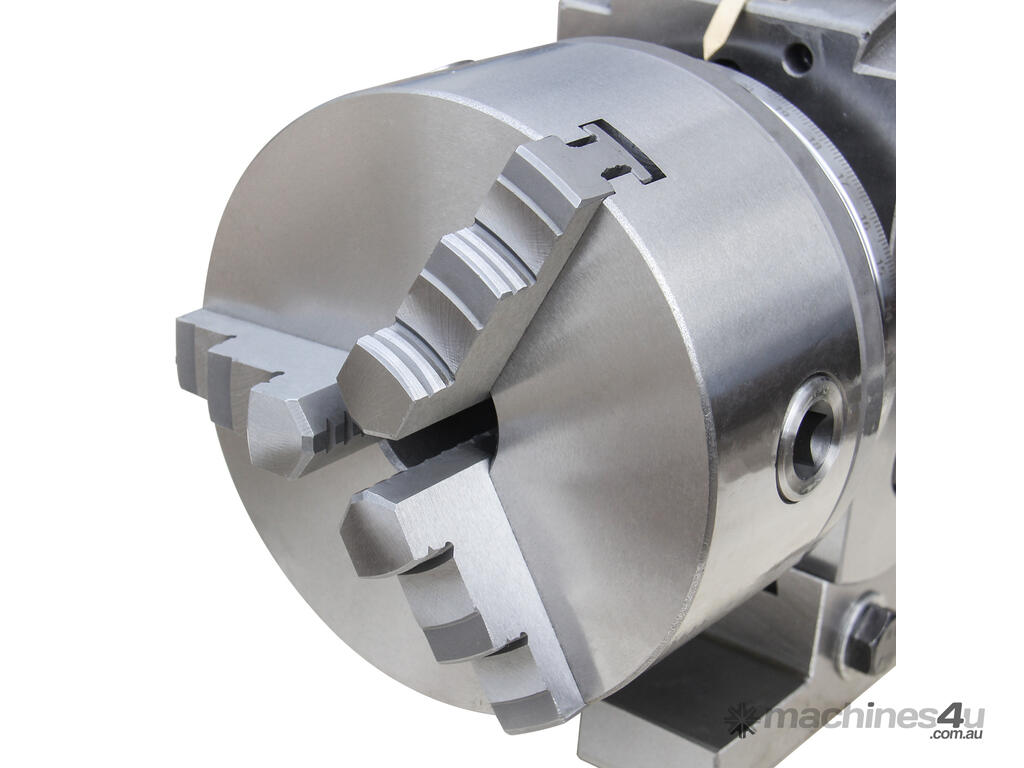

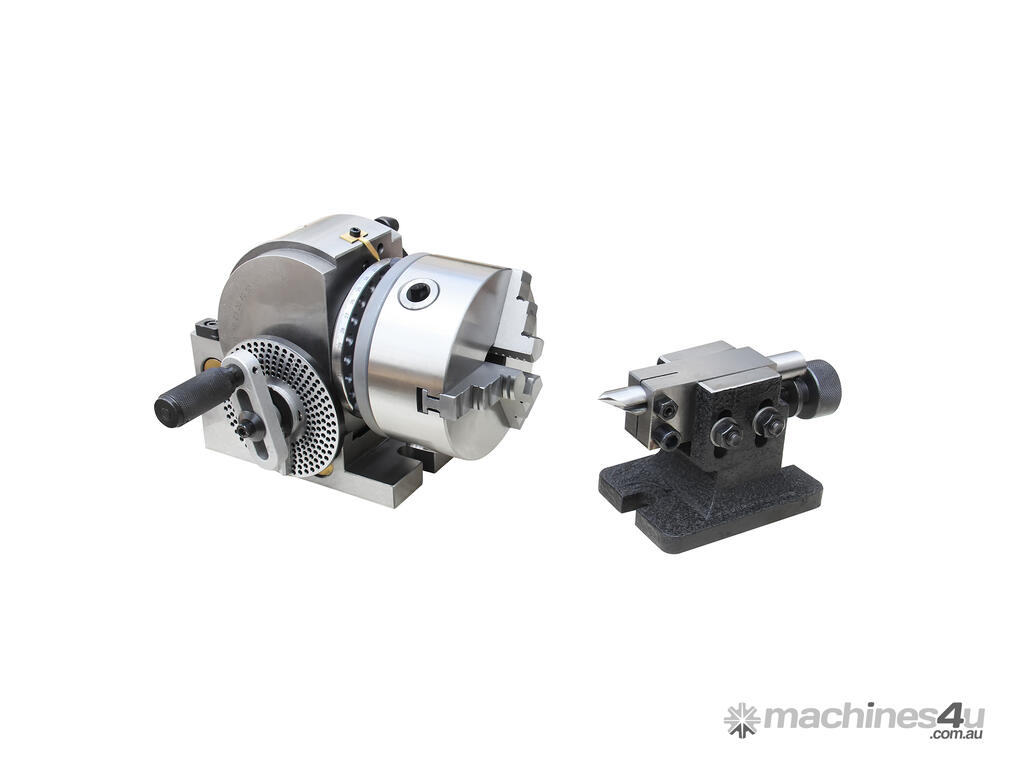

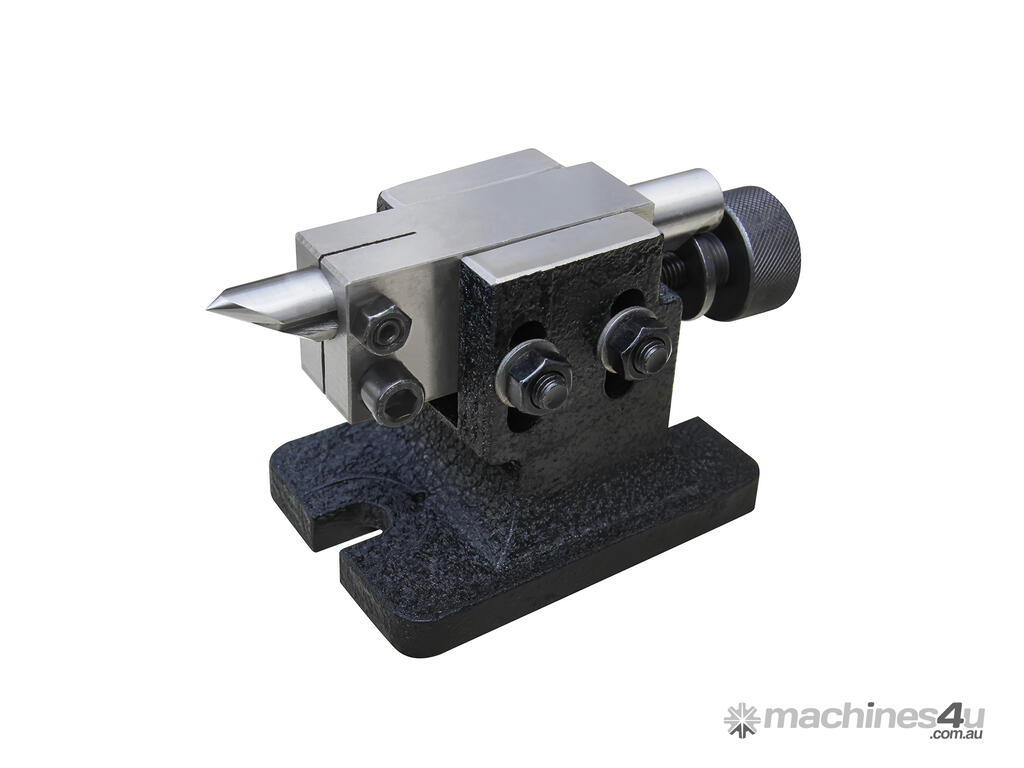

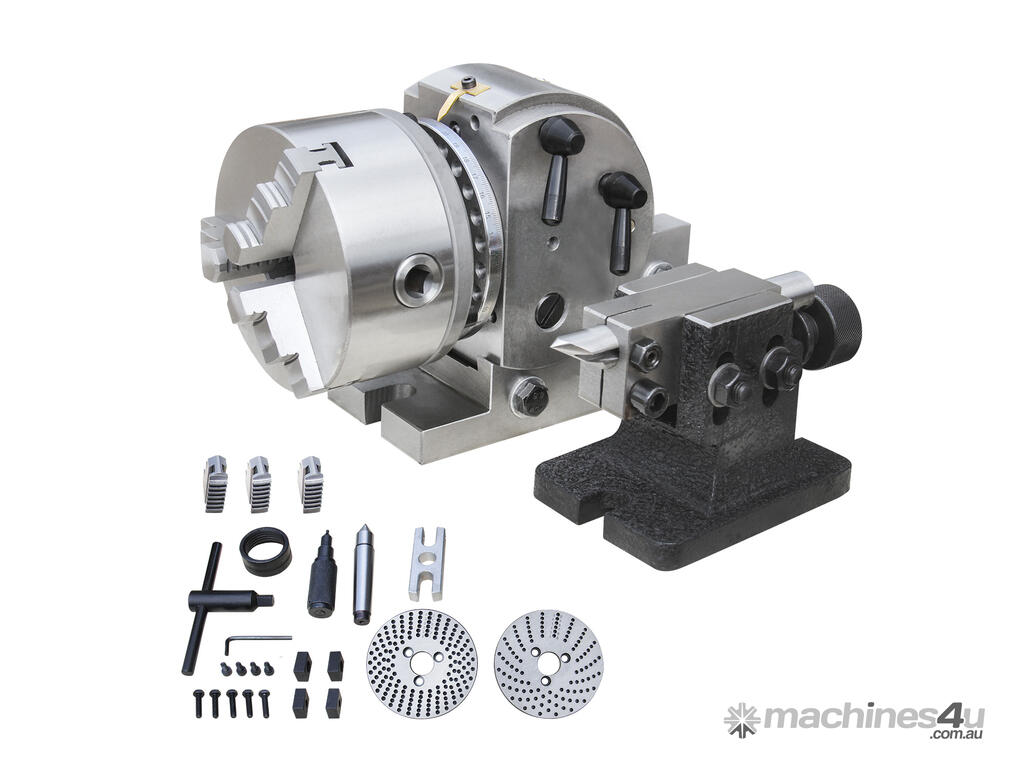

Tailstock, Dividing plate, Dead center, 150mm 3-Jaw Chuck
