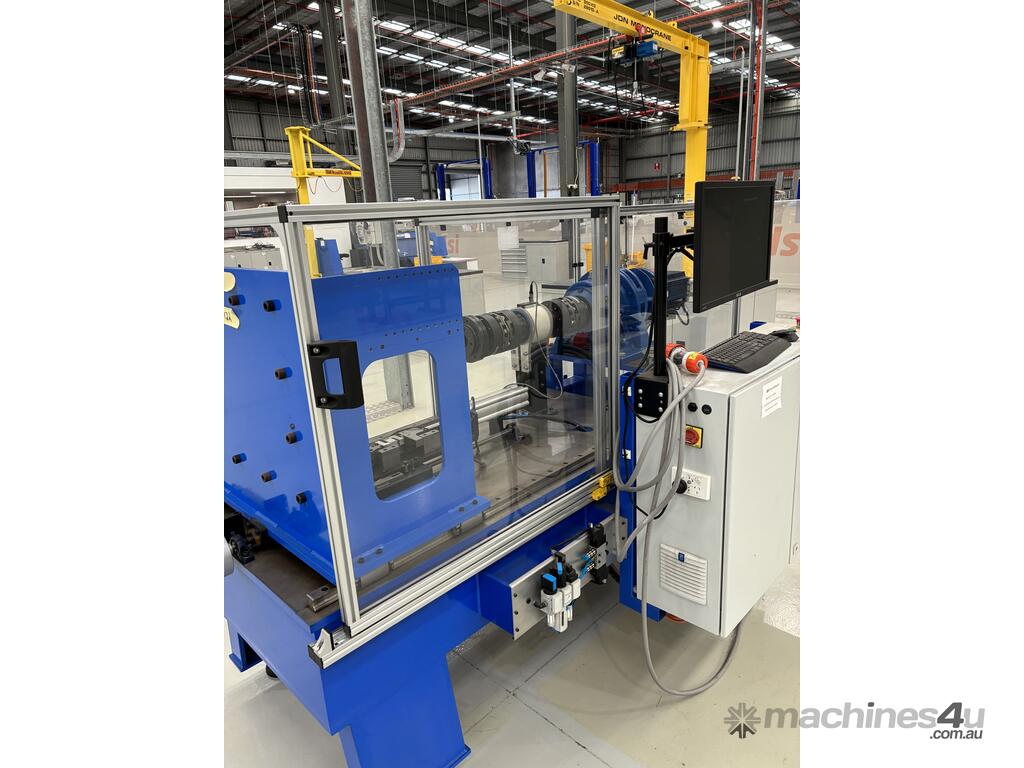

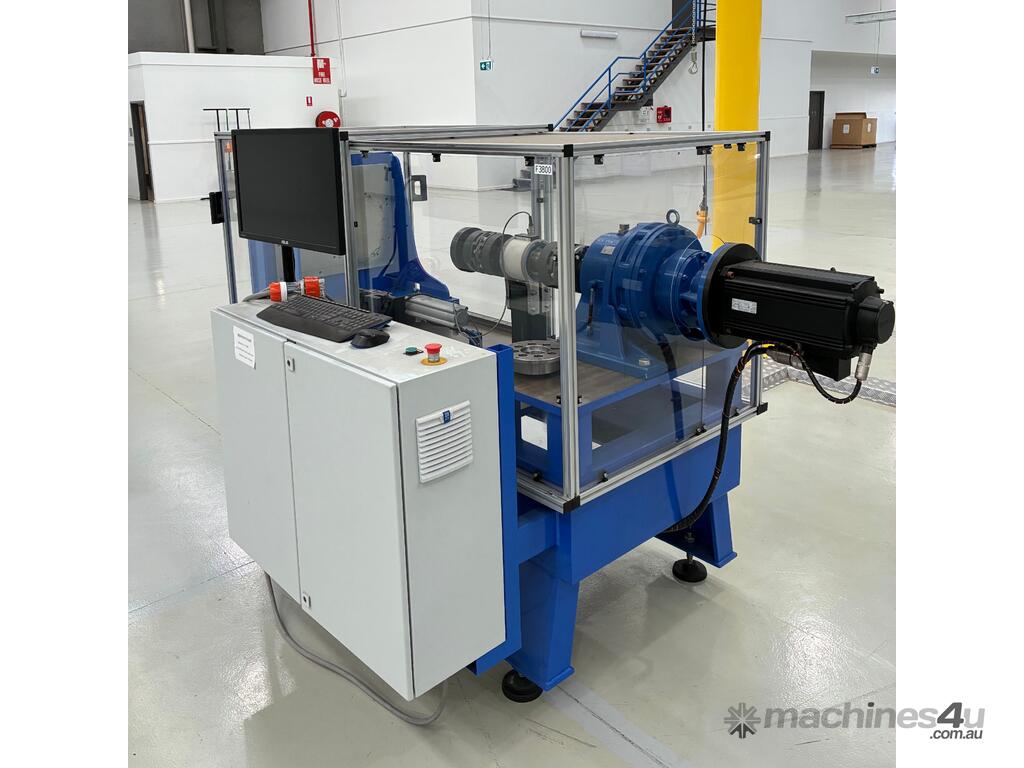

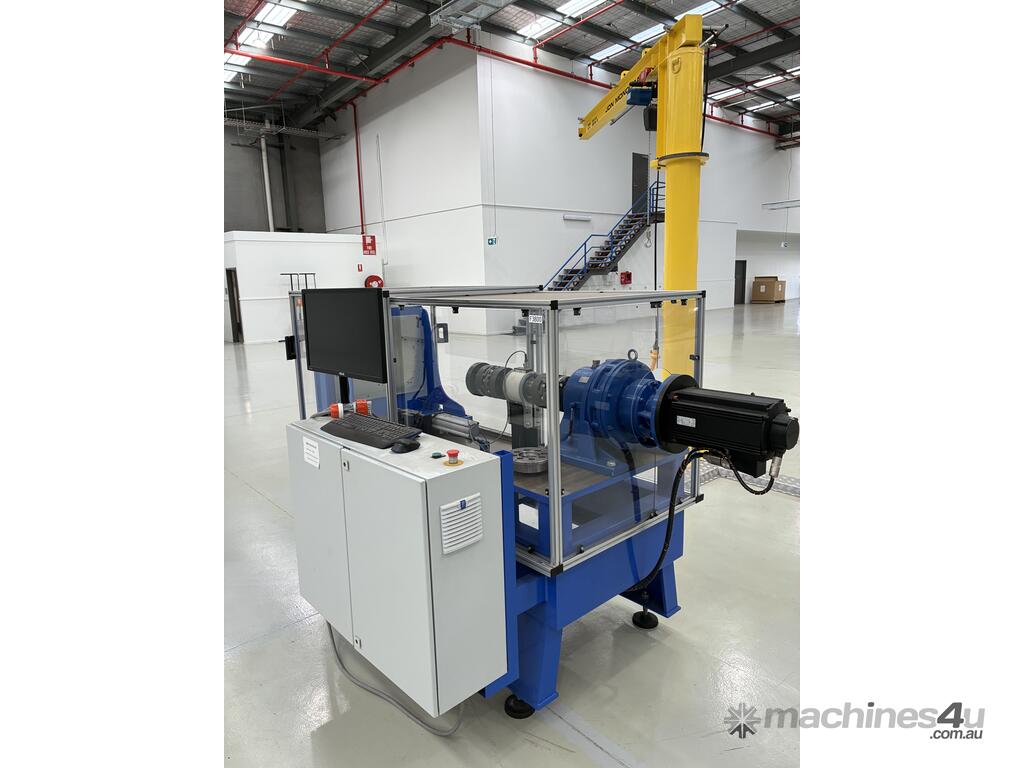

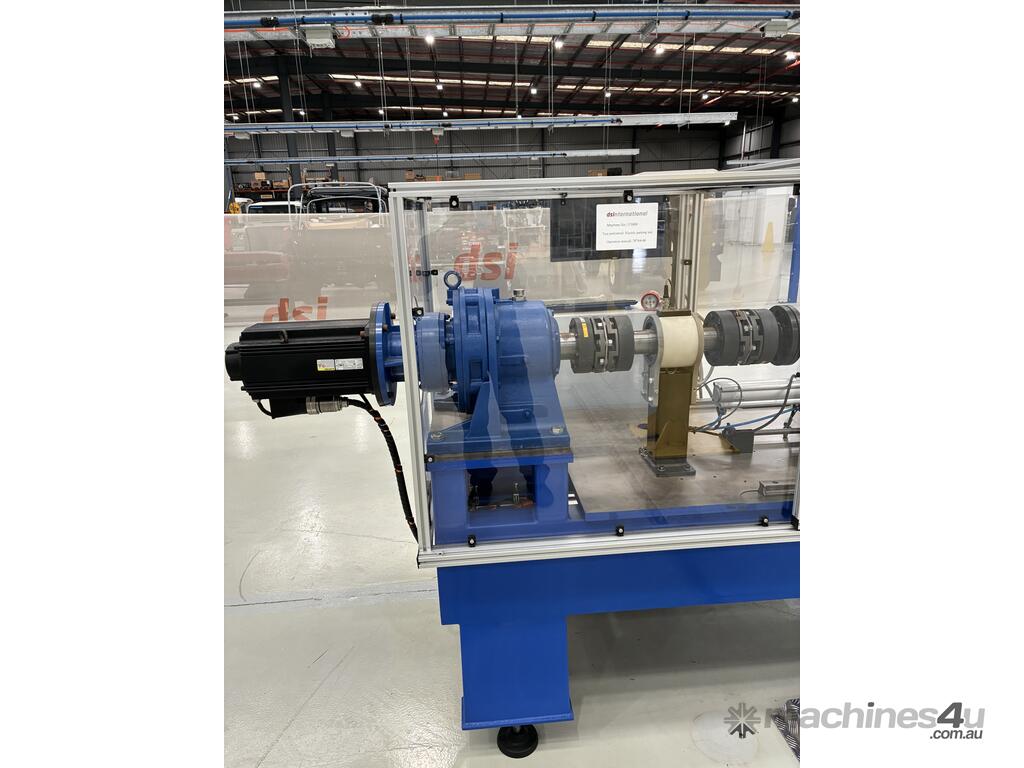

Servo Motor Shaft Testing Rig - Rexroth Motor, Sumitomo Gearbox, 5kNm Transducer

High-precision servo-driven test rig designed for drivetrain, torque, and rotational fatigue testing. Originally developed for transmission parking mechanism durability validation, this industrial-grade system provides exceptional control and measurement accuracy. Clean, well-maintained, and ideal for laboratories, R&D environments, or custom mechanical testing setups.

Technical Description:

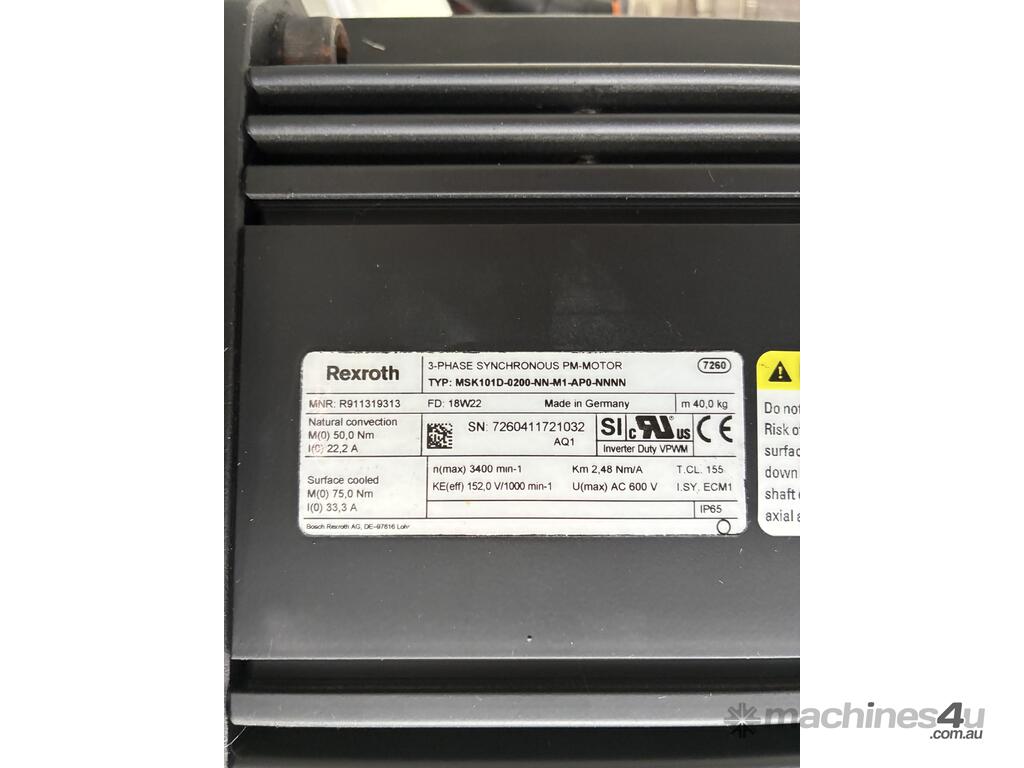

- Rexroth Servo Motor (Model MSK101D) – 3400 RPM, 600V AC, suitable for dynamic load testing

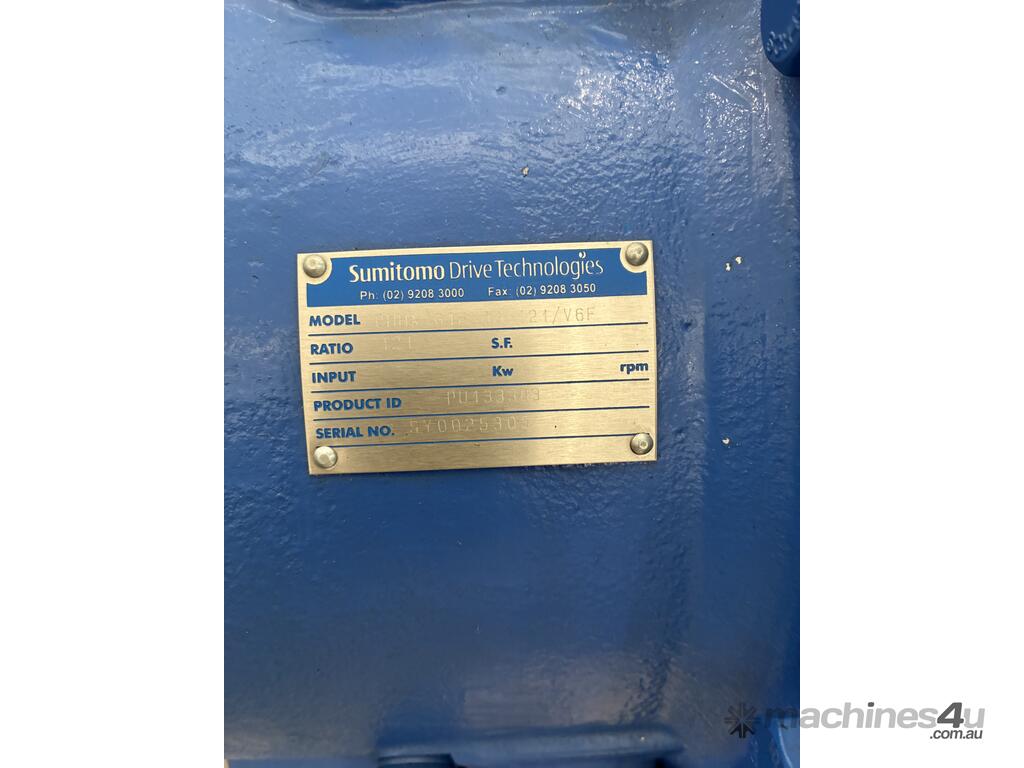

- Sumitomo Gearmotor (121:1 Ratio) – heavy-duty torque reduction and smooth power delivery

- Lorenz Torque Transducer (Model DR-2112) – ±5000 Nm range with ±10V analog output

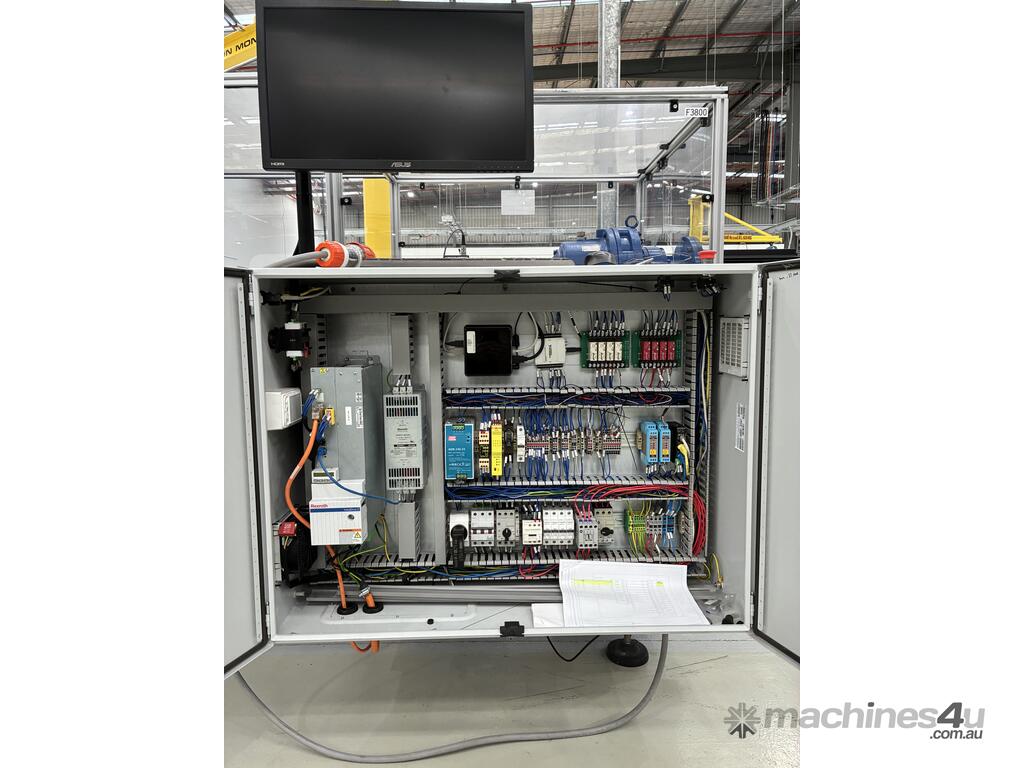

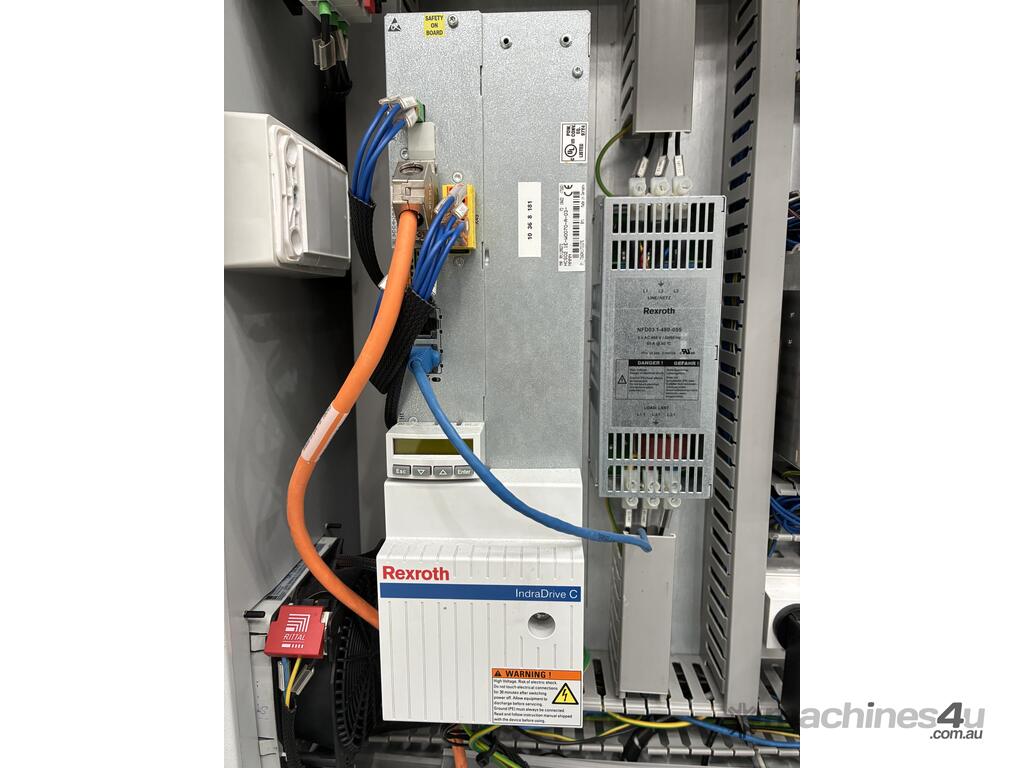

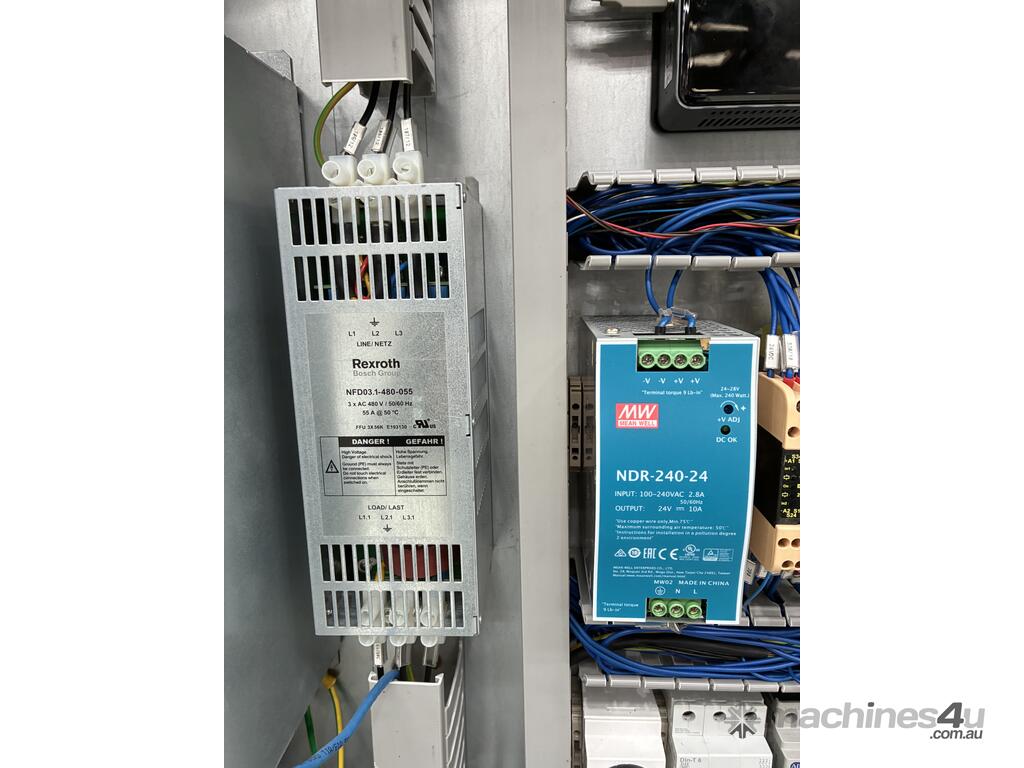

- IndraDrive C Servo Controller with mains filter – reliable motion control and monitoring

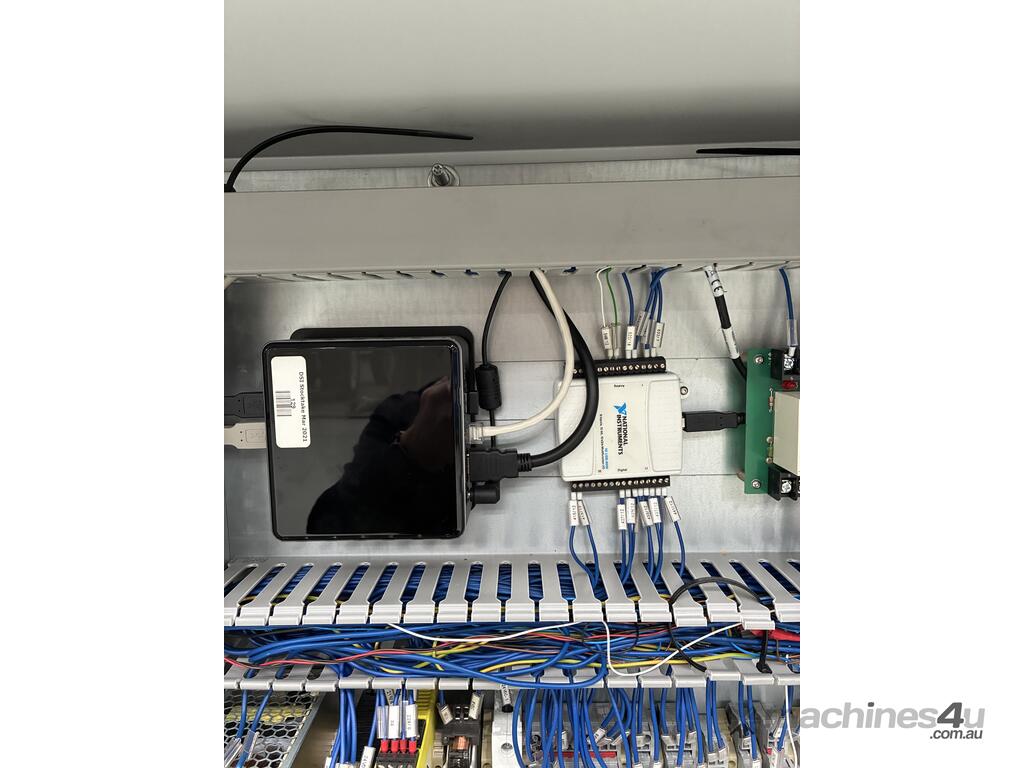

- NUC Industrial PC – prewired for automation or integration with custom control systems

- Control Software – configured for LabVIEW operation and adaptable for user applications

- Heavy-duty industrial steel base table providing excellent stability and alignment

Typical Applications:

- Automatic transmission or gearbox durability testing

- Shaft, coupling, and torsional component validation

- Rotational fatigue and endurance studies

- Clutch, flywheel, and mechanical sub-assembly testing

- Custom simulation, torque calibration, and R&D use

Item is in used condition, sold on an as is, where is basis. Photos form part of the description.
Pickup only, we can assist with loading and have a forklift onsite. In special circumstances, freight may be organised at the buyer’s cost.
Inspection available upon request prior to purchase.
