Provide complete metal cutting functions, including hydraulic downfeed, auto lifting frame, auto feeding and high selection with continuous cutting.
FEATURES
Heavy duty automatic machine

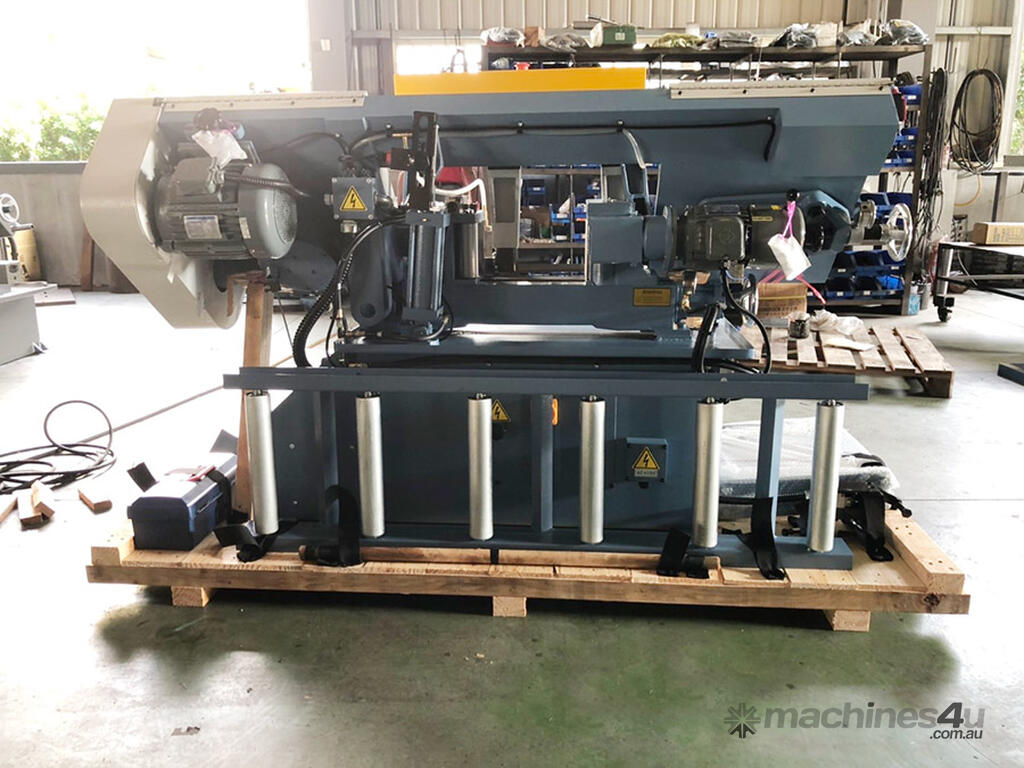

Roller type bar feed for continuous automatic cutting
Designed for accurate 90 degrees cutting

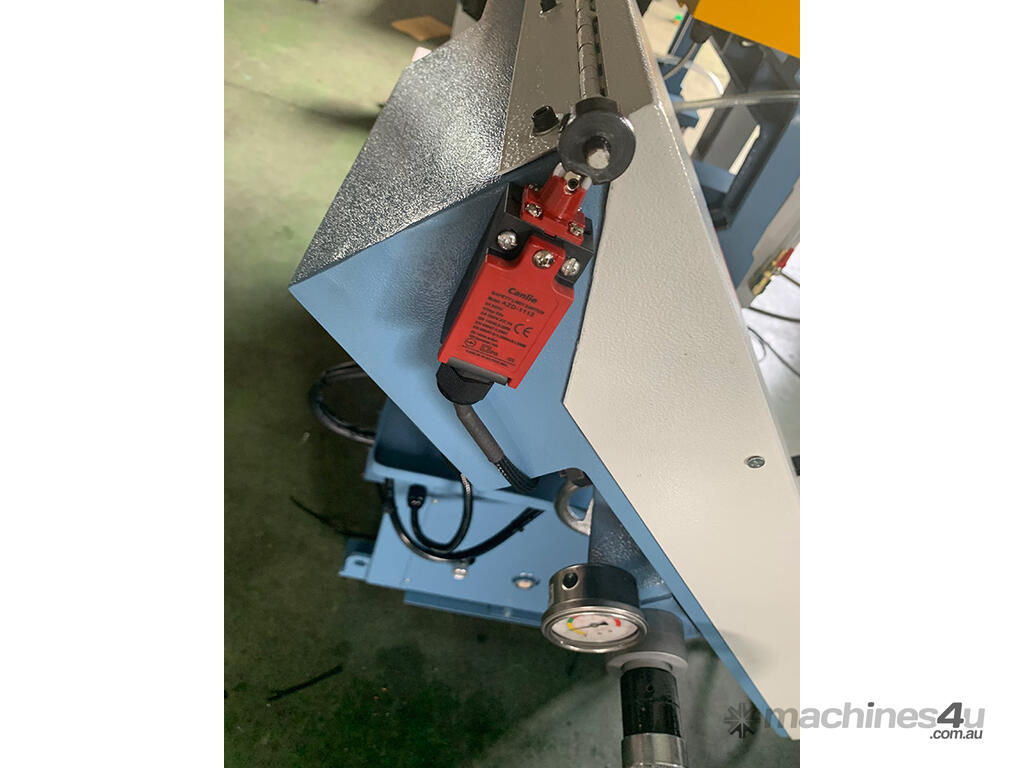

Automatic blade breakage power off system
Out of stock sensor
Counting device
Work light fitted standard
Instant blade tension
Large tungsten carbide blade guide
Adjustable rod for the same cutting length
Specifications

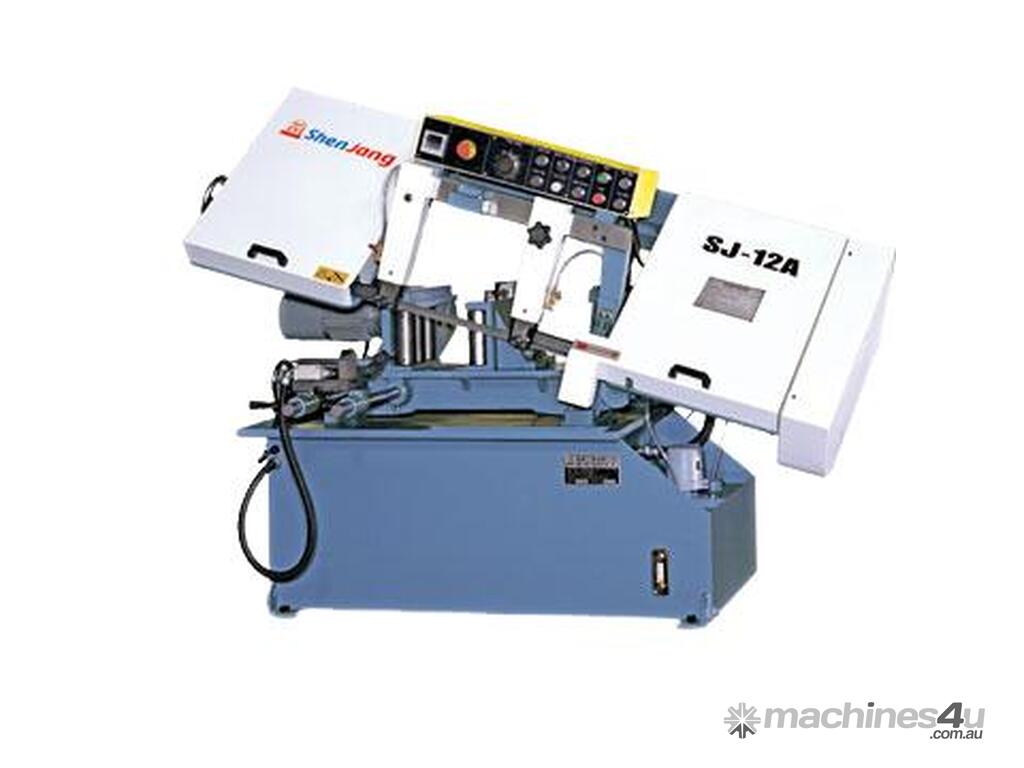

SJ-12A
Capacity at 90
12" (300mm) 10" (260mm) 8"x 13" (200x330mm)
Blade size
1"x150 3/8"(27mmx0.9mmx3820mm)
Motor
3HP(2.25KW)
Speed range
45,75,90,120,150,240 FPM(14,23,27,36,46,73 MPM)
Packing size
82" x 37" x 52" (209cmx95 1/2cmx132cm)
Net weight
900Kgs (1980ibs)
Gross weight
1000Kgs (2200ibs)
