Shop Press HP-25S, Manual Hydraulic Press, 25 Tonne Workshop Press & Fixed Hydraulic Ram

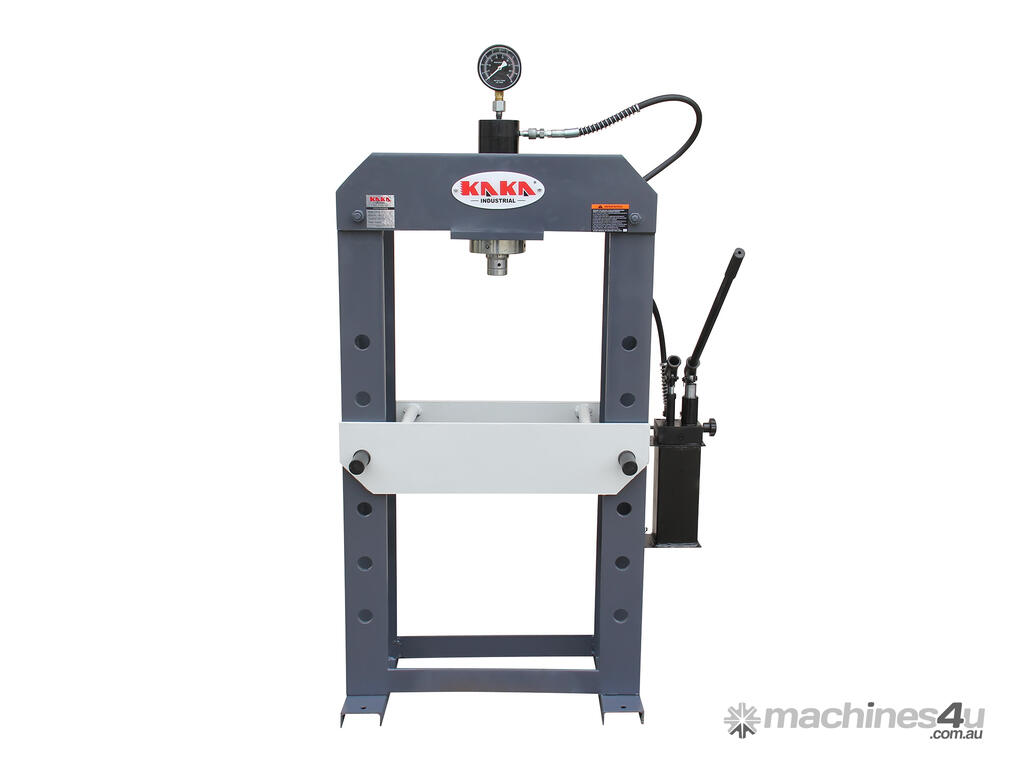

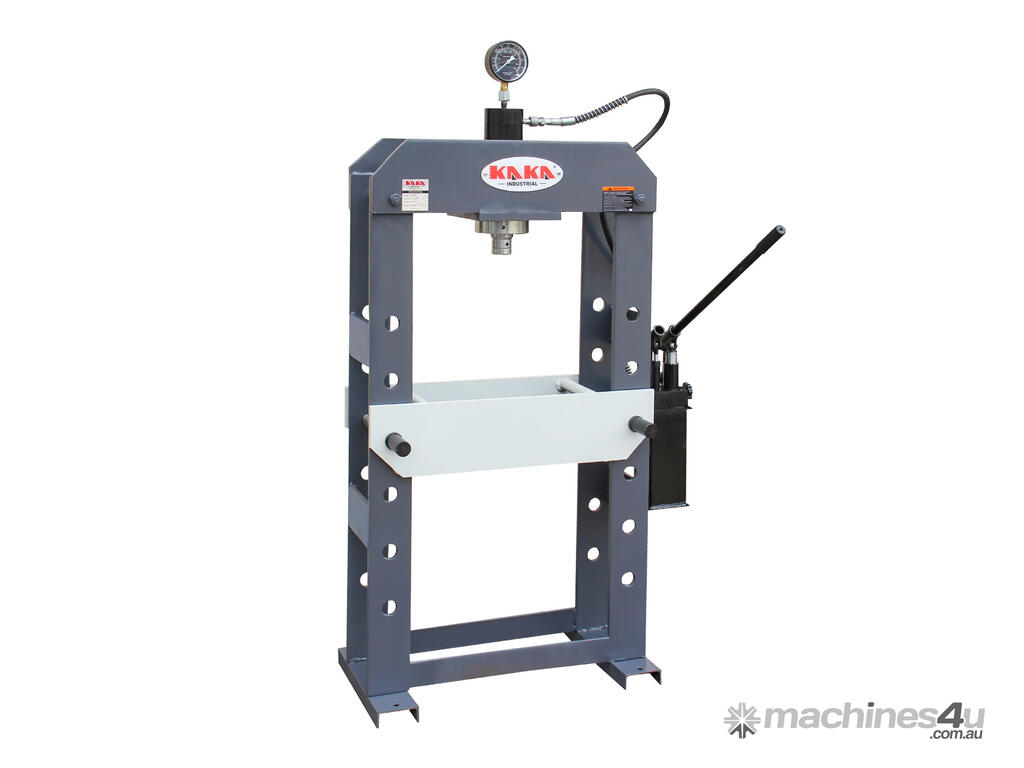

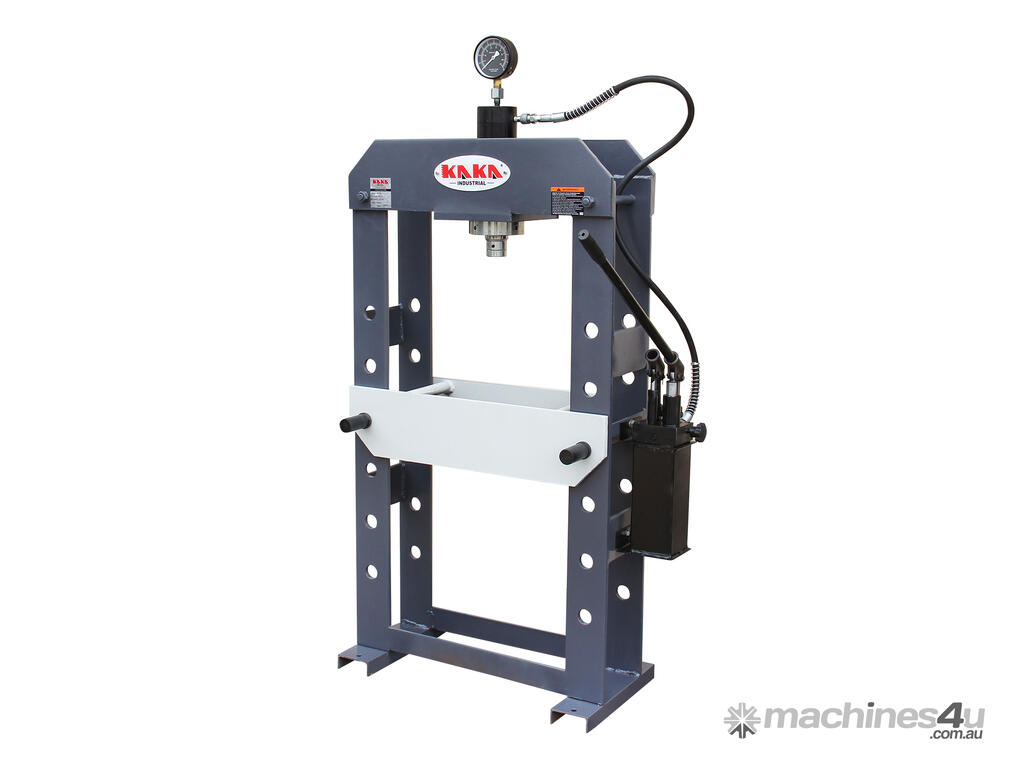

H Frame Manual Hydraulic Press HP-25S

The KANG HP-25S is a robust manual hydraulic H-frame shop press engineered for demanding workshop and industrial applications, such as bending, straightening, clamping, and pressing components like bearings, gears, pulleys, and universal joints. It incorporates a single-acting cylinder with a 200 mm stroke for controlled force application and a manual hydraulic pump that requires no external power source, ensuring reliable operation in various settings. The press features heavy-duty welded channel iron construction with a reinforced triangular base for enhanced stability and longevity under high loads

Power-Independent Operation H Frame Shop Press. The manual hydraulic pump eliminates the need for electricity or air compressors, making it ideal for remote or off-grid locations where power access may be limited.

Heavy-Duty Durability Press Machine. Built with welded iron framing and a reinforced base, it withstands rigorous use in harsh environments, including dusty mines, humid coastal areas, or high-temperature sheds.

Precision and Control. The single-acting 200 mm stroke cylinder provides accurate, repeatable pressing with minimal effort, enhancing safety and efficiency for tasks like vehicle repairs or machinery assembly.

Versatile and Compact Design Shop Press. With adjustable bed heights and a space-efficient H-frame, it's easy to integrate into small garages or mobile setups, supporting a wide range of applications from hobbyist projects to professional fabrication.

Features

Steel-welded H-frame workshop press, 25-tonne pressure

Fixed central position ensures precise pressing during the operation

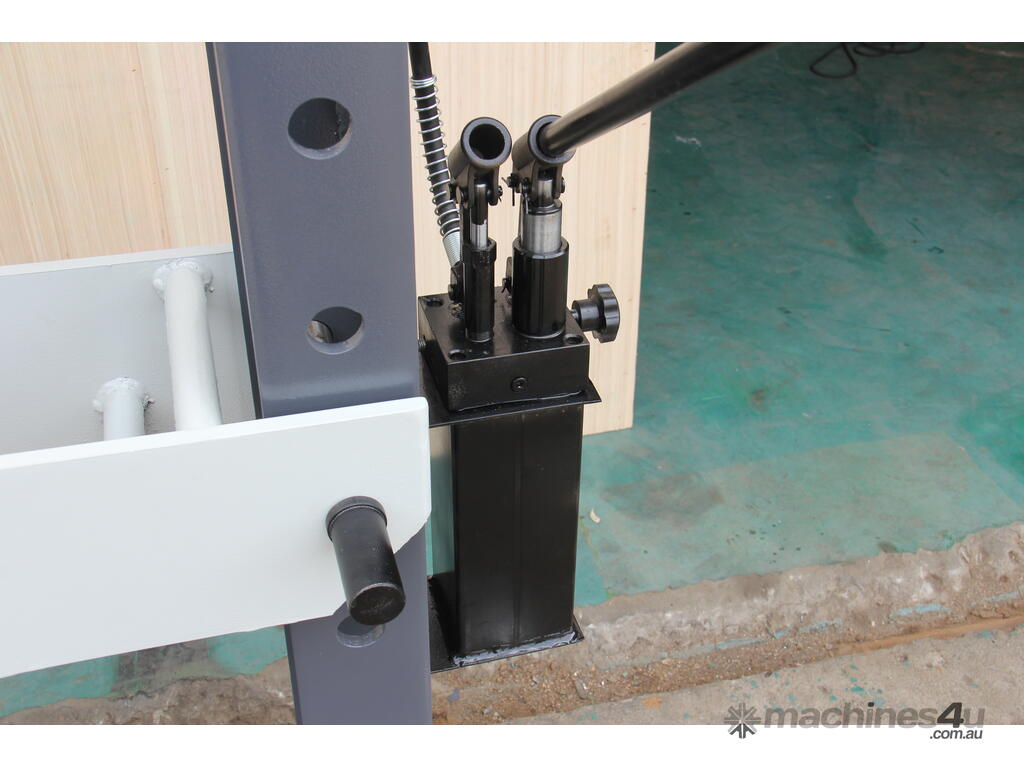

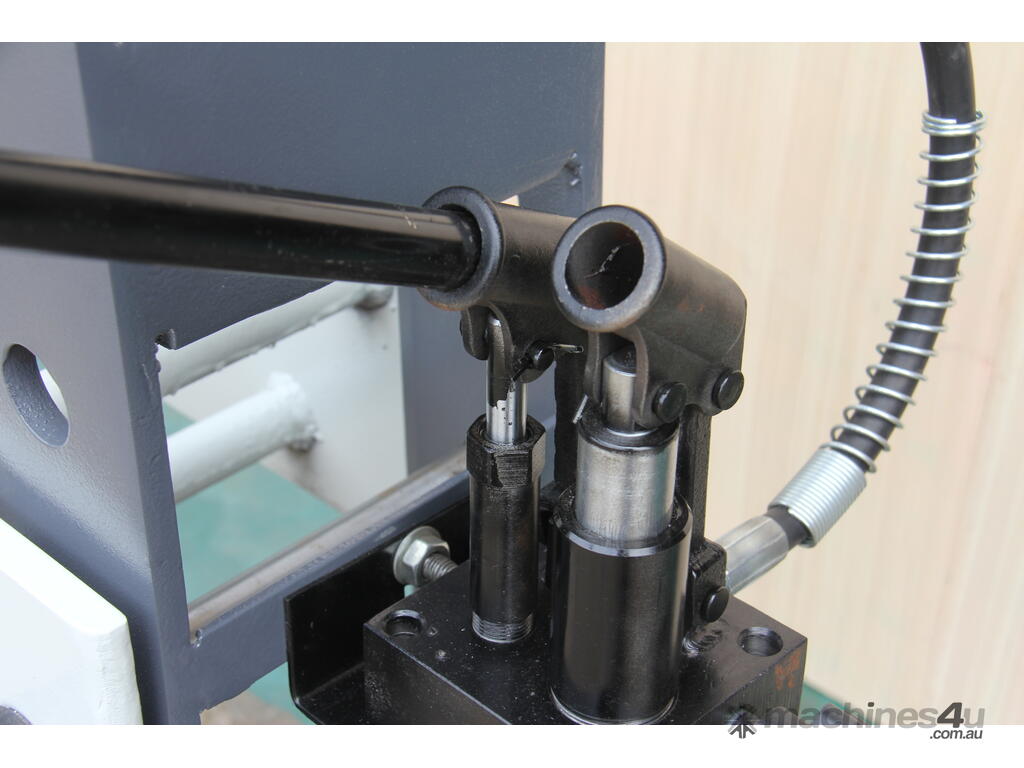

Double-speed control of the hydraulic cylinder by the hand pump

Quickly release the pressure of the pressure machine

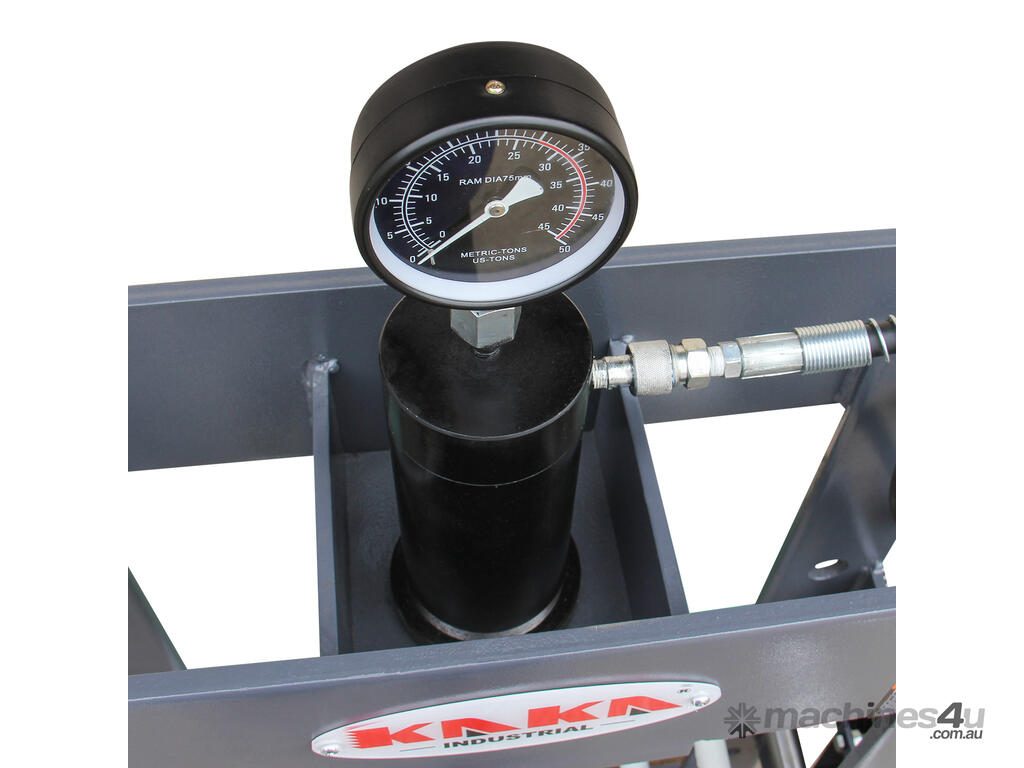

Built-in pressure gauge provides exact pressure reading, ideal for professional mechanics or industrial workshops

For the removal and press-fit of bearings, bushings, etc. Provide a wide application for your workshop with this H-frame shop press

Specifications
Model HP-25S
Item ID. 182122
Pressure 25 Tonne
Hydraulic ram operation Hand Pump
Sliding ram (left-right) No.
Hose Length 1400
Reservoir Capacity 2L
Max. Piston Stroke (mm) 200
Hydraulic Cylinder OD (mm) 95
Piston Rod Diameter (mm) Piston 48 / Rod 56
Piston Speed 3 mm/press
Max. Distance: Ram to Table (mm) 690
Min. Distance: Ram to Table (mm) 40

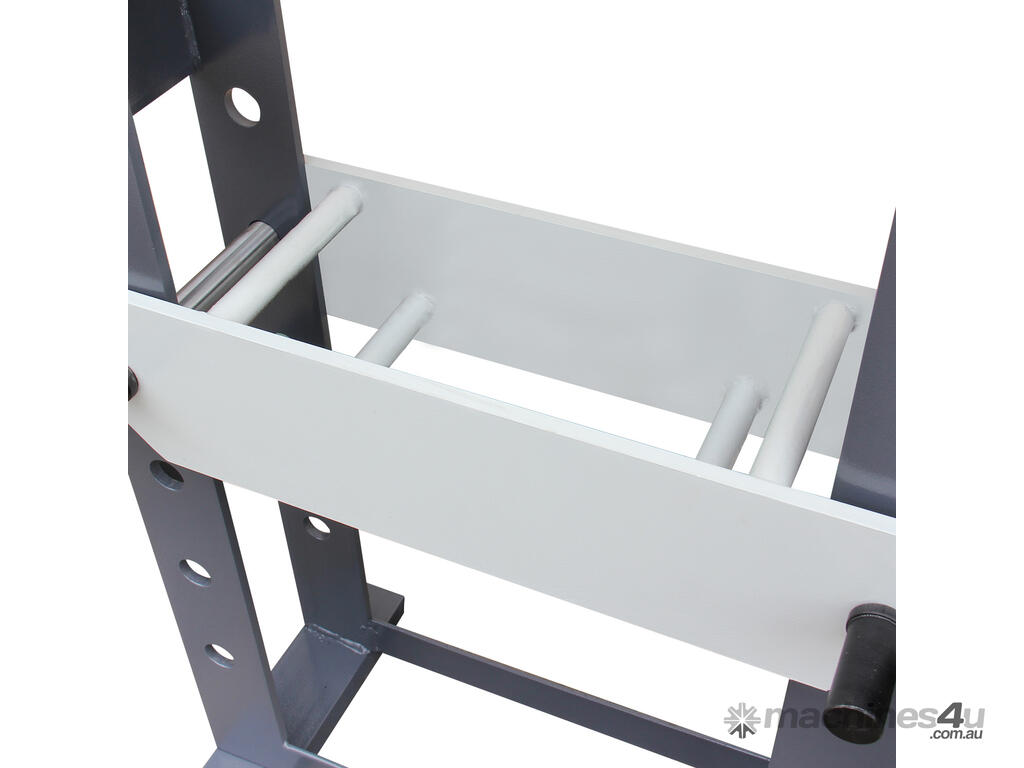

Table Length (mm) 310
Table Width (mm) 245
Table Pin Diameter ?33
Number of Adjustment Holes 6
Adjustment Hole Spacing (mm) 135
Overall Height (mm) 1550
Overall Width (mm) 400
Overall Length (mm) 840
Adjustment Hole Diameter ?34.5
Inner Frame Width (mm) 500
Packing size 173x98x60 cm
N.W./G.W. 168/210 kg
