Shredder Mobile, Waste

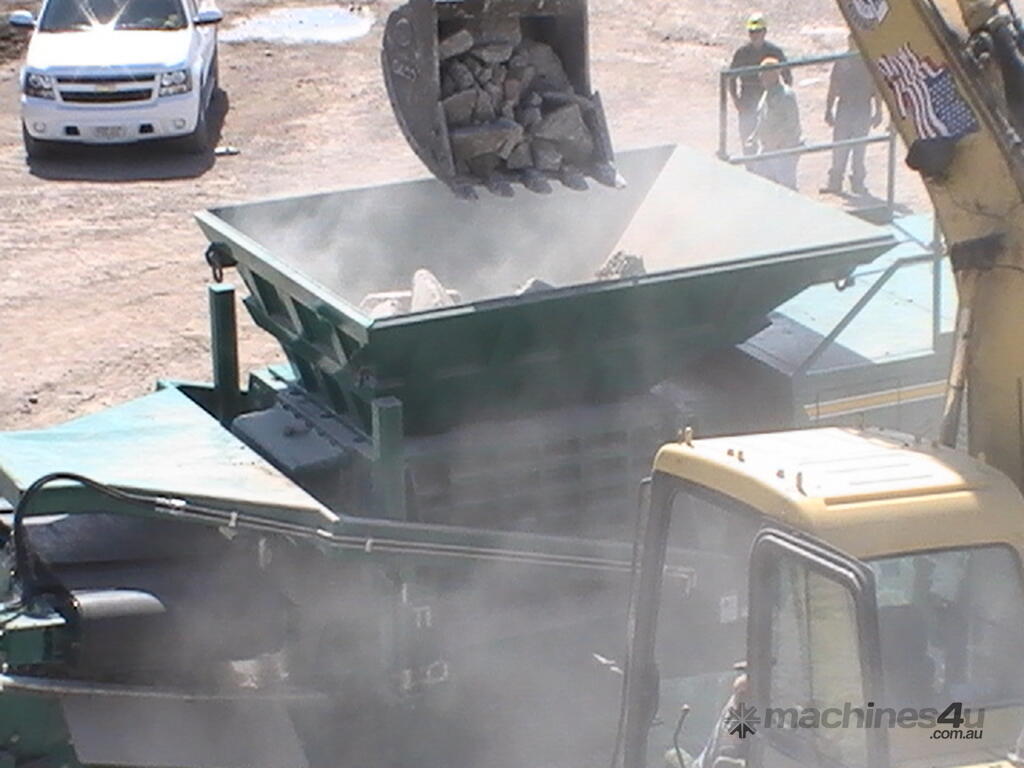

The Badger has the ability to process larger pieces of concrete with rebar, in most cases, without having to densify it first. This eliminates the need of a hydraulic pre- processor in your recycling operation.

The Badger produces less noise pollution and dust than other types of crushers or impactors.

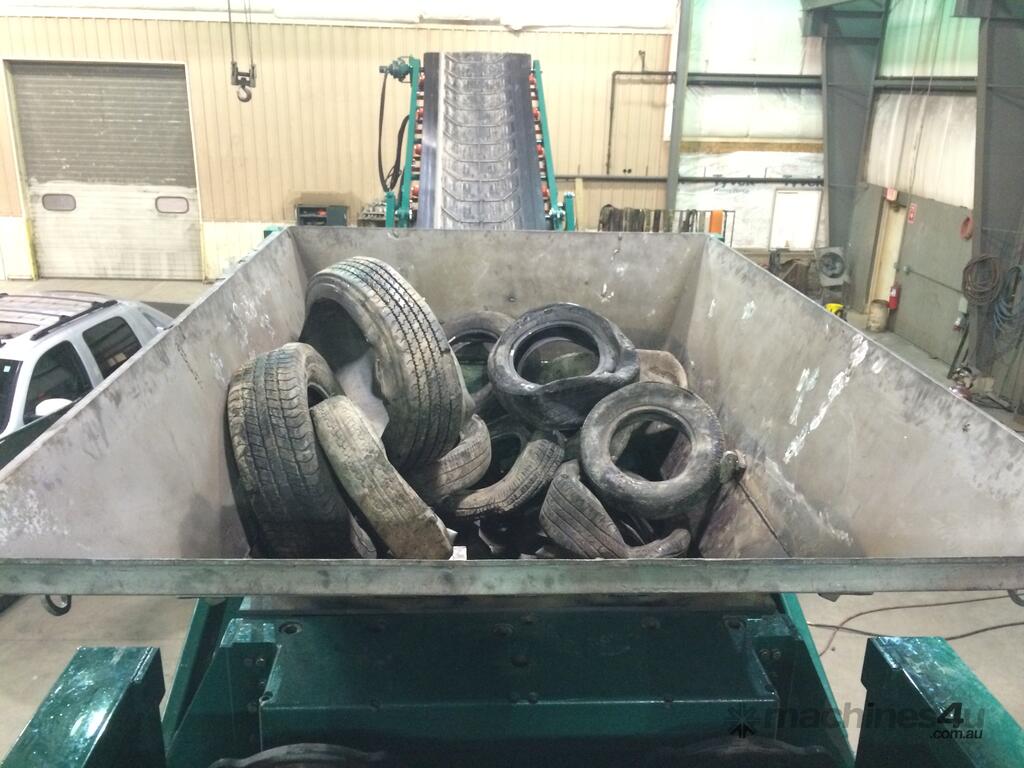

The Badger has the ability to process many types of materials, making it a much more versatile machine.

Slow rotation of the shafts extends the life of the wear parts.

Badger blades are designed with replaceable wear parts. This ensures less down time and no need for expensive welding.

The onboard computer system makes the Badger a very user friendly shredder.

STANDARD MODELS Model B-200 Model B-300 Model B-400 Model B-600

ENGINE/POWER UNIT
Standard Diesel:
Cummins T4F
Horsepower: 460 HP
Cummins Tier III
Horsepower: 400 HP
Electric Option (2) 200 HP Electric Motors
Unit Weight 34,000Kg
Standard Shredding Chamber Dimensions 1524 X 1830
No. of shafts: 2 ea.
Standard Number of Blades Per Shaft 9 per shaft
Blade Diminsion: Dia 3-3/4" X 31"
Cutting elements per blade 2 ea.
Shaft/Blade RPM 10 to 15 RPM
Machine length in operating mode 44'
Width of belt 48"
Dumping height 3050mm
Overall unit height 3430mm
Overall unit width 3150mm
Estimated Production Capacities:
Concrete With Rebar Up to 200 ton per hour
C&D Up to 75 ton per hour

Badger Shredding Products reserves the right to change or improve all models without notice.
